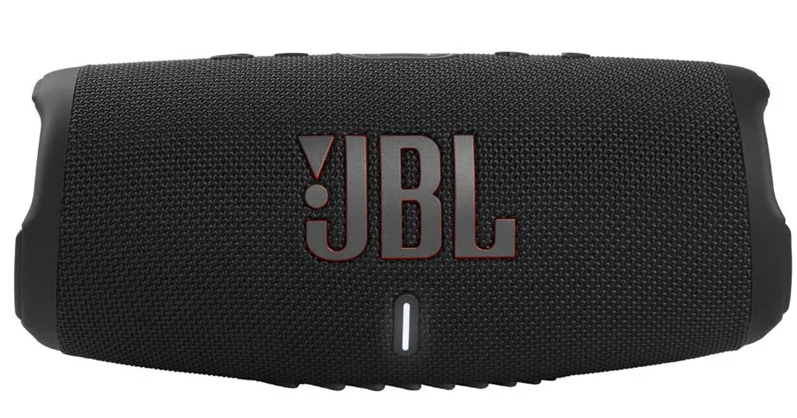

JBL Charge 5 Portable Bluetooth Speaker
Quick Start Guide
Tech Spec
- Transducer: 52 mm x 90 mm woofer, 20 mm tweeter
- Rated output power: 30W RMS for woofer, 10W RMS for tweeter
- Frequency response: 60 Hz – 20 kHz
- Signal-to-noise ratio: >80dB
- Battery type: Li-ion polymer 27 Wh (equivalent to 3.6 V / 7500 mAh)
- Battery charge time: 4 hours (5V/3A)
- Music play time: up to 20 hours (dependent on volume level and audio content)
- USB port: Type C

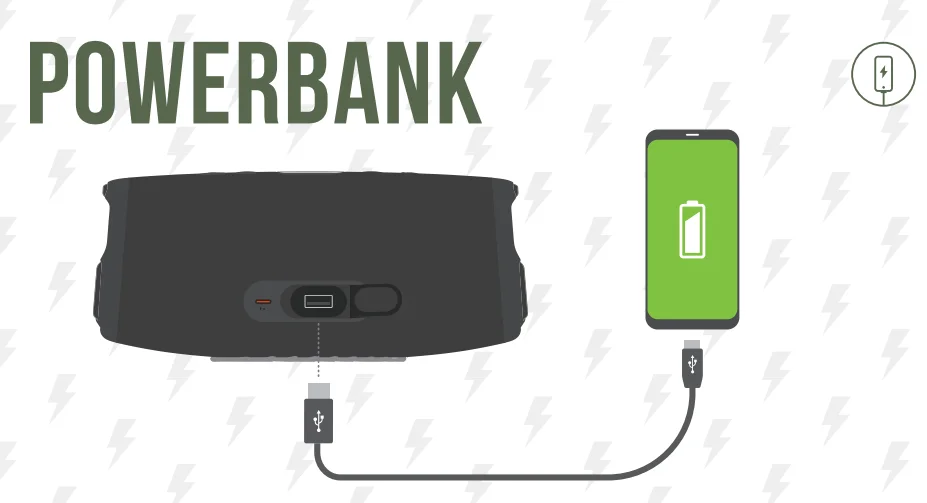

- USB rating: 5V/2A (maximum)
- Bluetooth® version: 5.1
- Bluetooth® profile: A2DP 1.3, AVRCP 1.6
- Bluetooth® transmitter frequency range: 2400 MHz – 2483.5 MHz
- Bluetooth® transmitter power: <10dBm (EIRP)
- 2.4GHz SRD frequency range: 2407 MHz – 2475 MHz
- SRD transmitter power: <11dBm (EIRP)
- Dimensions (WxHxD): 223 x 96.5 x 94 mm / 8.7 x 3.76 x 3.67 inch
- Weight: 0.98 kg / 2.16 lbs
Caution
To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions. Do not expose the JBL Charge 5 to liquids without removing the cable connection. Do not expose the JBL Charge 5 to water while charging. It may result in permanent damage to the speaker or power source.

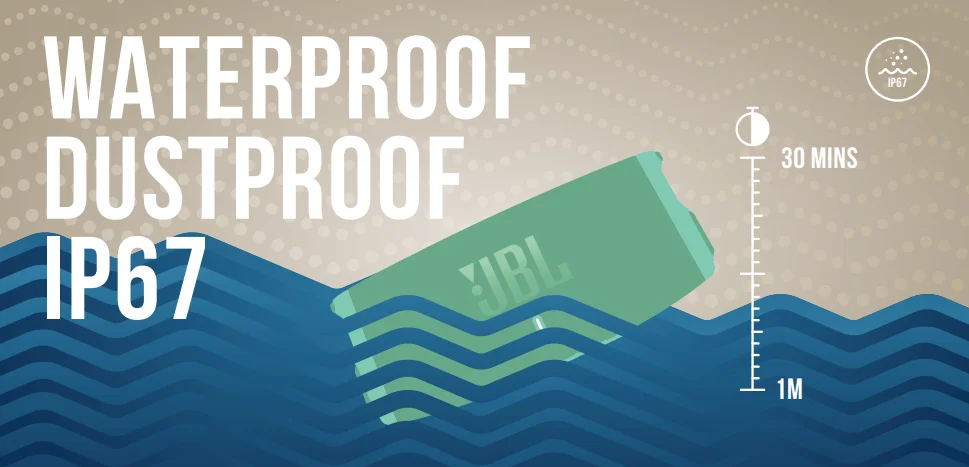

Chemicals, salt, or foreign particles in your pool or the ocean can damage the waterproof seals or harm the connector surface over time if not rinsed off after use. After a liquid spill or rinse, do not charge your speaker until it’s completely dry and clean. Charging when wet might damage your speaker. When using an external adapter, the output voltage/current of the external adapter should not exceed 5V/3A.
The power delivered by the charger must be between a minimum of 7.5 watts required by the radio equipment and a maximum of 15 watts to achieve the maximum charging speed.
The product complies with Commission Regulation (EU) 2023/826 eco-design requirements for off-mode, standby mode, and networked standby energy consumption of electrical and electronic household and office equipment.
1. Information on power consumption
- Off mode: N/A
- Standby mode: ≤ 0.5 W
- Networked standby mode: ≤ 2.0 W
- Networked standby mode if all wired ports are connected and all wireless ports are activated: ≤ 2.0 W
2. The period after which the power management function switches the equipment automatically into:
3. Recommended external adaptor information:
- Power adaptor with rating output: 5.0 V DC, 7.5 W – 15.0 W
- Energy efficiency rating: level VI or complies with corresponding regional or national laws and regulations.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
