Jintaiyi KP36 Handheld Data Terminal

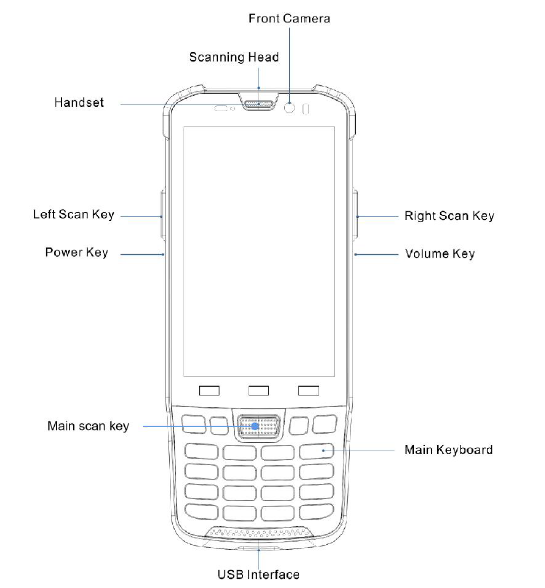

Appearance and Buttons
Package Contents
- Device * 1
- Battery * 1
- Power adapter* 1
- USB cable * 1
- Quick Start Guide * 1
- warranty card *1
Unpacking Instructions
How to install a SIM card and a TF card?

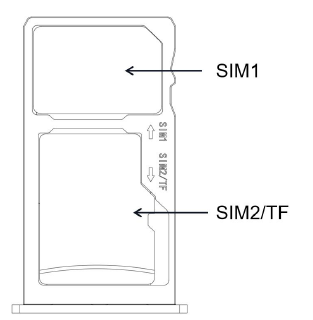

- Take out the SIM card tray(as the picture shows).
- Gently press the SIM card into the tray to secure it. Follow the prompt to insert the TF card into the Memory card slot (as shown).
How to install a battery?

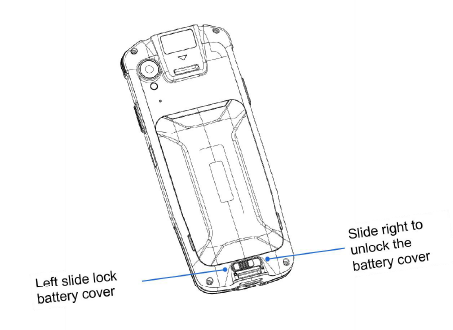

- Please press the slide button to lock or unlock the battery cover switch according to the arrow shown.
- Please refer to the picture below to open the battery cover.
How to charge your device?
Connect one end of the included USB charge cable to the USB connector on your device and the other to the port on the adapter. A cradle charger is recommended for convenient Charging (optional).
Power Options
- Power on: Press and hold the power button for 3s.Power off: press and hold the power button for a while to open the options menu, then you can choose power off or restart on the menu.
- For the first use, please connect to the network first.
- After successfully connecting to the network, you can log in after completing the registration according to the guidelines.
Introduction to Basic Functions
Bar code scanning
You can use the built-in bar code scanning program or a scanning program developed by yourself. Press the scanning button to scan bar barcode. Press the scan key in the center of the main keyboard to scan.
WIFI connection
On the home screen, click “Settings”; enter the network and Internet settings, click the open WLAN switch, search for the WLAN you need to connect to, and click to connect. If you select an encrypted network, please enter the access password to connect.
Note: When WLAN and mobile network data are turned on at the same time, the system will give priority to connecting to the LAN. For example, when the WLAN is interrupted, the system will automatically switch to the mobile data network.
Mobile Network connection
Please insert the SIM card. The device will automatically register with the corresponding network. Please turn on the mobile network switch in the settings to start the data service.
Note: when you don’t use network services, please close the data service in time to extend standby time and save data traffic.
NFC function
Please turn on the NFC function switch in the settings. When turned on, you can read cards in the NFC area.
Connect to PC
Connect the device to the computer via the Type-C cable. Select the corresponding drive letter for data copy and other related functions.
Upgrade Instructions
Upgrading the terminal firmware and system with unauthorized third-party software may lead to security risks, such as the terminal being unable to use or divulging your personal information. It is recommended that you upgrade online or download the official website software that matches the terminal. After the terminal upgrade, all your personal information may be erased. Please back up your personal information before upgrading.
Exception handling method
If the device has the following conditions, please refer to the following methods:
If you cannot dial up the Internet by inserting a SIM card, please check whether your SIM card is in arrears, and check whether the device supports the appropriate network mode.
- If the device cannot be connected to a PC, please check whether the contact between the Type-C and the device is good.
- If unable to power on, please check whether the battery is exhausted and cannot be reached.
- If unable to charge, please check whether your device is connected to the charging adapter.
Matters Needing Attention
- In order to avoid unnecessary injury, please read this manual before using the equipment to ensure correct and safe use.
- Please use the accessories approved by the manufacturer and matched with this type of equipment. The use of power supplies, chargers, or batteries that are not approved by the manufacturer may cause fire, explosion, or other hazards.
- Please use the device at the specified temperature. When the ambient temperature is too high or too low, it may cause equipment failure.
- If the equipment uses a non-removable built-in battery, please don’t replace the battery yourself. Please contact the after-sales team if needed.
Please don’t disassemble the product or accessories by yourself. If the equipment or any of its parts can not work properly, you should consult our after-sales team in time, or send the equipment to the after-sales service network for inspection and maintenance. - Please don’t immerse the Type-C cable.
- Do not fill up the fuselage memory; otherwise, it will cause a system abnormality.
- Do not look directly at the beam when scanning, so as to avoid accidental injury to the eyes.
- Do not connect the mainframe to the charger for a long time after charging, so as to avoid accidents and shorten battery life.
Battery Information Caution
- It has a Risk of explosion if the battery is replaced with an incorrect type.
- There are limitations as to how long a battery can operate or be stored before needing replacement. Many factors affect the actual life cycle of a battery, such as heat, cold, harsh environmental conditions, and severe drops.
- When batteries are stored for over six months, some irreversible deterioration in overall battery quality may occur. Store batteries at half of full charge in a dry and cool place, removed from the equipment to prevent loss of capacity, rusting of metallic parts, and electrolyte leakage. When storing batteries for one year or longer, the charge level should be verified at least once a year and charged to half of full charge.
- Please replace the battery when a significant loss of run time is detected.
Battery Safety Guidelines
- The area where the device is charged should be free of debris and combustible materials, or chemicals. Use extreme caution when charging your device in a non-commercial environment.
- Please follow battery usage, storage, and charging guidelines found in the user’s guide.
- Improper battery use may result in a fire, explosion, or other hazard.
- To charge the mobile device battery, the battery and charger temperatures must be between 0℃ and +40℃.
- Do not use incompatible batteries and a power adapter. Use of an incompatible battery or charger may result in risks of fire, explosion, leakage, or other hazards.
- For devices that utilize a USB port as a charging source, the device shall only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.
- Do not disassemble or open, crush, bend or deform, puncture, or shred the battery.
- Dropping any device with a battery on a hard surface may cause the battery to overheat.
- Do not short-circuit a battery or allow metallic or conductive objects to contact the battery terminals.
- Do not modify or attempt to insert anything into the battery. Immerse or expose to water or other liquids, or expose to fire, are prohibited.
- Do not leave or store the device in or near places that might get very hot. Such as a parked vehicle, or near a radiator, or other heat source. Do not place a battery into a microwave oven or dryer.
- Battery usage by children should be supervised.
- Please follow local regulations to promptly dispose of used rechargeable batteries.
- Do not dispose of batteries in a fire.
- Seek medical advice immediately if a battery has been swallowed.
- In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice immediately.
FCC StatementThe
smart handheld terminal has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Specific Absorption Rate (SAR) information
Smartt handheld terminal meets the government’s requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement: The SAR limit of the USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: smart handheld terminal has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the smart handheld terminal kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user’s body and the back of the smart handheld terminal. The use of belt clips, ps holsters, and similar accessories should not contain metallic components in their assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements and should be avoided.
For more manuals by Blogs, visit ManualsLibraryy
Jintaiyi KP36 Handheld Data Terminal- FAQs
What are the key hardware features of the Jintaiyi KP36?
It includes an MTK6761 Octa-Core CPU, 3GB RAM, 32GB storage, 4-inch screen, 5000mAh battery, and a 13MP rear camera. It supports dual SIM, TF card up to 256GB, and has IP65 protection with 1.5m drop resistance.
How do I power on and off the device?
Press and hold the power button until the screen lights up to power on. Press and hold the power button again to access shutdown options to power off safely.
How do I scan barcodes with the KP36?
Use the integrated T20 scanning module. Aim the scanner at the barcode and press the scan button to capture 1D/2D codes efficiently.
What steps should I follow to insert or replace the SIM and TF cards?
Open the card slot cover, insert the nano SIM cards or TF card securely, then close the cover to ensure proper contact and protection from dust and water.
How can I charge the device?
Charge the KP36 via the USB Type-C port with a 5V 2A standard charger. Ensure the device is properly connected to the charger until fully charged.
What is the battery life and how to maintain it?
The device uses a 5000mAh polymer lithium battery. It typically offers long usage per charge; avoid extreme temperatures and use original chargers to maintain battery health.
How do I reset the device if it becomes unresponsive?
Perform a soft reset by pressing and holding the power button for about 10 seconds until the device restarts. For a factory reset, back up data and follow system settings instructions as per the manual.
Is the Jintaiyi KP36 compliant with Google’s e-A3 policy?
The device runs Android 11 with standard Google certification compliance. It supports secure payment protocols and network security as per Google e-A3 policy, ensuring safe operation.
