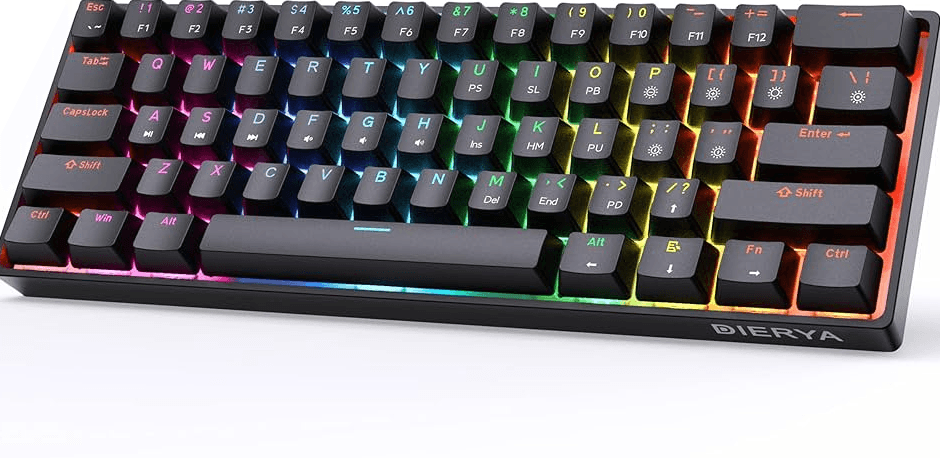

Kemove DIERYA DK63 Wireless Mechanical Gaming Keyboard
Specifications
- Product Name: DK63
- Backlight: RGB
- Battery: 3000 mAh
- Key: 63
- Keys Size: 292.8X101X42mm
- Bluetooth: DIERYA DK63
- Material: Case-ABS, Keycaps-ABS Optional Mode: Wired / Bluetooth / 2.4G
- Interface Type: Type-C / Bluetooth / 2.4G
- Product Weight: 640g=20g
Package Included
Keyboard, Type-C Cable, Keycaps Puller, User Manual, 2.4G Dongle. If you have any problems or need assistance related to this product, please feel free to ask our customer service for help. Email: customer@Kemove.com
Instruction for Using Fn Key

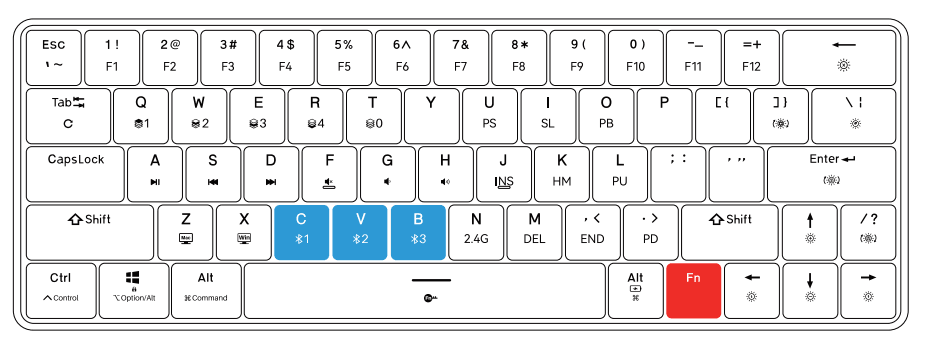

Bluetooth
- Fn+C =BT 1
- Fn+V=BT 2
- Fn+B =BT 3
- Set the switch of the back to Bluetooth mode.
- Long press Fn+C/V/B, the light of the C/N/B key blinks to turn on the Bluetooth pairing and search “DIERYA DK63” to complete the connection pairing.
- Short press Fn+C/V/B to switch to the connected Bluetooth device 1/2/3.
Instruction for Using Fn Key
Profile & Function

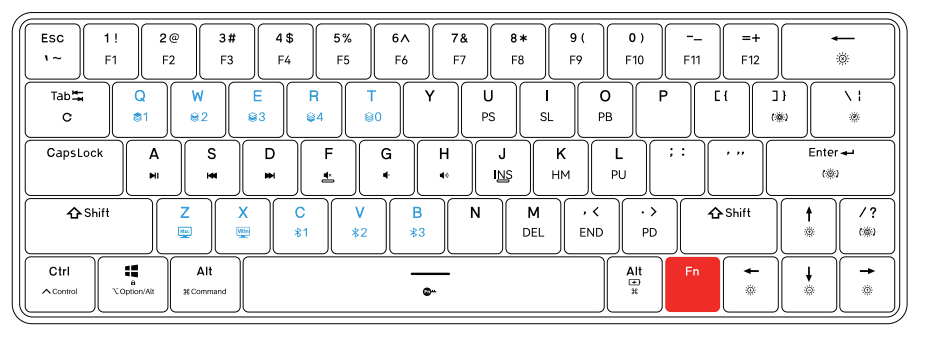

Fn
Check the current configuration layer, system layout, and Bluetooth channel.
- Fn key pressed the lighting key(Q/W/E/R/T) corresponded to the current configuration layer.
- Fn key pressed, the lighting key (Z/X) corresponded to the current system.
- Fn key pressed, the lighting key(C/V/B) corresponded to the current channel of Bluetooth.

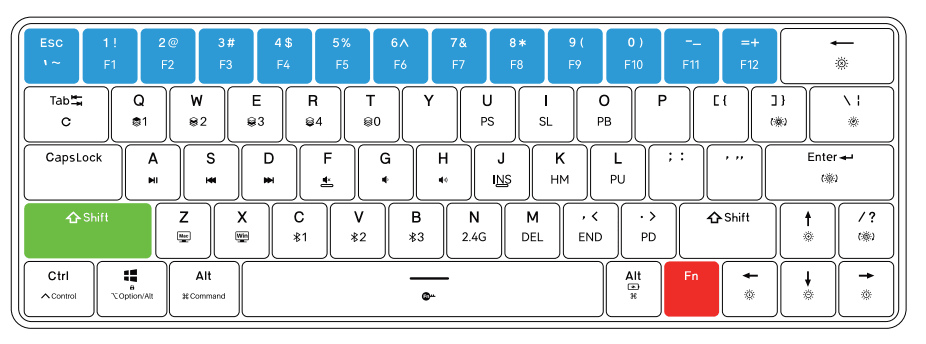

- Fn+1: F1
- Fn+2: F2
- Fn+3: F3
- Fn+Esc:’
- Fn+4: F4
- Fn+5: F5
- Fn+6: F6
- Fn+Shift+Esc: ~
- Fn+7 : F7
- Fn+8: F8
- Fn+9: F9
- Fn+0: F10
- Fn+-_: F11
- Fn+=+: F12

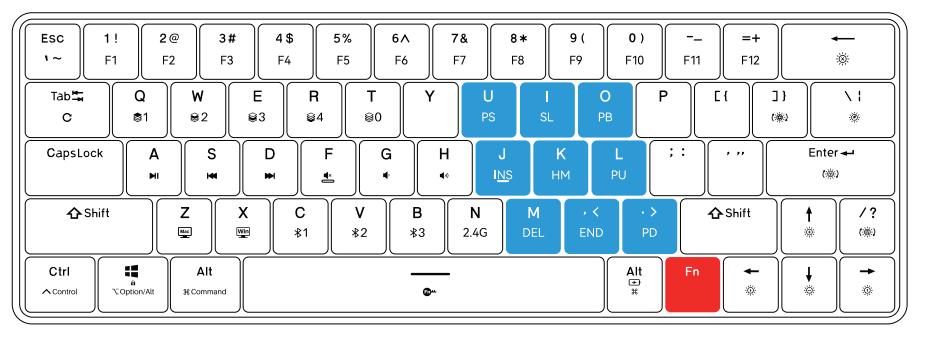

- Fn+U: PrtSc
- Fn+l: ScrLK
- Fn+0 : Pause
- Fn+J: Ins
- Fn+K: Home
- Fn+L: Pgup
- Fn+M: Del
- Fn+, <: End
- Fn+.>: PgDn

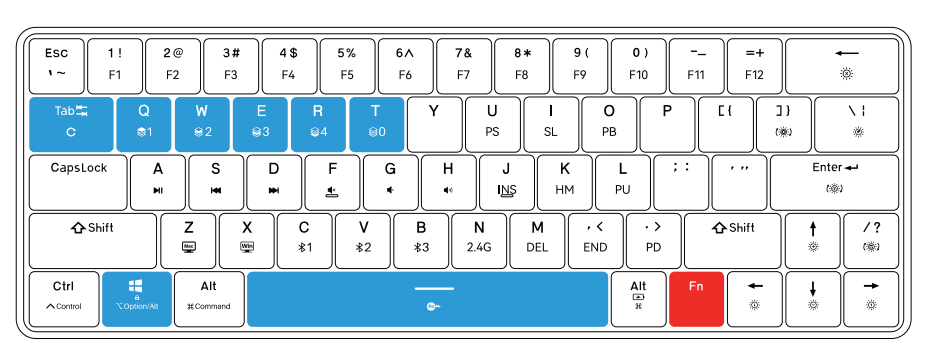

- Fn+Q: Profile 1
- Fn+W: Profile 2
- Fn+E: Profile 3
- Fn+R: Profile 4
- Fn+T: Profile 0
- Fn+Tab: Press long until the light of the keyboard blinks, and the keyboard reset to the factory default settings.
- Fn+Win: Win key locked/unlocked (Win key light changes to white when locked, it follows current light mode when Win key is unlocked.)
- Fn+ Spacebar: Fn key locked/unlocked (Fn key flashes red light when locked, it follows current light mode when Fn key is unlocked.)

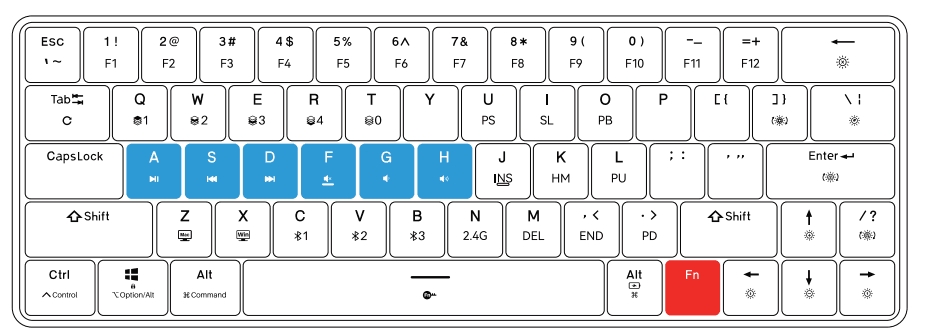

Multi-Media
- Fn+A: Play / Pause
- Fn+S: Previous song
- Fn+D: Next song
- Fn+F: Mute
- Fn+G: Volume down
- Fn+H: Volume up

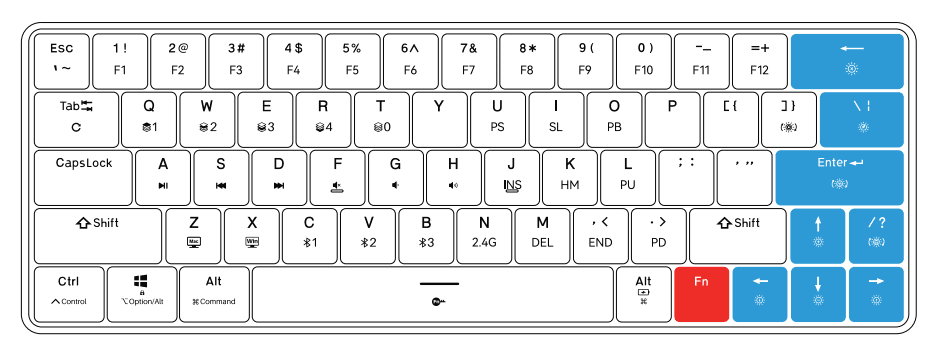

Lighting
- Fn+Backspace: Turn the light on / off
- Fn+]}: Change custom lighting
- Fn+\| : Power saving mode
- Fn+Enter: Switch light colors
- Fn+/?: Switch light modes
- Fn+↑: Increase light brightness
- Fn+↓: Weaken light brightness
- Fn+←: Speed down light effect
- Fn+ →: Speed up light effect

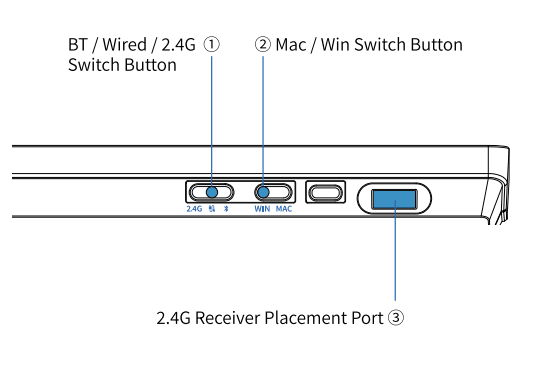

Toggle switch & Indicator
BT Model
The switch is set to BT mode, and connect keyboard to the BT device to use.
2.4G model
The switch is set to 2.4G mode, and the receiver into the computer to use.
Wired mode
The switch is set to wired mode, plug the cable into the computer to use.
Fn+N: 2.4G mode
- Turn on 2.4G mode
Fn+right Alt: Battery status
- 0%~20% The spacebar key flashes a red light
- 20%~80% The spacebar key flashes a green light
- 80%~100% The spacebar key flashes blue light
Fn+CV/B: Bluetooth mode
- Turn on BT1 mode
- Turn on BT2 mode
- Turn on BT3 mode
