Kenwood BLP41 Blend-X Fresh Blender

Safety

Read these safety instructions carefully and retain them for future reference.
Remove all packaging and any labels.
If the plug or cord is damaged, it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer to avoid a hazard.
DO NOT process hot ingredients.
SCALD RISK: Hot ingredients must be allowed to cool to room temperature before placing in the goblet/mill or before blending.
Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.
Switch off and unplug: before fitting or removing parts, when not in use or before cleaning.
Never fit the blade unit to the power unit without the blender goblet or mill jar fitted.
Always unplug the appliance before putting your hands or utensils in the bowl.
Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.
Only operate the blender with the lid in place.
Only use the goblet with the blade assembly supplied.
Never let the power unit, cord or plug get wet.
Never use a damaged appliance. Get it checked or repaired: see ‘Service and Customer Care’.
Never use an unauthorised attachment.
Never leave the appliance unattended when it is operating.
When removing the blender or mill from the power unit:
- Wait until the blades have completely stopped.
- Do not accidentally unscrew the goblet or mill jar/lid from the blade assembly.
Never run the blender empty.
Never blend more than the maximum capacity stated in the Recommended Usage guide.
Smoothie recipes – never blend frozen ingredients that have formed a solid mass during freezing; break them up before adding to the blender.
Do not process hard spices such as dried Turmeric root, as they may damage the blade. Nutmeg should only be processed in the grating mill.
Do not use the blender as a storage container. Keep it empty before and after use.
Always use the blender on a secure, dry level surface.
Never place this appliance on or near a hot gas or electric burner or where it could touch a heated appliance.
Misuse of your blender can result in injury.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
Children shall not play with the appliance.
Appliances can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and if they understand the hazards involved.
Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use or failure to comply with these instructions.

Before plugging in

Make sure your electricity supply is the same as the one shown on the underside of your appliance.

Important – Plug and Fuse Information

The wires in the cord are coloured as follows:
Blue = Neutral
Brown = Live.
If the plug supplied with your appliance has a fuse fitted, it is rated 7A or 10A. If the fuse fails, it must be replaced with one of the same rating.

Note

For a non-rewireable plug, the fuse cover MUST be refitted when replacing the fuse. If the fuse cover is lost, then the plug must not be used until a replacement can be obtained. The correct fuse cover is identified by colour, and a replacement may be obtained from your Kenwood Authorised Repairer (see Service).
If a non-rewireable plug is cut off, it must be DESTROYED IMMEDIATELY. An electric shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into a 13A socket outlet.
This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Before using for the first time

Wash the parts: see ‘Care and Cleaning’.

Key

Blender

Filler cap
Locking lid with pouring slots
Goblet
Blender sealing ring
Blender blade unit
Power unit
Speed + Pulse control
Ice crushing button
Cord storage
Multi-mill (if supplied)
Multi-mill jar
Multi-mill sealing ring
Multi-mill blade unit
Grinding mill (if supplied)
Mill lid
Grinding mill blade assembly
Grating mill (if supplied)
Mill lid
Grating mill blade assembly

To Use Your Blender

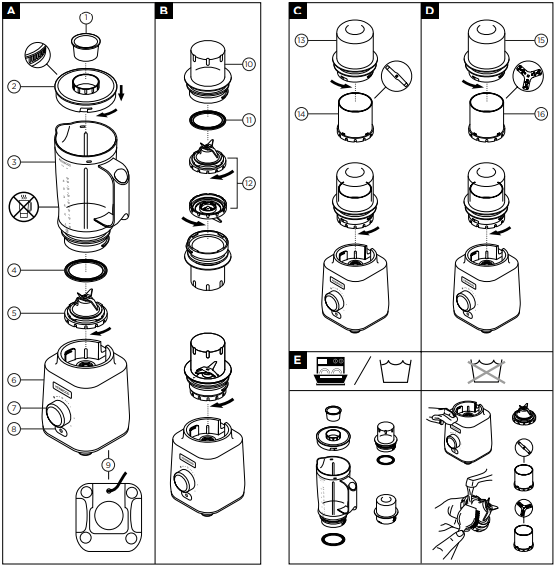

Refer to Illustration A

Use your blender for soups, drinks, pâtés, mayonnaise, breadcrumbs, biscuit crumbs, chopping nuts and crushing ice.

Fit the blender sealing ring into the blender blade unit, ensuring the seal is located correctly in the grooved area.
- Leaking will occur if the seal is damaged or incorrectly fitted.
Screw the blade assembly onto the goblet – ensuring the blade assembly is fully tightened.
Refer to the graphics on the underside of the blade unit as follows:
- – open
- – close
Put your ingredients into the goblet.
Put the filler cap on the lid.
Fit the lid to the goblet and turn clockwise to lock.
Place the blender onto the power unit and turn clockwise to lock .
- The appliance will not work if the blender is incorrectly fitted.
Select a speed (refer to the Recommended Usage).

Hints and Tips

To blend dry ingredients, cut them into pieces, remove the filler cap, then, with the machine running, drop the pieces down one by one. Keep your hand over the opening. For best results, empty regularly.
The processing of spices is not recommended as they may damage the plastic parts.
When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.
Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.

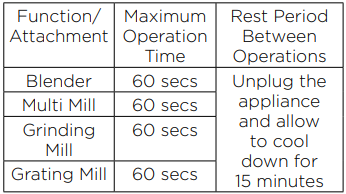

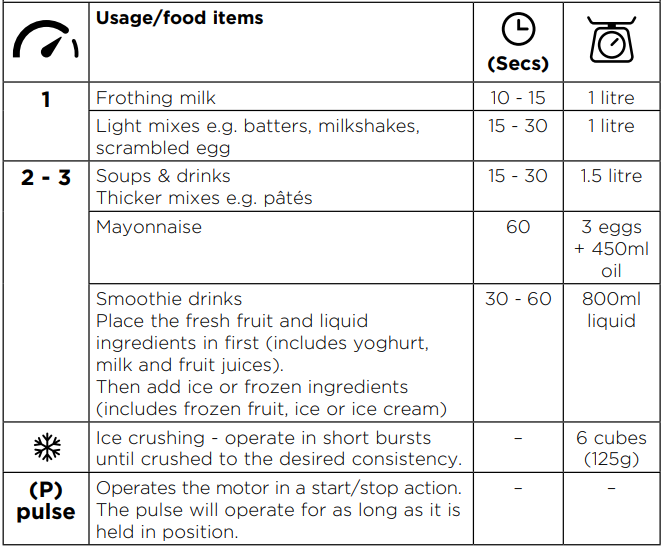

Blender Recommended Usage

Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.
Do not blend more than the maximum capacity stated on the goblet.
Do not fill below the minimum capacity marking on the goblet.

To Use Your Multi

Mill (if supplied)

Refer to Illustration B

Use your multi mill for milling nuts, coffee beans and cold purees.

Put your ingredients into the jar. Fill it no more than half full.
Fit the multi-mill sealing ring into the multi-mill blade unit, ensuring the seal is located correctly in the grooved area.
- Leaking will occur if the seal is damaged or incorrectly fitted.
Turn the blade unit upside down. Lower it into the jar, blades down. Refer to the graphics on the underside of the blade unit as follows:
- – open
- – close
Place the mill onto the power unit and turn clockwise to lock.
Select a speed or use the pulse (P) control (refer to Recommended Usage).

Grinding Mill or Grating Mill (if supplied)

Grinding Mill

Refer to Illustration C

Suitable for grinding spices, coffee beans and processing ginger, coconut, garlic and chillies.

Grating Mill

Refer to Illustration D

Suitable for grating Parmesan cheese, nutmeg, coconut and dried fruit.

To Use Your Mill

Place your ingredients into the blade assembly.
Fit the lid and turn anticlockwise to lock.
Place the mill onto the power unit and turn clockwise to lock.
Select a speed or use the pulse (P) control (refer to Recommended Usage).

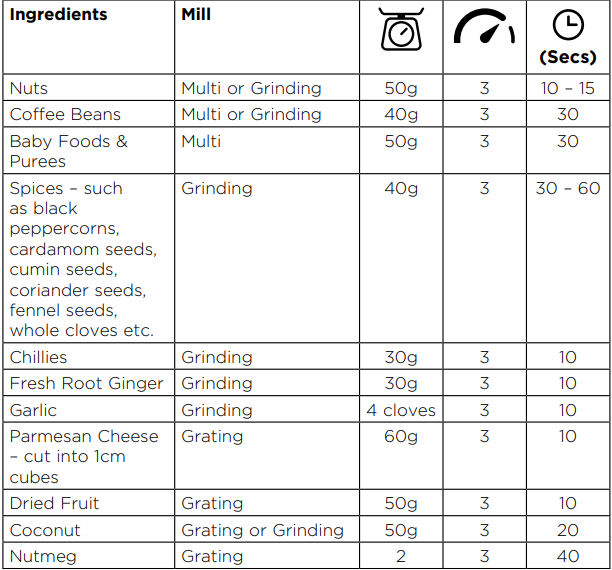

Mill Recommended Usage

Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.

Hints and Tips

For optimum performance when processing spices, we recommend that you do not process more than 40g at a time in the mill.
Whole spices retain their flavour for a much longer time than ground spices, so it is best to grind a small quantity fresh at a time to retain the flavour.
To release the maximum flavour and essential oils, whole spices are best roasted before milling.
Baby food/purees – allow cooked food to cool to room temperature before processing in the mill.

Care and Cleaning

A reference to Illustration E for cleaning information.

Always switch off, unplug and dismantle before cleaning.
Empty the goblet before unscrewing it from the blade unit.
Do not immerse the blade unit in water.

Power unit

Wipe with a damp cloth, then dry.
Do not immerse the power unit in water.
Push the excess cord inside the storage area on the underside of the power unit.

Blender/Multi Mill Blade Assembly

Remove the blade unit from the goblet or mill by turning to the unlock position to release.

Grinding and grating mills

Remove the lid from the blade assembly by turning in a clockwise direction.

Blender/multi mill: remove and wash the sealing ring.
Do not touch the sharp blades – brush them clean using hot, soapy water, then rinse thoroughly under the tap. Do not immerse the blade unit in water.
Leave to dry upside down.

Service and Customer Care

If you experience any problems with the operation of your appliance, before requesting assistance, refer to the “Troubleshooting guide” section in the manual or visit www.kenwoodworld.com.

UK

If you need help with:

using your appliance or
servicing, spare parts or repairs (in or out of guarantee)
Call Kenwood customer care on 023 9239 2333. Have your model number (e.g. BLP41) and date code (5-digit code, e.g. 19C10) ready. They are on the underside of the power unit.
Spares and attachments
call 0844 557 3653.

Other countries

If you experience any problems with the operation of your appliance, before requesting assistance, refer to the “Troubleshooting guide” section in the manual or visit www.kenwoodworld.com.
Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up-to-date details of your nearest authorised KENWOOD Service centre, visit www.kenwoodworld.com or the website specific to your Country.
Designed and engineered by Kenwood in the UK.
Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT BY THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or a dealer providing this service.

Guarantee (UK only)

If your blender goes wrong within one year of the date you bought it, we will repair it (or replace it if necessary) free of charge, provided:

You have not misused, neglected or damaged it;
It has not been modified (unless by Kenwood);
It is not second-hand.
It has not been used commercially.
You have not fitted a plug incorrectly; and
You supply your receipt to show when you bought it.

This guarantee does not affect your statutory rights.

Vegetable Soup

25g butter
1 clove garlic, crushed
Cut the following into 1.5cm cubes
400g carrot
300g potato
200g onionColdd vegetable stock
salt and pepper

Melt the butter in a pan, add the onion and garlic and fry until soft.
Place the carrot, potato, onion and garlic into the blender. Add sufficient stock to reach the 1500ml level marked on the goblet. Fit the lid and filler cap.
Blend on maximum speed for 5 seconds for a coarse soup or longer for a finer result.
Season and simmer the soup for 30-35 minutes or until cooked. Add extra liquid if required.

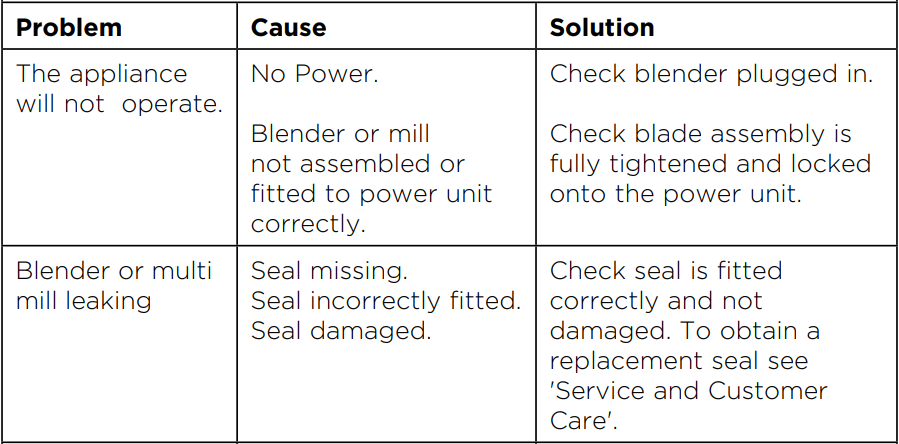

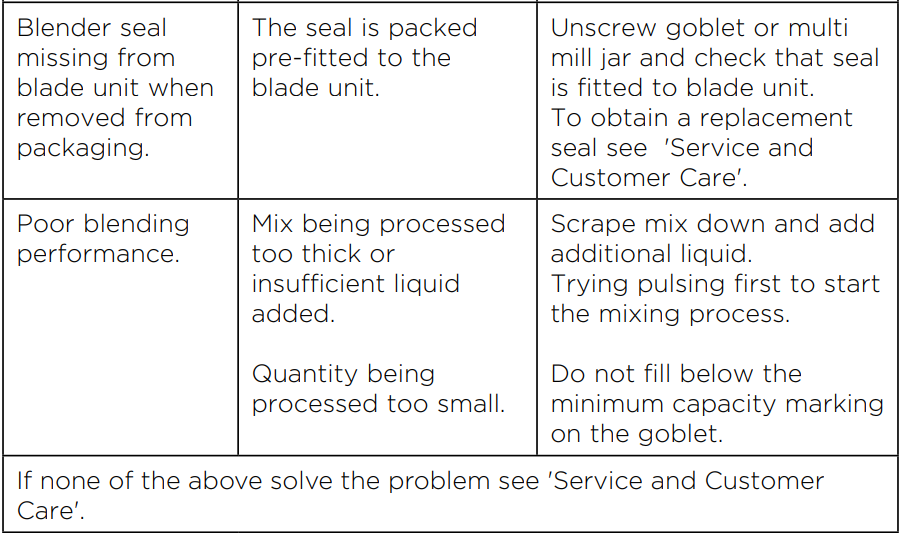

Troubleshooting guide
