Lasko Misto 7050 15-inch Misting Blower Fan
GENERAL SAFETY INFORMATION
Read all instructions before using this Fan.
- This fan is an outdoor product and is NOT intended for indoor use. Please do not leave the misto fan unattended when it is plugged in.
- Make certain the power source conforms to the fan’s electrical requirements. Completely assemble the fan before connecting it to a power source. Do not use the fan with any solid-state speed control.
- Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons. Never place the fan where it may fall into a water reservoir such as a Pool or water container. Do not hang the misto fan on a wall or ceiling or use it in a window.
- The misto fan should not be used as a toy. To reduce the risk of personal injury and electric shock, the Fan should not be played with or placed where children can reach it.
- Turn off the misto fan and unplug the power cord before installing, servicing, or moving the Fan.
DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE FAN.
ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF AND UNPLUG THE FAN BEFORE LEAVING THE AREA. NEVER LEAVE CHILDREN
UNATTENDED WHEN THE FAN IS ON OR PLUGGED IN - This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden, or where gasoline, paint, or flammable liquids are used or stored.
- CAUTION: Surfaces in the area of the fan may become slippery when wet.
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK – DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICES. - NEVER operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in any manner. This GFCI plug does not protect against electrical shock due to contact with both circuit conductors or a fault in any wiring supplying this device. Do not use an extension cord between the Fan GFCI cord and power outlet. Customer service is available at 800-233-0268,
Monday through Friday, 8 am to 5 pm, to answer your questions. - DO NOT USE an extension cord with this fan.
- Before use, inspect for debris and/or insects.
- NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire or damage the Fan. To reduce the risk of fire, DO NOT block or tamper with the Fan in any manner while it is in operation.
- Turn off the water at the source before changing the nozzle.
- Turn off the water at the source after each use. Disconnect your garden hose from the valve adapter and drain unit to winterize.
- Always place the Fan on a stable, flat, level surface when operating to avoid the chance of the Fan overturning. Locate the Power Cord so the Fan or other objects are not resting on it. Do not run cords under carpeting. Do not cover cords with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from traffic areas and where it will not be tripped over.
- DO NOT use this Fan near cooking grills, fire pits, or other open flames.
- The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.
- This Fan is not suitable for use in agricultural facilities, including areas where livestock, poultry, or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008) or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).

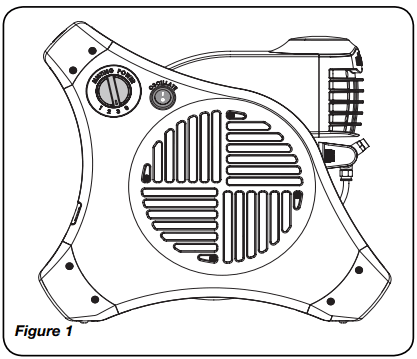

ASSEMBLY INSTRUCTIONS (Figure 1)
- Carefully remove the Fan from the plastic bag and the carton.
- Place the Fan on a firm and level surface.
- Plug the GFCI plug into a standard 120-volt AC outlet with a ground.
Warning: Be sure that the plug fits tightly into the outlet. When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater. - Attach the hose valve adapter to any garden hose or spigot.
Warning: If you use an Extension Cord, the Extension Cord must be plugged into a GFCI Protected Receptacle.
OPERATING INSTRUCTIONS

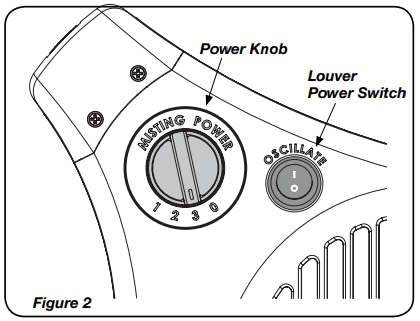

- Turn the Fan on by selecting the desired speed with the Power Knob on the side of the Fan. 0-Off, 3-High, 2-Medium, 1-Low (Figure 2)

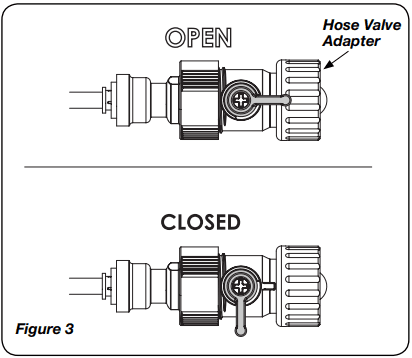

- Turn on the water at the source. Turn the valve adapter to the “Open” position. (Figure 3)
- To adjust the vertical angle, push the Fan body forward or backward to the desired position. It is normal to hear a clicking sound while performing this function.
IMPORTANT: Spray angle and droplet size are determined by water pressure at your location.
LOUVER OSCILLATION
To operate internal air directing Louvers
- Turn the Power Knob to the desired speed setting.
- Turn the Louver Power Switch to the On ( | ) position.
Louvers will stop operating if the power
- to the unit is unplugged.
- Power knob is in 0 -Off position.
- The louver power switch is in the Off position.
To center Louvers in Air Flow
- Observe Louvers during operation. Once centered, place the Louver power switch in the Off (0) position.
Misting Manifold Clean and Care Guide
If the nozzles become clogged from contamination, follow the steps below:
- Turn the water off at the source.
- Remove the misting assembly’s valve adapter from garden hose or spigot and the hose adapter. Do this carefully and allow residual water pressure to drain. Cycle (turn the handle back and forth) the valve and ensure freedom of movement and that there is no debris blocking the water’s path.
- Remove the screen filter from inside the Misting Assembly Valve Adapter. Inspect and ensure the screen filter is free of buildup or debris. If filter is clogged, soak in a solution of undiluted 5% acidity distilled white vinegar for at least 2 hours. For an immediate solution, replace the filter.
- Carefully remove each misting nozzle from the nozzle housing by turning it counter-clockwise using your hand or, if required, a pair of pliers. Soak the nozzles in a solution of undiluted 5% acidity distilled white vinegar for at least 2 hours. For an immediate solution, replace the nozzles with the supplied replacement parts. If more nozzles are required, call 1-800-233-0268 or order online at www.laskoproducts.com in Parts & Accessories.

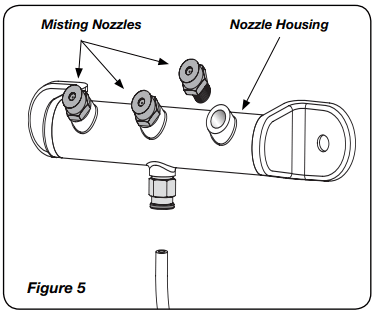

- After the appropriate amount of soak time for the parts requiring cleaning, reassemble the misting subsystem by inserting the misting nozzles into the Nozzle Housing and turning clockwise until secure. (Figure 5) Only turn until hand tight; do not over-tighten. Next, return the screen filter to the inside of the manifold’s valve adapter. Finally, reattach the valve adapter to the hose adapter. (Figure 4)
- You are now ready to continue to stay cool with your mistoTM Outdoor Misting Fan.
TROUBLESHOOTING TIPS
If your Fan fails to operate, see below for a probable cause and solution:
- Be sure the power cord is plugged into a working electrical outlet.
If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.
MAINTENANCE
Warning: To reduce the risk of electrical shock and fire, please observe the following instructions:
- Always turn off the fan, unplug the cord, and disconnect from the water supply before moving, servicing, or cleaning.
- Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from inside the Fan.
- NEVER attempt to take apart the Fan.
- Clean the body of the Fan with a soft cloth only.
- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.
SERVICING
For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.
STORAGE
Store the Fan with these instructions in the original carton in a cool, dry place.
LASKO PRODUCTS, INC. LIMITED WARRANTY
Valid in the USA, its Territories, and CANADA Only.
WHAT THIS WARRANTY COVERS
This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS
This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT LASKO WILL DO
During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or a comparable model.
WHAT THIS WARRANTY DOES NOT COVER
This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement.
ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT, AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted.
CUSTOMER SERVICE
Toll-Free (800) 233-0268.
Email: producthelp@laskoproducts.com
Our Customer Service team is available to assist you with product and service questions and replacement parts. They can be reached Monday through Friday,amam-5 pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product). Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send product to this location) www.laskoproducts.com
