Lavazza Classy Plus Espresso and Coffee Machine User Manual

Lavazza Classy Plus Espresso and Coffee Machine

IMPORTANT SAFETY INSTRUCTIONS

AT LEAST ONE COPY OF THIS MANUAL SHOULD BE KEPT IN A LOCATION AVAILABLE TO ALL MAINTENANCE AND MANAGEMENT STAFF.

Safe Operation & Use

When using electrical appliances, basic safety precautions should be taken, including the following:

Read all the instructions before using the machine.
Do not touch hot surfaces. Use handles and knobs (if available).
This appliance must be installed and located in a suitable place, in accordance with these instructions, before it is operated.
The use of accessories not recommended by the appliance manufacturer may result in fire, electrical shock, or injury to persons.
Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
Do not use the appliance outdoors.
To avoid the risk of fire, electric shock, and injury, do not dip the cords, plugs, or the appliance into water or other fluids.
Do not overfill the water tank with water.
Use only water for this appliance! Do not put any other fluid or food in the water tank, unless instructed otherwise in the Cleaning Instructions in this guide.
Unplug the machine before cleaning or carrying out maintenance operations. Allow the machine to cool before putting on or taking off parts, and before cleaning. The machine automatically enters the standby mode when it has not been used for two minutes.
To ensure safe and proper operation, plug the appliance into its electrical outlet on a dedicated circuit to prevent light flickering, fuse blowing, or circuit breaker tripping.
Do not operate the appliance if its cord or plug is damaged, or in case of malfunctions or any other damage. Contact the Lavazza Customer Service to report any malfunction or damage affecting the machine.
Do not let the cord hang over the edge of the table or counter, or come into contact with hot surfaces.
Pay the greatest attention when the appliance is used by or near children.
Do not lift the handle to open the system during the brewing phase.
Always keep the water tank lid on the water tank, except when you are refilling it.
This appliance is equipped with a power cord complete with a grounding wire with a grounding plug. The appliance must be grounded by using a suitably grounded 3-hole outlet. In case of an electrical short circuit, grounding reduces the risk of electrical shock.
If the outlet is a standard 2-prong wall outlet, you must have it replaced by a properly grounded 3-prong outlet.
Never cut or remove the ground prong from the power cord, or use an adapter.
Contact a qualified electrician if you cannot fully understand the grounding instructions or if you doubt that the appliance is correctly grounded.
Do not operate the appliance for any other use than the intended one.
In case of failure, problems, or possible faults resulting from the machine falling, unplug it immediately.
Do not try to operate a faulty machine. The repairs and servicing operations can only be carried out by the Authorized Service Centers. We do not undertake any liability for the damage resulting from repairs or servicing operations not carried out by qualified staff.
To disconnect the machine, first set it to the stand-by mode, then remove the plug from the wall outlet.

Save these Instructions

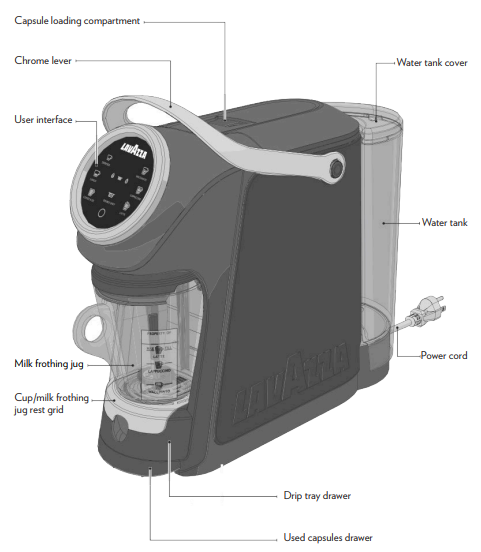

COMPONENTS AND CONTROLS

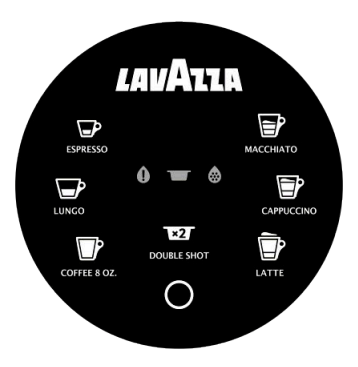

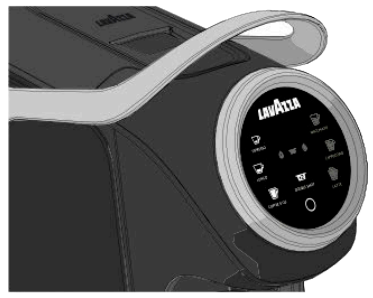

CONTROL UNIT

Espresso selection
Lungo “Weak” selection
Coffee 8 oz. selection
Double-shot coffee function
Macchiato selection
Cappuccino selection
Latte “Milk” selection
Warning – water tank empty/missing
Warning – drip tray drawer
Warning – descaling required
ON/stand-by key

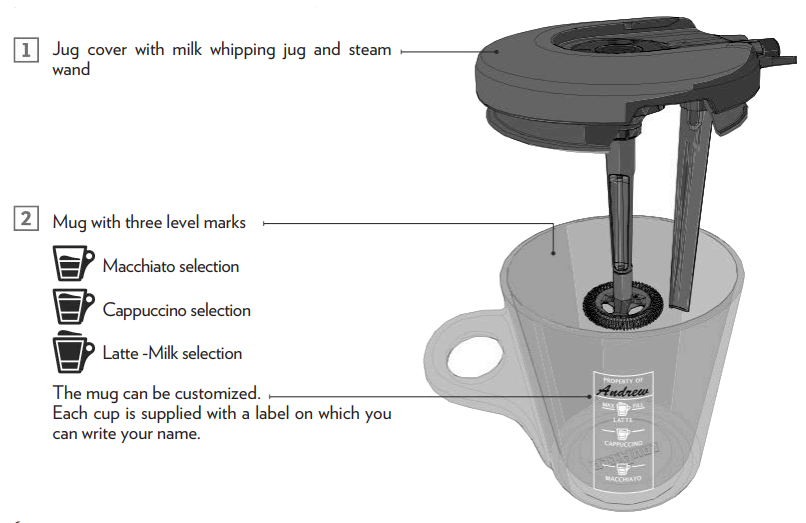

MILK FROTHING JUG

Below are the milk frothing jug components:

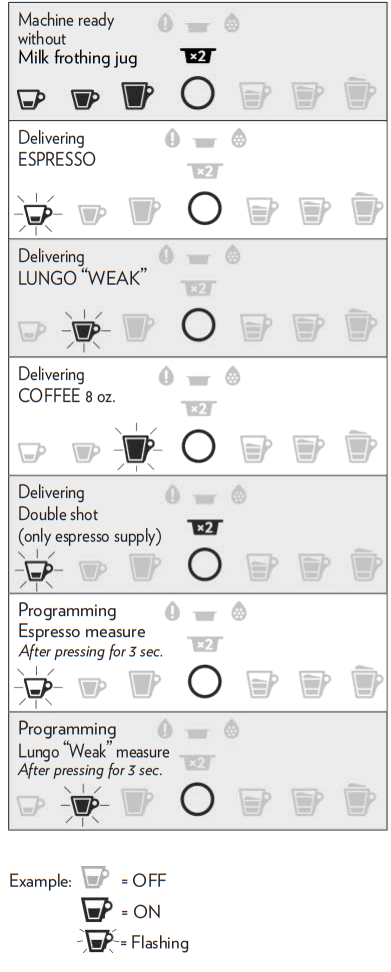

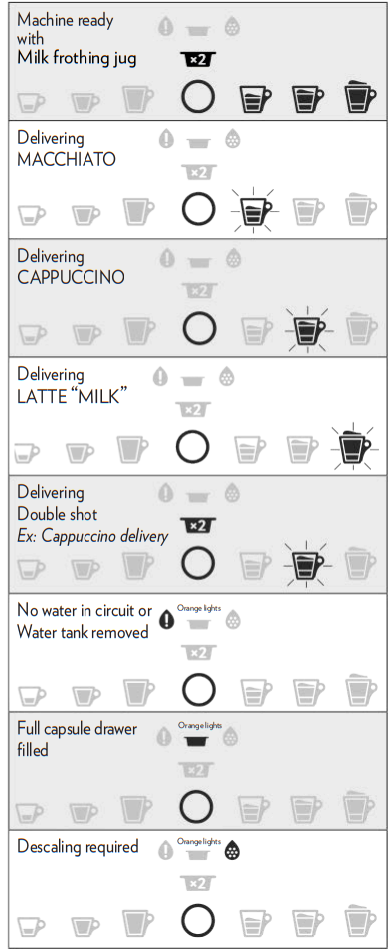

INDICATOR LIGHTS

MACHINE STATUS

PREPARING THE MACHINE

The manufacturer is not liable for damages resulting from:

Incorrect use and/or improper use of the machine;
Repairs performed by unauthorized Service Centers;
tampering with the power cord;
tampering with any part of the machine;
Use of non-genuine spare parts and accessories;
No water softening;
storage at a room temperature of less than 39.2°F (4°C);
using the machine at a temperature of less than 41°F (5°C);
using the machine at a temperature of more than 104°F (40°C);
using incompatible capsules.

In any of the above cases, the warranty will be null and void.

STARTING THE MACHINE

Set the machine on a flat and firm surface, far away from water or heat sources. Do not connect the machine to the mains supply. Any damage caused by the failure to follow these instructions will make the warranty null and void.

Rinse the tank before use. Fill the water tank only with fresh, non-carbonated drinking water. The cover can be lifted to fill the tank directly.
The water level should never exceed the MAX reference mark and shall always be above the MIN mark.

Use non-carbonated fresh water only. Hot water and other fluids can damage the tank.

Make sure that your hands, the machine, the cord, and the machine’s supporting surface are not wet.

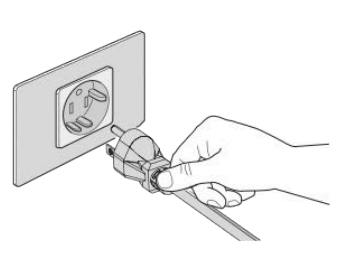

Insert the plug into the socket.

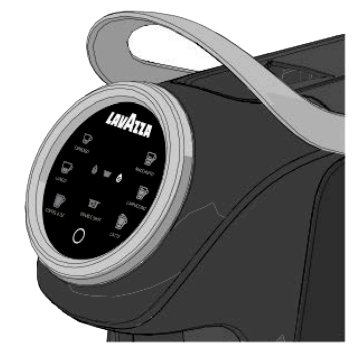

Press one of the switch-on/supply buttons to switch the machine on.
The machine will be ready for use when the animation is over and the supply buttons light up to a steady white light.
Remove the milk frothing jug from the machine.
When the milk frothing jug is not inserted, the coffee dispensing icons will turn on only. The milk dispensing icons will be disabled.
Upon the first machine start-up, you will have to supply 16.9 us fl. oz. (0.5 l.) of water, with no capsule inserted and by keeping the lever lowered.

Upon the first machine start, the hydraulic circuit will have to be filled. When a supply is selected, the machine will activate the electric water pump. When water is inside the hydraulic circuit, the machine will start to dispense the water.
Place a mug or glass under the supplying spout.
Press the coffee selection and wait for the water supply to end.
Open and close the lever, remove and empty the cup, then supply water one more time by pressing the coffee selection.

Verify that the tank has been inserted correctly and has been filled with water. If the water in the tank is not enough, the machine will stop delivering, and the “No water ”warning lamp will light up.

OPERATIONS PRELIMINARY TO USING THE MILK FROTHING JUG

Before using the jug for the first time, carry out a cleaning cycle on the milk frothing jug.

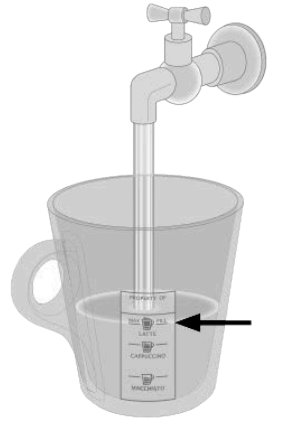

Open the milk whipping jug and fill it with water up to the LATTE “MILK ” level sign.

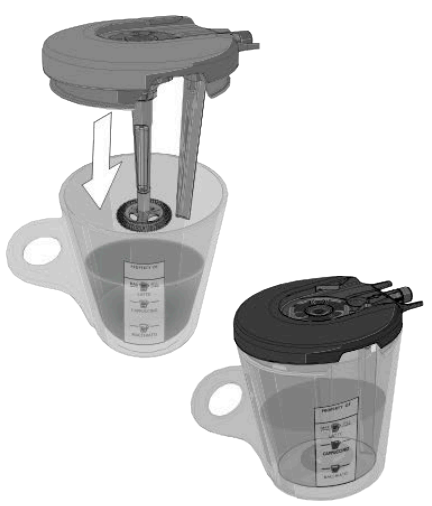

Close the milk whipping jug with the cover by paying attention to the correct position and direction of the cover.

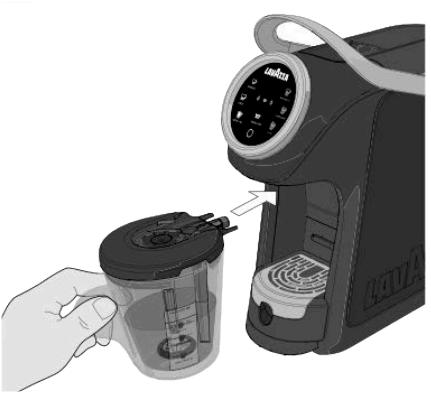

Close the milk whipping jug and fit it into the machine.
If the milk frothing jug is correctly positioned, the machine will give out a beeping sound.
When the milk frothing jug has been inserted, the machine will only enable the milk-based selections. The coffee icons will be disabled.

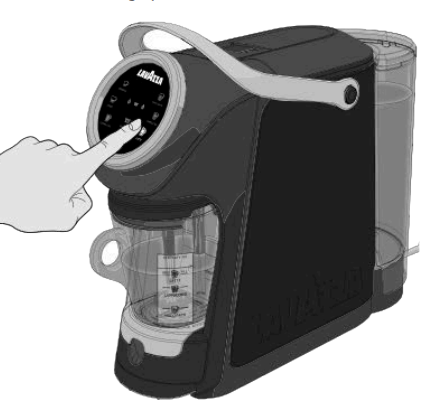

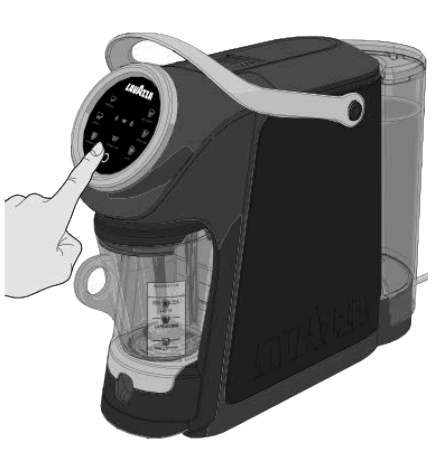

Press the LATTE “MILK ” supply key to start the cleaning cycle.

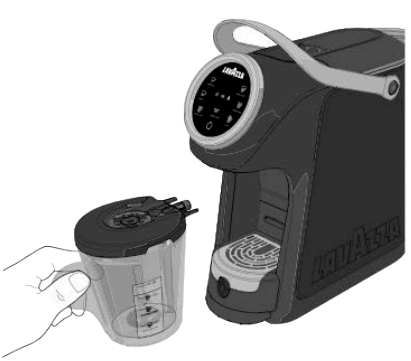

After cleaning, remove the jug from the machine.
Wash all the components with cold or warm water, then dry them and fit them back into place correctly.

PREPARATION FOR COFFEE BREWING

Coffee brewing only: remove the milk frothing jug from the machine.
When the milk frothing jug is not inserted, the coffee dispensing icons will turn on only.
The milk dispensing icons will be disabled.
The following coffee dispensing supply keys will light up to a steady white light.
- Espresso selection
- Lungo “Weak” selection
- Coffee 8 oz. selection
- Double-shot coffee (only espresso)

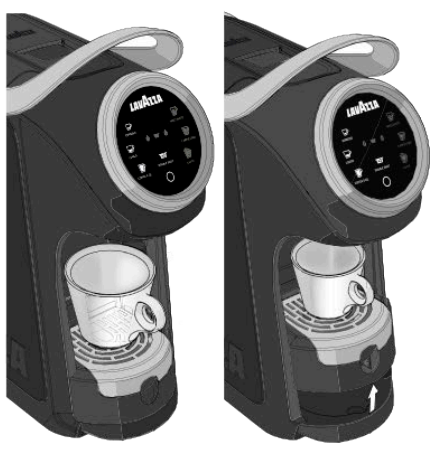

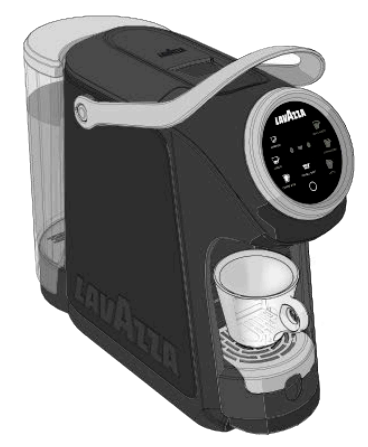

The coffee machine features two positions, for an espresso cup or a big cup (or glass) respectively.
- To use a big cup, place the mug (or glass) directly onto the plate at the bottom.
- To use an espresso coffee cup, you can remove the cup support plate.
  Fit the cup support plate into the slot available at the top, then place the espresso coffee cup onto the plate.
Position the cup or mug on the cup rest grid, then pull up the capsule loading handle. When the capsule loading handle is open, insert the LAVAZZA Blue or Expert capsules in the appropriate pod holder
Never put fingers or objects in the pod holder. Only LAVAZZA Blue or Expert capsules must be inserted into the pod holder.
Lower the capsule loading handle.
Verify that the machine is ready (the coffee key will light up to a steady light).

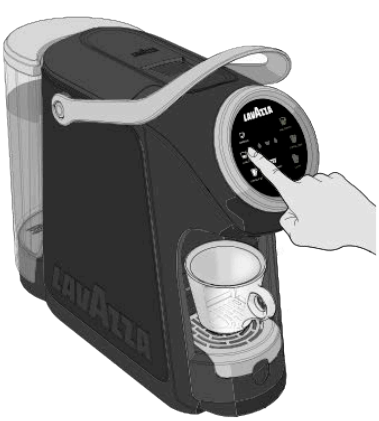

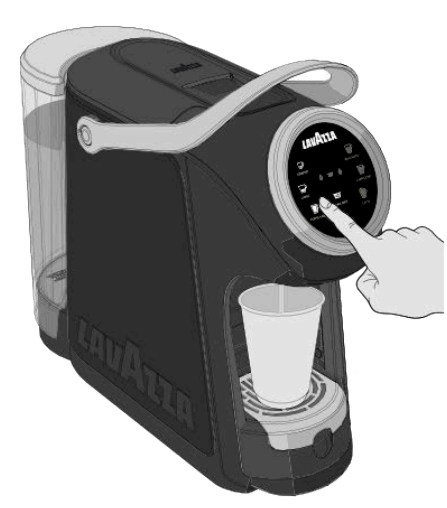

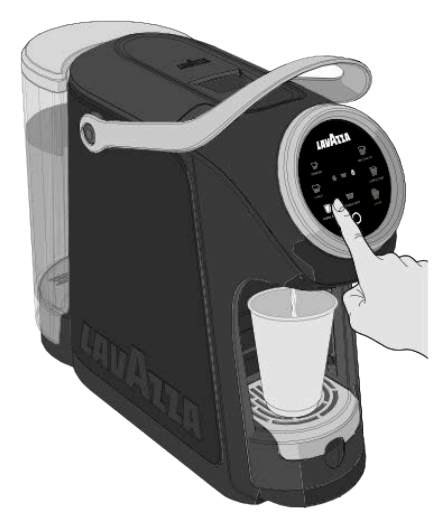

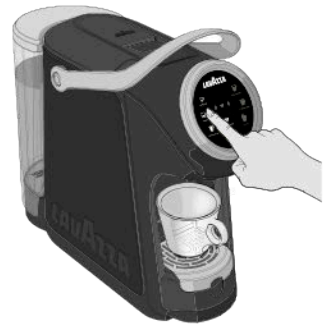

Press one of the coffee supply keys to start delivering.
During the heating-up phase, the desired beverage can be pre-selected by simply pressing the respective icon (this icon will be fully switched on, whereas all the other beverage icons will be switched off).
When the machine reaches the set-point temperature, the state will have to change from “heating-up” to “Ready to brew”, and the machine will start the preselect beverage.
In any case, the preselection can be cancelled by pressing the same button again (the machine will return to the previous condition).
Be careful when reserving a drink; do not forget to put a cup under the dispenser..
When the machine is ready, it will automatically start dispensing.
The machine will automatically stop delivering when the programmed measure is reached.
During the coffee brewing phase, the pressed key will flash.
After delivering, the key will light up again to indicate that the machine is ready.

DOUBLE SHOT BREWING

(only espresso and brewing with milk)

For coffee brewing only, remove the milk frothing jug from the machine.
When the milk frothing jug is not inserted, the coffee dispensing icons will turn on only.
The milk dispensing icons will be disabled.
Place the big cup or glass on the cup rest grid, then pull up the capsule loading handle. When the capsule loading handle is open, insert the LAVAZZA-specific x2 coffee capsule in the appropriate pod holder.Never put your fingers or any object in the pod holder. Only LAVAZZA specific x2 coffee capsules must be introduced in the pod holder.
Lower the capsule loading handle.

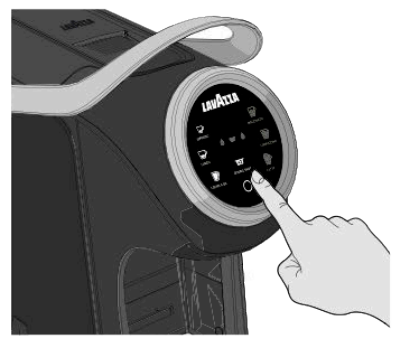

Press the double-shot coffee function icon .
Then only the espresso key will light up.
Press the espresso key the machine will deliver double coffee.
The machine will automatically stop delivering when the programmed measure is reached.
During the double-shot coffee brewing phase, the pressed espresso key will light up. After delivering, the key will light up again to indicate that the machine is ready.

MACHINE SETTING

ENERGY SAVING

The machine will switch to the power-saving mode after about 4 hours of being idle, and the on/stand-by light will go out.

The machine can be manually switched to the stand mode before the 4 hours’ default time, using the ON/stand-by button.

ACOUSTIC SIGNAL ACTIVATION / DEACTIVATION

Set the machine to the standby mode.

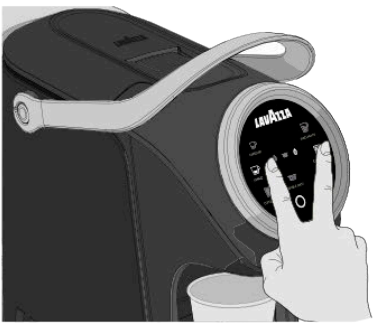

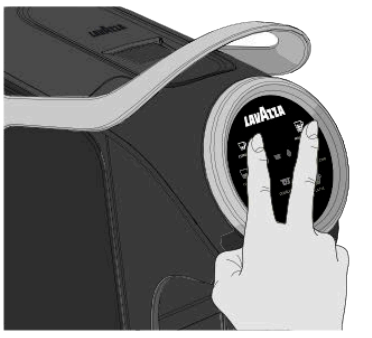

Simultaneously keep ESPRESSOand MACCHIATO buttons depressed for at least seconds.
- The machine will emit one brief acoustic signal to notify the deactivation.
- The machine will emit two brief acoustic signals to notify the activation.
Once the procedure has been completed, the machine will go back to the standby mode.

COFFEE DOSE PROGRAMMING

The double-shot and coffee doses cannot be programmed with the milk-based beverages.

Press the On/Stand-by button to switch the machine on. The machine will be ready when the
The on/standby button stops blinking, and the supply button lights are ON steadily. Lift the pod loading lever until it locks into position to open the pod fitting compartment.

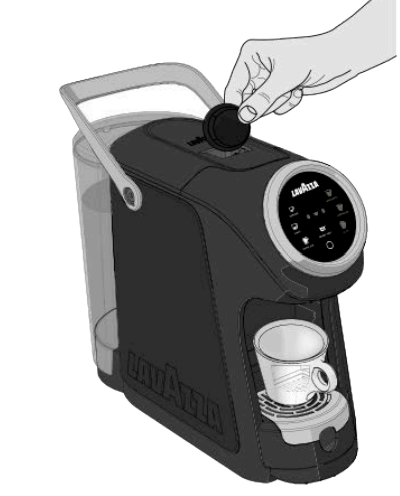

Put a Lavazza Blue or Expert capsule into the capsule fitting compartment.
Lower the pod loading lever to close the pod fitting compartment. Place the cup onto the plate.

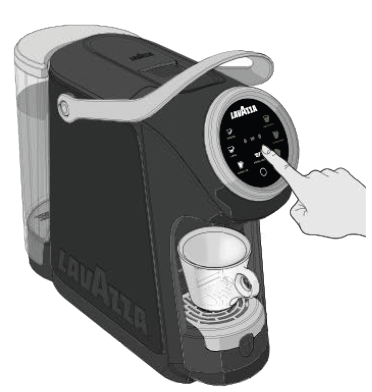

Press down for over 3 seconds the button of the icon you wish to program. The selected icon will flash quickly, whereas the other buttons will turn off, except for the on-off button, to indicate that the programming mode has been accessed.
Keep the supply button depressed.
Once the desired amount of coffee has been obtained, stop the supply by releasing the button. The machine will stop, and the dose will be programmed.

Measures are always programmed using the same button; any action by pressing other buttons will be ignored.
The programmed amount of brewed coffee can be changed by repeating the programming. If the programmed measure exceeds the maximum one allowed, the machine will automatically stop delivery, the delivery button will blink, and the last programmed measure will be saved in the memory. In the case of a power failure during the programming phase, the last programmed value will remain stored in the memory.

If, during the dose programming, a missing water condition is reported, the machine will stop supplying, and the dose being programmed will not be saved. Once the water tank has been filled, the dose programming procedure shall be repeated.

MAINTENANCE AND CLEANING

DESCALING

Read the descaling instructions carefully!

Limescale normally builds up after the machine has been used for a long time.

The machine needs descaling at least every 2-3 months and/or when it gets noisy or makes unusual noise, and/or the water flow is reduced, and/or when coffee is not hot enough.

The need for automatic machine descaling is also indicated by a special warning lamp .

We recommend that you use LAVAZZA DESCALING products to descale the machine.

Do not use vinegar to decalcify the machine.
Do not activate the steam function.
Once the descaling is started, it will have to be performed completely.
Do not switch the machine off when the descaling cycle is in progress.
Do not go away from the machine when the descaling cycle is in progress.
Do not drink the descaling solution and the products dispensed until the completion of the cycle.
Pour the descaling solution together with cold tap water into the sink.

Before descaling, make sure there is no capsule inside the capsule holding compartment.

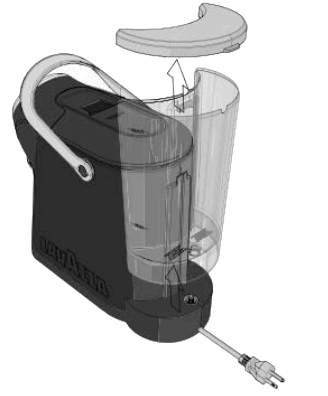

Remove and empty the water tank; remove the milk whipping jug as well.

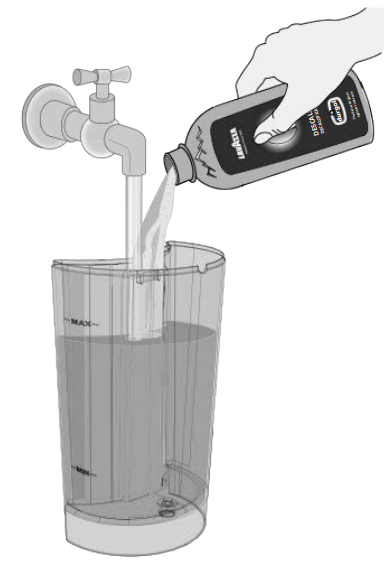

Fill the water tank with the LAVAZZA DESCALING product (8.4 us fl. oz…and water (8.4 us fl. oz…).
Fit the water tank back into place in the machine.Use a moist cloth to wipe off the squirts or drops, if any.
Place a suitably sized container under the machine spout.
To start the descaling procedure, press the “WEAK” and CAPPUCCINO keys together for over 3 seconds. The machine will emit a beep.
Press the Coffee 8 oz. keyto start the descaling cycle. During the cycle, the on/off and Coffee 8 oz. keywill blink.
To increase the effect of the descaling product, the machine will automatically pause for a long time.
When the tank is empty, the cycle will be temporarily interrupted, and the on/off, descaling warning, and Coffee 8 oz.key will remain steady.

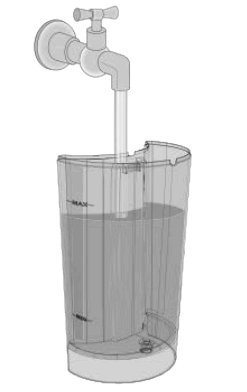

The machine will emit a beeping sound. Finally, remove the water tank, rinse it with fresh drinking water, and fill it to the max. Level.
Fit the water tank back into place in the machine. Place a suitably sized container under the machine spout.
Press the Coffee 8 oz.key to start the rinsing cycle. When no water is left in the water tank, repeat the operation by filling up the water tank again. At the eeendfingesting proceduremachine will emit a long beeping sound and will be ready again to brew.
Wipe the machine with a damp cloth to remove any splashes of the descaling solution. Then, the descaling process will be over.

CLEANING THE MACHINE

Never use solvents, alcohol, or other aggressive cleaning substances, or ovens, to dry the coffee machine components.

Wash the machine components (except for the electric components) with cold/warm water, using non-abrasive cloths and sponges.

All removable components can be cleaned by means of a dishwasher.

Do not leave water in the tank and the water circuit for more than 3 days. If this is the case, drain the tank and circuit, rinse it, and refill it with fresh water, then carry out a supply cycle without using a capsule before making coffee or other beverages.

Do not use the milk frothing jug to store the beverages. Always clean the jug thoroughly after each use.

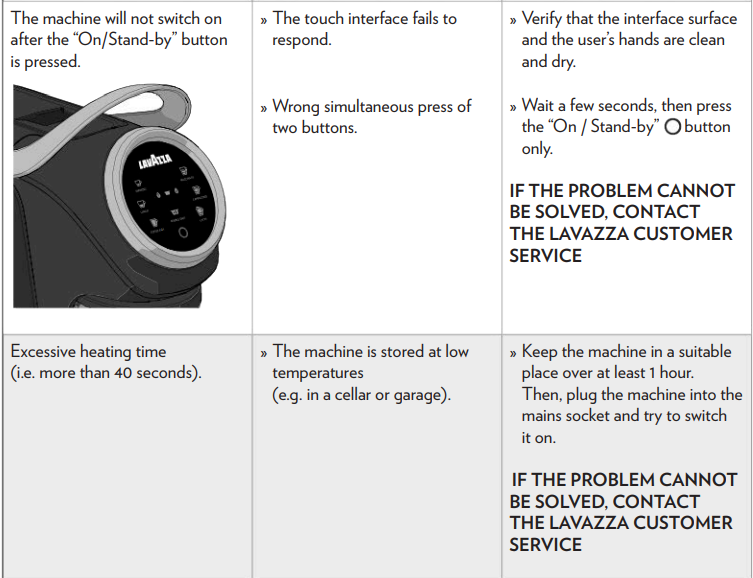

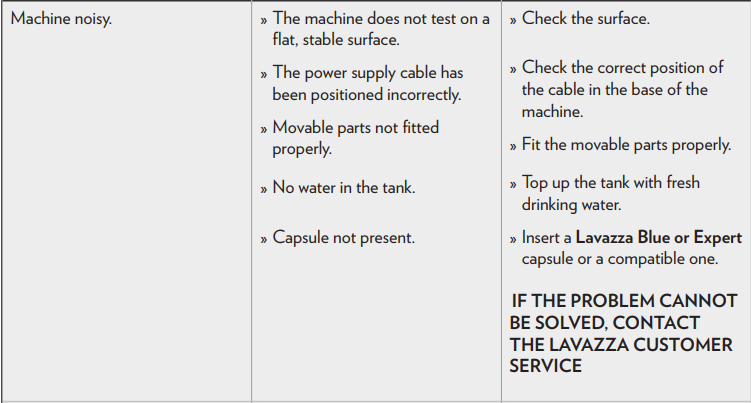

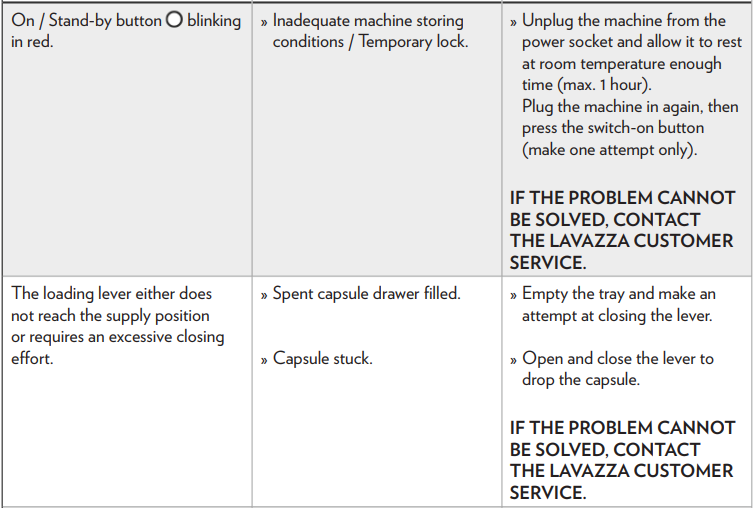

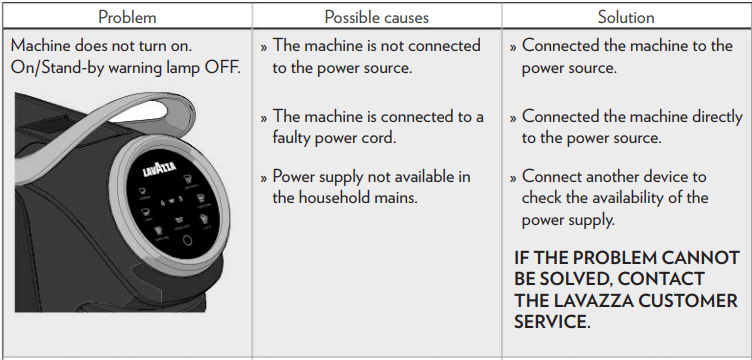

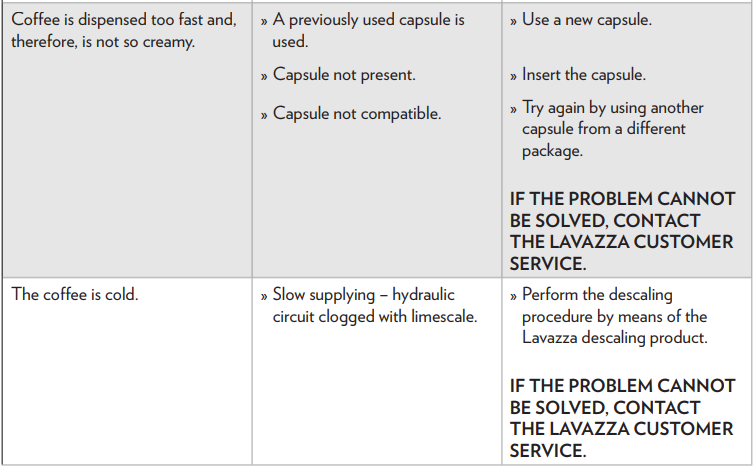

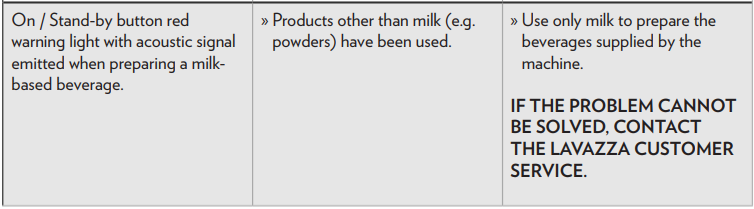

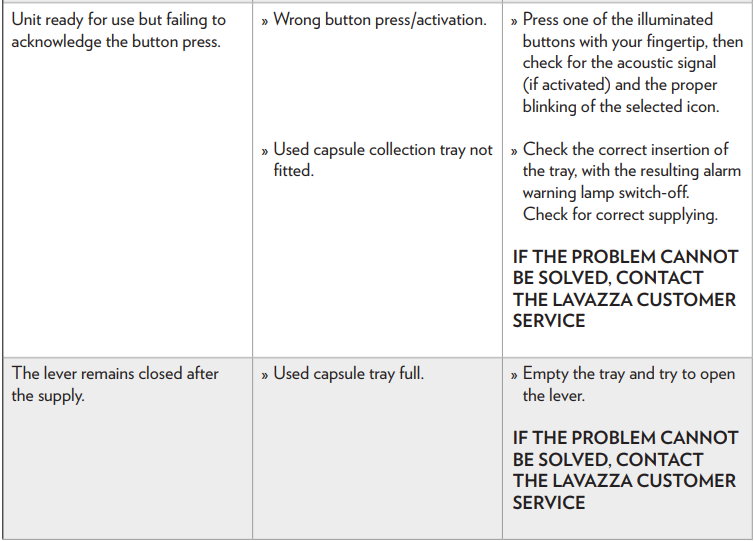

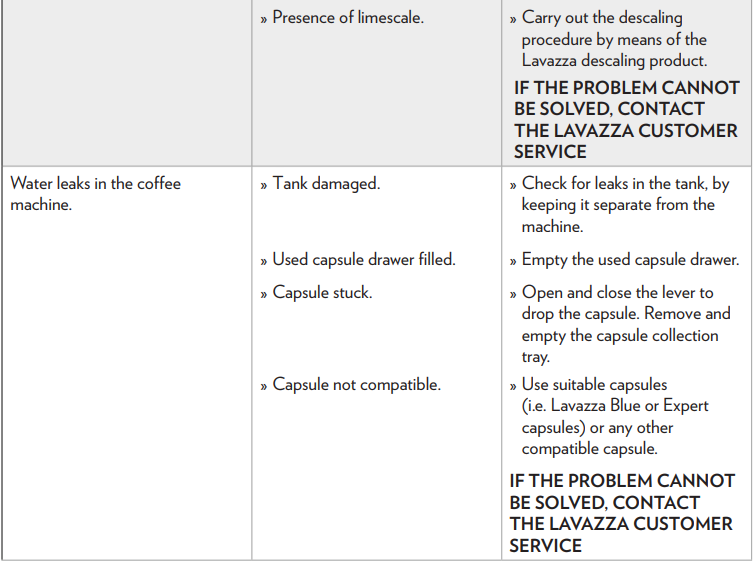

TROUBLESHOOTING

Please contact the Lavazza Customer Service for any problem or failure not included in the above list

TECHNICAL SPECIFICATIONS

Power supply: 120V / 60Hz
Nominal power: 1250W
Dimensions:
- Height: 11in (28 cm)
- Width: 5.7in (14.5 cm)
- Depth: 15in (38 cm)
Weight: 9.9lb (4,5 kg)
Water tank removable type: 37.1 us fl oz (1,1 L)
Housing materials: Thermoplastic
Cable Length: 31.5in (80 cm)
