LG 49UJ6300 Ultra HD Smart LED User Guide

LG 49UJ6300 Ultra HD Smart LED

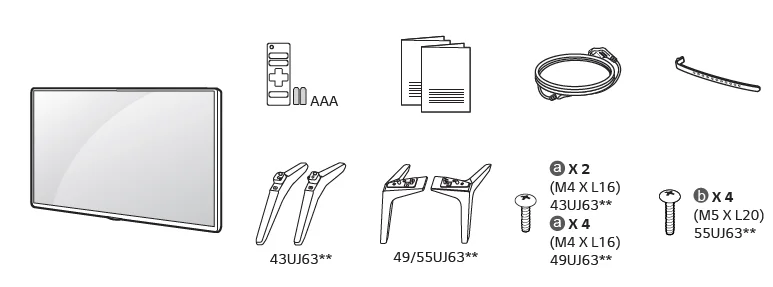

What’s in the box

Safety instructions

• Clean only with a dry cloth. Do not place the TV and/or remote control in the following environments:

1. A location exposed to direct sunlight
2. An area with high humidity, such as a bathroom
3. Near any heat source, such as stoves and other devices that produce heat
4. Near kitchen counters or humidifiers, where they can easily be exposed to steam or oil
5. An area exposed to rain or wind
6. Near containers of water, such as vases

Otherwise, this may result in fire, electric shock, malfunction, or product deformation.

• Do not place the product where it might be exposed to dust. This may cause a fire hazard.
• The main Plug is the TV connecting/disconnecting device to the AC mains electric supply. This plug must remain readily attached and operable when the TV is in use.
• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe the dust off. You may be electrocuted due to excess moisture.
• Make sure to connect the Mains cable to a compliant AC mains socket with a Grounded earth pin. (Except for devices that are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.
• Insert the power cable plug completely into the wall socket; otherwise, if not secured completely into the socket, fire ignition may break out.
• Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.
• Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
• Bend antenna cable between the inside and outside building to prevent rain from flowing in. This may cause water damage inside the Product and could give an electric shock.
• When mounting a TV onto a wall, make sure to neatly install and isolate cabling from the rear of the TV so as not to create the possibility of electric shock/fire hazard.
• Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to overheating.
• Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
• Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
• Do not let your children climb or cling to the TV. Otherwise, the TV may fall over, which may cause serious injury.
• Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek medical Attention immediately if the child consumes batteries.
• Never touch this product or antenna during a thunder or lightning storm. You may be electrocuted.
• Never touch the wall outlet when there is leakage of gas leak; open the windows and ventilate. It may cause a fire or a burn from a spark.
• Only use the specified type of battery. This could cause damage to the remote control.
• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.
• Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplaces, and electric heaters.

Preparing

• If the TV is turned on for the first time after it was shipped from the factory, initialisation of the TV may take a few minutes.
• The image shown may differ from your TV.
• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to an upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm wide. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display, or a connection error may occur.
• Recommended HDMI Cable Types (3m or less)

1. High-Speed HDMI®/TM cable
2. High-Speed HDMI ®/TM cable with Ethernet

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.
• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
• When transporting a large TV, there should be at least 2 people.
• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt it towards the left or right.
• Do not apply excessive pressure to cause flexing /bending of the frame chassis, as it may damage the screen.
• When handling the TV, be careful not to damage the protruding buttons.

Note:

1. Avoid touching the screen at all times, as this may result in damage to the screen.
2. Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

Using the button

(Depending on model)

You can simply operate the TV functions using the button.

(A Type)

(B Type)

(C Type)

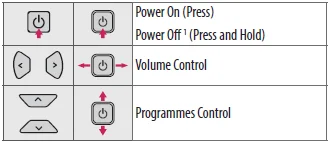

Basic Functions

(A/B Type)

(C Type)

1. All running apps will close, and any recording in progress will stop.
2. You can access and adjust the menu by pressing the button when the TV is on.
3. You can use the function when you access the menu control.

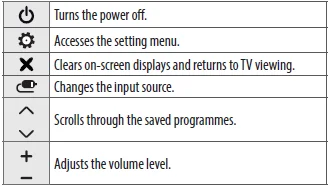

Adjusting the Menu

When the TV is turned on, press the Power button once. You can adjust the Menu items using the buttons. (Depending on model)

Mounting on a table

(This feature is not available for all models.)

1. Lift and tilt the TV into its upright position on a table. Leave a 10 cm (minimum) space from the wall for proper ventilation.
2. Connect the power cord to a wall outlet.

Warning

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

Securing the TV to a wall

(This feature is not available for all models.)

1. Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. If there are bolts inserted at the eye-bolts position, remove the bolts first.
2. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3. Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

Note:

• Make sure that children do not climb on or hang on the TV.
• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts, and ropes are not provided. You can obtain additional accessories from your local dealer.

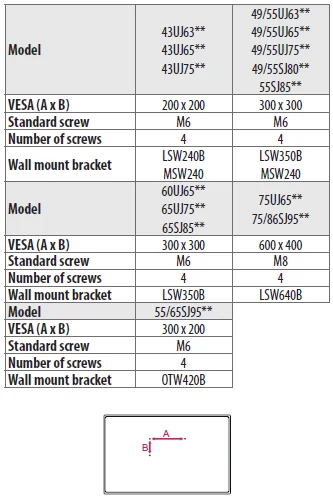

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully, and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. The LG wall mount is easy to adjust and to connect the cables. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non-adjustable mount, attach the mount to the wall.

Attach the cables to the TV first, then attach the TV to the mount.

Make sure to use screws and a wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase (Wall mounting bracket)

Notes

1. Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
2. Do not use a sharp object when you detach the cable cover. This could damage the cable or the cabinet. It may also cause personal harm. (Depending on model)

• When using the wall mount, it is recommended that you apply a piece of tape over the Stand holes to prevent dust and bugs from entering the holes. (Depending on model)

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information on external devices’ connections, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV ports.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through the DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device.
• Refer to the external equipment’s manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change
  the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the Picture menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.
• Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.
• If Ultra HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s performance.
• When connecting via a wired LAN, it is recommended to use a CAT 7 cable.

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
• This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable.

Some separate cable is not provided.

(Depending on model)

Colour

1. On: Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
2. Off: Support 4K @ 50/60 Hz 8bit (4:2:0)

• If the device connected to the Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV’s HDMI ULTRA HD Deep Colour setting to Off.
• Supported HDMI Audio format: DTS (44.1 kHz, 48 kHz), Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz,192 kHz) (Depending on model)

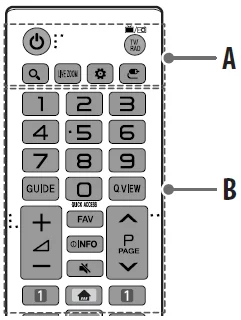

Remote control

(Some buttons and services may not be provided depending on models or regions.)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the + and – ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

Note: In Analogue TV and some countries, some remote control buttons may not work.

Make sure to point the remote control toward the remote control sensor on the TV.

A

• (POWER): Turns the TV on or off.
• TV/RAD: Selects Radio, TV and DTV programmes.
• (SEARCH): Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar.
• LIVE ZOOM: By zooming in on the selected area, you can view it in full screen.
• (Q. Settings): Accesses the quick settings.
• (INPUT): Changes the input source.

B

• Number buttons: Enter numbers.
• GUIDE: Shows programme guide.
• Q.VIEW: Returns to the previously viewed programme.
• QUICK ACCESS: You can access the application or Live TV using the number buttons corresponding to the features.
• : Adjusts the volume level.
• FAV: Accesses your favourite programme list.
• INFO: Views the information of the current programme and screen.
• (MUTE): Mutes all sounds. Pressing and holding the (MUTE) button displays the Accessibility menu.
• ∧ P ∨: Scrolls through the saved programmes.
• ∧ PAGE ∨: Moves to the previous or next screen.
• (HOME) Accesses the Home menu. Pressing and holding the (Home) button displays all the previous history.

1. Streaming Service buttons: Connect to the Video Streaming Service.

C

• TELETEXT buttons (TEXT, T.OPT). These buttons are used for teletext.
• MAGIC LINK: Provides content related to the program you are currently watching.
• Navigation buttons (up/down/left/right): Scrolls through menus or options.
• OK: Selects menus or options and confirms your input.
• BACK: Returns to the previous level.
• EXIT: Clears on-screen displays and returns to TV viewing.

D

• By pressing the AD button, the audio descriptions function will be enabled.
• REC: Starts to record and displays the record menu. (Only Time Machine Ready supported model)
• : Control buttons for media contents
• : These access special functions in some menus.

To use the button, press and hold for more than 3 seconds.

Troubleshooting

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed (+ to +, – to -).

No image is displayed, and no sound is produced.

• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem with the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Sleep Timer / Timer Power Off is activated in the Timers settings.
• If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), No Signal or Invalid Format is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
• Restart the PC with the TV on.
