LG FP9 TONE Free True Wireless Bluetooth Earbuds Owner Manual

LG FP9 TONE Free True Wireless Bluetooth Earbuds

Safety Precautions

The following safety precautions are provided to prevent any unexpected accident or damage. Please familiarize yourself with the safety precautions. The safety precautions are classified into “WARNING” and “CAUTION”.

WARNING

• Do not drop the product from a high place.
• Make sure there is no water, alcohol, or benzene in contact with the product.
• Do not store the product in a wet or dusty place.
• Do not place heavy objects on the product.
• Earbuds are tested under controlled laboratory conditions with an IPX4 rating.
• Resistant to splashed water. Dry before using. Do not charge while wet.
• The case has not been tested for IPX4.

CAUTION

• Do not disassemble, adjust, or repair the product.
• Do not place the product near excessive heat or flammable material.
• The product may be damaged if an incompatible charger is used.
• Keep small components of the product away from infants or children.
• Make sure that foreign objects do not enter the charger’s connectors (charging port and power plug). Foreign objects in the charger’s connectors may result in fire or electric shock.
• If you have a medical device implanted, contact your doctor before using this device.
• For your safety, do not remove the battery incorporated in the product.
• This product has a built-in battery, and the battery cannot be removed or replaced.
• If you arbitrarily replace the battery or don’t replace it correctly, it may explode.
• The lithium-ion battery is a hazardous component that can cause injury.
• Battery replacement by an unqualified professional can cause damage to your device.
• Do not discard the battery arbitrarily. Follow the local procedure for discarding batteries.
• In order to prevent unnecessary energy consumption, disconnect the device when fully charged, and always use an easily accessible power outlet for charging your device.
• Risk of fire or explosion if the battery is replaced with an incorrect type.
• Do not store or transport at pressures lower than 0.116 bar (11.6 kPa) and above 9.32 feet (15,000 m) altitude.
• Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types).
• Disposal of a battery into a fire or a hot oven, or mechanically crushing or cutting a battery, may result in an explosion.
• Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
• Do not carelessly throw away old batteries. It can cause an explosion or fire. The disposal method may vary by country and region. Dispose of it in an appropriate manner.

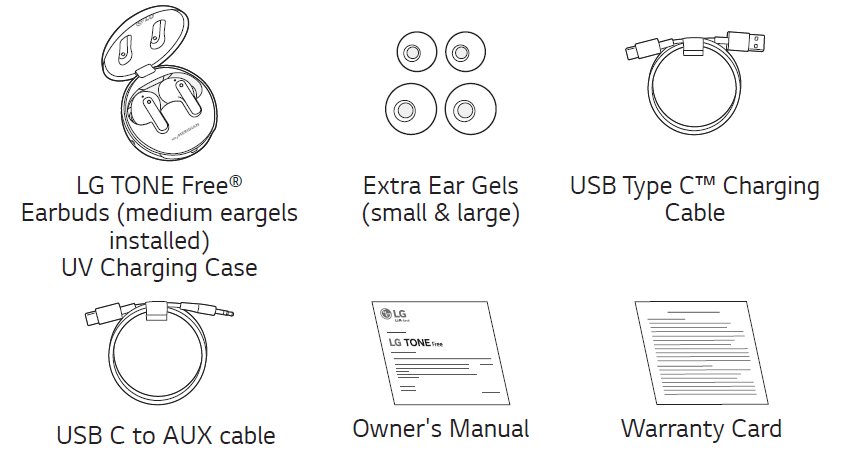

Product Components

NOTE: Actual product design may differ from images shown in manual.

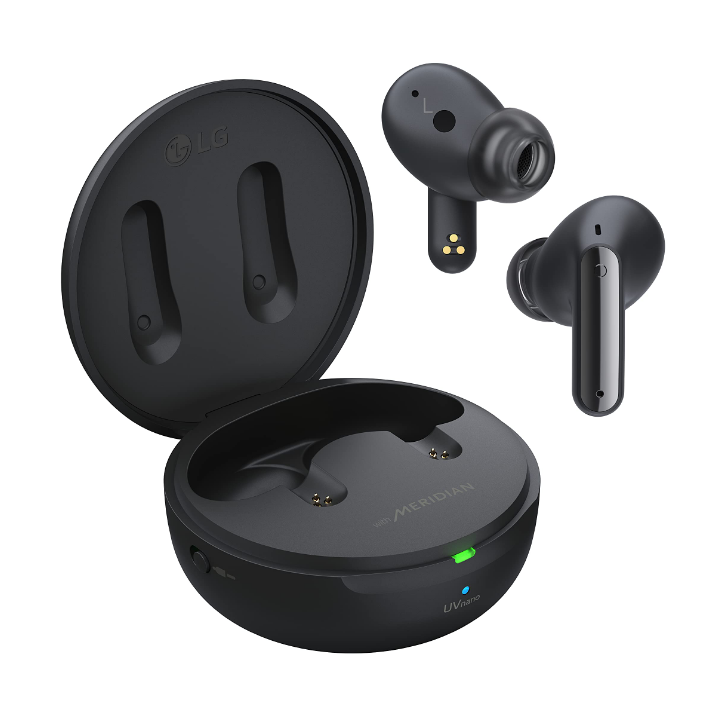

Overview

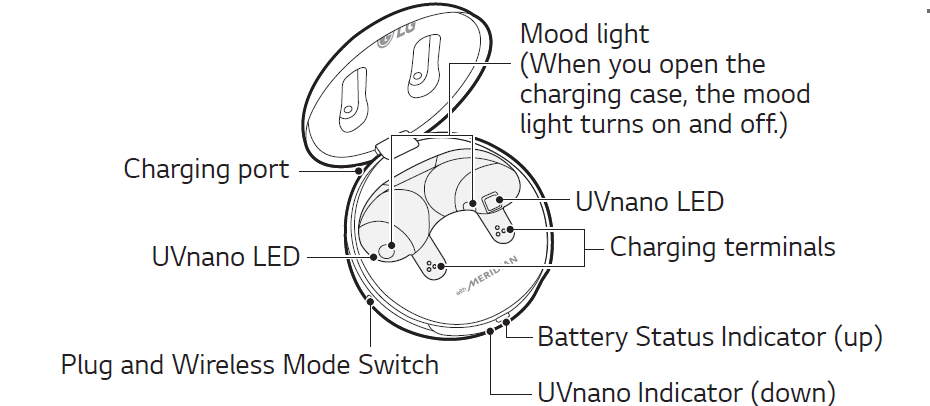

• Charging Case

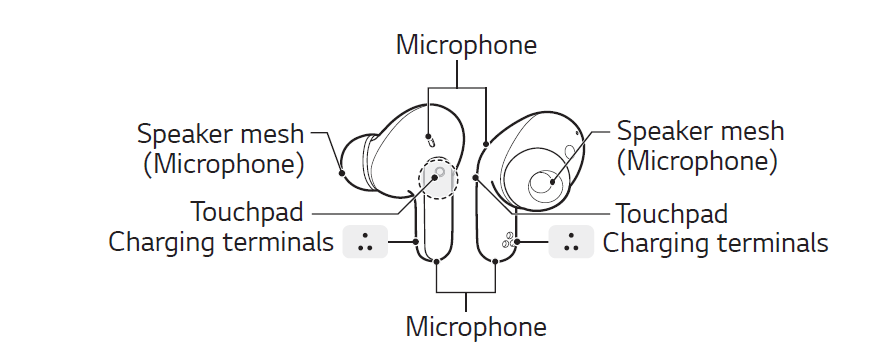

• Earbuds
• Make sure that the charging terminal is not soiled with a foreign substance.
• The appearance and specifications of the actual product may differ depending on the model.

Pairing and Connecting

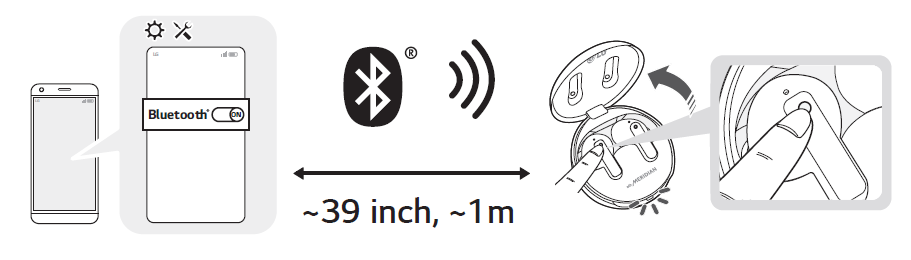

Fast Pair

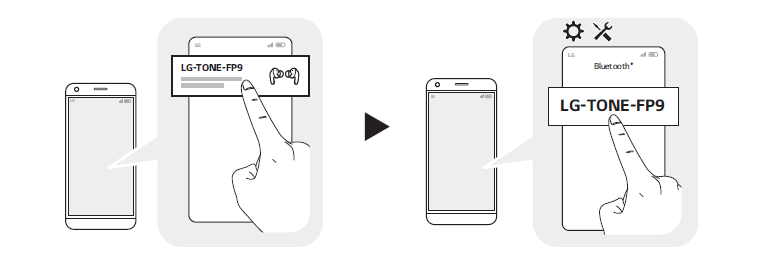

1. Turn on the Bluetooth function on the mobile phone or the device to be connected.
2. Open the cover of the charging case with the earbuds mounted on the case. Press and hold the touchpad of the left or right earbud for 3 to 5 seconds until the battery status indicator blinks blue.
3. When the Fast Pair connection pop-up appears on the top area of the mobile phone screen, tap it to connect. (It only supports Android™ 6.0 or higher, and requires configuring Bluetooth and location information settings of the mobile device.)
4. If the pop-up does not appear, select [LG-TONE-FP9] from the Bluetooth menu on the mobile phone and connect it (for users of iOS or Android 5.0 or lower versions).

Automatic Reconnection

The earbuds are connected automatically when you open the cover of the charging case. If you close the cover of the charging case with both earbuds mounted in the charging case, the earbuds are disconnected.

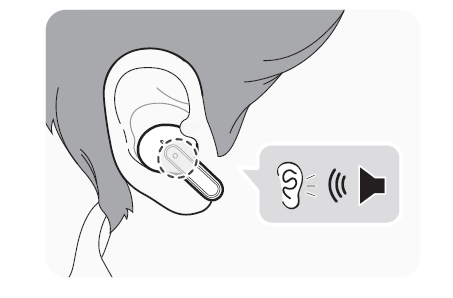

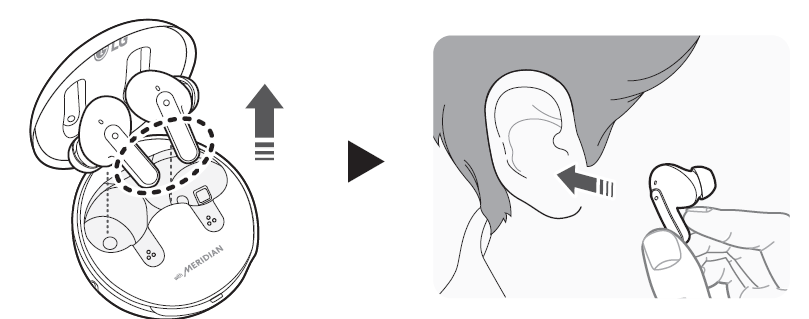

Wearing Earbuds

1. Separate the earbuds from the charging case and adjust them so that they fit comfortably in your ears.
2. You will hear an audio confirmation when wearing the earbuds.

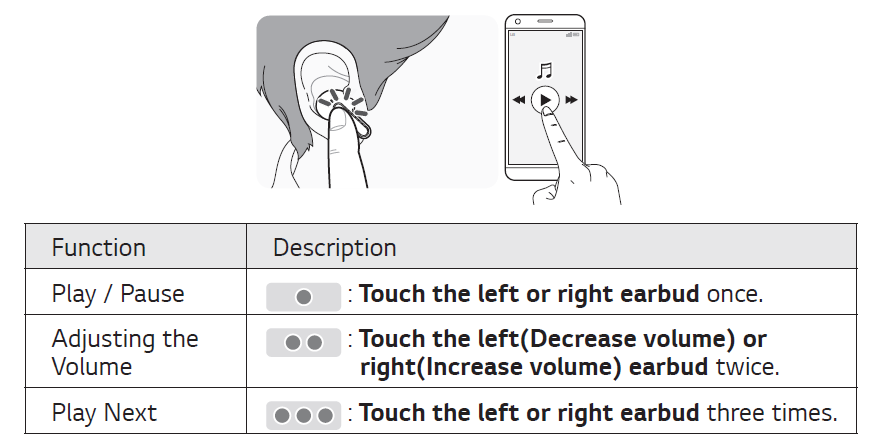

Playing Music

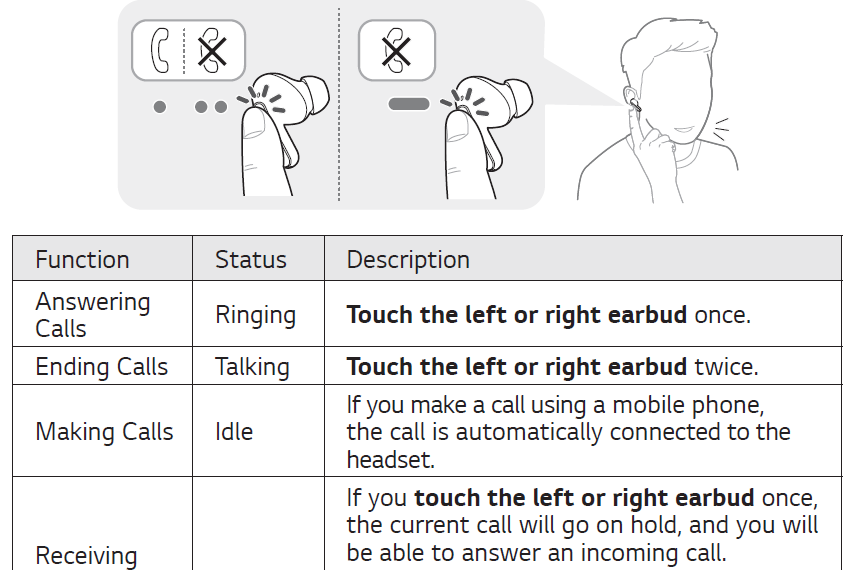

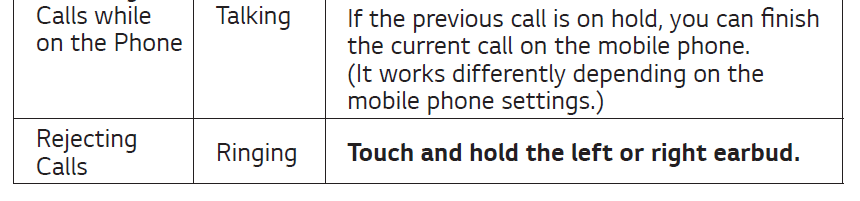

Mobile Calling Functions

Listen to the Ambient Sound (LAS) / Active Noise Cancellation (ANC)

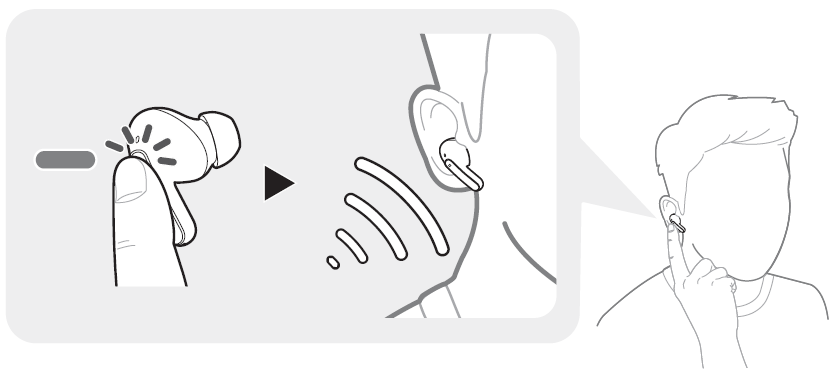

Listen to the Ambient Sound (LAS)

The Listen to the Ambient Sound (LAS) function allows you to listen to the ambient sound so that you can recognize the surrounding situation and any potential risks.

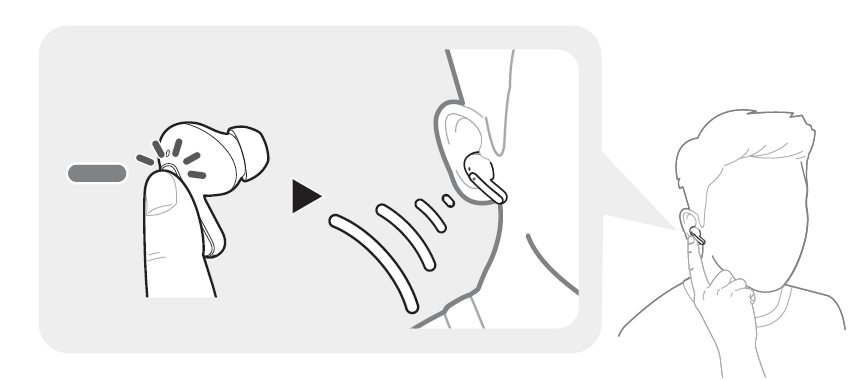

Active Noise Cancellation (ANC)

The Active Noise Cancellation (ANC) function blocks out ambient sound. Use the function to listen to music or watch a video. Touch and hold the left or right earbud to switch between the ANC mode and the LAS mode. You can set the LAS and ANC functions in the LG TONE Free app. You can configure the Listen to the Ambient Sound mode and Conversation mode using the LG TONE Free app. If you use the LAS or ANC function, the battery consumes faster, reducing the time you can use the product. You can use the LAS and ANC functions while being idle, listening to music, or being on the phone. ANC is an acronym for Active Noise Cancellation. CAUTION: When the LAS mode is enabled, you may hear the ambient sound become loud suddenly. When using the ANC function outdoors, pay attention to the surrounding environment for safety.

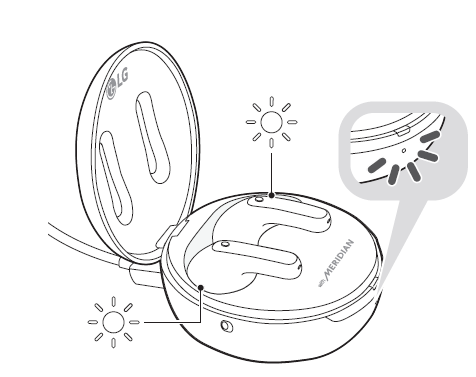

UVnano

• The charging case has a built-in UVnano LED, which allows you to sanitize your earbuds’ speaker mesh.
• The UVnano LED operates for 5 minutes when mounted in the charging case while it is being charged via a wired connection.
• UVnano is a compound word derived from the words UV and its unit nanometer. NOTE: The UVnano LED indicator turns blue when on. Independent tests show case kills 99.9% of bacteria on the speaker mesh of earbuds in 5 minutes while charging. The function works only when the case is connected to power. In the case of a white product, discoloring may occur in the contact area of the UVnano LED, but it does not affect the product’s function.

Charging

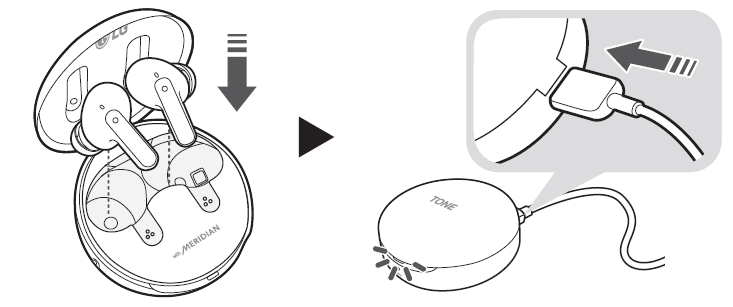

Wired Charging

When the charging cable is connected, the charging status is displayed in the charging case. NOTE: The earbuds and the charging case are charged at the same time. The charging port on the charging case cannot be used to supply power to mobile phones, etc.

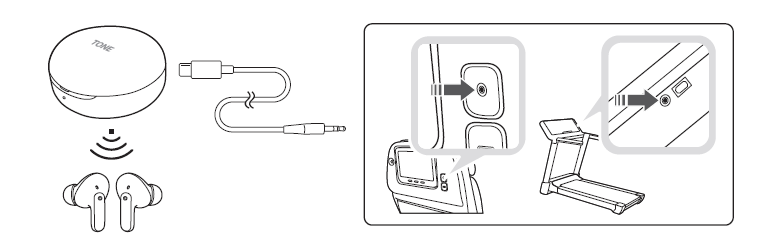

Plug and Wireless Mode (External Device Connection Mode)

You can connect the charging case to a device such as an airplane stereo system, treadmill, cassette player, radio, or TV to listen with the earbuds.

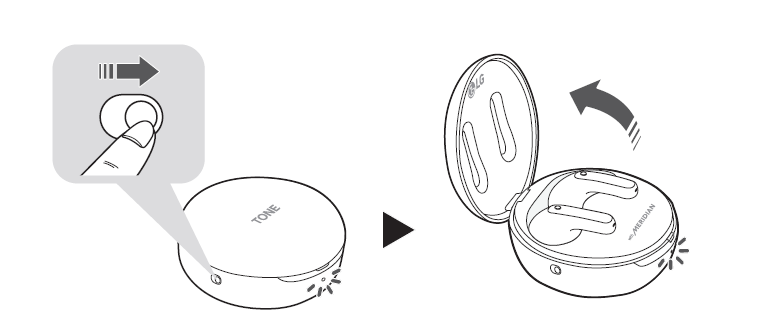

1. Push the Plug and Wireless Mode switch on the charging case to the right to activate the Plug and Wireless Mode. The battery status indicator flashes green.
2. Open the cover of the charging case to connect the charging case to the earbuds. Once the connection is established, the battery status indicator turns on green for 3 seconds and turns off.
3. Connect the USB Type-C™ side of the USB-C to the AUX cable to the charging case. (The USB-C to AUX cable does not support the charging function.)
4. Connect the AUX side of the USB-C to the AUX cable to the device that you want.

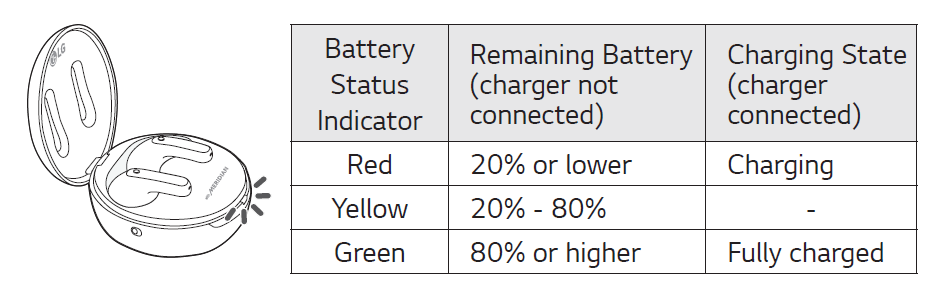

Checking the Battery Status

• If earbuds are mounted in the charging case, the earbuds’ battery status is displayed. Otherwise, the charging case’s battery status is displayed.
• If the earbuds are mounted in the charging case while plugged in, the UVnano process will commence for 5 minutes. Once this process is complete, the charging case’s battery status will be displayed.

NOTE: When the charging case lid is closed, the charging case battery status is displayed. If the charging case has no remaining charge, there will be no display, and it cannot function. We recommend you keep the charging case charged at all times, as the earbuds are not able to be turned on and off independently

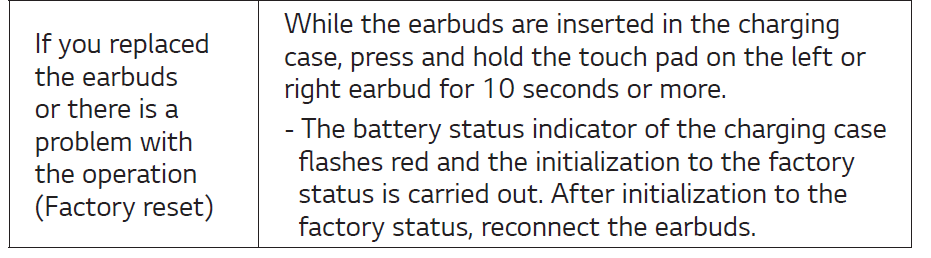

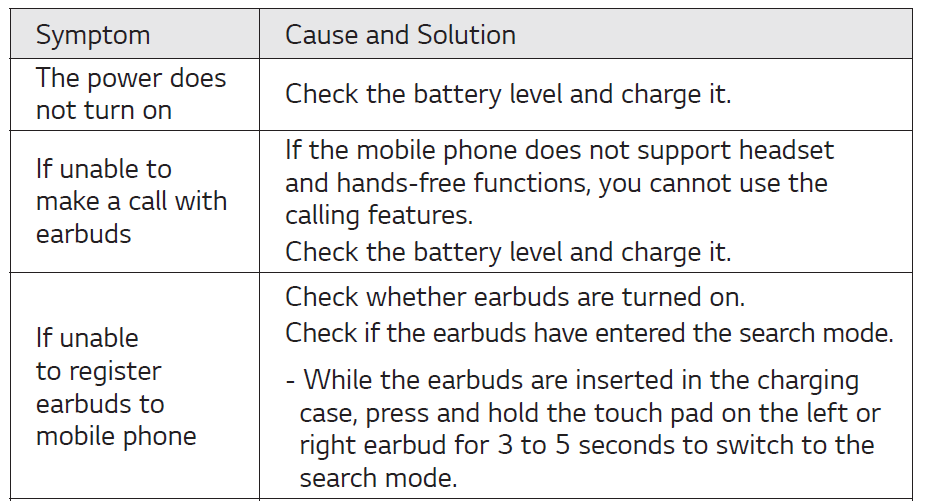

Troubleshooting

If you see any of the following symptoms while using the product, make sure to recheck it. It may not be a malfunction.

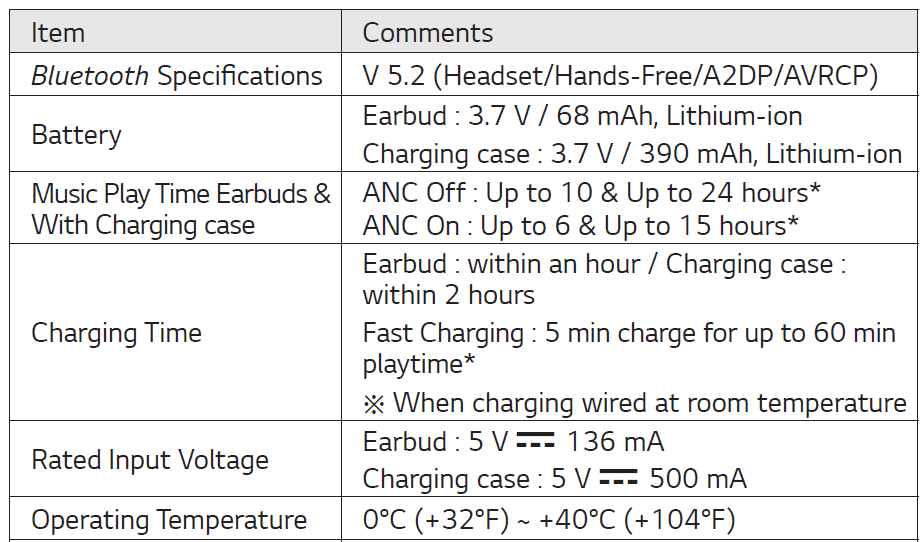

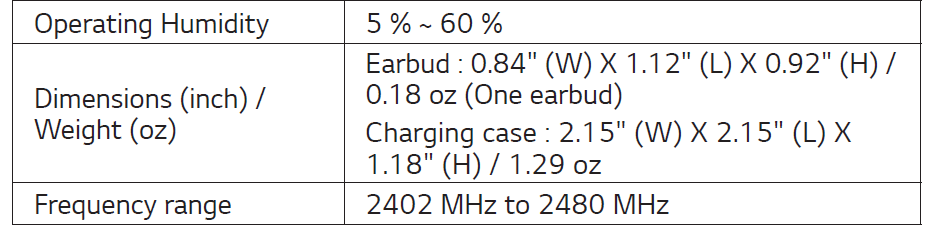

Specifications and Features

• Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength, operating temperature, frequency band, and other methods of use.

Declaration of Confirmation

FCC NOTICE TO USERS:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the user’s authority to operate the equipment.

FCC Part 15.105 statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Additional Information

1. Radio frequency exposure

This Bluetooth LG Stereo Headset is a radio transmitter and receiver. When in operation, it communicates with a Bluetooth-equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2402 to 2480 MHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible mobile phone.

2. Bluetooth connection precautions

The following environments affect the range and reception of Bluetooth signals:

• When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device.
• When equipment that uses 2.4 GHz frequency signals (wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used.
• When using a Bluetooth device (TV, laptop, etc.) other than a mobile phone, the sound quality may be affected by the specifications and performance of the device.

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. Although this is uncommon, your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire, resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Emergency calls

IMPORTANT! This Bluetooth headset and the electronic device connected to the headset operate using radio signals and mobile and landline networks, as well as user-programmed functions, which cannot guarantee connection under all conditions. Therefore, you should never rely solely upon any electronic device for essential communications (e.g., medical emergencies). Remember, in order to make or receive calls, the headset and the electronic device connected to the headset must be switched on and in a service area with adequate mobile signal strength. Emergency calls may not be possible on all mobile phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

5. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +122°F (+50°C) or below +14°F (-10°C). For maximum battery capacity, use the battery at room temperature. If the battery is used in low temperatures, its capacity will be reduced. The battery can only be charged in temperatures between +32°F (0°C) and +113°F (+45°C).

6. Recycling the battery in your Bluetooth headset

The battery in your Bluetooth headset must be disposed of properly and should never be placed in municipal waste. In case a rechargeable battery is included in this product, the entire device should be recycled in compliance with rechargeable battery recycling standards because of the internal battery. To dispose of properly, call (800) 822-8837 or visit www.call2recycle.org

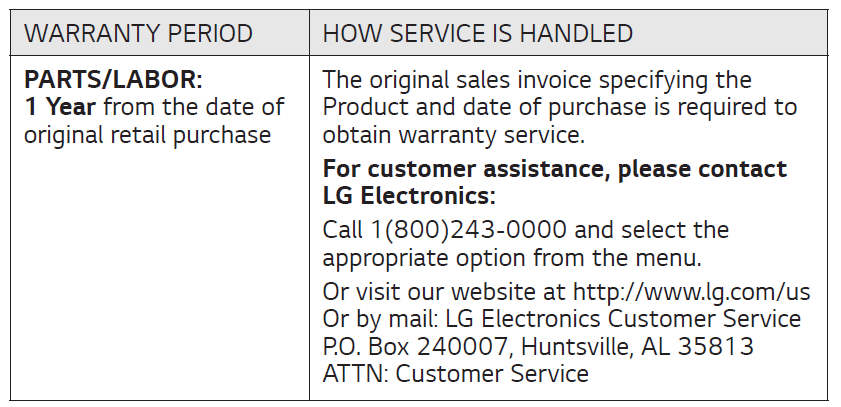

LIMITED WARRANTY – U.S.A. ONLY

TONE-FP9 / TONE-FP9W / TONE-FP9E

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.

Should your LG TONE Free (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics (“LG”) will, at its option, repair or replace the Product. This limited warranty is valid only to the original purchaser of the Product and applies only when purchased lawfully and used within the United States, including U.S. Territories.

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Any replaced Product and/or parts will be the property of LG.

THIS LIMITED WARRANTY DOES NOT COVER:

• Damage or loss to programs, data, or removable storage media.
• Damage or failure of the Product caused by improper setup or adjustment of consumer controls.
• Damage or failure of the Product caused by transportation and/or handling, including scratches, dents, chips, and/or other damage to the finish of your Product, unless such damage results from a defect in materials or workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).
• Damage or failure of the Product from anything other than normal intended use.
• Damage or failure of the Product caused by incorrect electrical current or voltage (including power surge), power failures, interruptions, or inadequate electrical service, including incorrect or insufficient AC supply.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, or operation of the Product contrary to the Product owner’s manual and/or installation manual.
• Damage or failure of the Product caused by accidents, liquid, pests and vermin, lightning, wind, fire, flood, or other acts of nature.
• Damage or failure of the Product caused by abnormal conditions or an environment where the temperature and humidity are not adequately controlled.
• Damage or failure of the Product caused by the use of accessories, parts, consumable cleaning products, or service not provided or approved by LG.
• Damage or failure of the Product or missing items to any Product sold “As Is”, “With all Faults” or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Replacement of any consumable parts, including batteries.
• Minor imperfections that do not materially alter or affect functionality.

The cost of repair or replacement under the above excluded circumstances shall be borne by you.
