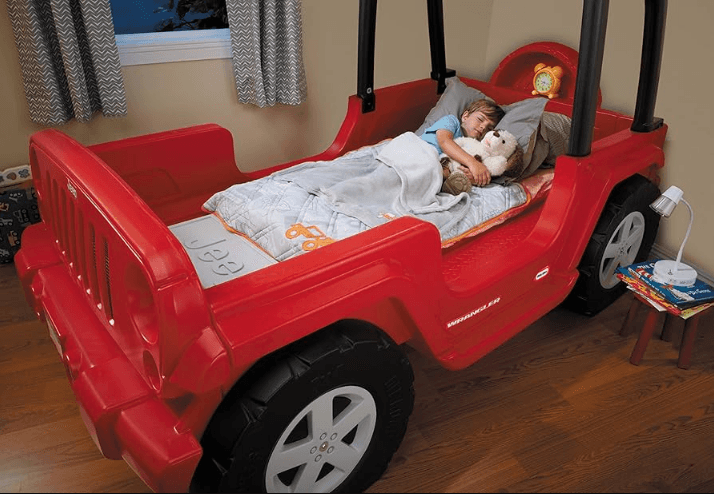

Little Tikes 635632M Jeep Wrangler User Manual

Little Tikes 635632M Jeep Wrangler

Adult assembly required

WARNING:

ADULT ASSEMBLY REQUIRED.

• Keep these instructions for future reference.
• Prior to assembly, this package contains small parts: hardware, which is a choking hazard and may contain sharp edges and sharp points. Keep away from children until assembled.
• Failure to follow these warnings and the assembly could result in serious injury or death from entrapment or strangulation.
• Always use a full-size crib mattress (51 5/8″ x 27 1/4″x 4″/690 mm x 1310 mm x 100 mm) and springs (not included).
• Do not place the bed near windows where cords from blinds or drapes may strangle a child.
• Do not place items with string, cord, or ribbon around a child’s neck, such as hood strings or pacifier cords.
• Do not suspend strings over a toddler bed for any reason.
• Do not place the bed against a wall unless the gap between the wall and the bedside is less than 3″ (8 cm). The toddler may roll into the space between the wall and the bed, causing suffocation.
• Before each use, check the bed for loose or missing hardware.
• Do not use a water or all-foam mattress.
• Do not use for infants. This toddler bed is intended for a child between 15 months and 5 years of age. Maximum weight limit: 50 lbs. (22.7kg).
• Discontinue use of the toddler bed when a child weighs more than 50 lbs.. (22.7kg). Use the bed with only one child at a time.
• Maximum weight – twin bed: 200 lbs. (91 kg.) Twin bed uses standard twin size: 38″ (+1/2″) x 74 1/2″ (+1/2″) x 6″-8″/965 mm (+13) x 1880 mm (+13) x 152 mm-203 mm.

BATTERY SAFETY INFORMATION:

• Keep these instructions for future reference.
• Requires 9 “AAA” (LR03) alkaline batteries (not included): 3 for the reading lamp, 3 each for the top lights (2). (Rechargeable batteries may be substituted.)
• The voltage of a fully-charged, rechargeable battery is often lower than that of a fresh alkaline battery. Therefore, it is recommended that alkaline batteries be used instead of rechargeable batteries for best performance and longer play time.
• Install batteries with the correct polarity (+ and -).
• To avoid battery leakage:
  • Follow the toy and battery manufacturer’s installation instructions.
  • Do not mix old and new batteries.
  • Do not mix standard (carbon-zinc), alkaline or rechargeable (nickel-cadmium or nickel-metal-hydride) batteries. Do not mix different brands of batteries. Only batteries of the same or equivalent type as recommended are to be used.
  • When the toy is not used for an extended period of time, remove batteries to prevent possible leakage and damage to the unit.
  • Remove dead or exhausted batteries from the product.
  • Dispose of dead batteries properly; do not bury. Do not dispose of batteries in a fire, as they may leak or explode.
  • Make sure the cover is properly installed on the unit at all times.
• Do not attempt to recharge non-rechargeable batteries.
• Rechargeable batteries are to be removed from the toy before recharging.
• Charging of rechargeable batteries should be done only by an adult.
• The supply terminals are not to be short-circuited.
  NOTE: If the unit stops working or doesn’t work as it should, remove the batteries for a few minutes and then reinsert them. If there is still a problem, install new batteries.

MAINTENANCE:

• Check bolts and nuts periodically for tightness.
• Inspect the bed for damaged hardware, loose joints, missing parts or sharp edges before assembly and each use. DO NOT use the bed if any parts are missing or damaged. DO NOT substitute parts.

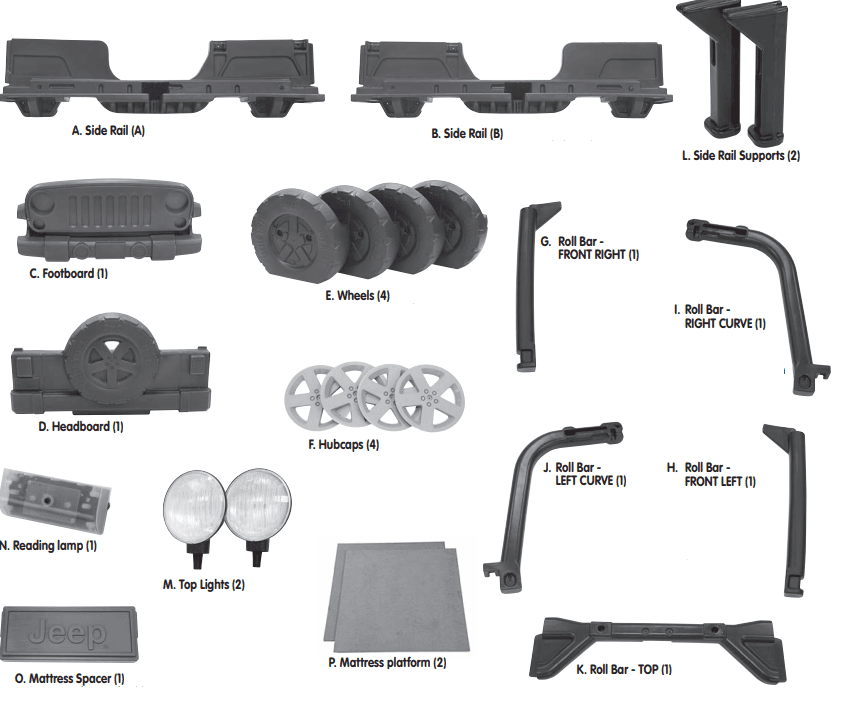

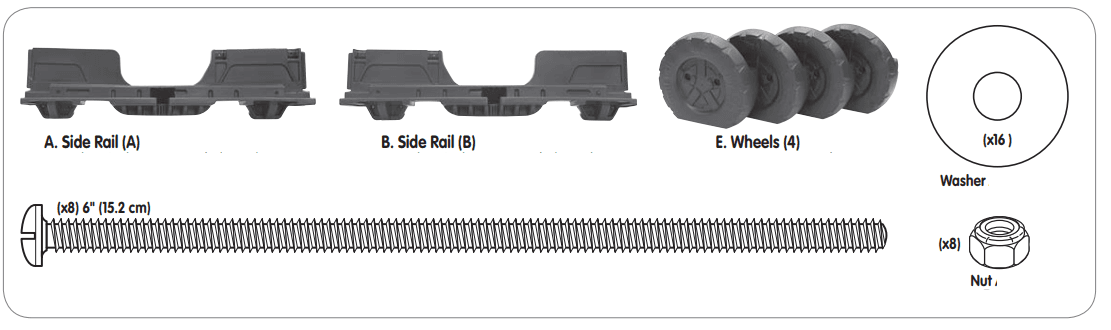

Parts List

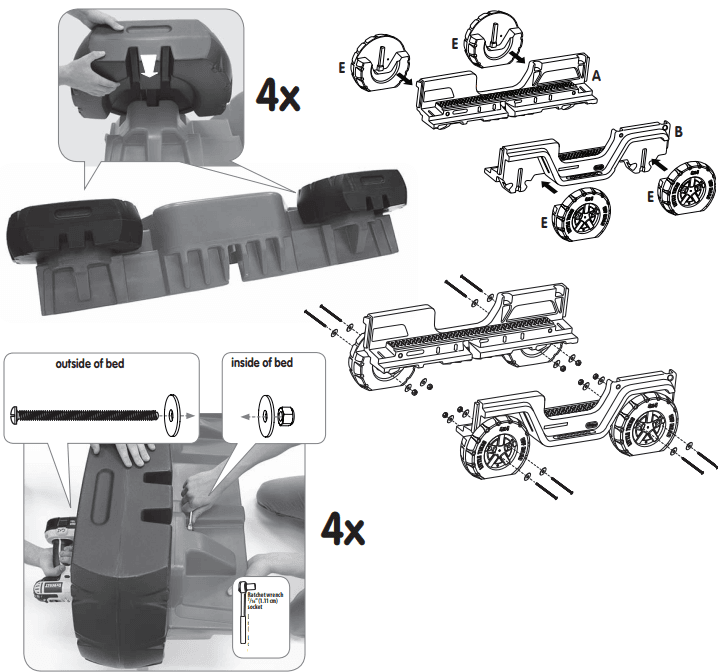

Wheels

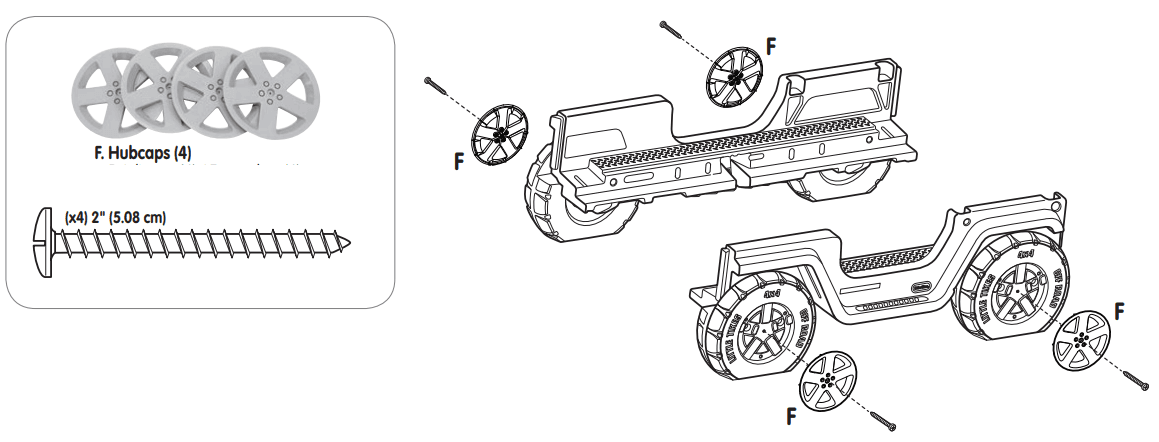

Hubcaps

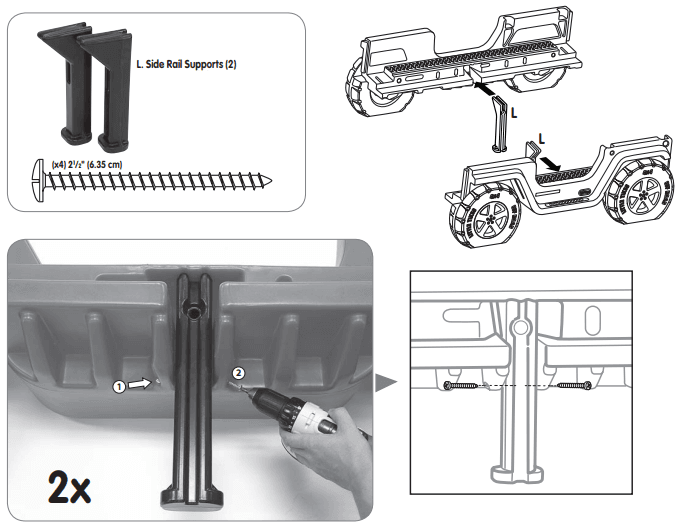

Side Rail Supports

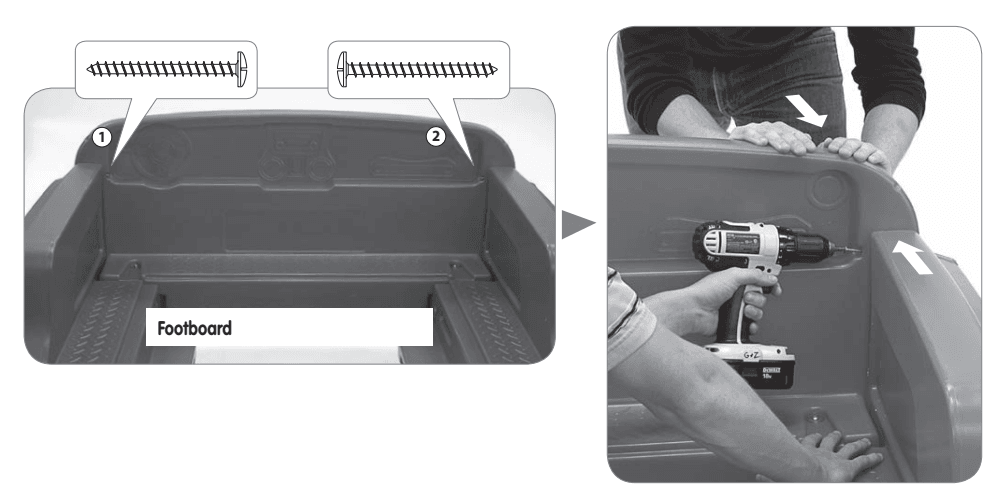

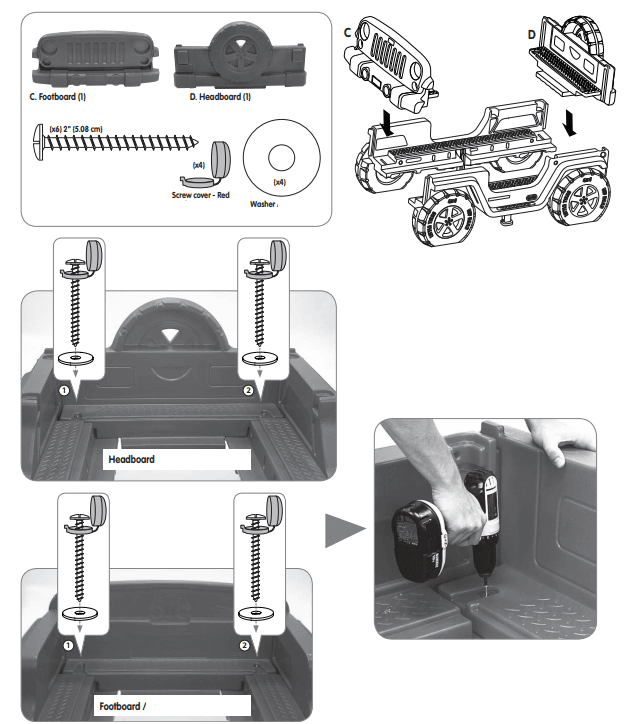

Headboard & Footboard

Headboard & Footboard

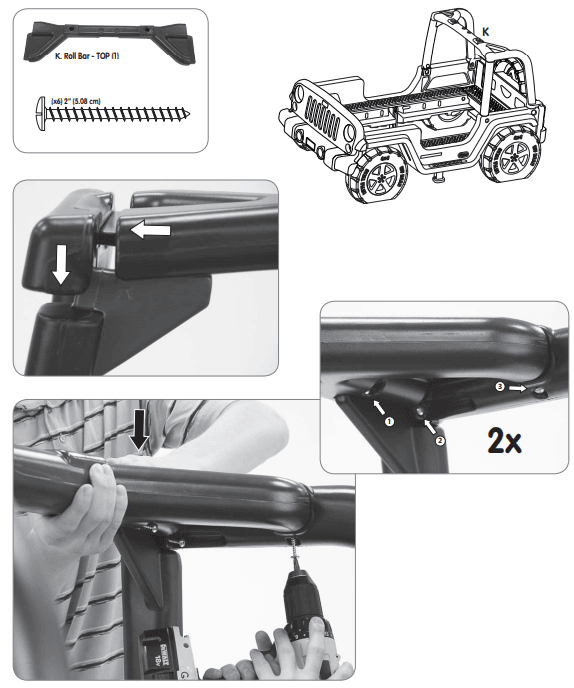

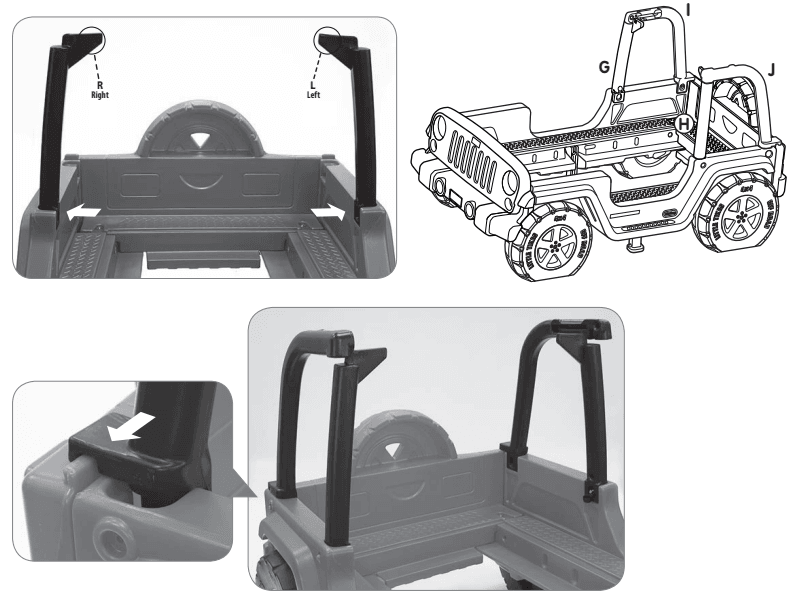

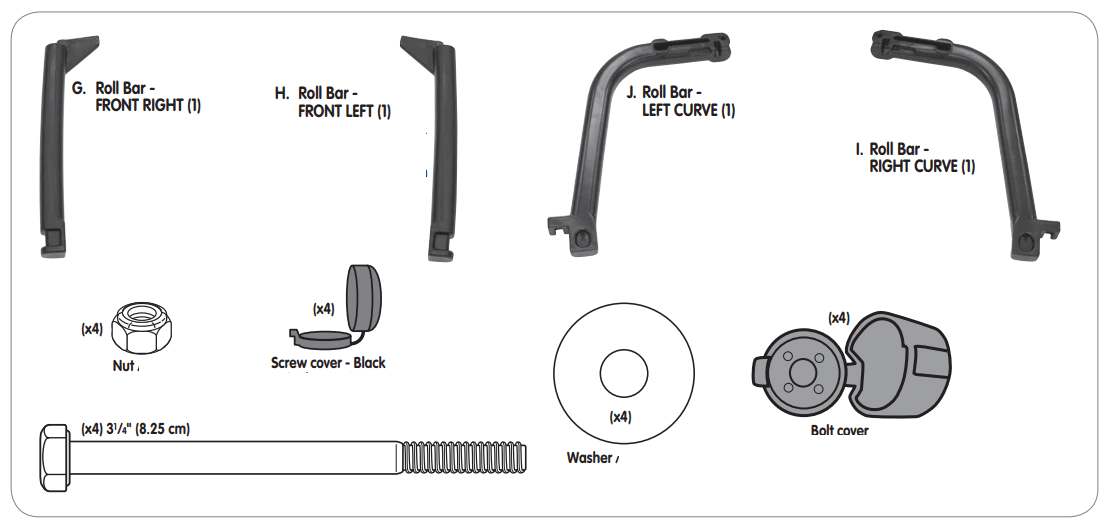

Roll Bar

Roll Bar

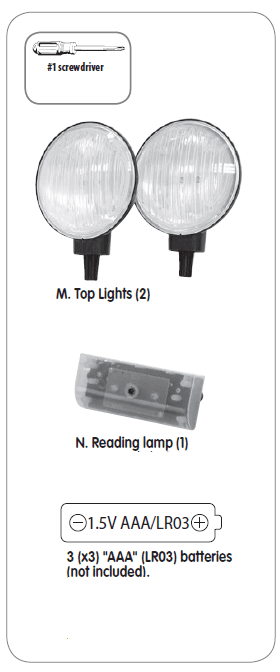

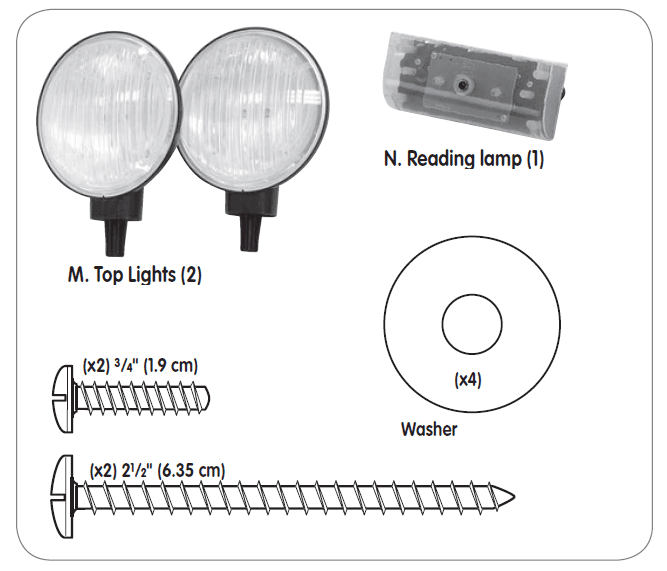

Top Lights & Reading Lamp

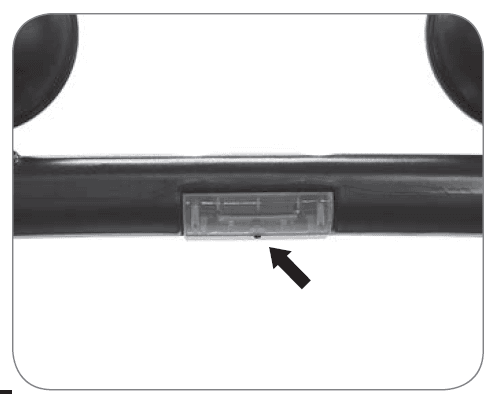

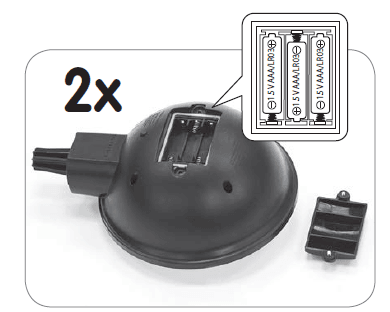

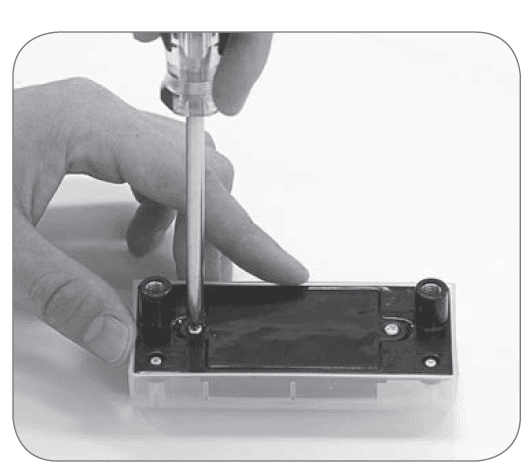

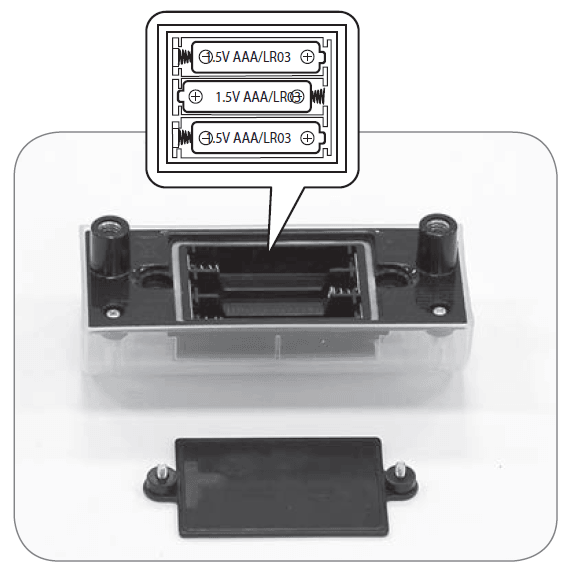

Remove the battery cover from the light.Install 3 “AAA” (LR03) batteries. Re-attach battery cover.Remove battery cover from reading lamp.Install 3 “AAA” (LR03) batteries. Re-attach battery cover.

Lights operation

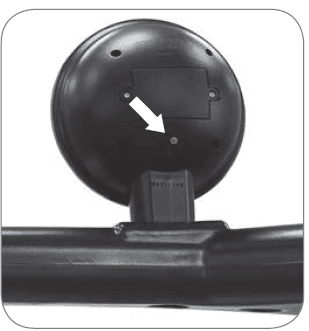

Press the button once to TURN ON. Press the button twice to TURN OFF. The light automatically shuts off after 10 minutes.Press the button once to TURN ON, press again to TURN OFF. The light automatically shuts off after 2 minutes.

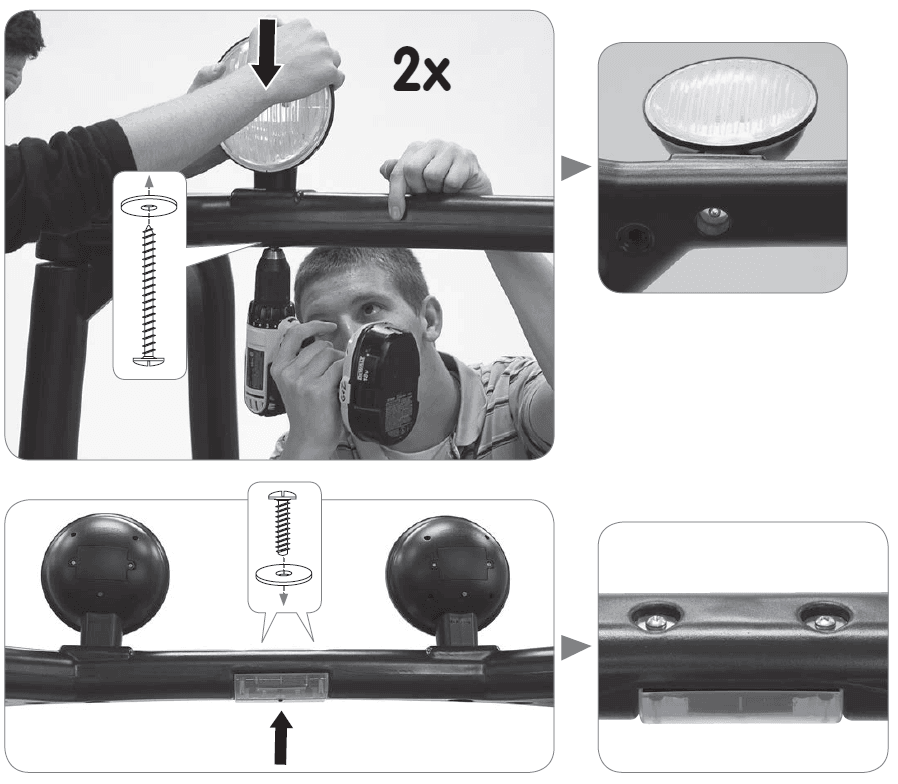

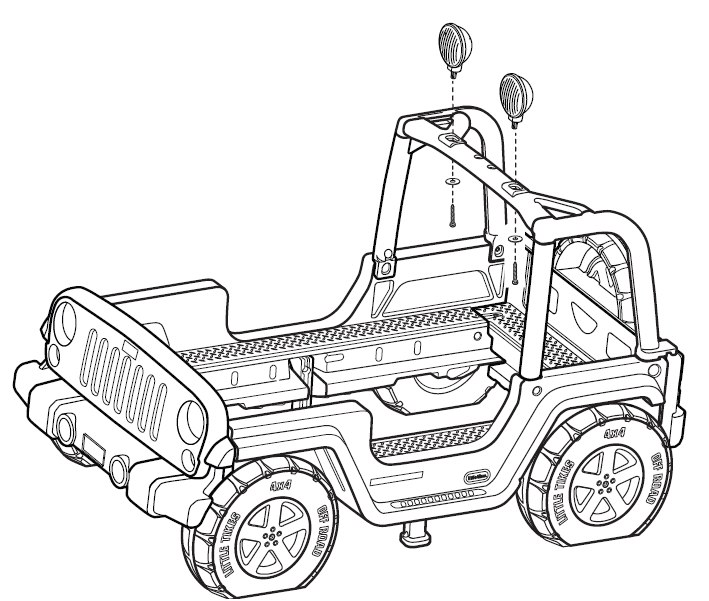

Top Lights & Reading Lamp

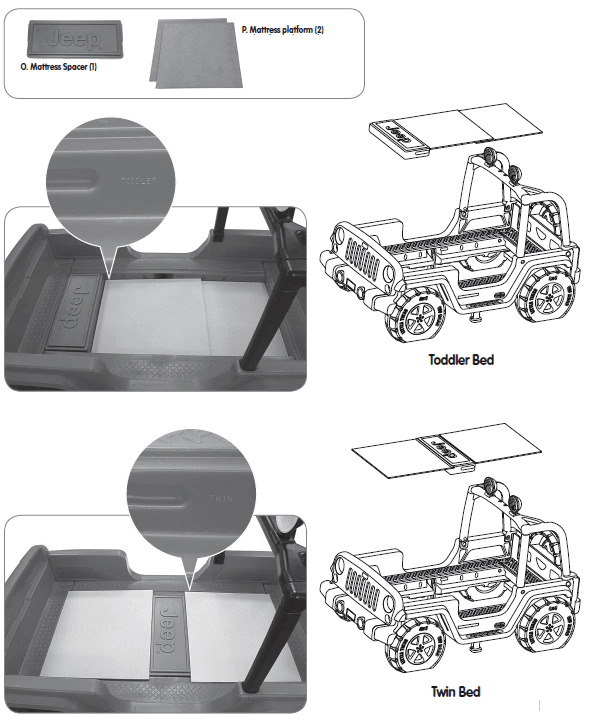

Mattress platforms

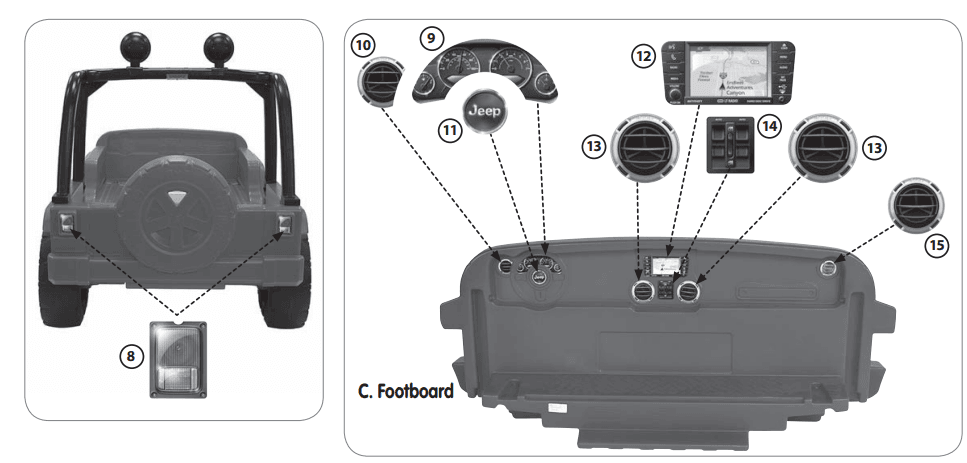

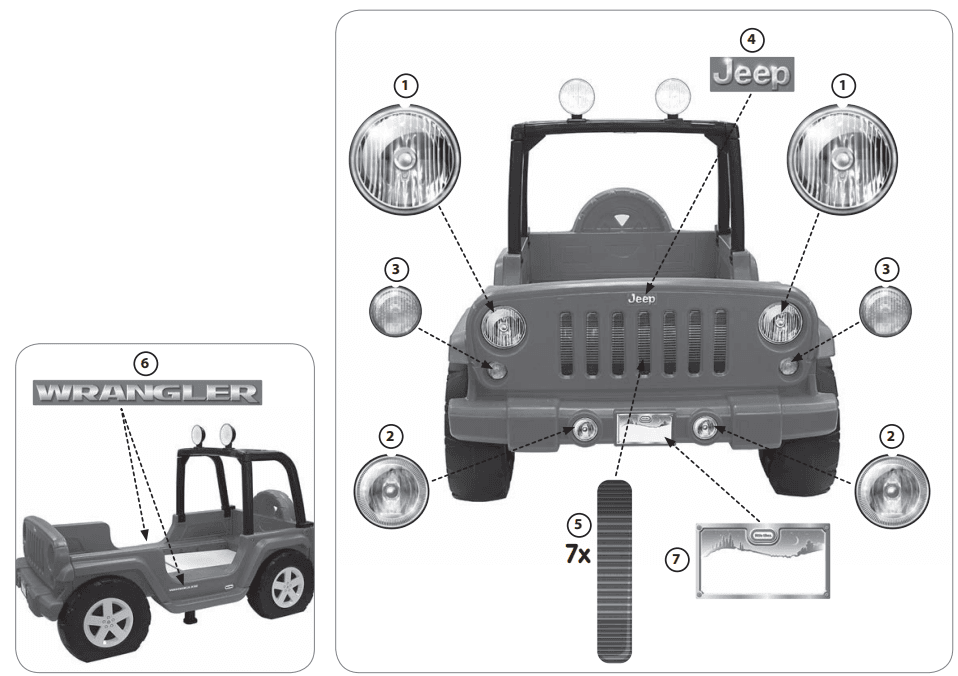

Decal Placement

Decals must be applied to a clean, dry surface. Wipe clean with a dry rag before application. Remove air from under decals by applying pressure to the decals starting from the center, and work towards edges.

LIMITED WARRANTY

The Little Tikes Company makes fun, high-quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required for proof of purchase). At the sole election of The Little Tikes Company, the only remedies available under this warranty will be the replacement of the defective part or the replacement of the product. This warranty is valid only if the product has been assembled and maintained per the instructions. This warranty does not cover abuse, accident, cosmetic issues such as fading or scratches from normal wear, or any other cause not arising from defects in material and workmanship. *The warranty period is three (3) months for daycare or commercial purchasers. U.S.A. and Canada: For warranty service or replacement part information, please visit our website at www.littletikes.com, call 1-800-321-0183, or write to: Consumer Service, The Little Tikes Company, 2180 Barlow Road, Hudson, OH 44236, U.S.A. Some replacement parts may be available
for purchase after the warranty expires—contact us for details. Outside the U.S.A. and Canada: Contact the place of purchase for warranty service. This warranty gives you specific legal rights, and you may also have other rights, which vary from country/state to country/state. Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
