SETUP INSTRUCTIONS

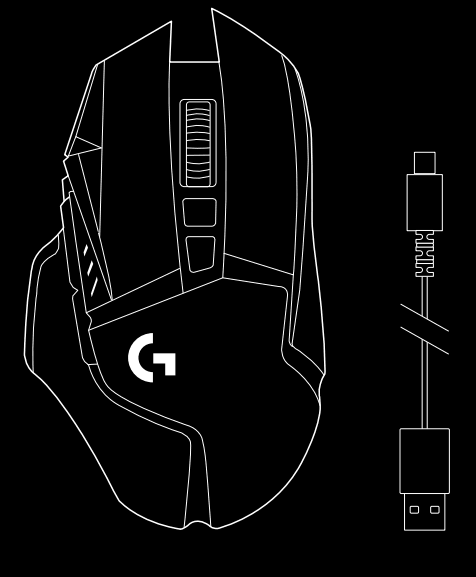

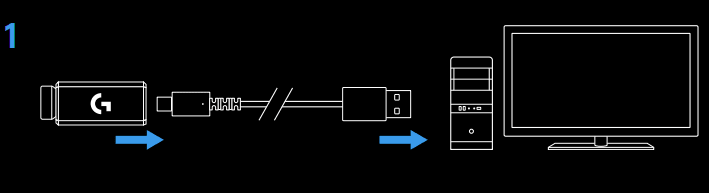

- A wireless receiver attached to the USB adapter can be found in the accessory box. Plug one end of the cable into your PC, and the other end into the USB adapter and receiver.
- The receiver can also be used plugged directly into your PC. However, using the cable and adapter when in wireless mode is recommended and allows for better connectivity and easy access to the cable for recharging.
- Turn the mouse on via the switch on the bottom of the mouse.
- Download Logitech G HUB gaming software

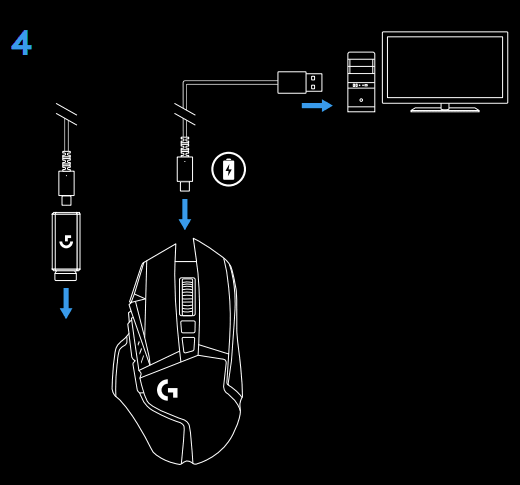

- To charge, disconnect the cable from the adapter and plug it into the front of the mouse. Your mouse will operate in data‑over-cable mode whenever it is plugged in directly to a PC. Full charge from empty requires around 2 hours plugged into a PC USB port.
- Tips:
- Keep the mouse and receiver 2 m+ away from wireless routers or other 2.4GHz wireless devices to minimize environmental noise.
- G502 LIGHTSPEED has a wireless range of up to 10 meters. To ensure optimal performance in noisy wireless environments and to keep the charging cable easily accessible, it is recommended to keep the receiver within 20 cm of the mouse
11 FULLY PROGRAMMABLE BUTTONS
- Left click (Button G1)
- Right click (Button G2)
- DPI up (Button G8)
- Scroll left (Wheel tilt left)
- Scroll right (Wheel tilt right)
- DPI down (Button G7)
- Middle click (Button G3)
- DPI shift/Sniper button (Button G6)
- Wheel mode toggle button (not programmable)
- Forward (Button G5)
- Battery status (Button G9)
- Back (Button G4)

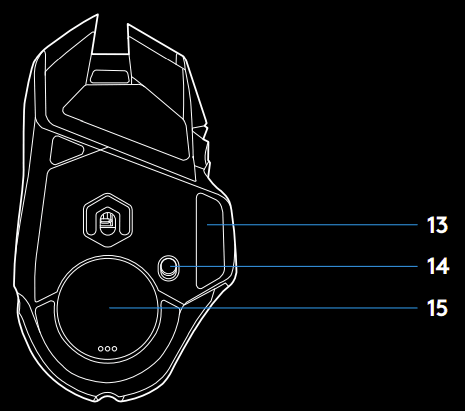

- Upper weight door (bottom of mouse)
- On/Off switch (bottom of mouse, not programmable)
- Lower weight and receiver storage door (bottom of mouse)
WEIGHT CUSTOMIZATION, RECEIVER STORAGE, AND POWERPLAY
- The upper weight door can be opened by pulling on its right edge. 4x 2-gram weights can be added.

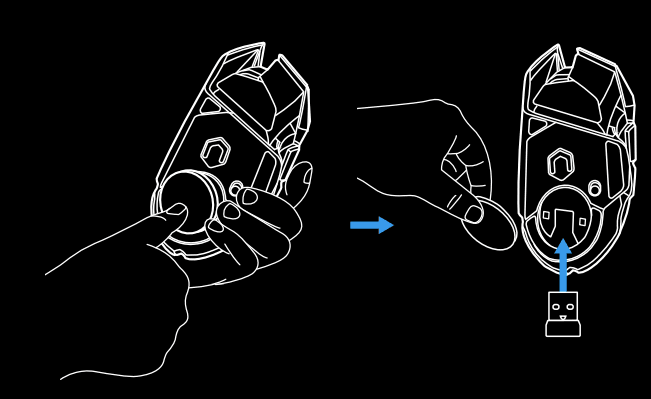

- The lower weight and receiver storage cover can be opened by pressing inwards at the bottom of the cover with the thumb and pulling it out with the other hand.
- 2x 4-gram weights can be added inside the receiver storage cover. The receiver storage cover and weights can be replaced by the POWERCORE adapter available with the POWERPLAY wireless charging system (sold separately)
LIGHTSPEED BATTERY LIFE
- G502 LIGHTSPEED has a rechargeable 250mAh LiPol battery which provides it with up to 55 hours of non-stop gaming at 1ms report rate with lights off, or 48 hours of non-stop gaming at 1ms report rate with RGB color cycling on.
- The charge level can be checked when the mouse is powered on or by pressing the G9 button, or by using Logitech G HUB to assign a button to check the charge level.
- Charge level is displayed for seven seconds at mouse power‑on using the color and number of bars illuminated on the DPI indicator:
- 3 green lines = 50–100%
- 2 green lines = 30–50%
- 1 green line = 15–30%
- 1 flashing red line = <15%
- Tips:
- The bottom dot will flash red when the battery is at 15% or less. When this happens, plug in your mouse to charge.
- Charge level, power draw, and estimated remaining battery life can be checked in Logitech G HUB.
CHARGING/DATA OVER CABLE

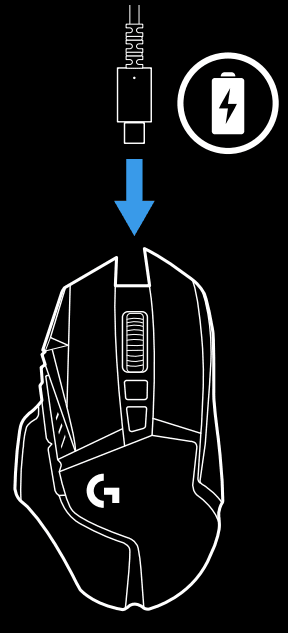

- Plug your mouse in via the provided USB charging cable when the battery is low. G502 LIGHTSPEED is also compatible with the Logitech G POWERPLAY wireless charging system, sold separately.
LOGITECH G HUB
You can customize the onboard profile settings using the Logitech G HUB. These settings include button programming, report rate, performance/endurance modes, and tracking behavior. G502 LIGHTSPEED allows up to 5 DPI settings. By default, G502 LIGHTSPEED has the following settings:
- DPI: 400/800/1600/3200/6400
- Report rate: 1ms
Tips:
- G502 LIGHTSPEED has 1 onboard profile by default, but supports up to 5 onboard profiles. Extra profiles can be added using Logitech G HUB.
DPI/ONBOARD PROFILE INDICATORS

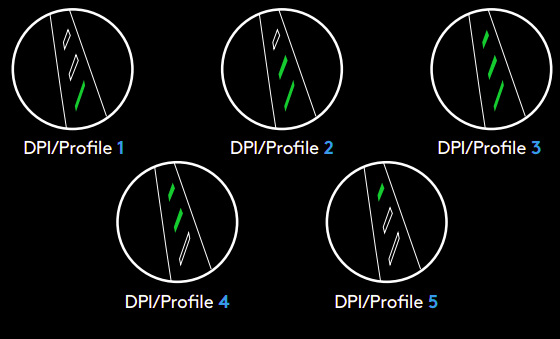

- DPI/Onboard profiles are shown using three LEDs above the thumb buttons. The illustrations above show which values are being indicated by the LED panel
FREQUENTLY ASKED QUESTIONS
For more manuals by Logitech, visit ManualsLibraryy
Logitech G502 Lightspeed Wireless Gaming Mouse-FAQs
How can I tell when the Logitech G502 Lightspeed is fully charged?
The mouse features a multi-color LED indicator. When it’s plugged in and the light shows a steady green, the battery is fully charged.
Can I use the G502 Lightspeed while it’s charging?
Yes, you can use the mouse while it’s plugged in and charging via the included USB cable.
How do I extend the battery life of my G502 wireless mouse?
To save battery:
1. Turn off the mouse when not in use.
2. Lower the polling rate.
3. Disable RGB lighting if not needed.
4. Use sleep mode and adjust power settings on your device.
What does DPI shift mean on the G502?
DPI stands for Dots Per Inch—it controls mouse sensitivity. DPI shift lets you quickly change sensitivity settings for different tasks or in-game scenarios.
Is it okay to leave the G502 plugged in all the time?
While it’s safe, keeping it constantly powered can add wear over time. It’s better to unplug or power it off when not in use to extend lifespan.
What tracking speed does the G502 offer?
The G502 features the HERO 25K sensor, which supports over 400 IPS (inches per second) tracking and up to 25,600 DPI, with excellent power efficiency.
Is the G502 Lightspeed faster than a wired mouse?
Yes, with LIGHTSPEED wireless technology, it offers a 1ms report rate—making it even faster than many wired mice, with zero lag or interference.
Should I turn off my wireless mouse when I’m not using it?
Absolutely. Turning off your mouse conserves battery, reduces power consumption, and helps the device last longer.
