Makita 6221D Cordless Driver Drill User Manual

Makita 6221D Cordless Driver Drill

IMPORTANT SAFETY INSTRUCTIONS

1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don’t use power tools in damp locations. Keep the work area well-lit. Don’t expose power tools to rain. Don’t use the tool in the presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from the work area.
   Don’t let visitors contact the tool or extension cord.
4. STORE IDLE TOOLS. When not in use, tools should be stored in a dry, high,
   or locked-up place – out of reach of children.
5. DON’T FORCE TOOL. It will do the job better and safer at the rate for which it was intended.
6. USE THE RIGHT TOOL. Don’t force a small tool or attachment to do the job of a
   heavy-duty tool. Don’t use a tool for a purpose not intended; for example, don’t
   use a circular saw for cutting tree limbs or logs.
7. DRESS PROPERLY. Don’t wear loose clothing or jewelry. They can be caught
   in moving parts. Rubber gloves and non-skid footwear are recommended
   when working outdoors. Wear a protective hair covering to contain long hair.
8. USE SAFETY GLASSES. Also, use a face or dust mask if the cutting operation is
   dusty.
9. DON’T ABUSE THE CORD. Never carry a tool by the cord or yank it to disconnect from a
   receptacle. Keep cord from heat, oil, and sharp edges.
10. SECURE WORK. Use clamps or a vise to hold work. It’s safer than using your hand, and it frees both hands to operate the tool.
11. DON’T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
    safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have them repaired by an authorized service facility. Inspect extension cords periodically and replace them if
    damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECT TOOLS. When not in use, before servicing, and when changing accessories, such as blades, bits, and cutters.
14. REMOVE ADJUSTING KEYS AND WRENCHES. Form the habit of checking to
    see that keys and adjusting wrenches are removed from the tool before turning
    it on.
15. AVOID UNINTENTIONAL STARTING. Don’t carry a tool with your finger on the switch. Be sure the switch is OFF when plugging in.
16. EXTENSION CORDS. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

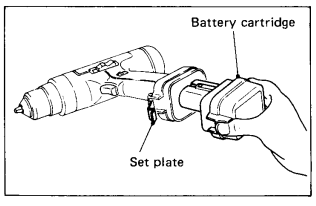

Installing or removing a battery cartridge

• 0 Always switch off the tool before insertion or removal of the battery cartridge
• To remove the battery cartridge, pull out the set plate on the tool and grasp both
  sides of the cartridge while withdrawing it from the tool.
• To insert the battery cartridge, align the tongue on the battery cartridge with the
  groove in the housing and slip it into place. Snap the set plate back into place.
• Be sure to close the set plate fully before using the tool.
• If the cartridge does not slide in easily, it is not being inserted correctly.
• Do not use force when inserting the battery cartridge.

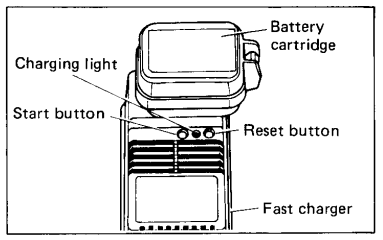

Charging

Plug the fast charger into your power source. Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same sides as their respective markings on the fast charger. Insert the cartridge fully into the port, ensuring it rests on the floor of the charger port. Press the start button (red). The charging light will come on, and charging will begin. If the charging light does not come on, press the reset button (yellow) first, then the start button (red). If the charging light goes out within 10 seconds even after pressing the reset button and start button a couple of times, the battery cartridge is dead. (CAUTION: Wait for more than 5 seconds after the charging light goes out to press the reset button again.) Replace it with a new one. When the charging light goes out after about one hour, you may remove the fully charged battery cartridge. After charging, unplug the charger from the power source.

CAUTION :

• Your new battery cartridge is not charged. You will need to charge it before use.
• Do not keep the button pressed in with tape, etc., or the circuit will not function properly. Also, a malfunction of the charger may result possibly causing overheating, etc.
• If you try to charge a cartridge from a just-operated tool, sometimes the charging light will not come on. If this occurs, let the cartridge cool off for a while. Then re-insert it and try to charge it once more.
• When you charge a new battery cartridge or a battery cartridge that has not been used for a long period, it may not accept a full charge. This is a normal condition and does not indicate a problem. You can recharge the battery cartridge fully after discharging it almost completely a couple of times.
• If you wish to charge two battery cartridges, allow 15 minutes between chargings on the fast charger.

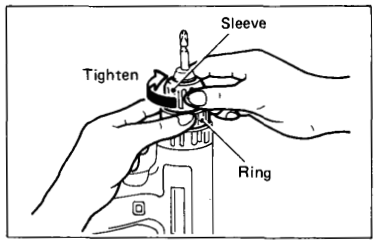

Installing or removing a driver bit or drill bit

• Always be sure that the tool is switched off and the battery cartridge is removed before installing or removing the bit.
• Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve
  clockwise to tighten the chuck.
• To remove the bit, hold the ring and turn the sleeve counterclockwise.

Switch action

Tool speed is increased by increasing pressure on the trigger. To start the tool, simply
pull the trigger. Release the trigger to stop.

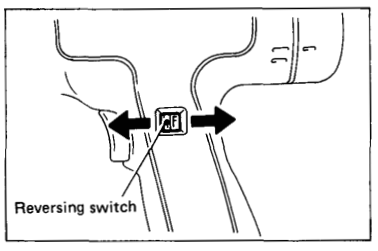

Reversing switch action

This tool has a reversing switch to change the direction of rotation. Slide the reversing switch to the left for clockwise rotation or to the right for counterclockwise.

Overload protector
The overload protector automatically cuts out to break the circuit whenever heavy work
is prolonged. Wait 20 – 30 seconds before resuming operation.

Adjusting fastening torque

The fastening torque can be adjusted in six stages by turning the adjusting ring so that
the pointer on the adjusting ring points to a number on the tool body. The fastening
torque is minimum when the pointer points to the number 1 and maximum when it
points to the marking. The clutch will slip at varying torque levels when the pointer is set at the numbers 1 to 5. The clutch is designed not to slip at the -8- marking. Before the actual operation, drive a trial screw into your material or a piece of duplicate material to determine which torque level is required for a particular application.

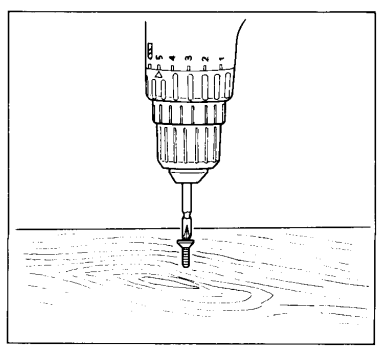

Screwdriving operation

Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the trigger as soon as the clutch cuts in.

• When driving wood screws, predrill pilot holes to make driving easier and to prevent splitting of the workpiece. See the chart.

Drilling operation
First, turn the adjusting ring so that the pointer on the adjusting ring points to the -8.-
marking. Then proceed as follows.

• Drilling in wood
  When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece.
• Drilling in metal
  To prevent the bit from slipping when starting a hole, make an indentation with a center punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.
• Use a cutting lubricant when drilling metals. The exceptions are iron and brass, which should be drilled dry.

MAINTENANCE

To maintain product SAFETY and RELIABILITY, repairs, maintenance, or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.

ACCESSORIES

Bits

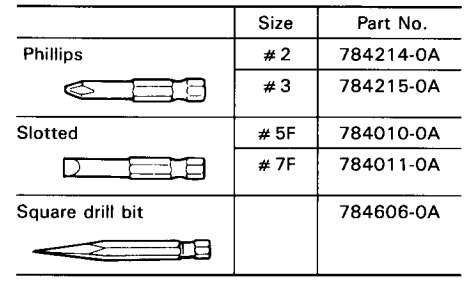

Phillips bit

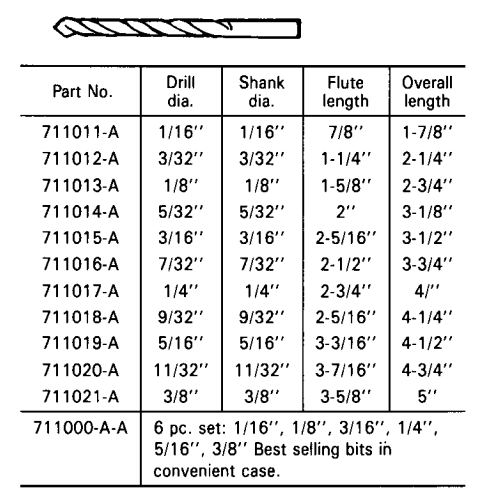

Drill bits
Tested best in Makita driver drills for smooth, fast drilling and more holes per battery change. High-speed steel. For drilling in metal, wood, and plastic. Jobbers length. Special surface treatment for lubricity gives smoother drilling.

Rubber pad assembly Part No. 123001 -2

Foam polishing pad Part No. 743023-2

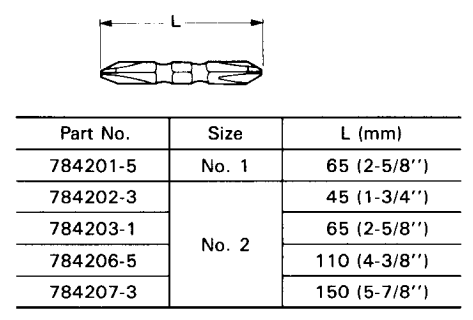

Double-ended Phillips I Slotted bit 2-112″ long Part No. 78461 3-A 1-3/4″ long Part No. 784614-0

Wool bonnet Part No. 743401-6

Fast charger Model DC9700 Part No. 1 131 03-2

Battery cartridge 91 00 Part No. 19201 9-4

Charger 12V for car Model DC9112 Part No. 1131 10-5

Battery cover Part No. 41 4938-7

Fast charger Model DC1201 Part No. 113126.0

Plastic carrying case
