ManbaOne Interactive Screen Wireless Gaming Controller User Manual

ManbaOne Interactive Screen Wireless Gaming Controller

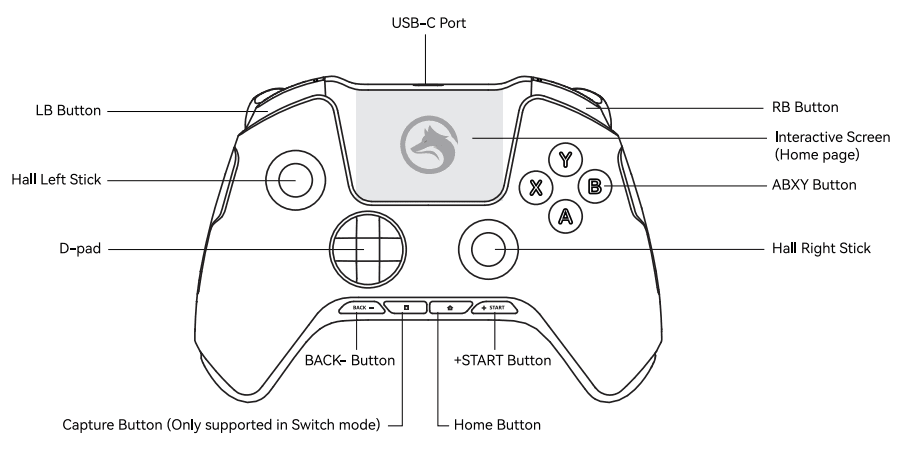

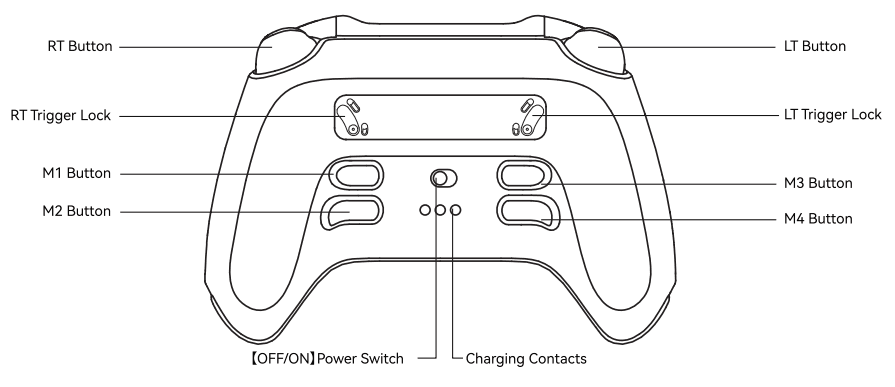

Device Layout

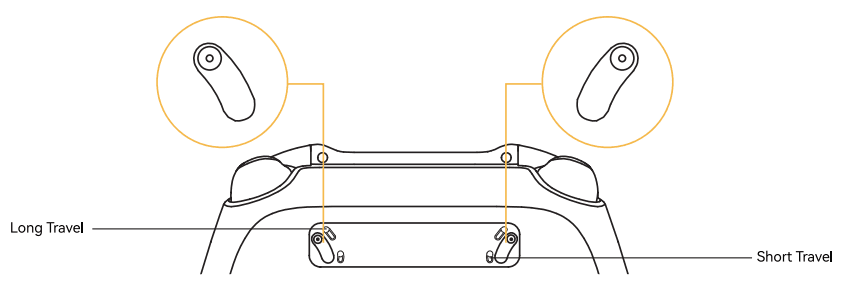

Linear Trigger

Adjustment When the LT/RT trigger lock is toggled up, the LT/RT button is a linear trigger that can control the size of the car’s throttle or the force of the bow by the magnitude of the button press.

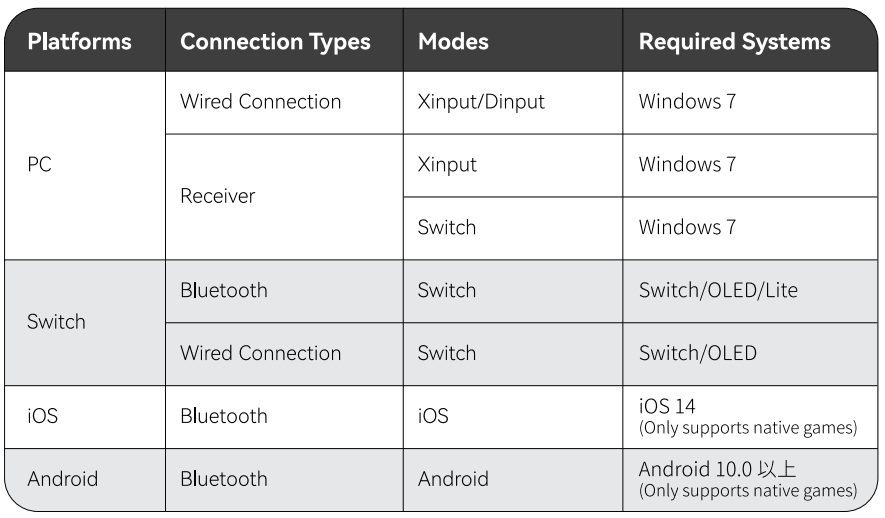

Connection Specifications

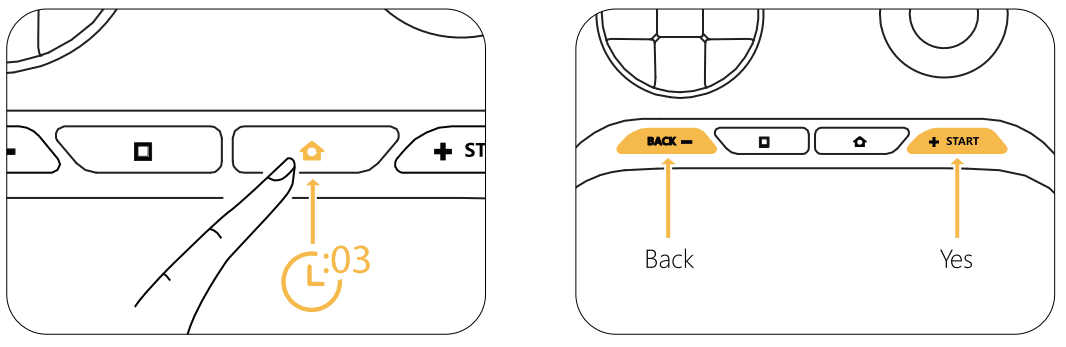

Enter the Screen Menu

Press the button for 3 seconds to enter the menu

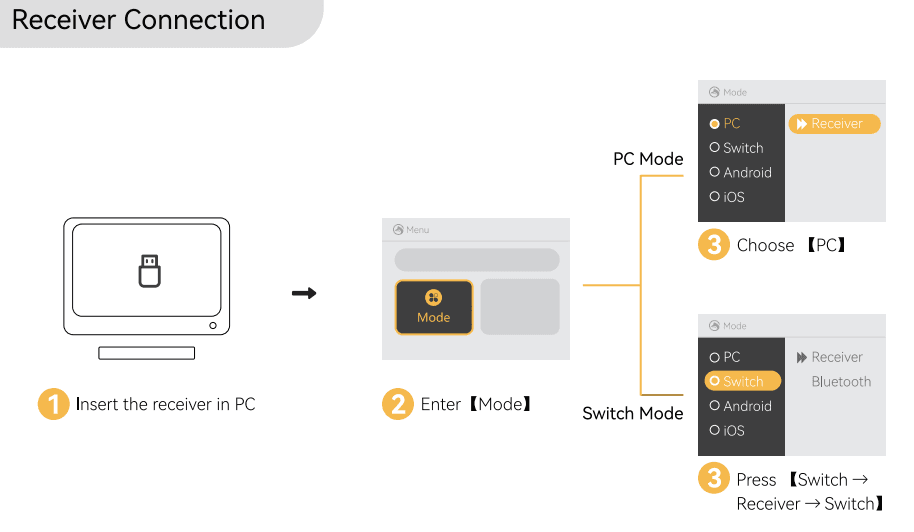

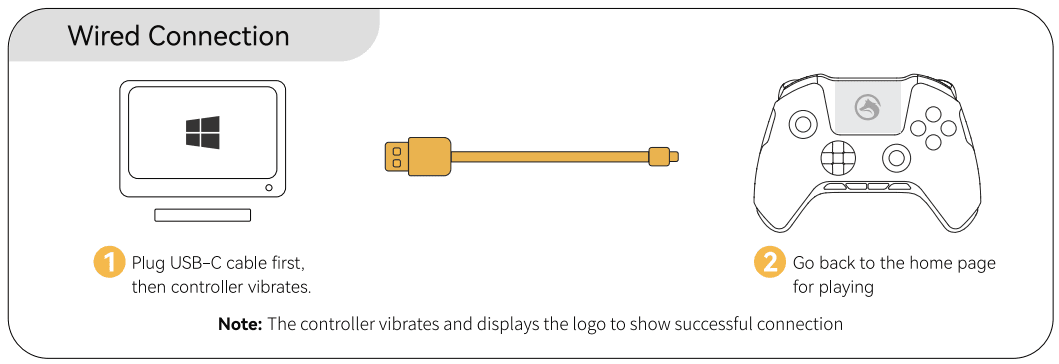

First, Connect to the PC

Tips:

The wired connection supports 2 modes: XInput/DirectInput. Press the controller [BACK-] + [+START] for 5s to change modes (PC-X → PC-D).

Note: The controller vibrates and displays the logo to show a successful connection

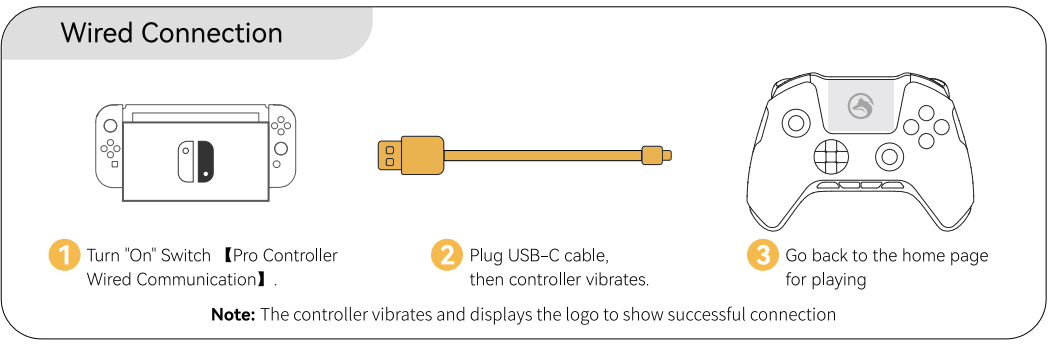

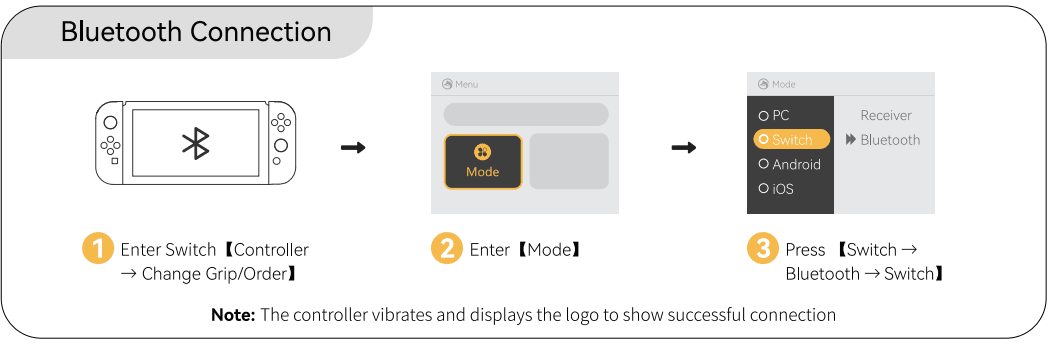

First, connect to the Switch

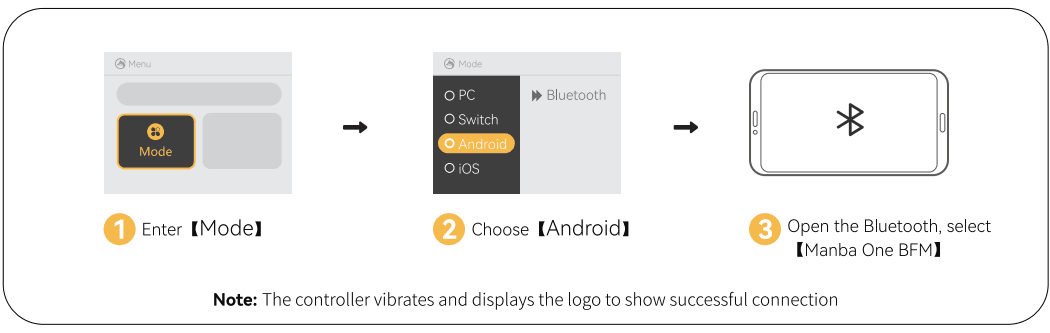

First, Connect to your Android Phone/Tablet

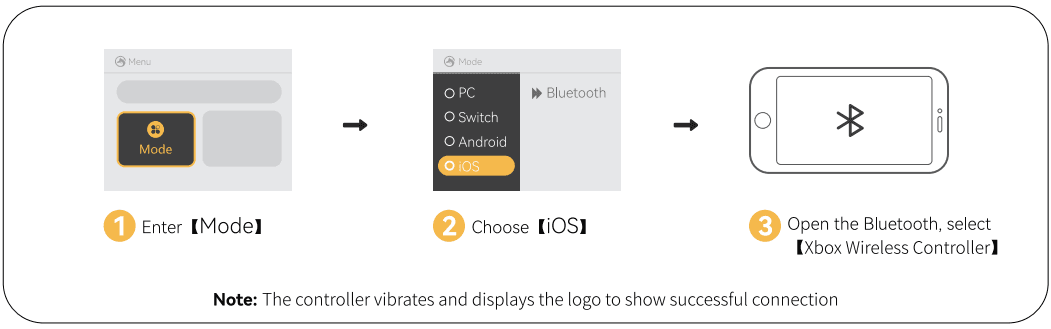

First, connect to your iOS phone/tablet

Note: The controller vibrates and displays the logo to show a successful connection

NOTE:

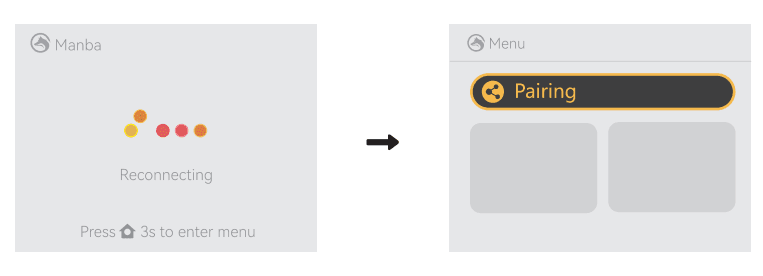

If the device you want to connect is not the first paired one, when the screen shows “reconnecting…”, you need to press the button to return to the menu and click [Pair] to successfully connect.

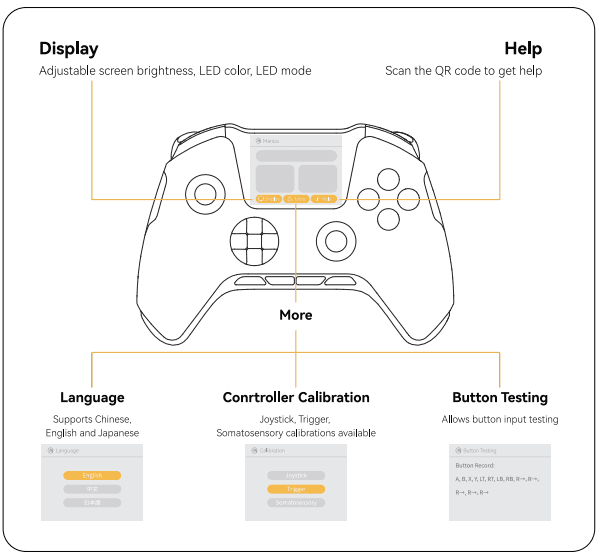

Limitless Customization

Press and hold the button for 3 seconds to access the display menu

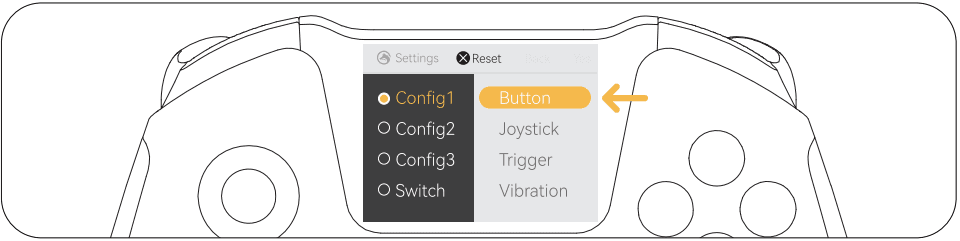

Settings

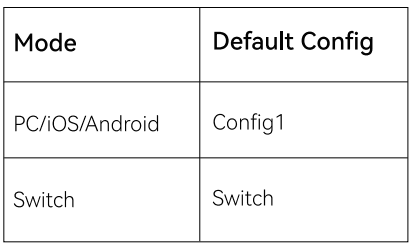

4 optional configs support button, joystick, trigger, and vibration customisation. Default Configs for Modes under First Pairing

Switch

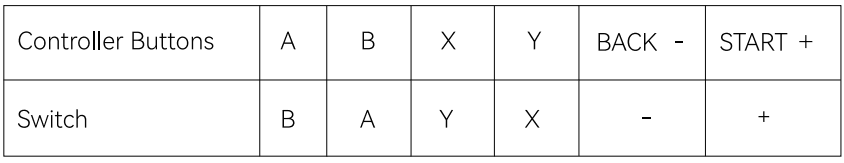

The controller configuration in Switch mode is [Switch], and its button mapping relationship is as follows:

Note:

The Configs selected in Switch mode are saved separately.
If you change one of the [Config 1/2/3] in Switch mode, the next time you go back to switch mode, the default setting will be switched to the previously selected [Config 1/2/3]

Reset

Press the button to reset the settings

Note: The system will reset the settings of the option where the cursor is located

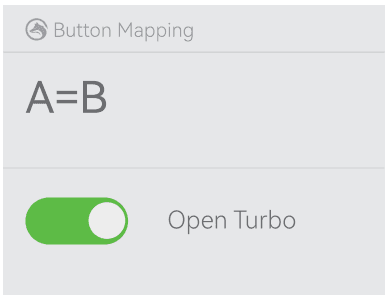

Single button Mapping

A/B/X/Y/LB/LT/RB/RT support mapping and turbo function

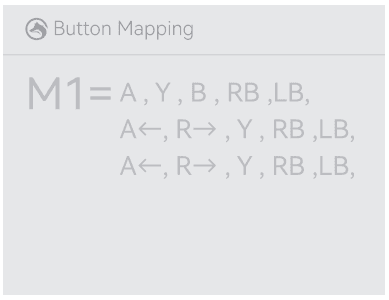

Multi-button Mapping

M1/M2/M3/M4 can be programmed to different key combinations

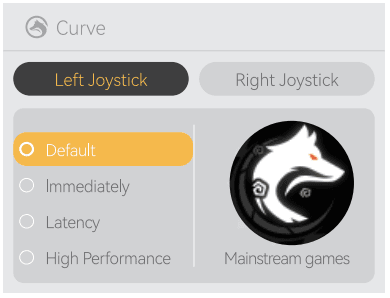

Adjustable 4 Joystick Curves

Default, Immediately, Latency, High Performance

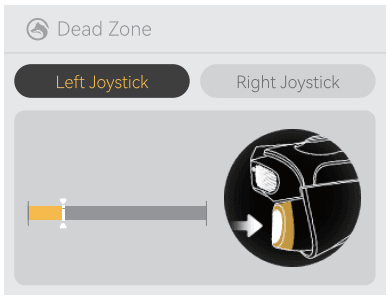

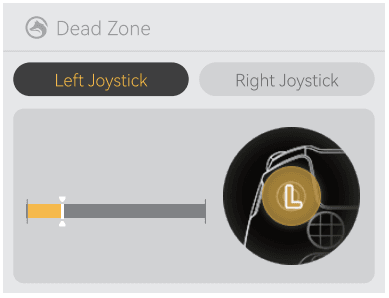

Adjustable Joystick Dead Zone

Push the joystick to adjust the dead zone range and press [+START] to save

Note: When playing games, the zero dead zone of the joystick will cause a drift problem

Adjustable Trigger Dead Zone

Push the joystick to adjust the dead zone range and press [+START] to save

Note: Only the long travel trigger can be adjusted

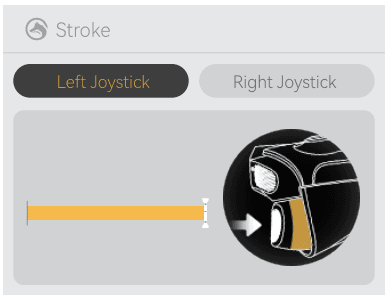

Adjustable Trigger Travel

Push the trigger lock to long stroke [ ], then push the joystick to adjust the stroke and press [+START] to save

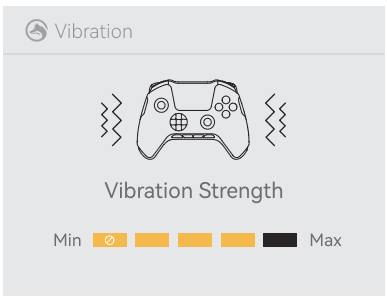

Adjustable Vibration

Adjustable 4 levels of vibration intensity

Restore Factory Settings

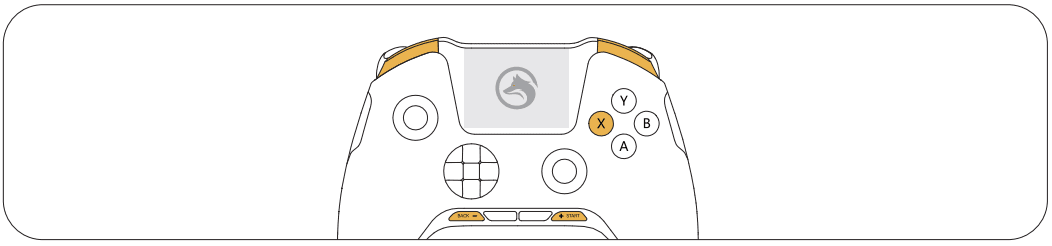

When the controller screen is on the homepage, press “LB+RB+BACK+START+X” simultaneously for 4s to restore the controller to factory settings.

Power On, Power Off, Sleep & Wake Up

Toggle the Power Switch to turn on/off the controller.
When the menu page is displayed, pressing the HOME button returns to the controller home page.
When the controller is on, it will go to sleep automatically after 10 minutes of inactivity.
When the controller is in sleepy mode, you can press the HOME button to wake up the controller.
Press the HOME button for 10 seconds to force a shutdown, which can solve the problem of the controller crashing.

Interchangeable Components

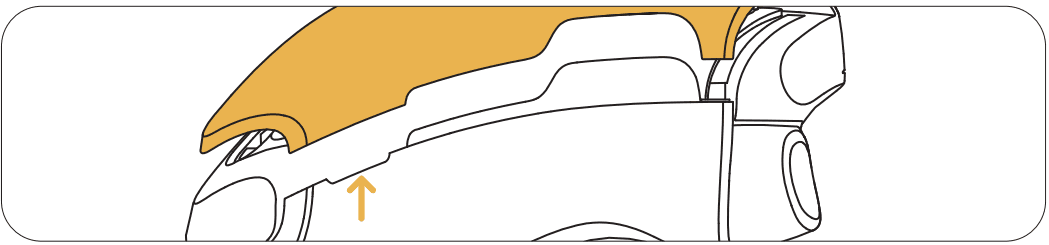

The top cover can be removed by tilting it along the gap between the left and right grips of the controller.

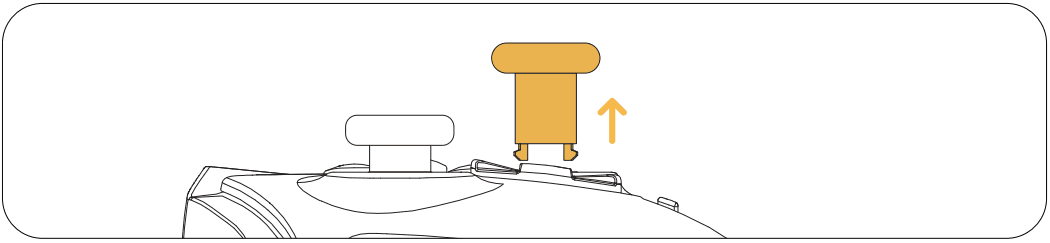

Remove or insert the thumbsticks by pulling them vertically upwards.

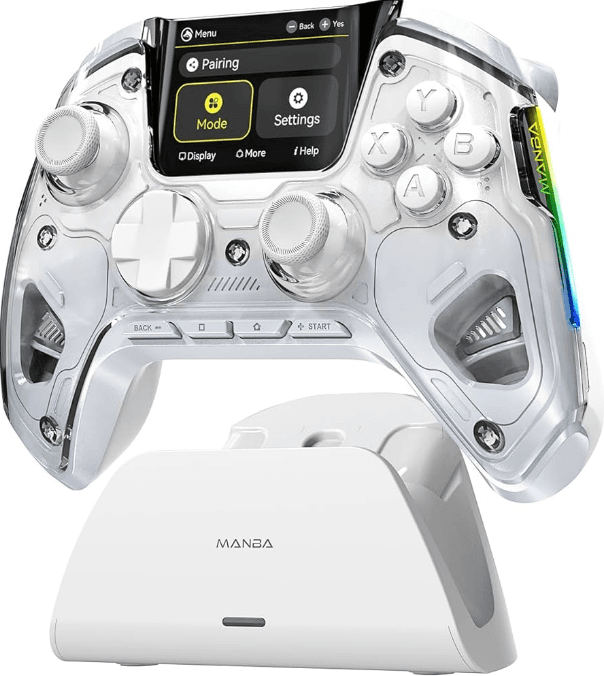

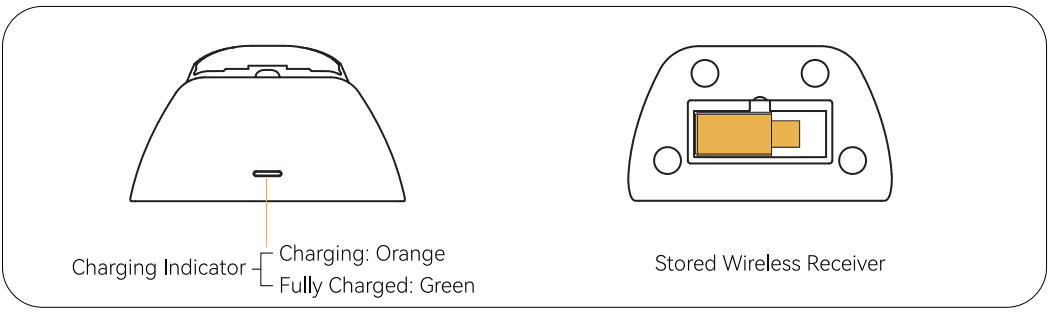

Charging Dock

Input: 5V/1A
Charging Indicator: Charging – Orange; Fully Charged – Green
Controller charging on the dock – sleep: picked up – awakened

Package Contents

Manba One Wireless Controller
Charging Station
Wireless Receiver
Interchangeable Thumbstick
USB-C Cable

Specification

Model: Manba One
Weight: 295÷5g Size 155*108.5*65.5mm
Operating Time: ≥10h
Standby Time: Full charge storage ≥ 120 days
Battery Capacity: 3.7V/1800mAh
Charging Voltage: 4.8~5.5V
Charging Current: 700mA
Charging Time: About 4.5h
Bluetooth Version: 5.0
Transmission Distance: ≤10m
Storage Temperature: 0°C~55°C

Be sure to read these precautions before use

This device may contain small parts that may be a choking hazard to children under 3 years. Keep small parts away from children.
Do not use the device near a source of ignition.
Do not expose the product to direct sunlight or high temperatures.
Do not expose the product to moisture or dust.
Do not hit the product or drop it.
Do not touch the USB-C port directly as this may cause a malfunction.
Do not bend or pull the cable with force.
Clean with a soft, dry cloth.
Do not use chemicals such as gasoline or thinner.
Do not disassemble, repair, or modify the product by yourself.
Do not use the product for purposes other than those for which it was originally designed. We are not responsible for accidents or damage caused by using the product for purposes other than those for which it was designed.
Do not look directly into the beam. It may harm your eyes.
If you have any questions or suggestions regarding product quality, please contact the Manba Service Team.

FCC Warning Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used under the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Suppose this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. In that case, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

The device has been evaluated to meet the general RF exposure requirements. The device can be used in portable exposure condition without restriction.

After-sales Service

If there are any problems with your product, please contact our service team. We hope you never have the need, but if you do, our service is friendly and hassle-free.

Manba Game

@manba_official

@ManbaGame

Official Website: www.manba.cc

(Website After Sales: service@manba.cc)
