Medify MA-112 Air Purifier User Manual

Medify MA-112 Air Purifier

IMPORTANT SAFETY INSTRUCTIONS

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS:

• DO NOT touch the power plug with wet hands.
• Turn off the power before cleaning this machine.
• DO NOT use the air purifier in rooms where fumigation or pesticide is being used.
• Keep the machine dry.
• Only use a soft, clean cloth to clean this machine. DO NOT use solvents like Benzene, Alcohol, or any flammable cleaners to clean the air purifier.
• Prohibited use beyond power. Can only use a 220V unit with a 220V power supply. Can only use a 120V unit with a 120V power supply. You can break or ruin the circuit boards if you plug a 120V plug into a 220V power supply.

TECHNICAL DATA

• Voltage: 120V AC 60Hz
• Power Rating: 95W
• Noise level: Min Max 45.6 dBA
• Unit dimensions: 28.3”H x 15.7”W x 15.4”D
• Unit weight: 32.8 lbs
• Integrated Energy Factor (IEF): 5.1
• Annual Energy consumption (kWh/year): 690
• EPA EST. NO.:99452-CHN-1

STANDARD COVERAGE

• 1,114 sq ft every 15 min (4 ACH)
• 2,228 sq ft every 30 min (2 ACH)
• 4,455 sq ft every 60 min (1 ACH)


  Clean Air Delivery Rate
  Smoke	Pollen	Dust	2
  594 CFM	450 CFM	600 CFM	598

BEFORE USE

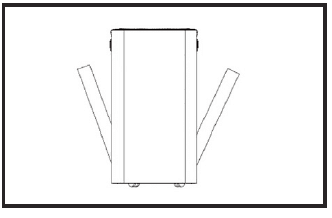

DISASSEMBLY AND INSTALLATION METHODS OF SIDE COVERS

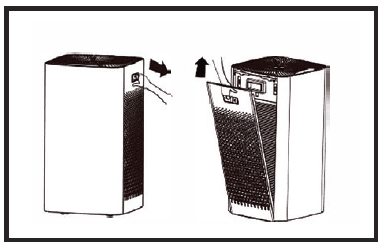

1. Press down on the handles on the sides to remove the side covers. After they open, lift the cover out from the bottom fixed grooves.

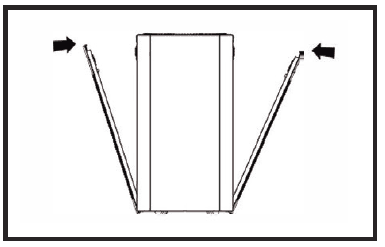

2. To reinstall side covers, align at fixed grooves and insert covers into grooves. Covers will snap back automatically.

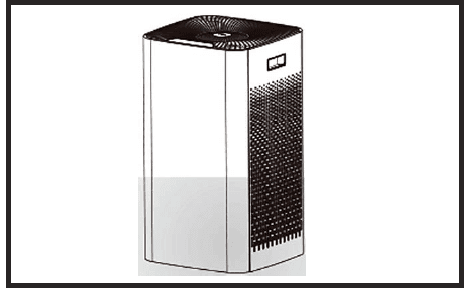

PLACEMENT OF THE AIR PURIFIER

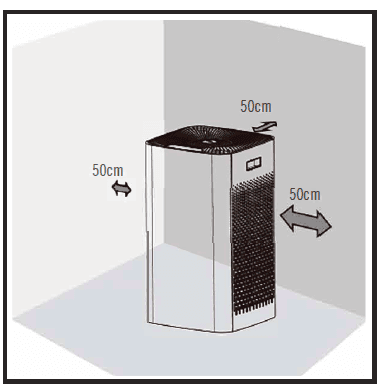

• Do not obstruct the air intake or the clean air outlet. To ensure enough ventilation, make sure there is a 20-inch or 50 cm distance between the air inlet and the wall or nearby furniture.

INSTALLING THE FILTER SET

All filters must be used together. Please disassemble filters according to the following instructions. Reinstall the filters accordingly.

1. Place the machine in a dry location and on a smooth and flat surface.
2. Press down on the handles on the sides to remove the side covers. After they open, lift the cover out from the bottom fixed grooves.

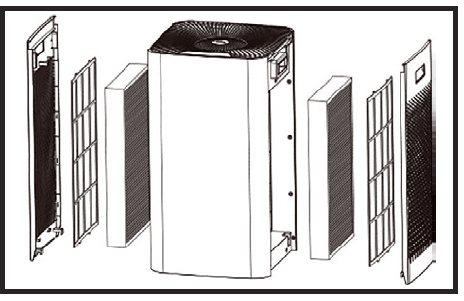

3. Do not disassemble the filters. Filter sets come in one piece for maximum efficiency.

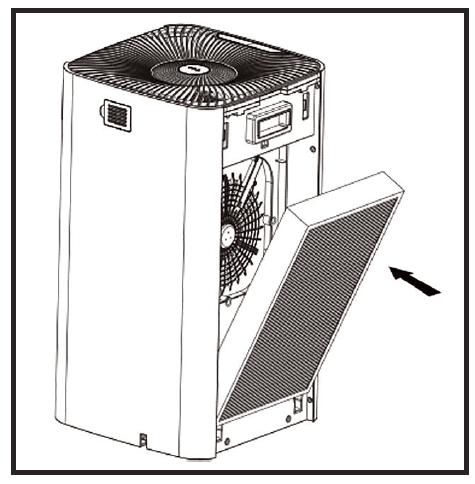

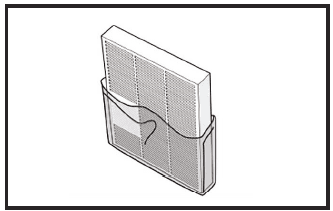

4. Remove any exterior packaging of the filter sets. Place filters back in the air purifiers after the packaging is removed.

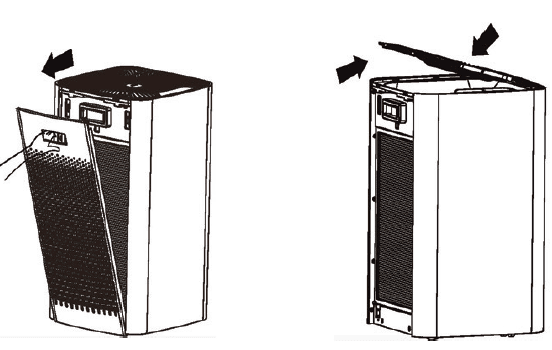

5. To reinstall the side covers, align with the fixed grooves and insert the covers into the grooves. The side covers will snap back in automatically

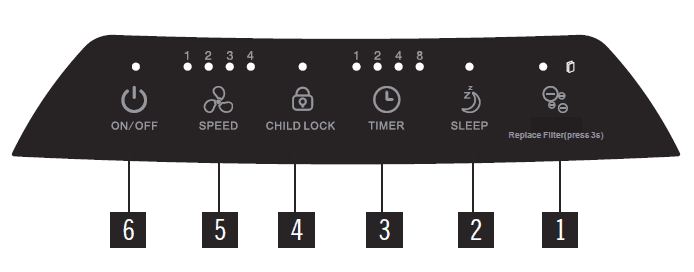

DESCRIPTION OF CONTROL PANEL FUNCTIONS

1. Filter Replacement
2. SLEEP Button
3. TIMER Button (1, 2, 4, 8 hours)
4. Child-lock
5. Fan Speed Button (1, 2, 3, 4)
6. ON/OFF Button

HOW TO USE

• This air purifier is used to remove airborne contaminants from the indoor air in a particular area, which could be potentially harmful to breathe.

PLUG IN

• After plugging it in, the air purifier will beep. Indicator lights will flash 1 time. Then, they will turn off.

TURNING ON THE AIR PURIFIER

• Press the ON/OFF button. The unit will start on speed 1 with the indicator light on.
• Press the ON/OFF button again to turn off the unit.
• MANUAL ADJUSTMENT OF FAN
• Press the SPEED button to choose air speed: 1, 2, 3, or 4.
• SLEEP MODE
• Press the sleep button to enter sleep mode, all other indicator lights will turn off. The fan speed and the noise level will change to the lowest setting.
• After 10 seconds, the sleep indicator light goes out as well.
• Press any key to exit sleep mode.
• TIMER
• Press the timer button and choose hour options: 1, 2, 4, 8, or no timer.
• FILTER REPLACEMENT BUTTON
• When the filter replacement indicator is on, the user needs to replace the filter and press the button for 3 seconds to reset. Then, the fan speed indicator light will stop flashing.
• CHILD-LOCK BUTTON
• In this mode, none of the function keys can be used or changed (except the child lock function). To turn on the child lock, hold the button down for 3 to 5 seconds. To turn off the child lock function, hold the button down for 30 to 45 seconds.

CLEANING AND MAINTENANCE

• Please make sure to pull out the power plug before cleaning the unit. Do not immerse the machine in water or any other liquid. Do not use abrasive, corrosive or flammable products to clean any parts of the unit. The unit uses composite filters, so filters cannot be washed.

CLEANING THE AIR PURIFIER

• Clean the air purifier regularly to prevent dust accumulation. Use soft and dry cloths to remove dust from the air purifier.

FILTER REPLACEMENT

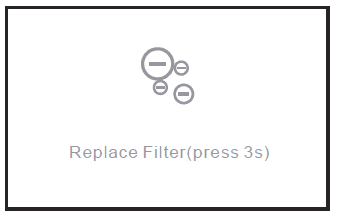

LIGHT INDICATOR TO REPLACE THE FILTER*

The indicator light will remind users when it is time to change their filter.

1. Remove all existing filters from the unit. Remove all packaging from new filter sets. Then, install the new filters into the unit in the same order as the existing filters.
2. Install new filter sets in the unit. Reinstall side covers, as outlined earlier. Side covers will snap back in automatically.
3. When filter replacement is complete, plug in the unit and turn it on. Press and hold down the button for 3 seconds to reset the unit.

LIFETIME WARRANTY

• Medify guarantees your Medify Air purifier to be free of defects in material or workmanship for a lifetime period, provided you have completed and returned your warranty registration to Medify Air within the first 90 days of purchase. Within the first 90 days, Medify Air will replace the defective unit at no charge to you and reimburse you for any shipping charges. After 90 days, Medify Air’s obligation and liability under this Lifetime Warranty are dependent on your following the instructions outlined in this manual. Prohibited use that causes the product to not function properly will void the warranty. Can only use a 220V unit with a 220V power supply. Can only use a 120V unit with a 120V power supply. You can break or ruin the circuit boards if you plug a 120V plug into a 220V power supply.

Our Lifetime Warranty remains in effect as long as:

1. You submit your warranty registration to Medify Air within 90 days of purchase
2. You use a proper power supply based on voltage: 120V
3. There is no evidence of tampering, mishandling, neglect, accidental damage, or modification. Repair undertaken on the Medify Air purifier by anyone other than authorized Medify Air service personnel that results in any damage to the Medify Air purifier or that causes the Medify Air purifier to not perform as intended will void the warranty
