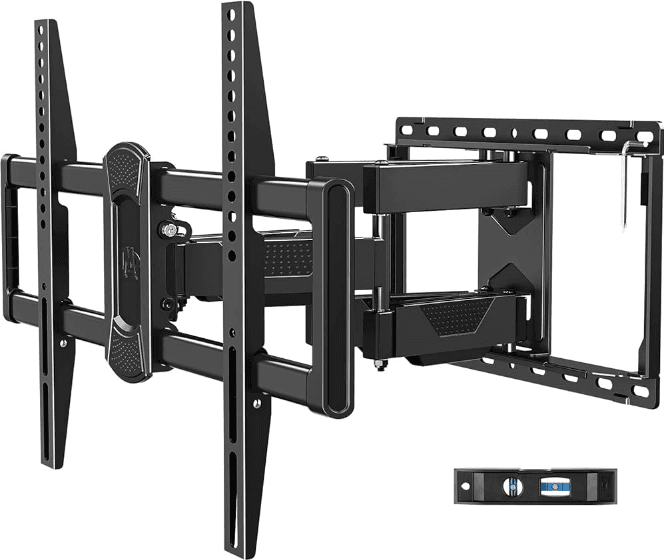

Mounting Dream MD2380 TV Wall Mount
INSTALLATION INSTRUCTION
Before getting started, let’s make sure this mount is perfect for you!

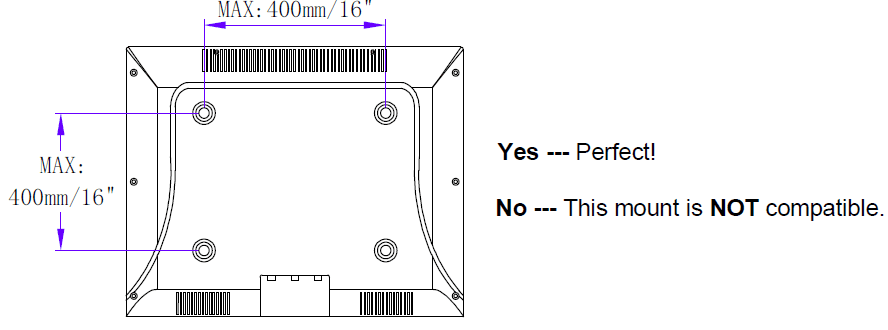

- Is your TV VESA equal to/greater than 75x75mm/3×3″ and equal to/less than 400x400mm/16×16″?

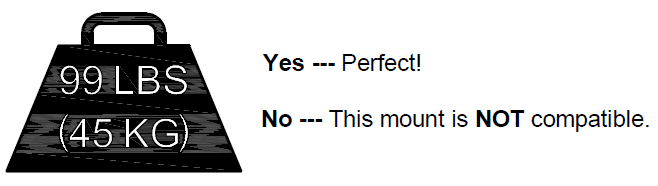

- Does your TV (including accessories) weigh less than 99 LBS (45 KG)?

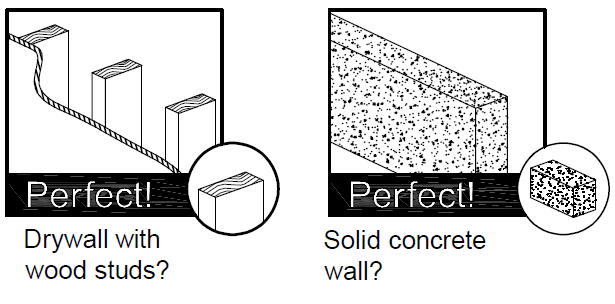

- What is your wall made of?

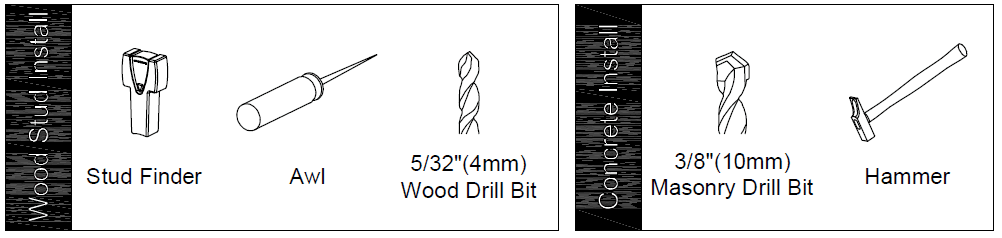

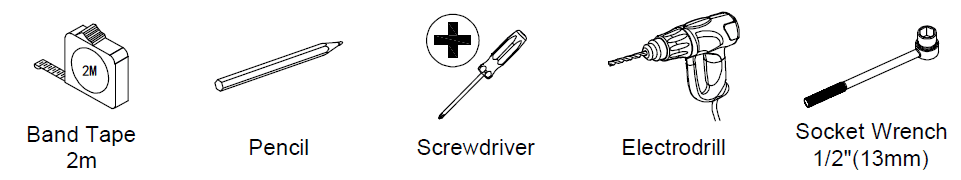

- Installation Tools (Not Included)
- Safety Caution
- Please read these instructions carefully before installation.

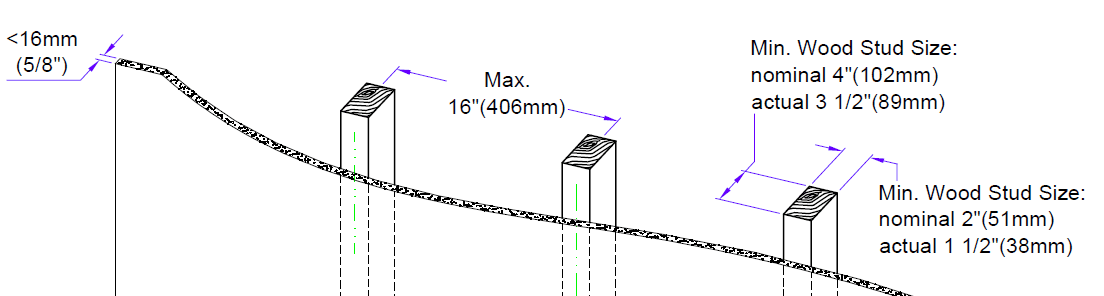

- This product is designed for use in wood studs and solid concrete walls.
- DO NOT install into drywall alone.
- The wall must be capable of supporting five times the weight of the TV and mount combined.
- Do not apply this product to any purpose not indicated by Mounting Dream.
- Incorrect installation may result in product damage or bodily injury. Mounting Dream shall bear no responsibility for any damage or injury resulting from incorrect installation, incorrect assembly, or misuse
STEP 1 Attach Brackets to TV

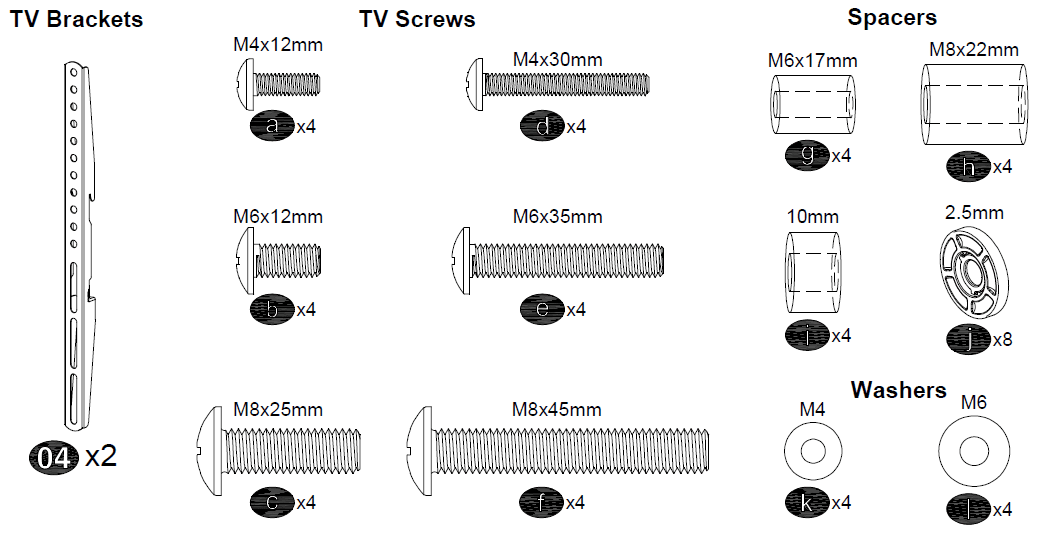

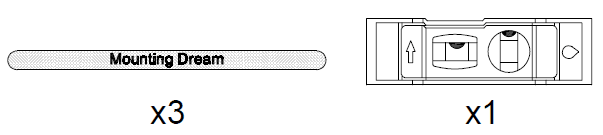

Parts and Hardware
- WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged.
- NOTE: Not all hardware included will be used.

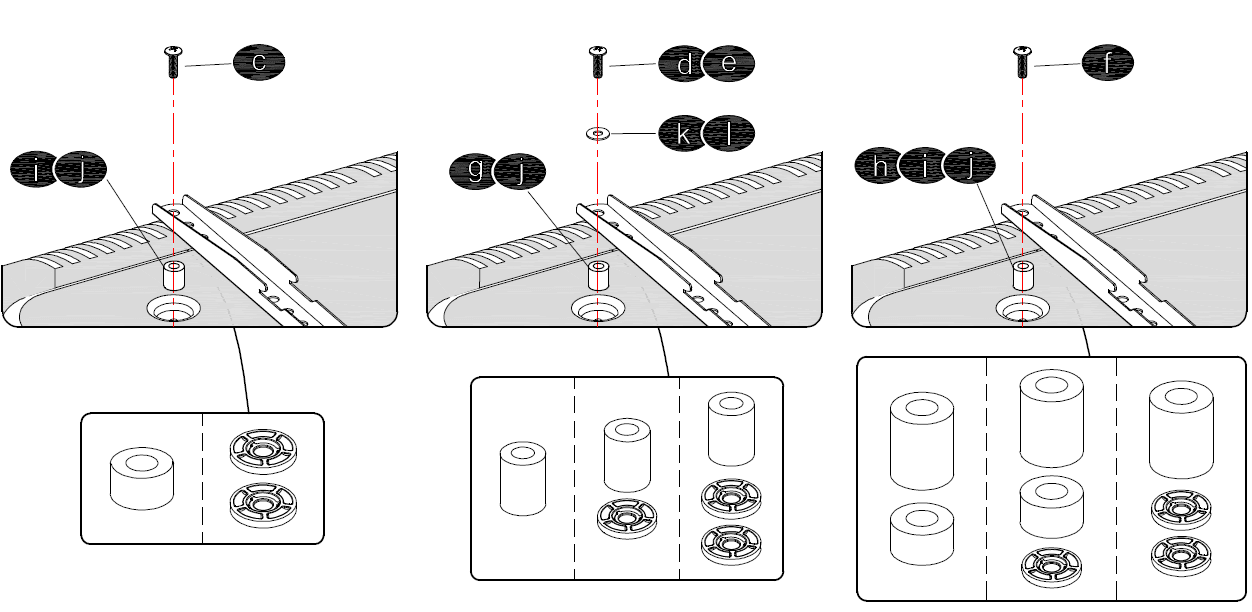

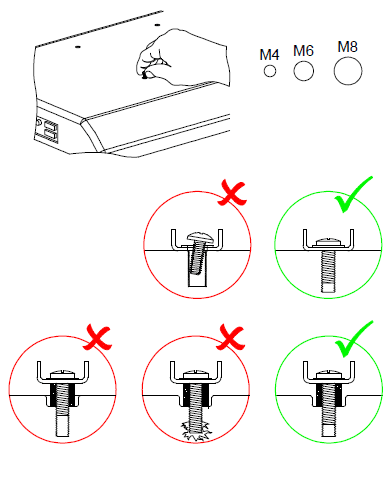

1-1 Select TV Screws

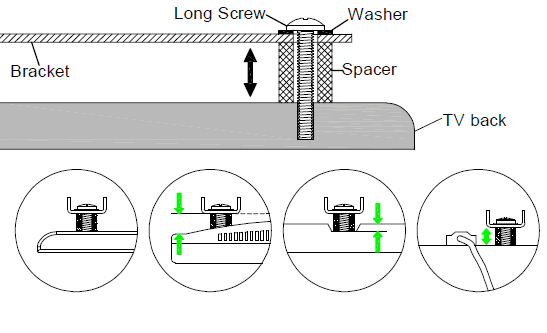

1-2 Need Spacer?
- No, go to PAGE 3 for detailed combination
- Yes, go to PAGE 3 for a detailed combination.

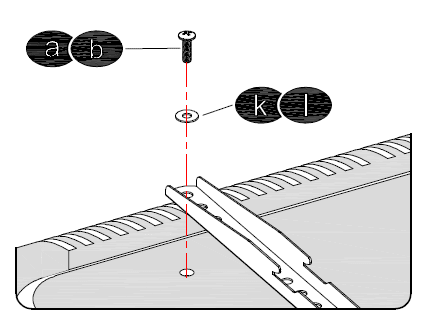

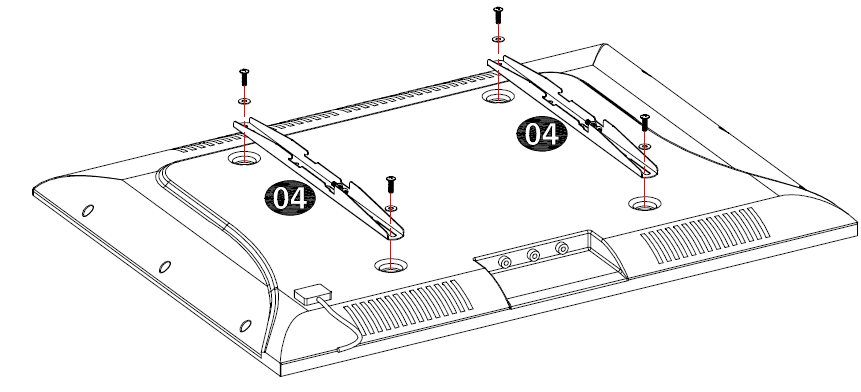

1-3 Attach the TV Brackets

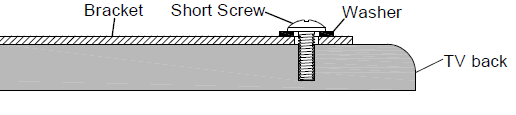

- Screw and washer
- Spacer(s), screw and washer
STEP 2 Attach Wall Plate to Wall

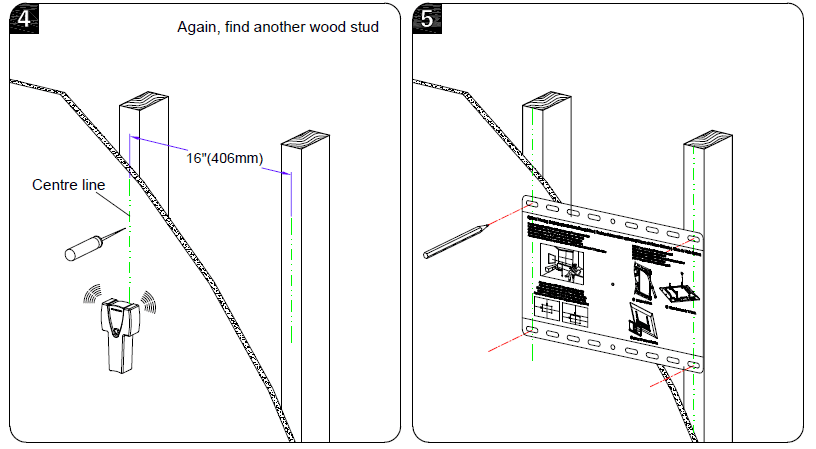

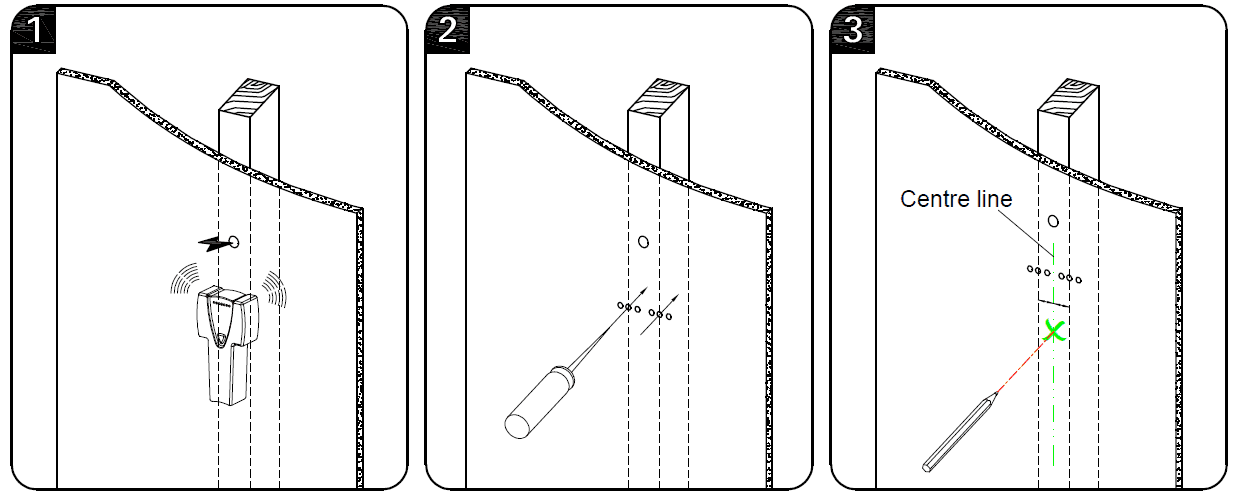

- For wood stud installation, follow STEP 2A
- For concrete installation, follow STEP 2B on PAGE 6

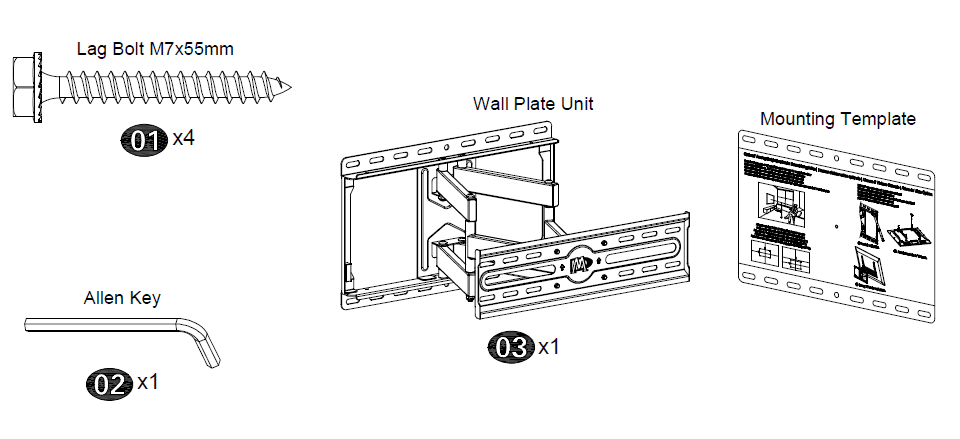

Parts and Hardware

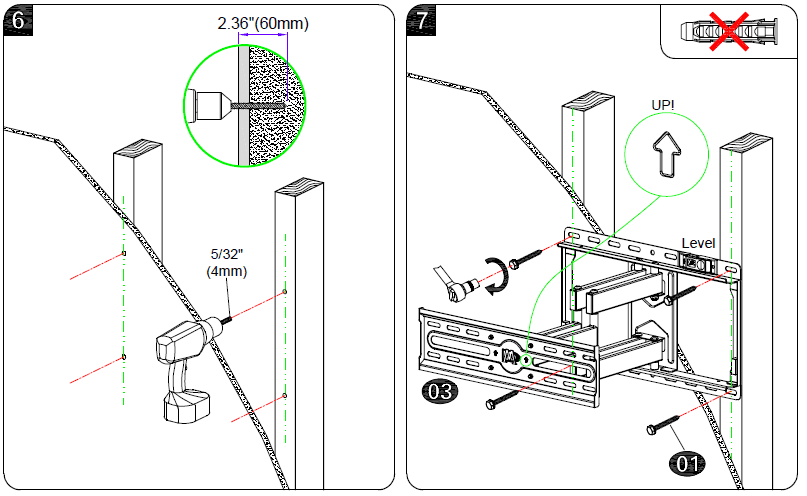

STEP 2A Wood Stud Installation
- All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
- To prevent the TV falling down, the direction of the arrow should be upward as shown

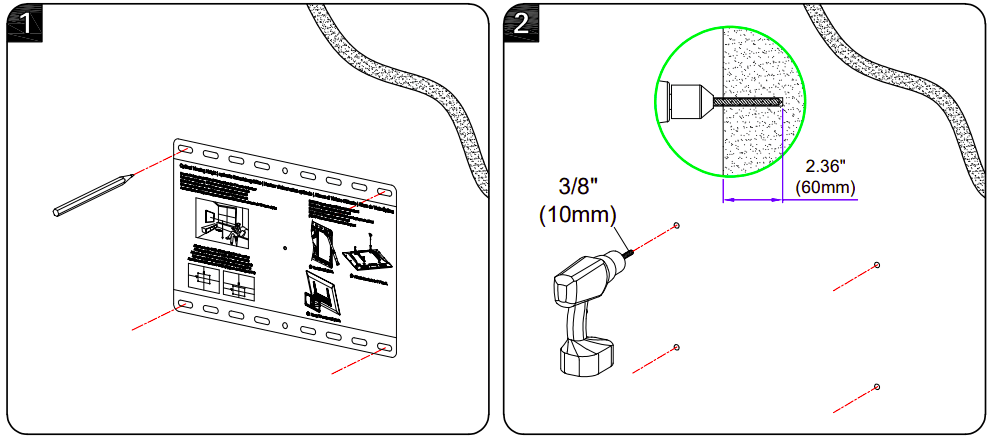

STEP 2B Solid Concrete Wall Installation
- CAUTION: To avoid potential personal injury or property damage:
- All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step. To prevent the TV falling, the direction of the arrow should be upward as shown.

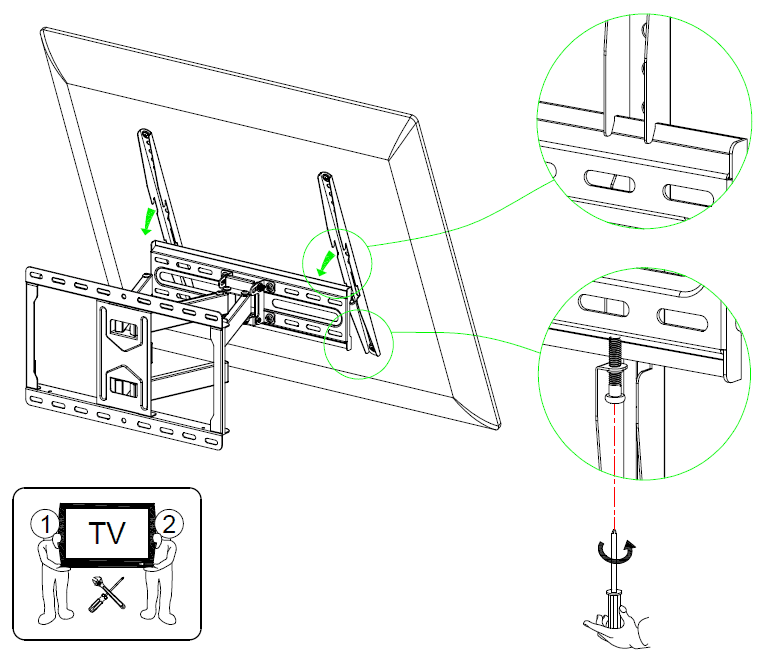

STEP 3 Hang and Secure TV to Wall Plate

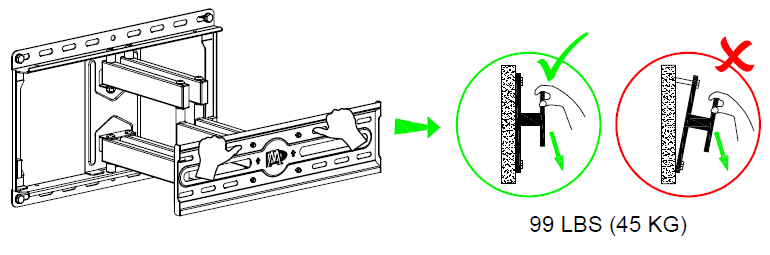

- Before hanging the TV, please conduct a “wall plate installation integrity test” first.
Step 4 Adjustment

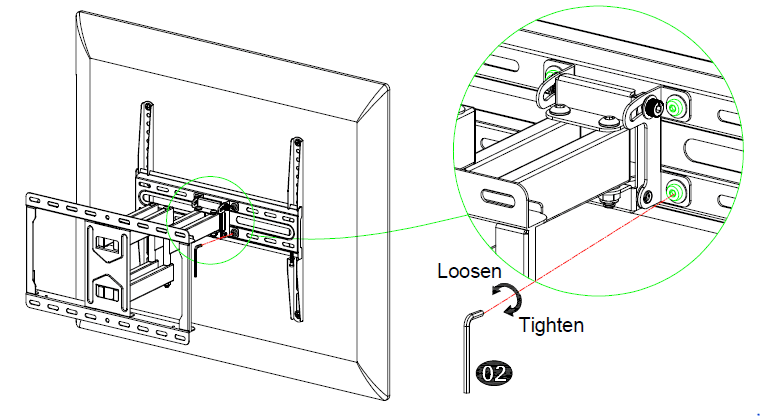

- 4-1 TV leveling adjustment (±3°):
- Loosen 4 leveling bolts on the rear of the TV plate by a maximum 2 turns, adjust to level, and retighten to secure.

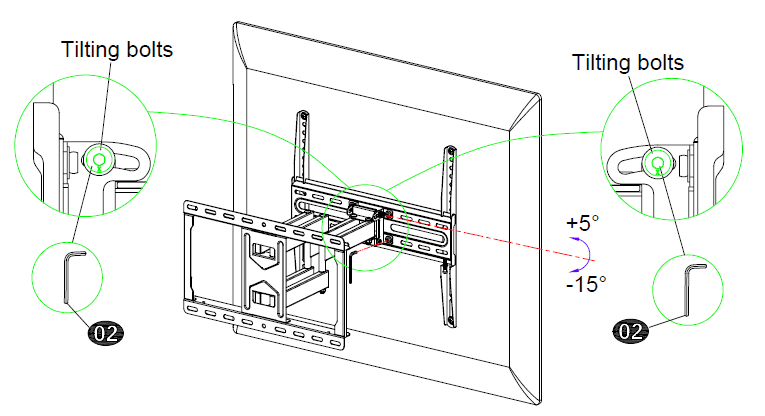

- 4-2 Tilting angle adjustment (+5°/-15°)：
- Pull the TV to your desired angle, then fasten 2 tilting bolts with the Allen key

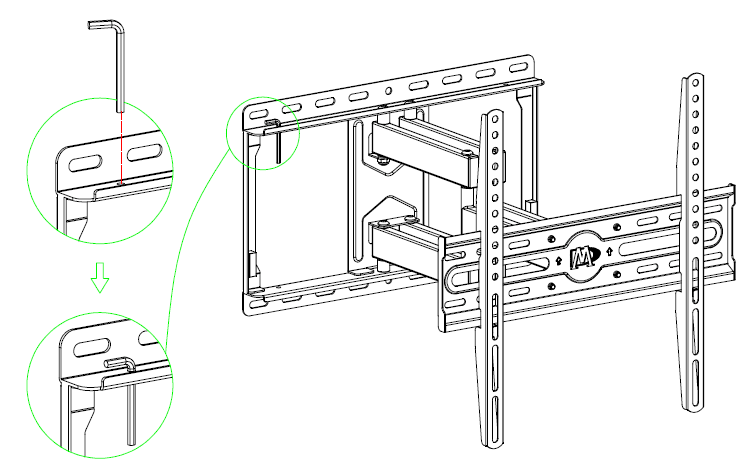

- Allen key storage: For easy adjustment, you might put the Allen key on the wall plate as illustrated

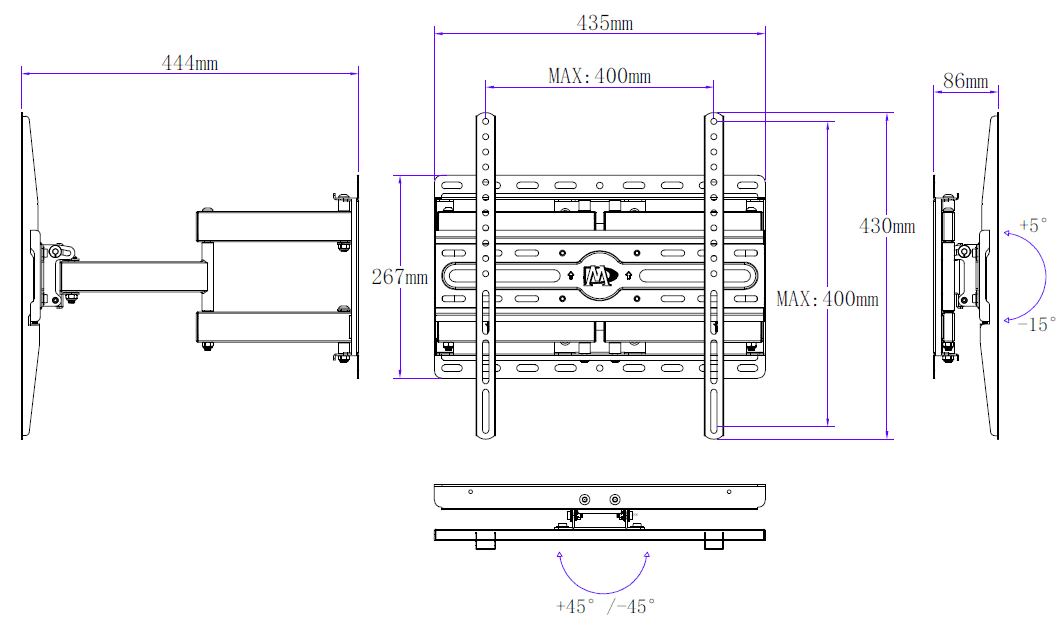

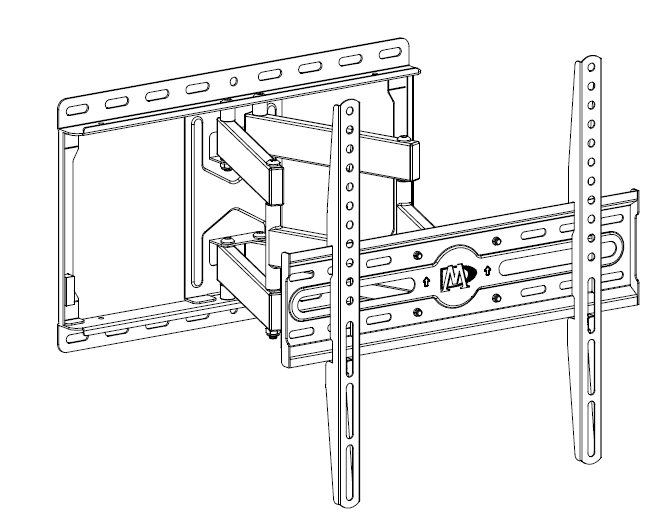

Product Dimension
