Netvue Birdfy Feeder with Smart Camera
Warning
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC (USA) 15.9 prohibition against eavesdropping: Except for the operations of law enforcement officers conducted under lawful authority, no person shall use, either directly or indirectly, a device operated pursuant to the provision of this part for the purpose of overhearing or recording the private conversations of others unless such use is authorized by all of the parties engaging in the conversation.
FCC ID 2AO8RNI-8101
CE RED
This product can be used across EU member states.
What’s In The Box

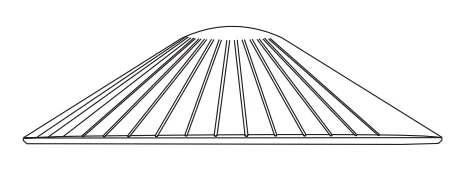

- Birdfy Feeder Cover
- Mounting Screws
- Anchors

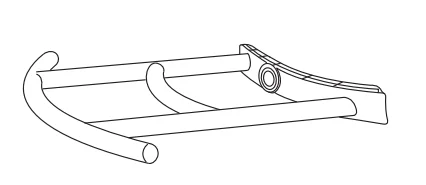

- Bird Stand
- Bird Stand Screw

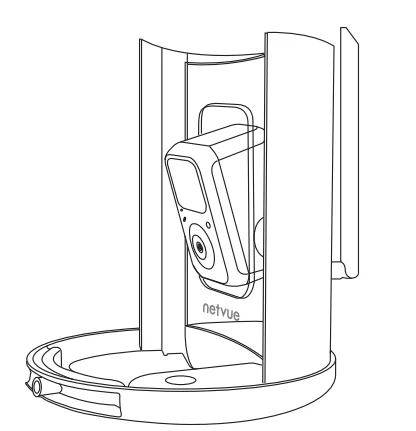

- Birdfy Feeder

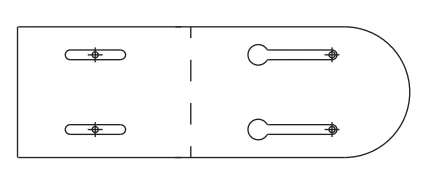

- Drilling Template

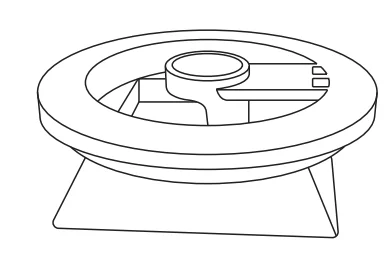

- Tripod Connector
- Ejector Pin
- Quick Guide

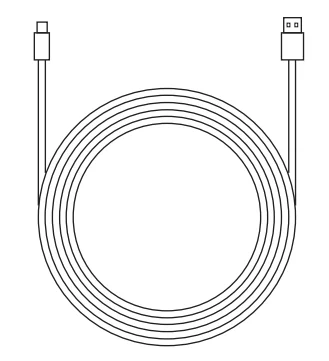

- Type C Power Cable.

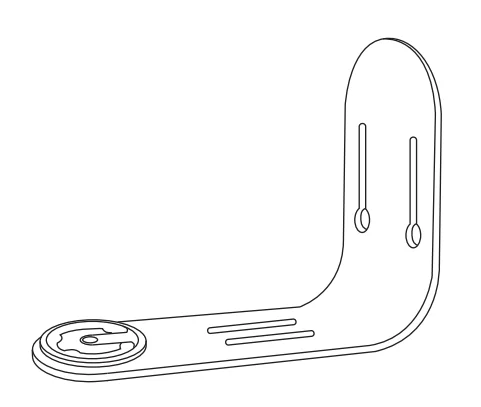

- Birdfy Feeder Bracket

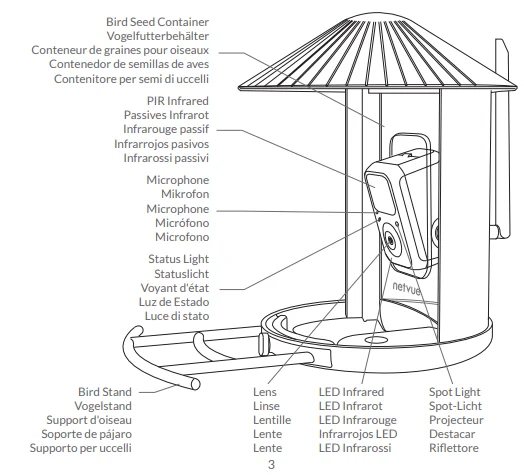

Camera Structure

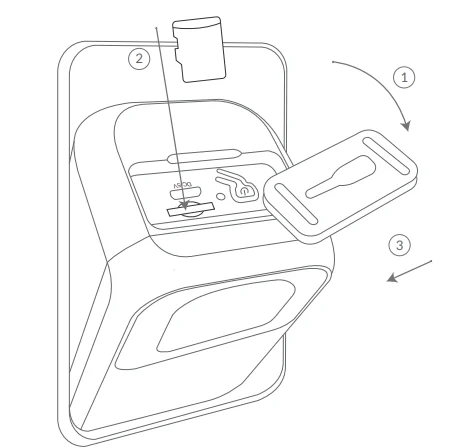

Insert a Micro SD Card
Birdfy Cam comes with a built-in card slot which supports up to 128GB Micro SD card.
- Step 1: Rotate the camera down to the bottom.
- Step 2: Open the top silicone plug. Insert the Micro SD card. Make sure to plug it in the right direction.
- Step 3: Finally, cover the silicone plug.
Assemble Birdfy Feeder

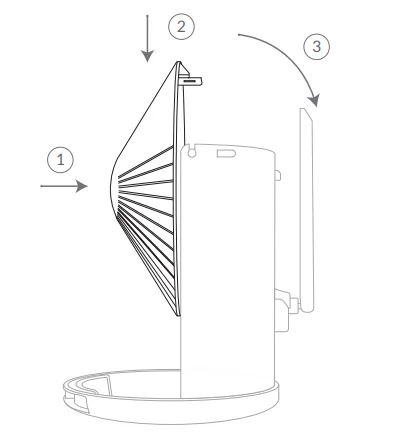

Assemble Birdfy Feeder Cover
- Step 1: Face up the side of the cover with the buckles. Align the small pillar on both the left and the right side with the buckles of the white bird seed container.
- Step 2: Push down to insert.
- Step 3: Then rotate back to install the buckle behind the white bird seed container.

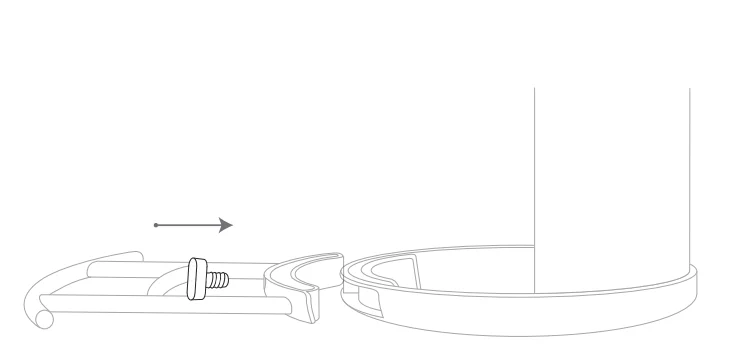

Assemble Bird Stand
Use the provided bird stand screw to install the bird stand.
Battery Charging
The batteries inside the camera are not fully charged according to transportation safety regulations. Please fully charge the camera before using it. Please charge the batteries with the provided Type C Port Cable (DC5V / 1.5A adapter not included). The status light will be solid yellow when charging and will turn solid green when it is fully charged. It takes about 14 hours to fully charge your camera.

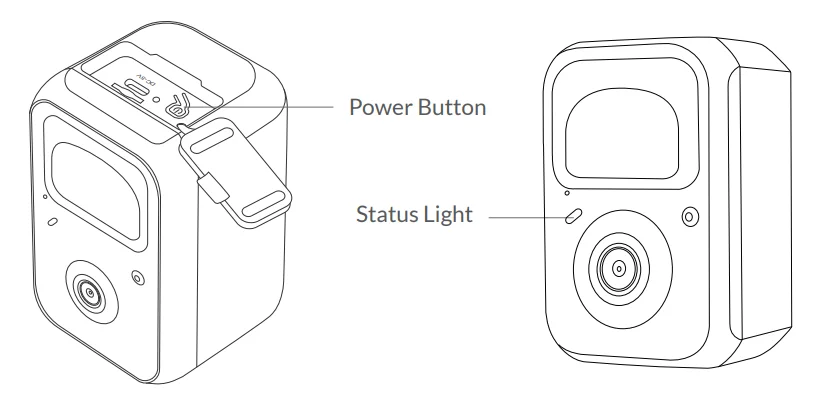

How To Turn On & Off The Camera
To turn on the camera:
Long-press the power button for 3s to turn on the camera. The Status Light in the front of the camera will be solid blue. Double-click the power button to enter Wi-Fi mode after the prompt tone.
To turn off the camera:
Long-press the power button for 3s to turn off the camera. The Status Light in front of the camera will be off.
Read Before Installation
- Keep Birdfy Feeder and all accessories out of reach of children and pets.
- Make sure the camera has been fully charged (DC5V / 1.5A).
- Working temperature: -10°C to 50°C (14°F to 122°F). Working relative humidity: 0–95%.
- Please do not expose the camera lens to direct sunlight.
- The camera has an IP65 waterproof rating, which supports working properly under rain or snow, but it cannot be submerged in water.
Note:
- Birdfy Feeder Cam only works with 2.4GHz Wi-Fi.
- Strong lights may interfere with the device’s ability to scan the QR code.
- Avoid placing the device behind furniture or near microwave products. Try to keep it within range of your Wi-Fi signal.
Set Up With Netvue App
Download the Netvue App from the App Store or Google Play. Follow the in-app instructions to complete the entire setup process.
Installation
Check the following things before you drill holes in your wall:
Birdfy Feeder Cam has been successfully added to your Netvue App and can stream video.
Find a good installation spot:

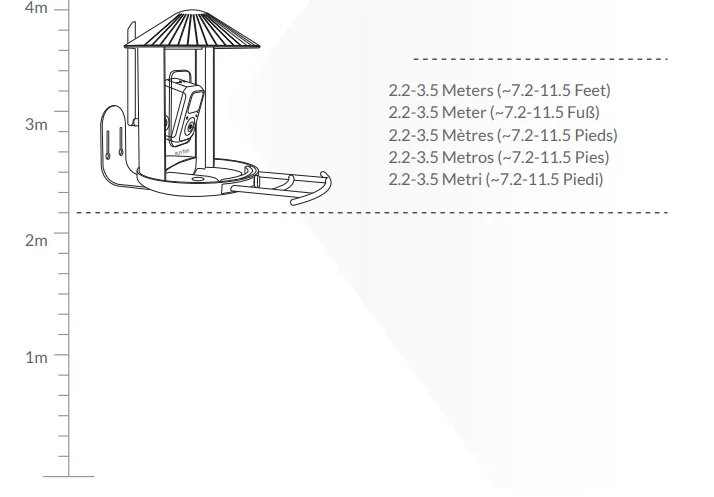

Please install the camera in a position where its view is not blocked and ensure that it is within the coverage of the Wi-Fi network. We recommend installing it at a height of 2.2–3.5 meters in an open area to make it easier for birds to find it. Birdfy Feeder provides four installation methods. Please choose the method that works best for you.
Wall Installation:
Step 1:

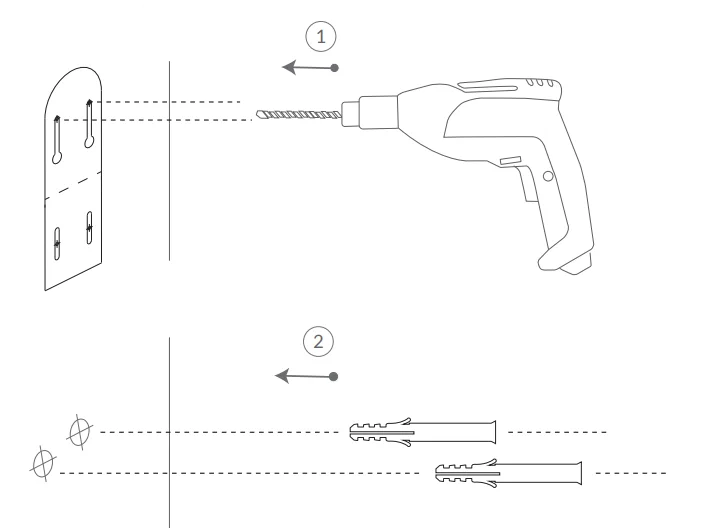

- Use the provided drilling template to mark the position of holes on your wall. Use a drill bit (5/16″, 8mm) to drill two holes.
- Install anchors to fix the screws.
- Install the Birdfy Feeder Bracket on your wall with the screws provided.
Step 2:

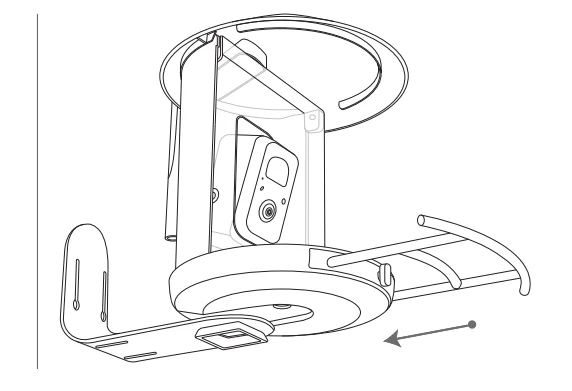

- Slide the Birdfy Feeder into the bracket through the slide rail.

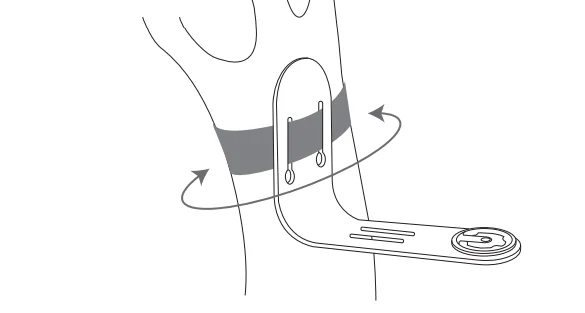

Tree Installation:
- Step 1: Wrap the Birdfy Feeder Bracket around the tree with a strap (not provided).
- Step 2: Slide the Birdfy Feeder into the bracket.
Stand Installation:

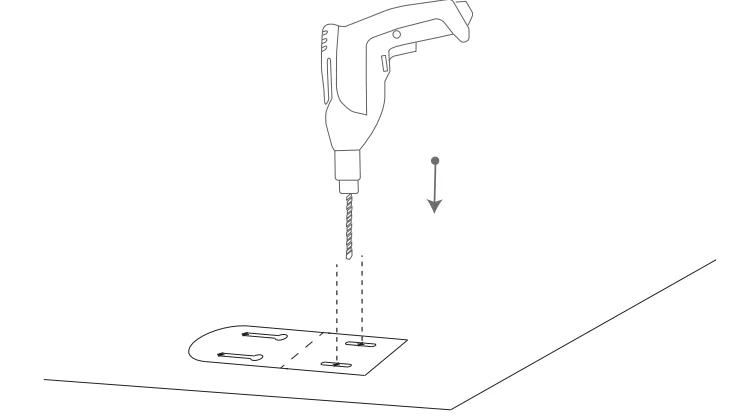

- Step 1: The Birdfy Feeder can be placed steadily on a flat surface, but for stability, we recommend that the backplane be installed and fixed on a flat surface. Use the provided drilling template to mark the position of holes on the flat surface. Use a drill bit (5/16″, 8mm) to drill two holes.

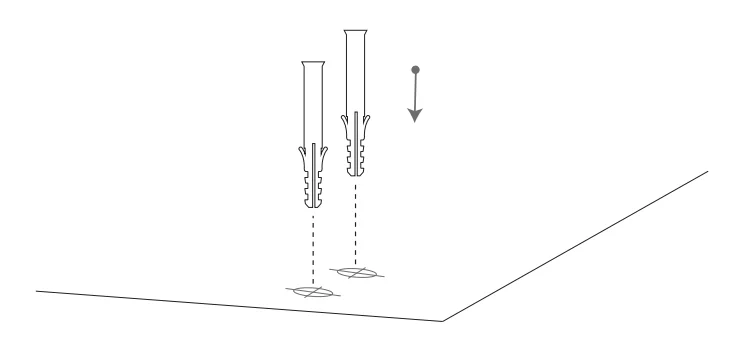

- Step 2: Install anchors to fix the screws.
- Step 3: Install the Birdfy Feeder Bracket on the flat surface with the screws provided.

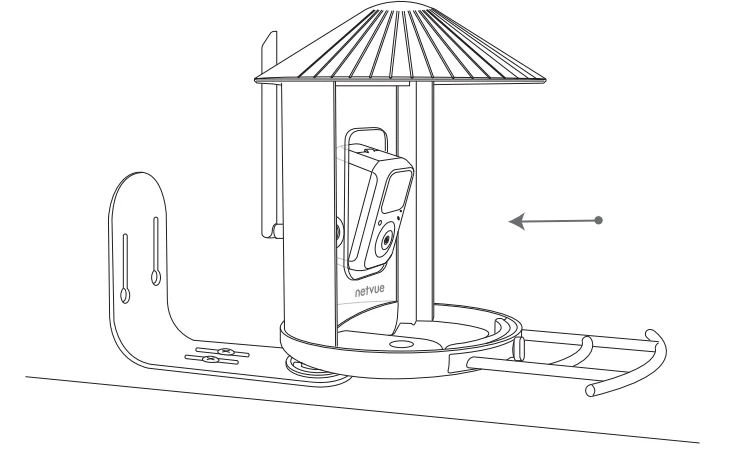

- Step 4: Slide the Birdfy Feeder into the bracket.
Tripod Installation:
Make sure you don’t have the bracket installed on the bottom of the Birdfy Feeder. If you need to remove it, please take a look at “Special Step for Bracket & Tripod Connector Removal” for instructions on how to remove the bracket.

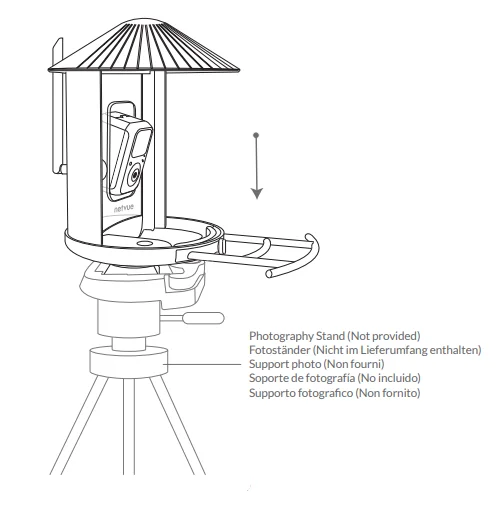

- Step 1: Slide the Birdfy Feeder into the Tripod Connector.
- Step 2: Install the bird feeder on the corresponding accessories, such as a photography stand (not provided).

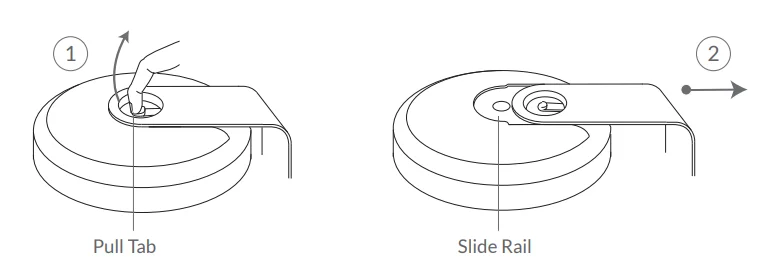

Special Step for Bracket & Tripod Connector Removal

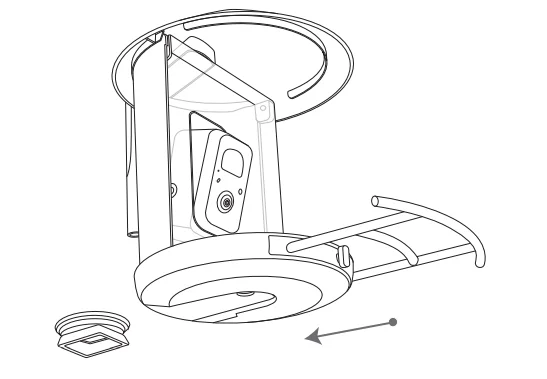

If you want to remove the bracket from the Birdfy, please pull the pull tab in the center bottom of the bracket first and then slide the bracket off from the Birdfy through the slide rail.

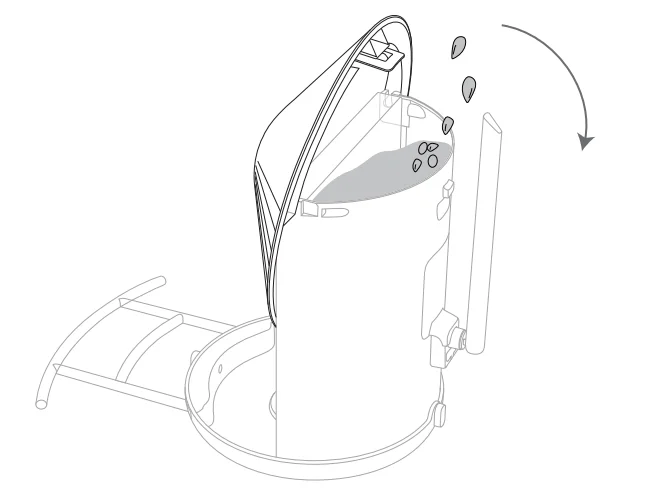

How to Add Bird Seed

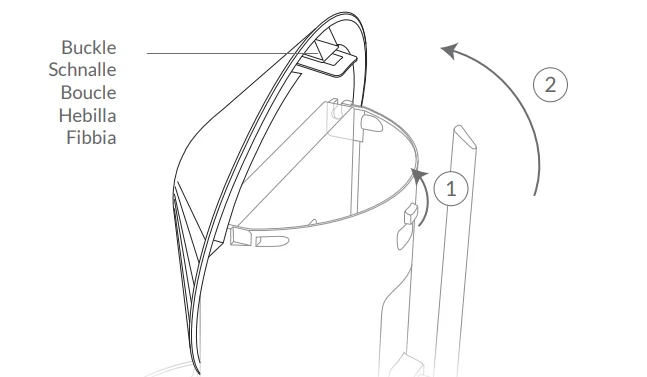

- Step 1: Open up the buckle on the back of the Birdfy Feeder and turn the Birdfy Feeder cover clockwise to open.
- Step 2: Add bird seed. Finally, close the Birdfy Feeder cover.

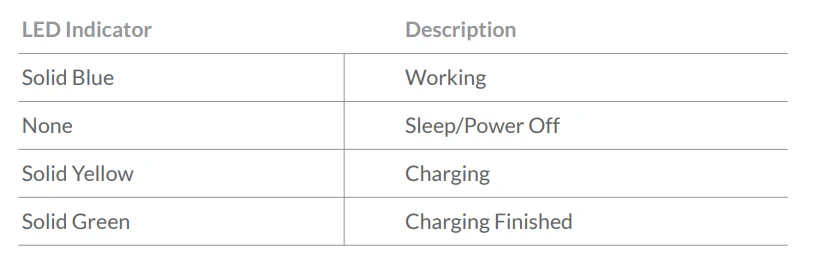

Status Light
This camera uses a status light to communicate.
Bird Detection
Protect Plan provides optional advanced features for those with higher security needs, and each plan supports multiple devices. Bird Detection has undergone massive machine learning and uses AI intelligent recognition algorithms to inform you in real time what species of birds are coming, automatically save the bird images/videos data for you, and also provide bird knowledge learning and more.
Learn more on my.netvue.com.
