Ninja BN751C Professional Plus Blender Duo User Manual

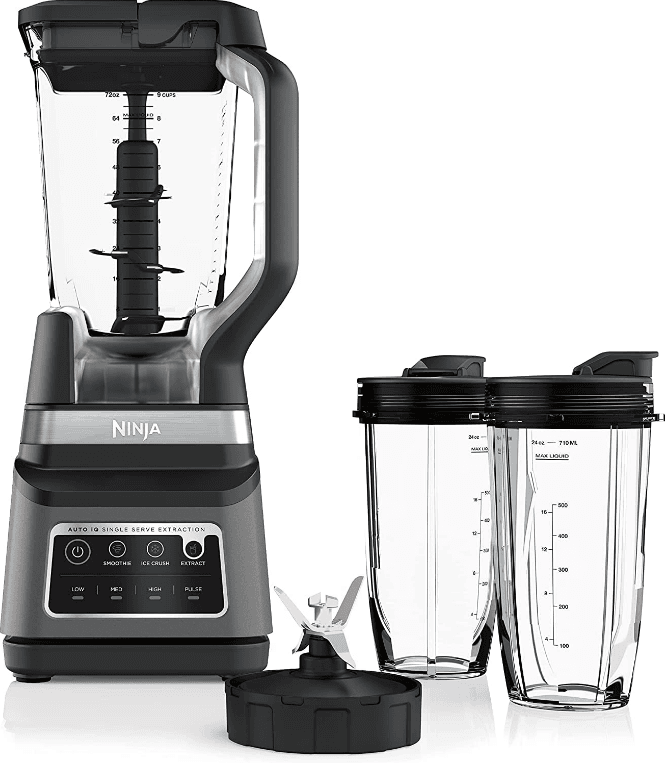

Ninja BN751C Professional Plus Blender Duo

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the appliance and its accessories.
Carefully observe and follow all warnings and instructions. This unit contains
electrical connections and moving parts that potentially present a risk to the user.
Take your time and exercise care during unpacking and appliance setup. This
appliance contains sharp, loose blades that can cause injury if mishandled.
Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance.
Blades are sharp. Handle carefully.
This product is provided with a Stacked Blade Assembly and a Chopping Blade Assembly. ALWAYS exercise care when handling blade assemblies. The blade assemblies are sharp and are NOT locked in place in their containers. The blade
assemblies are designed to be removable to facilitate cleaning and replacement if
needed. ONLY grasp the blade assembly by the top of the shaft. Failure to use care
when handling the blade assemblies will result in a risk of laceration.
ALWAYS exercise care when handling the Pro Extractor Blades® Assembly. The blades are sharp. ONLY grasp the Pro Extractor Blades Assembly by the outer perimeter of the blade assembly base. Failure to use care when handling the blade assembly will result in a risk of laceration.
Turn the appliance OFF, then unplug the appliance from the outlet when not in use, before assembling or disassembling parts, and before cleaning. To unplug,
grasp the plug by the body and pull from the outlet. NEVER unplug by grasping and pulling the flexible cord.
Before use, wash all parts that may contact with food. Follow the washing instructions covered in this instruction manual.
Before each use, inspect blade assemblies for damage. If a blade is bent or damage is suspected, contact SharkNinja to arrange for replacement.
DO NOT use this appliance outdoors. It is designed for indoor household use only.
This appliance has a polarized plug (one prong is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT modify the plug in any way.
DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. This appliance has non-user-serviceable parts. If damaged, contact SharkNinja for servicing.
This appliance has important markings on the plug blade. The entire supply cord is not suitable for replacement. If damaged, please contact SharkNinja for service.
Extension cords should NOT be used with this appliance.
To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power cord to contact any form of liquid.
DO NOT allow the cord to hang over the edges of tables or counters. The cord may become snagged and pull the appliance off the work surface.
DO NOT allow the unit or the cord to contact hot surfaces, including stoves and other heating appliances.
ALWAYS use the appliance on a dry and level surface.
DO NOT allow children to operate this appliance or use it as a toy. Close supervision is necessary when any appliance is used near children.
This appliance is NOT intended to be used by people with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja. The use of attachments, including canning jars, not recommended or sold by SharkNinja, may cause fire, electric shock, or injury.
NEVER place a blade assembly on the motor base without first attaching attached to its corresponding container and lid.
Keep hands, hair, and clothing out of the container when loading and operating.
During the operation and handling of the appliance, avoid contact with moving parts.
DO NOT fill containers past the MAX FILL or MAX LIQUID lines.
DO NOT operate the appliance with an empty container.
DO NOT microwave any containers or accessories provided with the appliance.
NEVER leave the appliance unattended while in use.
DO NOT blend hot liquids. Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned.
DO NOT process dry ingredients with the Single-Serve Blending Cup and Pro Extractor Blades® Assembly, or the pitcher and Stacked Blade Assembly.
DO NOT perform grinding operations with the Single-Serve Blending Cup and Pro Extractor Blades® Assembly, or the pitcher and Stacked Blade Assembly.
NEVER operate the appliance without lids and caps in place. DO NOT attempt to defeat the interlock mechanism. Ensure the container and lid are properly installed before operation.
Before operation, ensure all utensils are removed from containers. Failure to remove utensils can cause containers to shatter and potentially result in personal injury and property damage.
Keep hands and utensils out of containers while chopping to reduce the risk of severe personal injury or damage to the blender/food chopper. A scraper may be used ONLY when the blender or processor is not running.
If you find unmixed ingredients sticking to the sides of the cup, stop the appliance.,
Remove the blade assembly, and use a scraper to dislodge ingredients.
DO NOT open the pour spout cap while the blender is operating.
If you find unmixed ingredients sticking to the sides of the pitcher, stop the appliance, remove the lid, and use a spatula to dislodge ingredients. NEVER insert your hands into the pitcher, as you may contact one of the blades and experience a laceration.
DO NOT attempt to remove the container or lid from the motor base while the blade assembly is still spinning. Allow the appliance to come to a complete stop before removing lids and containers.
If the appliance overheats, a thermal switch will activate and temporarily disable the motor. To reset, unplug the appliance and allow it to cool for approximately 30 minutes before using it again.
DO NOT expose the containers and accessories to extreme temperature changes. They may experience damage.
Upon completion of processing, ensure the blade assembly is removed BEFORE emptying the container’s contents. Remove the blade assembly by carefully grasping the top of the shaft and lifting it from the container. Failure to remove the blade assembly before emptying the container results in a risk of laceration.
If using the pour spout, hold the cover in place on the container or ensure the lid lock is engaged when pouring to avoid the risk of injury.
Remove the Pro Extractor Blades® Assembly from the Single-Serve Cup upon completion of blending. DO NOT store ingredients before or after blending them in the cup with the blade assembly attached. Some foods may contain active ingredients or release gases that will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For ingredient storage in the cup, use only the Spout Lid to cover.
The maximum wattage rating for this appliance is based on the configuration of the Pro Extractor Blades Assembly and Single-Serve Cup. Other configurations may draw less power or current.
DO NOT submerge the motor base or control panel in water or other liquids. DO NOT spray the motor base or control panel with any liquid.
DO NOT attempt to sharpen blades.
Turn off the appliance and unplug the motor base before cleaning.

SAVE THESE INSTRUCTIONS

PARTS

There are a variety of accessories that are compatible with this blender series. To purchase more accessories and find
Great recipes, visit ninjakitchen.com.

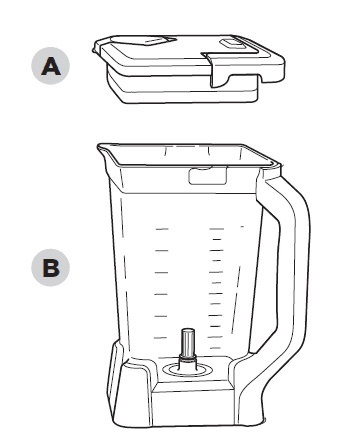

A Pitcher Lid
B 72 oz.* Total Crushing® Pitcher

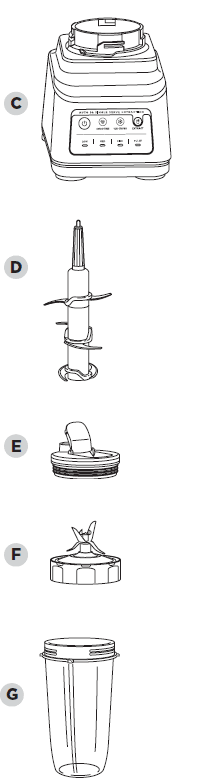

C Motor Base (The attached power cord is not shown.)
D Stacked Blade Assembly
E Spout Lid
F Pro Extractor Blades® Assembly
G 24 oz. Single-Serve Cup *64 oz. max liquid capacity

BEFORE FIRST USE

IMPORTANT: Review all warnings on pages 4–7 before proceeding.

DID YOU KNOW?

You can take your drinks on the go using the spout lid.

NOTE: All attachments are BPA-free and dishwasher safe. It is recommended that the containers, lids, and blade assemblies be placed on the top rack of the dishwasher. Ensure blade assemblies and lids are removed from the containers before placing in the dishwasher. Exercise care when handling blade assemblies.

Remove all packaging materials from the unit. Exercise care when unpacking blade assemblies, as the blades are sharp.
The Stacked Blade Assembly is NOT locked in place in its containers. Handle the Stacked Blade Assembly by grasping the top of the shaft.
Handle the Pro Extractor Blades® Assembly by grasping around the perimeter of the blade assembly base.
Wash containers, lids, and blade assemblies in warm, soapy water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assemblies, as the blades are sharp.
Thoroughly rinse and air-dry all parts.
Wipe the control panel with a soft cloth. Allow it to dry completely before using.

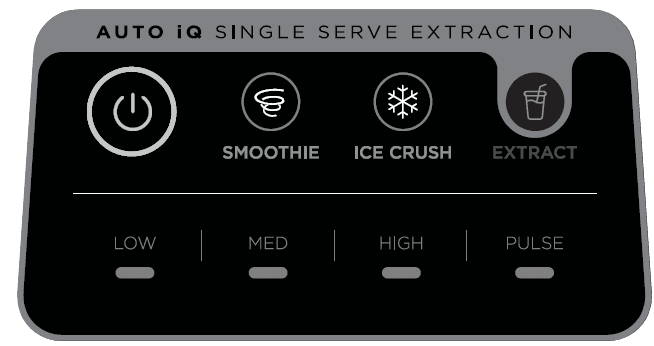

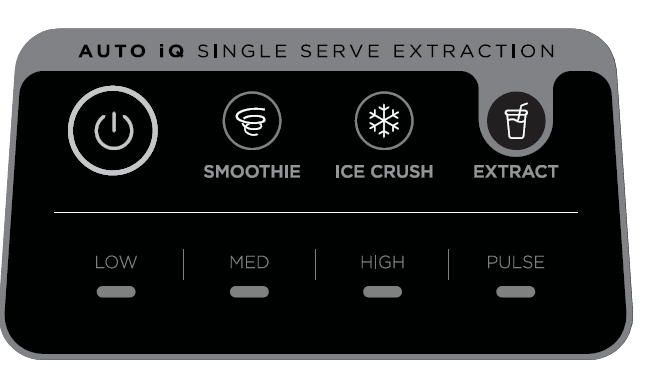

FEATURES

Use the Power button to turn the unit on or off.

AUTO-IQ® PROGRAMS

Intelligent preset programs combine unique blending and pausing patterns that do the work for you. Once a preset program is selected, it will start immediately and automatically stop when blending is complete. To stop blending before the end of the program, press the currently active button again.

AUTO-IQ PROGRAMS FOR THE TOTAL CRUSHING® PITCHER

SMOOTHIE

Make a batch of super-smooth, sippable drinks and shakes from fresh or frozen fruit, liquids, and ice.

ICE CRUSH

Turn ice, juices, and fruit into expertly blended frozen drinks.

AUTO-IQ PROGRAMS FOR THE SINGLE-SERVE CUP

SMOOTHIE

Make a batch of super-smooth, sippable drinks and shakes from fresh or frozen fruit, liquids, and ice.

ICE CRUSH

Turn ice, juices, and fruit into expertly blended frozen drinks.

EXTRACT

Ideal for tough, leafy, or fibrous whole fruits and vegetables, including their skins, seeds, and stems.

MANUAL PROGRAMS

LOW, MEDIUM, and HIGH

When selected, each of these speeds runs continuously for 60 seconds. Press the currently active button again to stop the program sooner. They do not work in conjunction with any preset programs.

PULSE

Offers greater control of pulsing and blending. Operates only when PULSE is pressed. Use short presses for short pulses and long presses for long pulses.

NOTE: The unit can detect which container is installed on the motor base. Only the functions available for a particular container will illuminate on the control panel.

USING THE TOTAL CRUSHING® PITCHER

IMPORTANT: Review all warnings on pages 4–7 before proceeding.

IMPORTANT: As a safety feature, if the pitcher and lid are not properly installed, the motor will be disabled. If this happens, repeat step 5 on the following page. When the pitcher and lid are properly installed, the program button LEDs will illuminate, indicating the appliance is ready to use.

NOTE: If the unit is plugged in and powered on, but the pitcher is not installed, the LEDs on the control panel will flash.

NOTE: Auto-iQ® programs have pauses and changes in speed throughout the cycle.

NOTE: DO NOT add ingredients before completing the installation of the Stacked Blade Assembly.

NOTE: If the Stacked Blade Assembly is not fully seated, you will not be able to install and lock the lid.

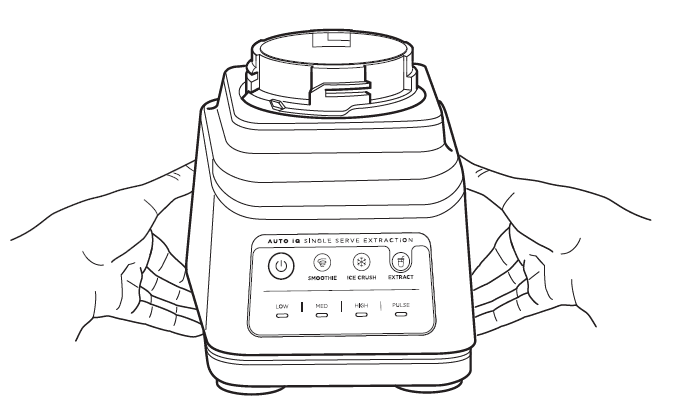

Plug in motor base and place on a clean, dry, level surface such as a countertop or table.

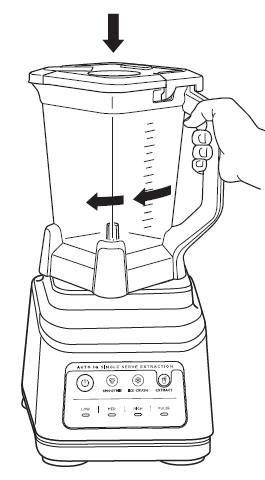

Lower the Total Crushing Pitcher onto the motor base. The handle should be aligned slightly to the right and the pitcher should be oriented so the LOCK symbols are visible on the motor base. Rotate the pitcher clockwise until it clicks into place.

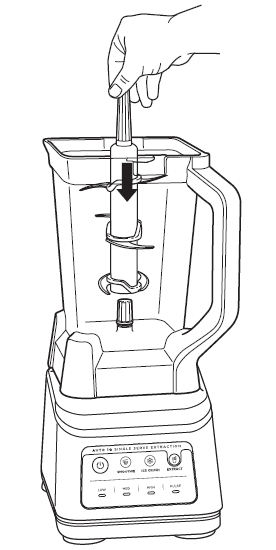

Exercising care, grasp the Stacked Blade Assembly by the top of the shaft and place it onto the drive gear inside the pitcher. Note that the blade assembly will fit loosely onto the drive gear.
Add ingredients to the pitcher. DO NOT add ingredients past the MAX LIQUID line on the pitcher.
Place the lid on the pitcher, aligning the triangle symbol on the lid with the triangle symbol on the handle. Press down on the handle until it clicks into place. The triangle symbols MUST be aligned for the lid to lock and the unit to operate. Once the lid is locked in place, press the Power button to turn unit on. The available program buttons will illuminate and the unit will be ready for use.

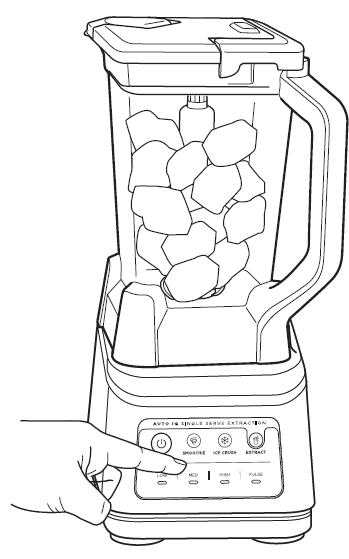

If using an Auto-iQ® program, first select the program that best suits your recipe. The preset feature will automatically stop at the end of the program. To stop the unit at any time, press the currently active button again.If using a manual program, select your desired speed. Once the ingredients have reached your desired consistency, press the active button again and wait for the unit to come to a complete stop after 60 seconds.
To remove the pitcher from the motor base, turn the pitcher counterclockwise and then lift up.

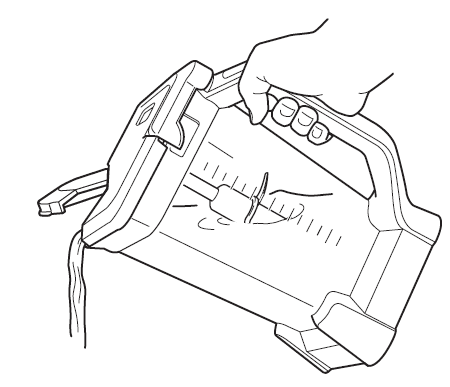

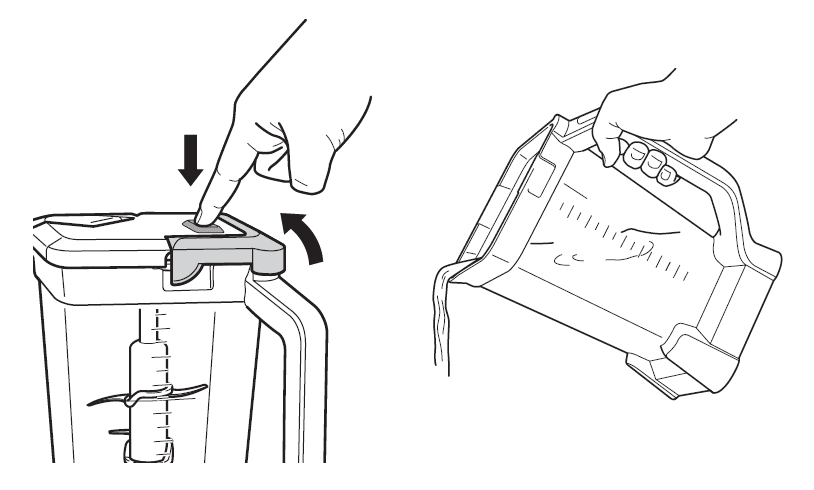

To pour out thinner mixtures, ensure the lid is locked in place, then open the pour spout cap.
- For thicker mixtures that cannot be emptied through the pour spout, remove the lid and Stacked Blade Assembly before pouring. To remove the lid, press the RELEASE button and lift the handle. To remove the blade assembly, carefully grasp it by the top of the shaft and pull straight up. The pitcher can then be emptied.
Turn the unit off by pressing the Power button. Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

CARE & MAINTENANCE

CLEANING

Separate all parts. Wash all containers in warm, soapy water with a soft cloth.

Hand-Washing
Wash blade assemblies in warm, soapy water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assemblies, as the blades are sharp. Thoroughly rinse and air-dry all parts.
Dishwasher
All attachments are dishwasher safe. It is recommended that the lids, containers, and blade assemblies be placed on the top rack of the dishwasher ONLY. Ensure the blade assemblies are removed from their containers before placing in the dishwasher. Exercise care when handling blade assemblies.
Motor Base
Turn off the unit and unplug the motor base before cleaning. Wipe the motor base with a clean, damp cloth. DO NOT use abrasive cloths, pads, or brushes to clean the base.
STORING
Wrap the power cord around the cord wrap on the back of the motor base. Store the unit upright and store all blade assemblies inside or attached to their respective containers with their lids locked in place. DO NOT store blended or unblended ingredients in the Single-Serve Cup with the Pro Extractor Blades® assembly attached. DO NOT stack items on top of the containers. Store any remaining attachments alongside the unit or in a cabinet where they will not be damaged or create a hazard.
RESETTING THE MOTOR
This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently
overload the it. If the unit is overloaded, the motor will be temporarily disabled. Should this occur, follow the reset procedure below.
- Unplug the unit from the electrical outlet.
- Allow the unit to cool for approximately 15 minutes.
- Remove the container’s lid and blade assembly. Empty the container and ensure no ingredients are jamming the blade assembly.

IMPORTANT: Ensure that maximum capacities are not exceeded. This is the most typical cause of appliance overload. If your unit needs servicing, please call Customer Service at 1-877-646-5288. So we may better assist you, please register your product online at registeryourninja.com and have the product on hand when you call.

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn the power off and unplug the unit before troubleshooting.

The LEDs on the control panel are flashing.

If the unit is plugged in and powered on, but there is no container installed, the LEDs on the control panel will flash. Install a container, and the available program buttons will illuminate, indicating the unit is ready for use.

The Manual Program LEDs (Low, Medium, High, Pulse) are flashing.

If Low, Medium, High, and Pulse LEDs are flashing, unplug the unit from the electrical outlet and allow it to cool for 30 minutes. Remove the container’s lid and blade assembly and empty the contents to ensure no ingredients are jamming the blade assembly.

Lid/Pro Extractor Blades® Assembly is hard to install on the cup.

Set the cup on a level surface. Carefully place the lid or Pro Extractor Blades Assembly on the top of the cup and align the threads so the lid/Pro Extractor Blades Assembly sits flat on the cup. Twist clockwise until you have a tight seal.

Unit doesn’t mix well; ingredients get stuck.

Using the Auto-iQ® programs is the easiest way to achieve great results. The pulses and pauses allow the ingredients to settle toward the blade assembly. If ingredients are routinely getting stuck, adding some liquid will usually help.
When filling the cup, start with fresh fruit or veggies, then leafy greens or herbs. Next add liquids or yogurt, then seeds, powders, or nut butters. Finally, add ice or frozen ingredients.

The unit moves on the counter while blending.

Make sure the surface and feet of the unit are clean and dry.

The preset program will not work.

The unit can detect which container is on the motor base. You may be trying to use a program that is not designed for the container you have installed. The programs will light up, indicating which programs are available for each container.

The unit doesn’t create snow from solid ice.

DO NOT use ice that has been sitting out or has started to melt. Use ice straight from the freezer.
Start with a few pulses and then use a continuous blending cycle.

The pitcher lid handle will not fold down.

If not attached to the pitcher, the handle will not fold down. For storage, place the lid on the pitcher and press down on the handle until it clicks into place.
