NVXI SP04 Warrior Bluetooth Controller User Guide

NVXI SP04 Warrior Bluetooth Controller

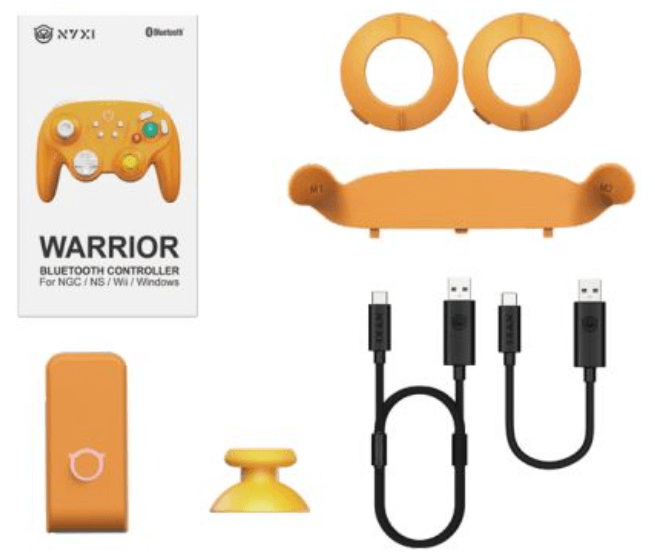

Package Contents

• NVXI Warrior Wireless Controller x l
• USB-CO
• Instruction Manual x l
• Replaceable Back Paddle x l
• Standard Stick*l
• Joystick Ring x2
• Adapter*l

Product Specifications

• Brand: NYXI
• Input Voltage: DC5V
• Charging Current: 390mA
• Operating Voltage: 3.4-4.2V
• Operating Current: S290mA
• Battery Capacity: 900mAh
• Bluetooth Transmission Distance: SIOM

First-time Use:
When using the controller for the first time, please charge it using a USB cable and exit “lock mode”.

Sleep Mode

1.  When the controller is already turned on, pressing the pairing button will put the controller into sleep mode.
2. When the controller is in pairing mode, if no connection is made within 60 seconds, the controller will automatically enter sleep mode
3. When connected to the console, if there is no activity for 5 minutes, the controller will go into sleep mode.

NS

1. Required system:  NS 3.0.0 or above.
2. Pairing is only required for the first-time connection
3. After the first time pairing, when the NS console is in sleep mode, pressing the Home button on the controller will automatically connect it to the console.

Bluetooth Connection

1. Press the controller’s pairing button for about 3 seconds to enter its pairing mode, the status LED will blink purple-pink rapidly.
2.  Co to NS settings, select “Controllers and Sensors” and then “Change Crip/Order” and wait for the connection to be made.
3. Once connected successfully, the status LED will remain solid purple-pink.

Wired Connection

• After the wired connection is successful, pressing any controller button can wake up the controller.
• After the wired connection, the controller can automatically connect to the NS via Bluetooth even if the USB cable is disconnected.

Wireless Connection

1. Connect the adapter to the computer using a short USB cable and press the adapter’s pairing button for 3 seconds to enter its pairing mode.
2. Press the controller’s pairing button for 3 seconds to enter its pairing mode and wait for connecting. The status LED will blink blue rapidly.
3. Once connected successfully, the controller’s status LED and the adapter’s pairing button will remain solid purple-pink.

Wired Connection

Connect the controller to the computer via a USB cable. The status LED will remain solid blue. Wait for the system to recognize the controller before starting to play.

Bluetooth Connection

1. Press the pairing button and the A button at the same time until the status LED blinks green.
2. Open the Android device’s Bluetooth settings and turn it on, pairing with [Camped, and wait for the connection.
3. Once connected successfully, the status LED on the controller will remain solid green.

Wired Connection

Connect the controller to the Android device using a USB cable. The status LED will remain solid green. Wait for the system to recognize the controller before starting to play.

Wireless Connection

1. Connect the adapter to the GameCube console and press the adapter’s pairing button for 3 seconds until it starts blinking purple-pink.
2. Press the pairing button on the controller for 3 seconds until the status LED blinks purple-pink. Wait for the Windows device to recognize the controller before starting to play.
3. Once connected successfully, the status LED on the controller and the pairing button on the adapter will remain solid purple-pink.

Wireless Connection

1. Connect the video cable of the Wii console to the TV, plug in the original adapter, power it on, and insert the game disc into the console.
2. After entering the game, unplug the original adapter, and plug in the adapter at the top of the Wii console.
3. When pairing the controller with the adapter for the first time, press the adapter’s pairing button for 3 seconds until it blinks purple-pink, then wait for the adapter and controller to pair.
4. Press the controller’s pairing button for 3 seconds until the status LED blinks purple- pink. Once connected successfully, the status LED and the adapter’s pairing button will stay solid purple-pink.
5. For subsequent connections, simply press the HOME button on the controller to reconnect with the adapter instantly.

Turbo Function

Supported buttons for Turbo function: A, B, X, Y, L, R, ZL, ZR, D-pad Turbo function settings persist even after powering off, requiring manual clearing when necessary. Quickly clear Turbo function: Press and hold the Turbo button for 5 seconds, and the controller will vibrate to indicate that all Turbo function settings have been successfully cleared.

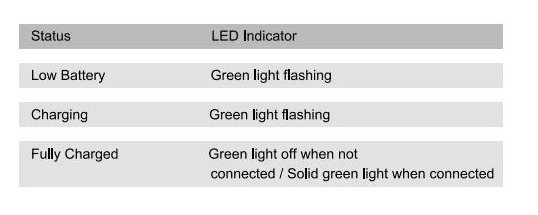

Battery Status

WARNING

1. Contains small parts. Please keep out of reach of children under 3 years old.
2. Avoid using the product near sources of fire.
3. Do not disassemble or modify the product yourself.
4. Do not expose the product to damp or dusty environments.
5. Do not use the product for purposes other than its intended use.
6. Follow local regulations for proper disposal of the product and its components; do not dispose of them as household waste.
