Onn 100008755 6-Device Universal Remote User Guide

Onn 100008755 6-Device Universal Remote

GETTING STARTED BATTERIES

Thank you for choosing the ONN Universal Remote Control. This remote control can operate a wide range of electronic devices, works across most brands and models, and comes pre-programmed to operate many Samsung TVs (see the Programming Your Remote sections if your device is not compatible). Your remote can control up to 6 devices and is remarkably easy to set up. To get started, please install two AA alkaline batteries (not included) as shown below.

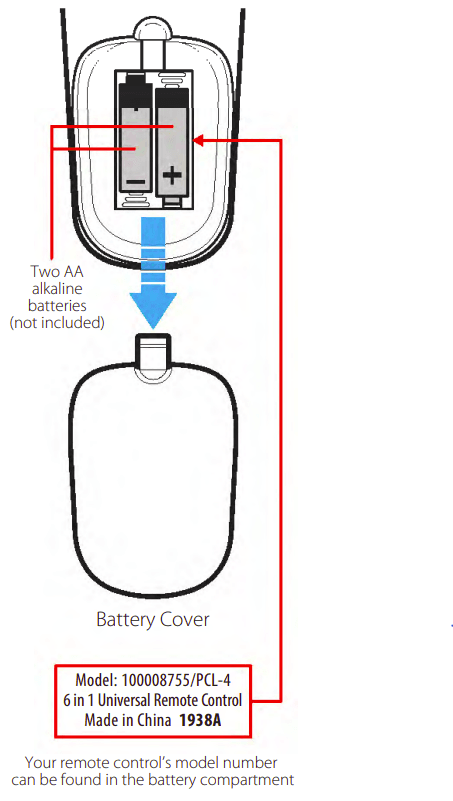

Installing the Batteries

1. Remove the battery cover.
2. Insert the batteries as shown.
3. Snap the battery cover back into place.

Battery Precautions

• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
• Always remove old, weak or worn out batteries promptly and recycle or dispose of them in accordance with local and national regulations.

Low Battery Indicator

• If while using the remote, the button’s red indicator light flashes 3 times, this indicates the batteries need to be replaced. Please replace the batteries as soon as possible when this indication occurs.

Code Saver

• When changing the batteries of your remote, please do so quickly. You have up to 20 minutes to change the batteries in your remote without losing the programmed codes.

Battery Saver

• To conserve battery power, the remote will automatically turn off if any button is pressed for more than 60 seconds (except during programming). This feature is helpful in the event that the remote is stuck in a location where the buttons remain depressed, such as between sofa cushions

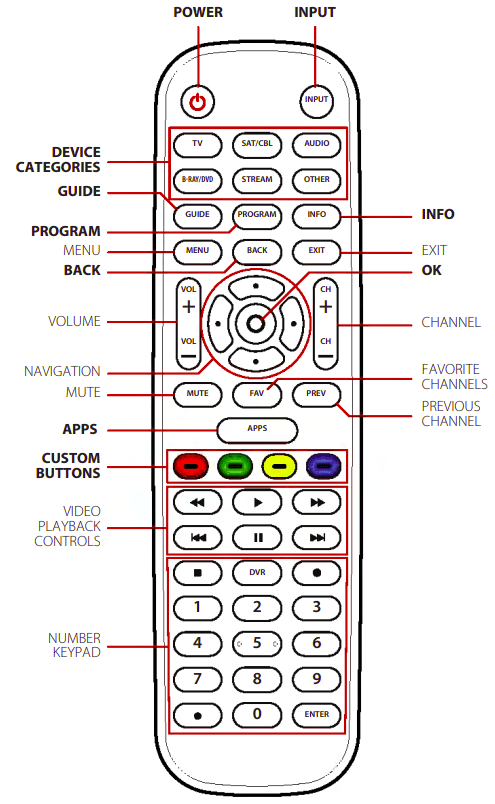

GETTING STARTED BUTTONS

• NOTE: Some of the buttons on the remote may not support all of the functions of the original device remote.

GETTING STARTED BUTTONS

• POWER
  Turns your device On/Off and also serves as an indicator when the remote is being programmed
• INPUT
  Switches between the sources connected to your TV

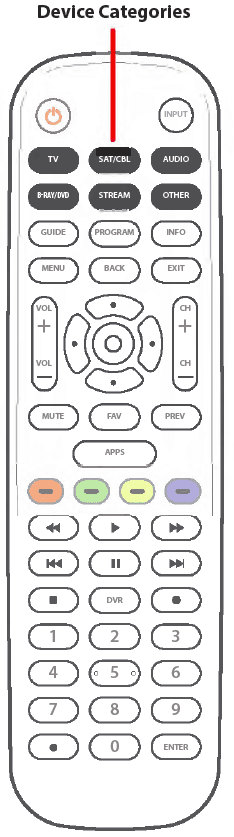

• DEVICE CATEGORIES
  Use these buttons to select the device you want to control
• GUIDE
  Use to access the guide of satellite and cable set-top boxes
• PROGRAM
  Use to put your remote in programming mode
• APPS
  Use to access your smart TV’s apps (if supported)
• BACK
  Return to the previous menu or screen
• CUSTOM BUTTONS
  Use to access device shortcuts for additional features or custom apps on your device (if supported)
• INFO
  Use to access on-screen content description and information

PROGRAMMING YOUR REMOTE (DIRECT CODE ENTRY)

Programming your remote is as easy as 1, 2, 3.
Before beginning, please make sure that the device you want to control is powered on and follow these three simple steps.
NOTE: Press PROGRAM button to exit at any time.

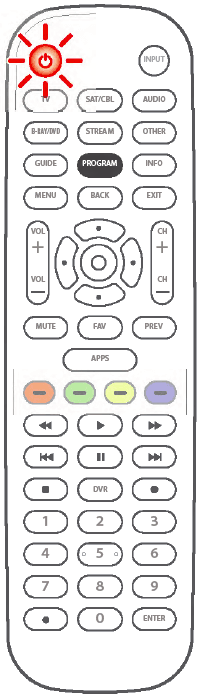

1. Press and hold the PROGRAM button until the POWER OFF  button lights up red. The POWER OFF  button’s red indicator light remains on.
   NOTE: The ONN universal remote comes pre-programmed to operate many Samsung TVs.
2. Select the device you want to program from the Device Categories The POWER OFF button’s red indicator light blinks once and remains on
3. Enter the 4-digit code from the included list for the category and brand of your device. The POWER OFF button’s red indicator light shuts off if a valid code was entered. If the POWER OFF  button’s red indicator light flashes and remains on after entering four digits, that means an invalid code was entered. In that case, check the list again and re-enter the code.
   NOTE: Test the remote with the device to make sure all the buttons work as expected. If some of the buttons/ features don’t work, try a different code in the list. Repeat this process for each device you wish to control.

PROGRAMMING YOUR REMOTE (AUTO CODE SEARCH)

It’s recommended to program your remote by using the Direct Code Entry method, however if with that method you were not able to find a code that is compatible with your device, you may try the Auto Code Search method below

1. Power on the device that you want to control.
2. Press and hold the PROGRAM button until the button lights up red. The POWER OFF  button’s red indicator light remains on.
3. Select a device from Device Categories you would like to control. The POWER OFF button’s red indicator light blinks once and remains on.
   NOTE: Please refer to the list below if you are unsure about the device category.
   • TV: TV, TV/DVD and other TV combinations.
   • SAT/CBL: Satellite, Cable, DVR, and other set-top boxes.
   • AUDIO: Sound Bars, Audio Receivers, and other audio devices.
   • B-RAY/DVD: Blu-ray Players and DVD Players.
   • STREAM: Roku, Apple TV, Xbox, and other streaming media players.
   • OTHER: VCRs, Digital Frames, and devices not found on the code list.
4. Point the remote at the device you wish to control and then press and hold the OK button until the device turns off. The POWER OFF button’s red indicator light will blink as the codes are being tested.
5. When the device turns off, immediately release the OK button to lock in the code. The POWER OFF button’s red indicator light will turn off. Test the remote with the device to make sure all the buttons work as expected. If some of the buttons/features don’t work, repeat the process or try the Direct Code Entry method.
   NOTE: It may take over 10 minutes to scan through all the possible codes for your device. If during the Auto Code Search you have either accidentally or deliberately released the OK button, you may repeat steps 1 through 5 above to resume the code search where it left off. After the Auto Code Search has exhausted all available codes for the selected category, the remote’s button’s red indicator light blinks three times and turns off. If none of the codes worked with your device, try the Direct Code Entry method.

FAVORITE CHANNELS

For easy access to up to 10 of your favorite channels, follow the steps below.

1. Select a device from Device Categories that controls the channels. The POWER OFF button’s red indicator light will blink once.
2. Press and hold the PROGRAM button until the button lights up red. The button’s red indicator light remains on.
3. Press the FAV button. The POWER OFF button’s red indicator light blinks once and remains on.
4. Select the button (0 – 9) that you will use for storing your favorite channel. The POWER OFF button’s red indicator light blinks once and remains on.
5. Enter the channel number you wish to program as a favorite channel.
6. Press the FAV button, the POWER OFF button’s red indicator light will turn off and the channel is saved.
   NOTE: To change a stored favorite channel, repeat steps 1-6 above.

To Access Your Favorite Channels:

• Press the FAV button. The POWER OFF button’s red indicator lights up and remains lit.
• To access the favorite channel, press the programmed button for that channel (0-9). The POWER OFF button’s red indicator light blinks, then turns off as the command is sent.

VOLUME LOCK

Use this feature to lock a device to the remote’s volume control. For example, the remote can be in TV mode while the volume buttons control your sound bar.

Enabling Volume Lock:

1. Press and hold the PROGRAM button until the POWER OFF button lights up red. The POWER OFF button’s red indicator light remains on.
2. Select a device from Device Categories that you want to lock to the remote’s volume control. The POWER OFF button’s red indicator light blinks once and remains on.
3. Press the VOL+ button. The POWER OFF  button’s red indicator light blinks once and remains on.
4. Press the OK button. The POWER OFF button’s red indicator light will blink twice and turn off.

Disabling Volume Lock:

1. Press and hold the PROGRAM  button until the POWER OFF button lights up red. The POWER OFF button’s red indicator light remains on.
2. Press the VOL– button. The POWER OFF  button’s red indicator light blinks once and remains on.
3. Press the OK button. The POWER OFF button’s red indicator light will blink twice and turn off.
   NOTE: On most newer HDMI-connected devices, the Volume Lock feature may be unnecessary as this feature is already built-in.

CHANNEL LOCK

Use this feature to lock a device to the remote’s channel control. For example, the remote can be in TV mode while the channel buttons control your satellite or cable box.

Enabling Channel Lock

1. Press and hold the PROGRAM button until the POWER OFF button lights up red. The POWER OFF button’s red indicator light remains on.
2. Select a device from Device Categories that you want to lock to the remote’s channel control. The POWER OFF button’s red indicator light blinks once and remains on.
3. Press the CH+ button. The POWER OFF button’s red indicator light blinks once and remains on.
4. Press the OK button. The POWER OFF button’s red indicator light will blink twice and turn off.

Disabling Channel Lock

1. Press and hold the PROGRAM button until the POWER OFF button lights up red. The POWER OFF button’s red indicator light remains on.
2. Press the CH- button. The POWER OFF button’s red indicator light blinks once and remains on.
3. Press the OK button. The POWER OFF button’s red indicator light will blink twice and turn off.
   NOTE: On most newer HDMI-connected devices, the Channel Lock feature may be unnecessary as this feature is already built-in.

CODE IDENTIFICATION

To identify any of your programmed codes, follow the steps below.

1. Press and hold the PROGRAM button until the POWER OFF button lights up red. The POWER OFF button’s red indicator light remains on.
2. Select a device from Device Categories that you would like the code for. The POWER OFF button’s red indicator light blinks once and remains on.
3. Press the MINUS button. The POWER OFF button’s red indicator light blinks once and remains on.
4. Press the 1 button. Count the number of times the POWER OFF button’s red indicator light flashes. This is the number corresponding to the first digit of the code. If the POWER OFF button does not flash, the corresponding code number is 0. Repeat the process by pressing the 2, 3 and 4 buttons for the remaining digits.
5. Press the MINUS button to exit.
   NOTE: Press MINUS  to exit at any time.

RESET TO FACTORY DEFAULT SETTINGS

1. Press and hold the PROGRAM button until the POWER OFF button lights up red. The POWER OFF button’s red indicator light remains on.
2. Press the INFO button. The POWER OFF button’s red indicator light blinks once and remains on.
3. Press the OK button. The POWER OFF button’s red indicator light will flash twice and the remote will revert to factory settings.

TROUBLESHOOTING

The tips below can help you solve problems and answer questions you may have with your remote control. In general, always make sure:

• The remote is in the correct device category mode (TV, SAT/CBL, AUDIO, B-RAY/DVD, STREAM, OTHER); this tells the remote which device to operate.
• The batteries are fresh and properly installed.
• To remove any obstacles between the remote and the device, and that you’re aiming the remote at the device’s IR sensor.

The remote can’t be programmed to operate my device.

• If you’re using the Direct Code Entry method to enter the codes for your brand and the device is still not functioning properly after trying all the code options, try the Auto Code Search method.
• To control combo devices like TV/VCRs or TV/DVDs, you must program the individual corresponding device buttons to control each part of the combo unit.

Some of the buttons of the remote are not supported or working properly on my device.

• It’s possible the code that you programmed is not fully compatible with your device. Try selecting the next code from the options available for the category and brand of your device.
• There may be some buttons from your device’s original remote that are not supported.
• You may have pressed an invalid button for the device category mode the remote is in.

The remote will not change the channels on my device.

• Make sure the remote is in the correct device category mode (TV, SAT/CBL, AUDIO, B-RAY/DVD, STREAM, OTHER) that controls the channels.
• Try pressing the ENTER button after you enter a channel number (a requirement with certain models and brands of TV and/or Cable/Satellite boxes).

The remote will not adjust the volume on my device.

• Make sure the remote is in the correct device category mode (TV, SAT/ CBL, AUDIO, B-RAY/DVD, STREAM, OTHER) that controls the volume.

My device’s menu or app hub does not appear.

• Menu and app hub access isn’t supported for all brands. You may need to use your original remote control to access the menu functions and/or app hub for some devices.

My remote’s light is blinking

• If while using the remote the indicator light flashes 3 times, this indicates the batteries need to be replaced.

For more information, please call the Customer Support Help Line: 1 (888) 516-2630

FCC INFORMATION

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

• this device may not cause harmful interference, and
• this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
