Optonica IP65 LED Milky-Lens Floodlight
DIAGRAM
IMPORTANT SAFETY INFORMATION
Please take time to read this leaflet carefully and retain it for future reference.
- Do not wire this floodlight into the lighting circuit – use a switched fused spur.
- Before installation and servicingm disconnect the electrical supply at the mains.
- Carefully observe all instructions or warnings that are labelled on, or supplied withm your product.
- This product is suitable for outdoor use. If in any doubt, consult a qualified electrician.
PRODUCT DESCRIPTION

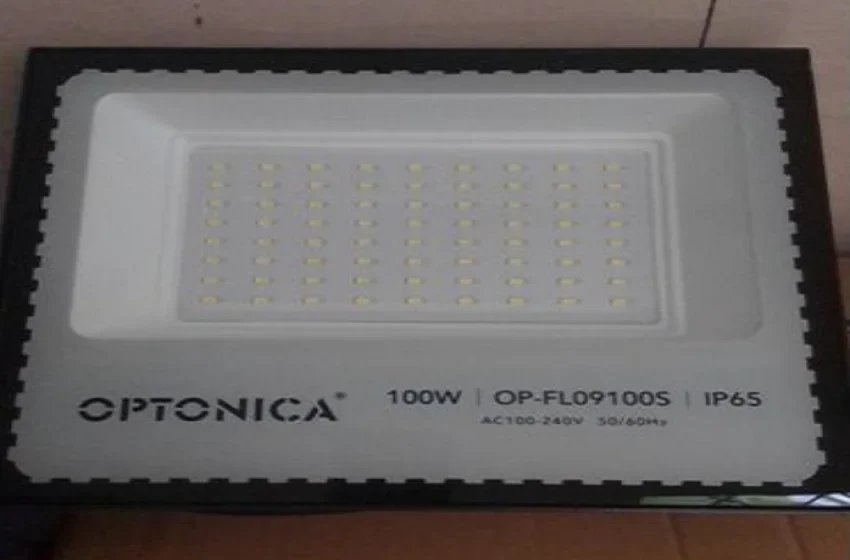

The Optonica IP65 LED Milky-Lens Floodlight is a dependable and energy-efficient lighting solution designed for demanding outdoor and industrial applications. Utilising advanced LED technology, it delivers strong, consistent illumination while significantly reducing energy consumption compared to traditional floodlights. The integrated milky lens ensures even light distribution and minimises glare, providing enhanced visual comfort without compromising brightness.
Built for durability, this floodlight features a robust IP65-rated housing that protects against dust, rain, and water splashes, making it ideal for long-term outdoor use. It performs reliably in challenging environments such as building exteriors, parking areas, loading zones, warehouses, and security installations. The solid construction ensures resistance to weather conditions while maintaining stable performance over time.
Designed with both function and aesthetics in mind, the compact and modern form allows for easy integration into various architectural settings. Installation is straightforward, and the long lifespan of the LED components reduces maintenance requirements. Whether used for security, area lighting, or architectural highlighting, the Optonica IP65 LED Milky-Lens Floodlight offers a practical balance of durability, efficiency, and comfortable illumination.
GENERAL INFORMATION
Do not mount ceiling/wall fittings onto damp surfaces such as newly painted or plastered areas, as this may cause discolouration of the finish.

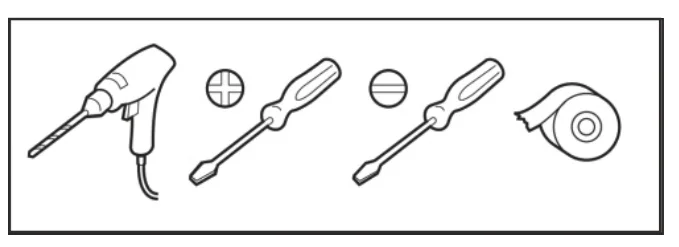

Tolls which may be required:
- Drill
- Cross Head Screwdriver
- Small Electrical Slotted Screwdriver
- Insulation Tape
NOTE
For new installations, check for any electrical cables or pipe work (gas/water) in the vicinity of the intended mounting point for this product, before proceeding with the installation.
INSTALLATION
Note: before installation.

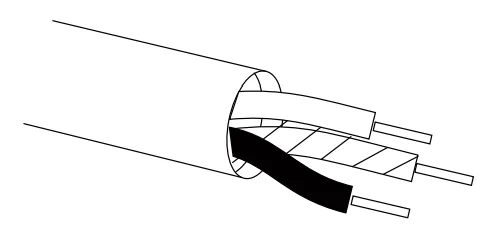

Only use a round cable supplied to connect this fitting. (6mm Diameter minimum).
This is required in order to create a good water seal when connected to the fitting.

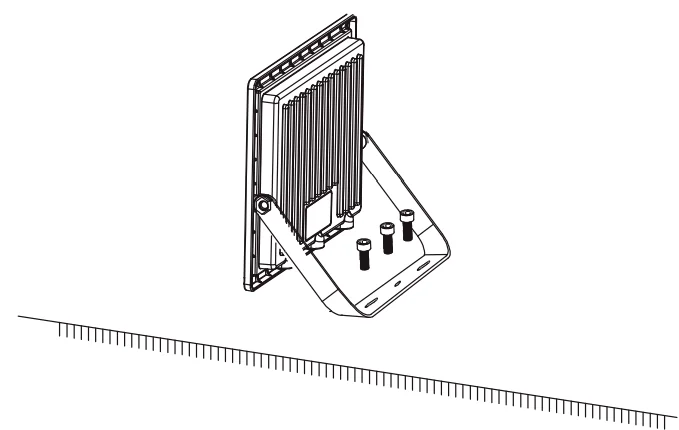

- Fasten the adjustable bracket with stainless steel screws.
- Connect the Main Line to the power wire of the lamp.
- Ensure the terminal connection is made inside a suitable IP65-rated junction box (not included)

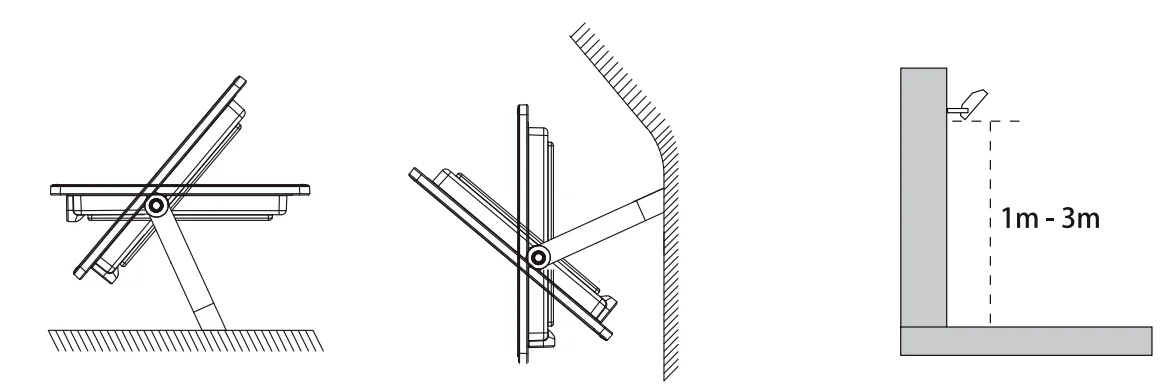

- Install the LED flood lights in the ground, wall and ceiling.
This product should be disposed of responsibly at the end of its life. Please recycle where facilities exist.
(Waste Electriacal ane Eceltronic Equipment Directive)
IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 So a, Mladost 1, bl. 144, Ground Floor; Phone: +359 2 988 45 72;
For more manuals by Optonica, visit ManualsLibraryy
Optonica IP65 LED Milky-Lens Floodlight- FAQs
Why is my LED floodlight flashing or flickering?
Flashing usually happens due to voltage fluctuations, loose wiring, or an unstable power supply. If flickering occurs when other appliances turn on, inconsistent voltage is the most likely cause.
Why has my LED floodlight suddenly become dim?
The most common reason is a voltage drop. When the supplied voltage falls below the rated level, the LED’s brightness decreases instantly.
What should I do if my LED floodlight is not turning on?
Check the power source, wiring connections, and compatibility with dimmer switches. Faulty wiring, moisture exposure, or extreme outdoor temperatures can also prevent operation.
Can the bulb be replaced in an LED floodlight?
No. LED floodlights use integrated LED chips, not replaceable bulbs. If the LED fails, the entire fixture usually needs repair or replacement.
Why do LED floodlights fail earlier than expected?
Frequent power surges, unstable voltage, overheating, or poor-quality drivers can stress internal components and lead to premature failure.
What happens when an LED floodlight reaches the end of its life?
LEDs don’t burn out suddenly like traditional bulbs. Instead, they slowly lose brightness until light output drops to about 70% of the original level.
How many watts does a typical LED floodlight use?
For residential outdoor use, 20–30 watts is common, producing around 2,000–3,000 lumens—equivalent to a 150–200W traditional floodlight.
How long do LED floodlights last?
Most LED floodlights last between 30,000 and 50,000 hours, which can mean 10–15 years of normal use with minimal maintenance.
