Petlibro PLAF103 Granary WIFI Smart Feeder
IN THE BOX
Automatic Pet Feeder
Stainless Steel Bowl
Power Adapter
Power Cable
Quick Start Guide
Desiccant Bag
User Manual

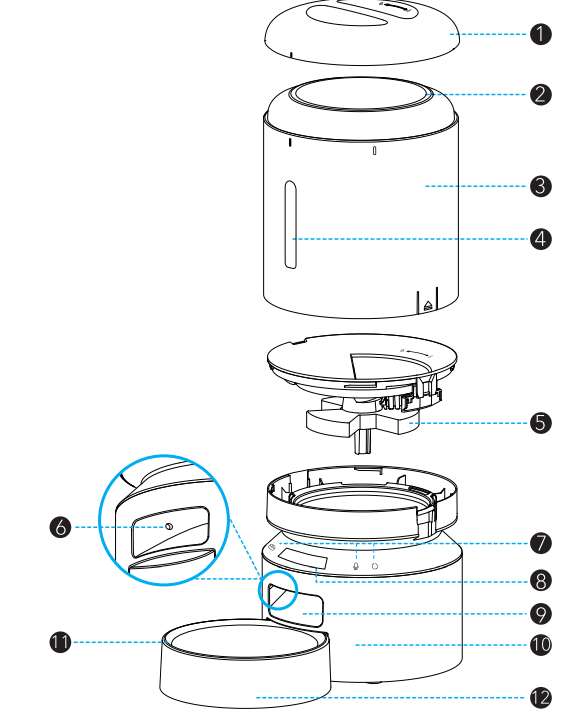

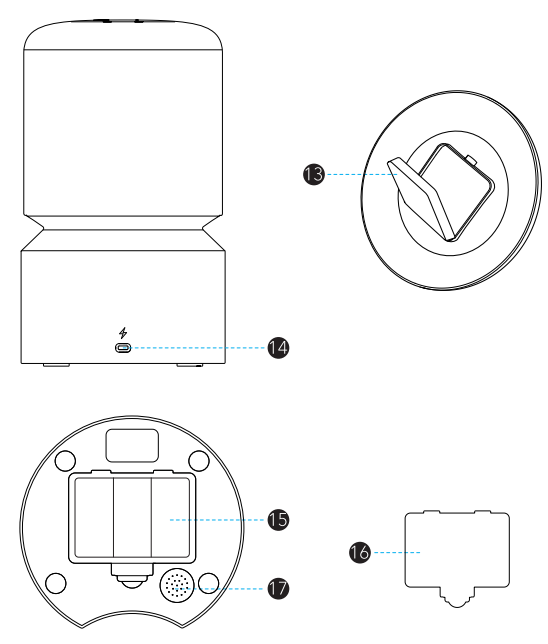

PRODUCT OVERVIEW
- Lid
- Seal Strip
- Food Tank
- Transparent Window
- Tank Base
- Anti-Clog Detector
- Control Panel
- Display Panel
- Food Outlet
- Feeder Base
- Stainless Steel Bowl
- Bowl Holder
- Desiccant Bag Holder
- Power Port
- Battery Compartment
- Battery Compartment Cover
- Speaker
Display area
Status Indicators

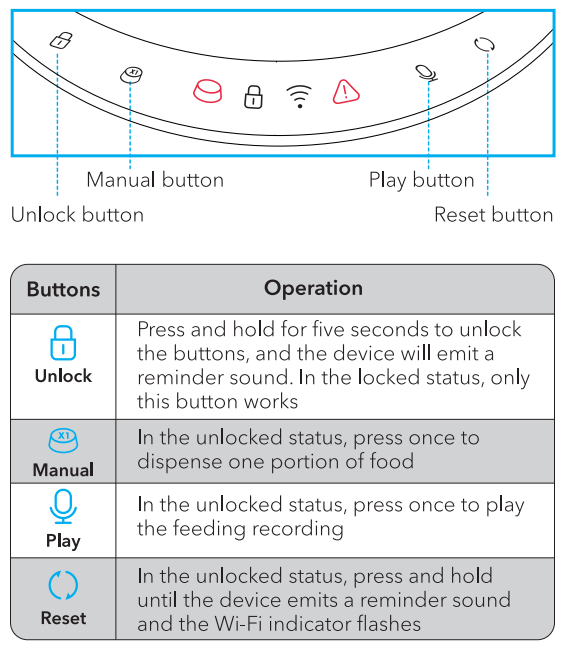

Buttons
GETTING STARTED
Installation

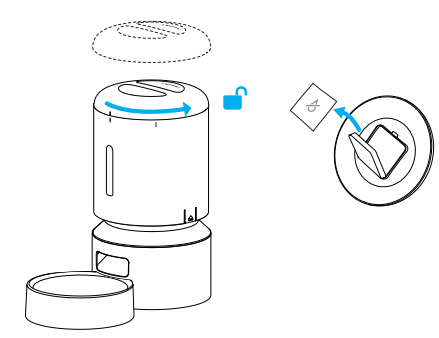

- Turn the lid counterclockwise to remove it.

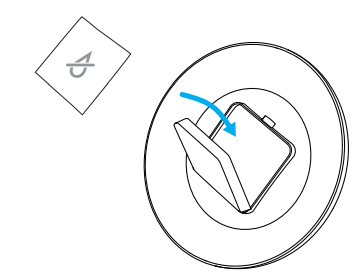

- Place the desiccant bag in the desiccant bag holder under the lid.

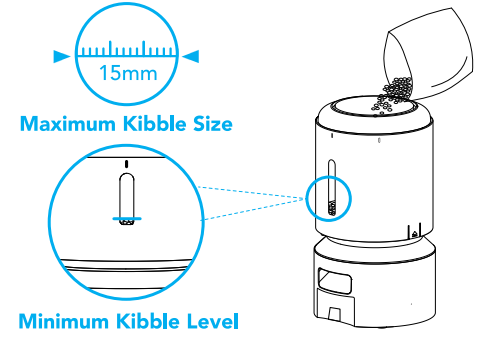

- Add dry pet food to the food tank.

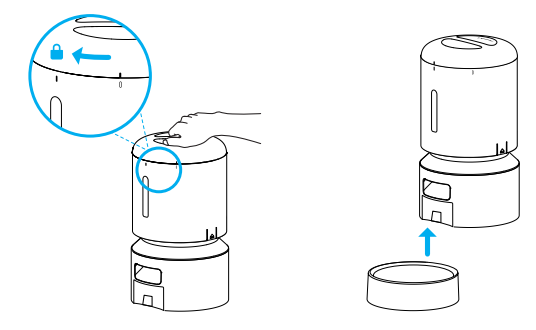

- Replace the lid and turn it clockwise
- Install the stainless steel bowl and bowl tray.
Notes
- To avoid a sudden power outage that affects the feeding of your pet, do not use the batteries as the only power source. The batteries can only be used as an emergency plan.
- When the power adapter, power cable, and batteries are used at the same time, the feeder will only draw power via the power cable.
- When the feeder is powered only by batteries, the Wi-Fi function, play button, and reset button would be disabled to extend the working time, but the meal schedules would be carried out normally.
Power off
Unplug the cable from the outlet and remove the batteries.
APP CONTROL
Network, router & system requirements
- The feeder supports 2.4GHz and 5GHz Wi-Fi.
- Keep the feeder close to your router for a better Wi-Fi connection. The ideal range is within 6m (19 7ft) without obstacles and walls.
- Supports iPhones running iOS 12.0 or later and Android smartphones running Android 5.0 or later.
Install the app & log i.n
- Scan the QR code below or search “PETLIBRO” in the App Store or Google Play to download the app.
- Sign up and log in to your account.

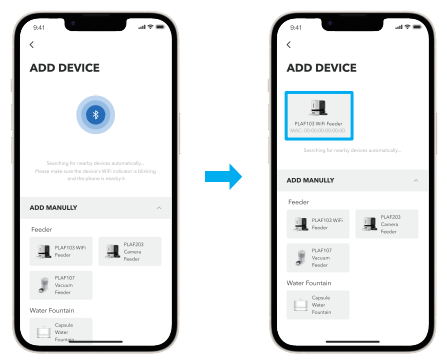

Automatically add the device
Turn on the Bluetooth and location services on your phone before adding a device.e.

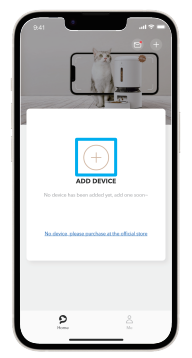

- Open the app and tap the”+” symbol.
- The app will automatically search nearby devices. Tap the device you want to add and follow the on-screen instructions.
Manually add the device.

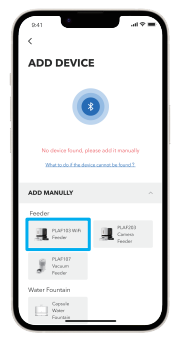

If the app can’t find any devices, you can manually add the device.
- Tap the device you want to add in the “ADD MANUALLY” list and follow the on-screen instructions.
- Tap the device for controls.

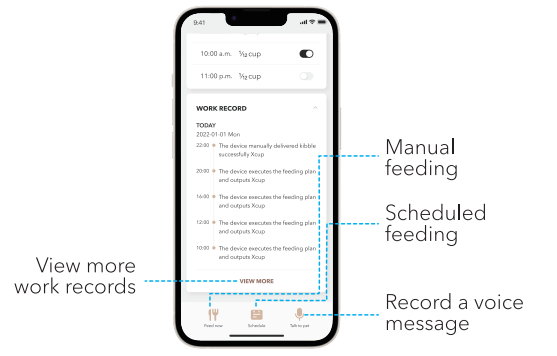

Device controls & settings
Feedback & FAQ

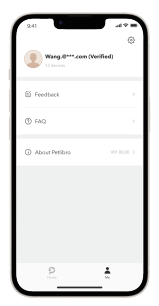

Go to Me> Feedback in the app to chat with a customer service staff on online or send an inquiry email. You can also check the FAQ in the app.

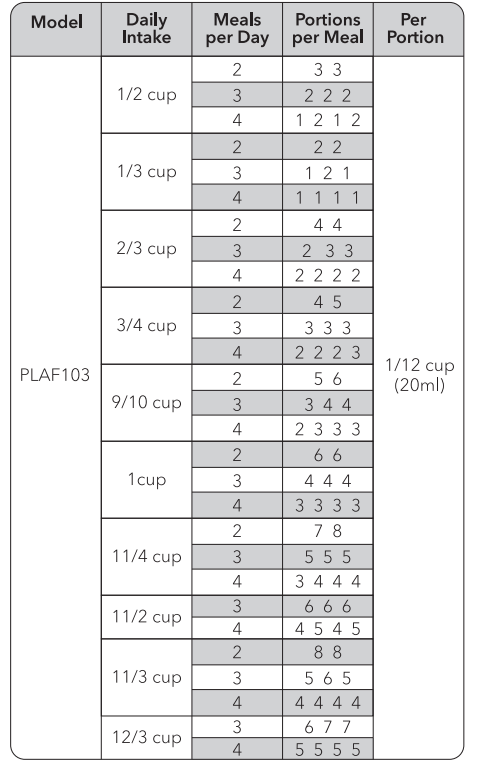

Recommended feeding portions
CARE AND MAINTENANCE
- Power off the device before cleaning.
- Clean the lid, food tank, tank base, stainless steel bowl, and bowl tray with tap water.
- Do not clean the feeder in a dishwasher. Only the stainless steel bowl is dishwasher safe.
- Use a soft, dry cloth to clean the feeder base. Do not wash any part with electronic components.
- Replace the desiccant bag every half a month to keep food fresh.
- Remove the desiccant bag before cleaning the lid.
Disassemble for cleaning
- Remove the lid and take out the desiccant bag.
- Make sure the food tank is empty. Pull the notches on both sides of the food tank outward a little and then up to remove the food tank.

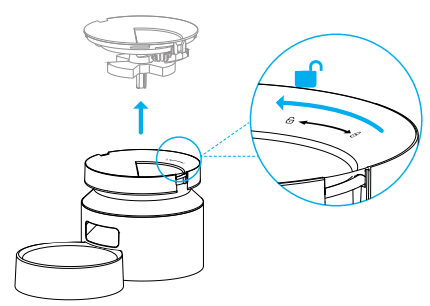

- Hold the feeder base, turn the tank base counterclockwise, and lift the tank base.e

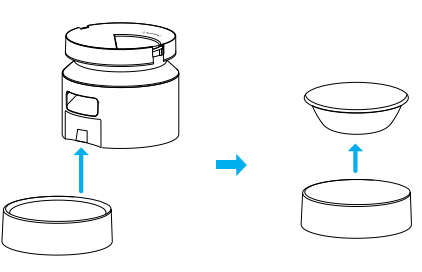

- Remove the stainless steel bowl and bowl tray from the feeder.

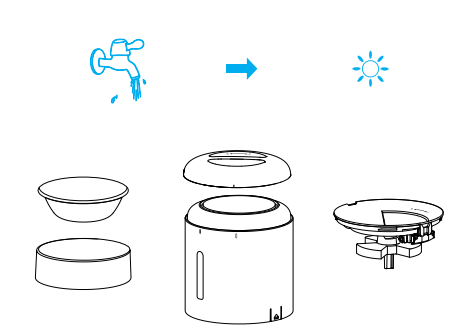

- Thoroughly rinse and air-dry the lid, food tank, tank base, stainless steel bowl, and bowl tray.
TROUBLESHOOTING
- If the feeder is not dispensing food, make sure you have filled the tank with enough food.
- If the feeder wo’ turn on, check if the power adapter, power cable, or batteries are correctly installed.
- Please make sure the food in the tank is dry, and the od size is within 2-1 mm (0.07-0.6in) in diameter.
- If the food won’t come out, remove the food tank and tank base, and check if the chute inside is blocked.
- If the food won’t come out, check whether the battery level is low, whether the power adapter is connected, and whether a power outage occurs when the power
adapter is connected but batteries are not installed. - The first few portions may vary, but it does’ mean the feeder is faulty. After about 6 feedings, portions should be almost even.

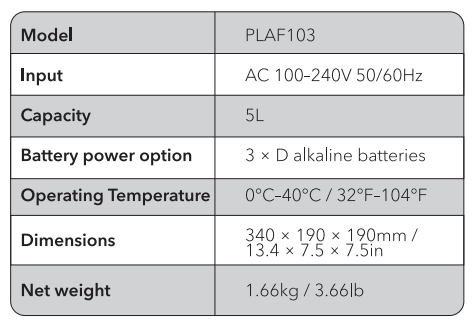

SPECIFICATIONS
SAFETY INSTRUCTIONS
- Dispose of all packaging materials properly. Some items may be packed in plastic bags; these bags could cause suffocation. Keep them away from children and pets.
- Do not use the feeder with pets that are not able to reach the food tray or with any physical disability.
- Do not immerse the base part in water at any time, as it may damage electronic components like the control panel.
- Do not use the feeder outdoors. Check its operation frequently to be sure it is dispensing properly.
- Do not use wet, canned, or moist food.
- Do not disassemble the feeder other than as instructed in this user manual.
- Only use accessories recommended or sold by the manufacturer. The use of accessories not recommended or sold by the manufacturer may cause an unsafe
condition. - Do not modify the pet feeder.
- Examine the feeder after installation. Do not plug in if there is water on the power cable or plug.
- To avoid tripping, always position the power cable out of the way of foot traffic.
- Do not install or store the pet feeder where it will be exposed to weather or temperatures below 0°C (32°F).
- Use D alkaline batteries to power the feeder. Do not use rechargeable batteries.
- Check the batteries regularly. Before leaving for an extended period of time, always replace batteries with new ones.
- Do not lift the pet feeder by the lid, food tank, or food bowl. Lift and carry it using both hands and the base.
