Petwant F11-L Automatic Pet Food Dispenser User Manual

Petwant F11-L Automatic Pet Food Dispenser

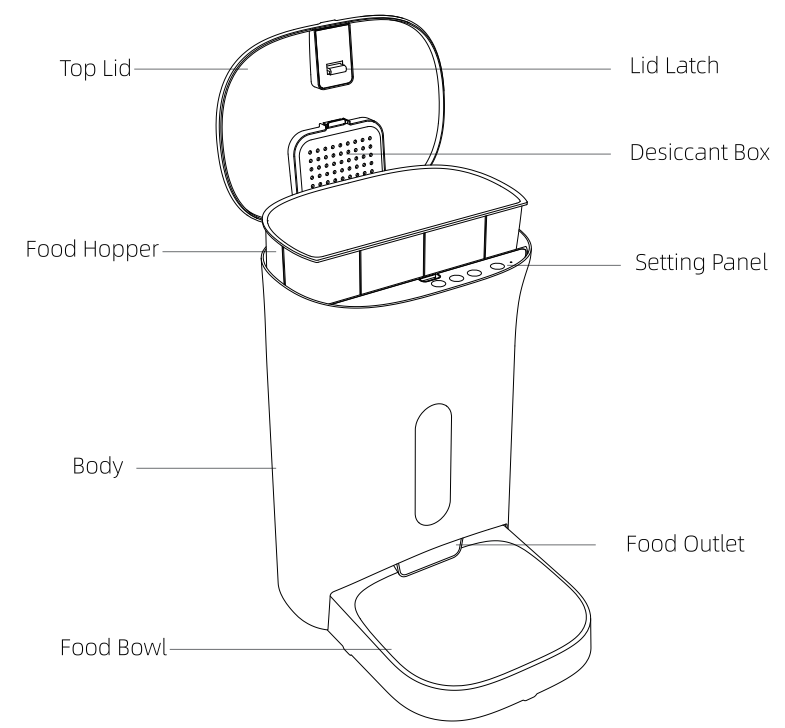

Components

Main Body

Food Bowl

Power Adapter

Desiccant

Manual

Features

Features

Parameters

Set up and assemble the Feeder.

Lift The Latch
Hold the latch with your index finger and lift it to open the lid.

Place Desiccant
Open the desiccant box on the top lid, tear off the transparent wrapping paper from the desiccant bag, place it inside the box, and then close it.

Plug in Power Adapter

1. Battery power supply: remove the battery cover by releasing the retaining clip, insert 3 good-quality alkaline “D” batteries, and reinstall the battery cover.
2. Plug in the power adapter and connect the power cable to the L-shaped card slot.

Install Food Bowl
Tilt the base unit back slightly, align the buckle of the food bowl with the base unit to install; the same steps to disassemble.

Fill Pet Food
Open the lid, fill the hopper with a suitable quantity of dry food well in excess of a daily amount. To maintain maximum food freshness, we recommend that a maximum of 7 days of food be loaded.

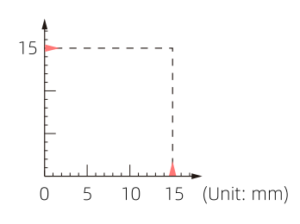

Grain Size Self-check:

Product Introduction

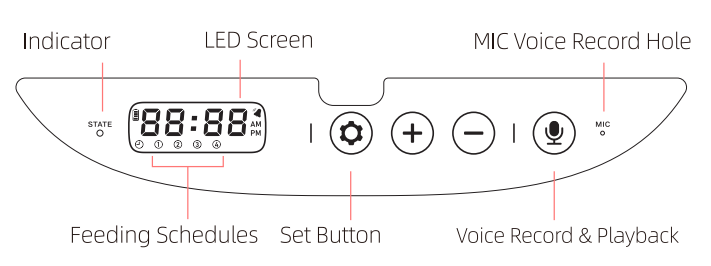

Display Panel

Unlock The Screen

Press the”“button to unlock (Display on) or lock (Display Off) the panel.
Set Clock

1. Unlock the panel, press the” ” button to enter settings.
2. Set Time: Press” “or” ” to select 12H or 24H, Press the” “button to confirm.
3. Set Clock: Press to adjust hours, Press”” button to confirm. Press ‘ “or ‘0 “to adjust minutes, press the” ” button to confirm.

Program Feeding Schedule

1. Program Meal Time: “setting” icon flash means setting the first meal. Press “plus” or “minus “to adjust hours and minutes. Press the “settings” button to confirm.
2. Meal Size: LCD goes into meal size set mode after setting the meal time.” Plus” icon illuminates, press ” minus” or” 8 “to select desired meal size, Press “settings ” button to confirm.
3. Repeat this process for as many meal times and portions desired (Up to 4 meals and 7 portions).

Other Settings

Manual Feed

Unlock the panel, press and hold the “settings ” button for 3 seconds to feed one portion of around 10 g;

Record
Unlock the panel, press and hold” settings “to enter recording mode, the “STATE” indicator light is on, and record voice toward the “MIC” hole for up to 10 seconds. The recording will end with the release button, then the” settings” icon will be shown on the display when the recording is completed.

Play Record
Unlock the panel, press”settings” to play record once, no play if no record.
Cancel Feeding Schedule
Set the meal time and meal size to be “00:00” and “P-00”, then no feed anymore.
Default Meal Settings
Unlock the panel, press the”settings “and “pkus” buttons at the same time for 3 seconds to default meal settings(delete all feeding schedules and record).

Disassemble & Clean

Power Off
Unplug and take out the alkaline batteries.

Clean the Food Hopper

1. To disassemble, hold both sides of the food bucket and lift upwards.
2. Disassemble the impeller/ feeding slice and feeding mechanism.
3. The main body of the feeder is not dishwasher-safe. Do not immerse the main body in water. This could damage the internal electronics and cause the batteries to short out, create an electrical shock, or catch fire.
4. Make sure all parts of the feeder are completely clean and dry before filling with food.

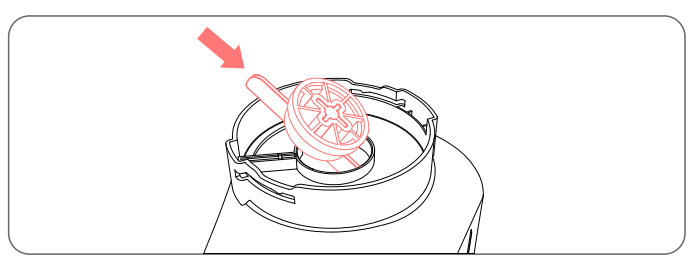

Assemble the Food Hopper

1. Align the food hopper with the slots in the main body and press down.
2. Fix the feeding slice and impellers as the above picture shows. (Please pay attention to “+ “shape directions.)
3. Align the impeller bottom cover with the slots and rotate in an anticlockwise
   direction until you hear the crack sound.
4. Adjust the impellers and make the rubber parts cover the food outlet shown in the picture.

Clean the Food Bowl: The food bowl is dishwasher-safe once removed from the main body.
Clean the Body: Use a dry, soft cloth to wipe it. The body is not waterproof; please do not use a wet cloth.
Replace the desiccant pack: Open the desiccant box cover and replace the desiccant pack. It is suggested to replace it every one or two months.
Replace Alkaline Batteries: Unplug and open the battery lid at the bottom, then you can replace the batteries.
Replace Alkaline Batteries: Take out the food hopper and empty the food hopper then fill it the fresh food and proceed to instant feeding once.

Warnings

1. Please keep the food hopper dry after cleaning it.
2. Please replace the food regularly if your pets did not eat it up. (For the time period, please refer to the food packing instructions.
3. Please clean and maintain your device regularly to prolong the usage period of your pet feeder.

Device Maintenance

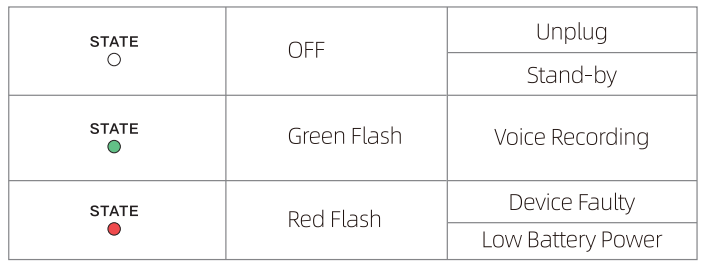

Indicator Information

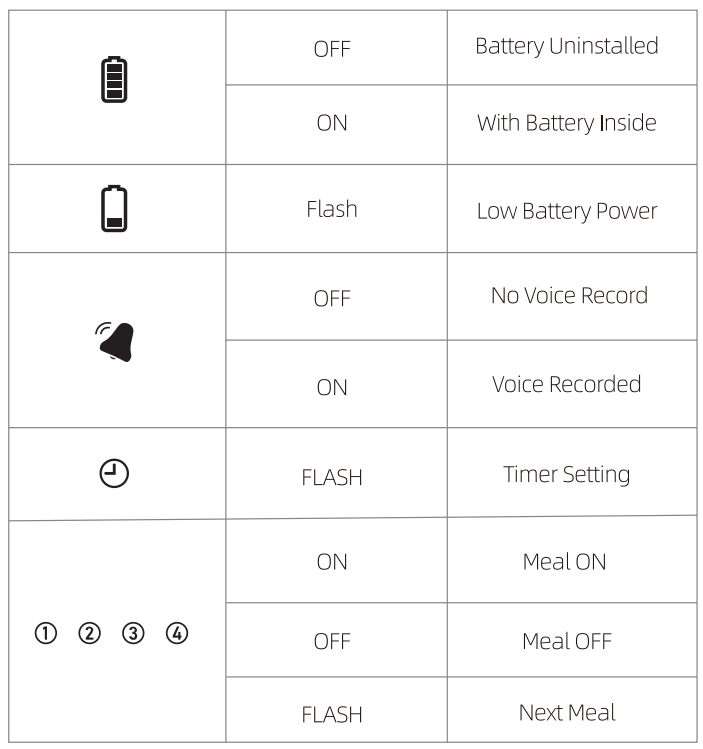

LED Screen Icons Information

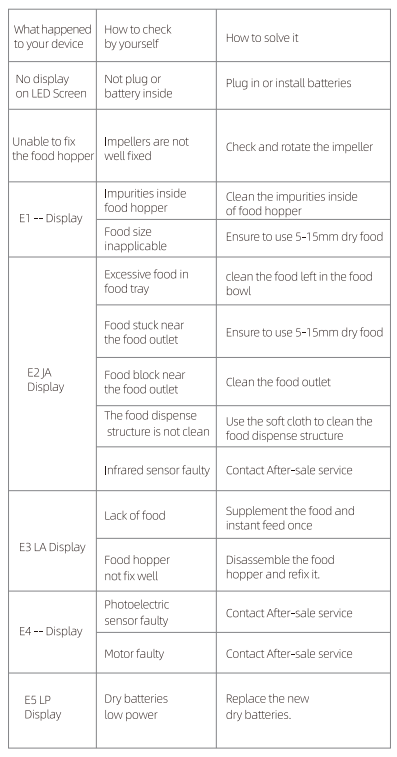

FAQ

Safety Precautions

Read all instructions carefully before attempting to operate this device.

Ensure power supply

1. Please check the power supply before going out.
2. The device has an ITTC time-saving function; the timer will not stop working when switched off.
3. Please pay attention to the battery display. When powered by batteries, users need
   to replace the batteries when ” E5:LP” shows on the device screen.
4. It’s suggested to replace the batteries once a year if you do not use the device
   working with batteries, as the power will be running off over time goes by.
5. When powered by batteries, it is normal for the electric quantity icon to fluctuate
   occasionally, because of the large transient current.

Keep DeviceThe device

1. They need to be placed horizontally and firmly; it’s not allowed to be tipped
   one side and rock or upside down.
2. Keep the device placed in a dry area and do not expose the device to sunlight. Also not place the feeder in a high place to avoid damage from dropping.
3. Do not remove any parts from the feeders besides the food tray and food hopper.
4. Do not place anything on top of this feeder.
5. Ensure there are no barriers near the food outlet to allow the pets can be fed
   normally.

Caution

• For indoor use ONLY.
• It is NOT dishwasher safe. Hand clean only.
• For dry food use ONLY. Works best with 5-15 mm food diameter or smaller.
• NOT recommended for puppies or kittens less than 7 months old or unable to reach the feeding dish.
• DO NOT use this feeder with puppies, kittens, dogs, or cats with any physical
  disability.
• Intended for use with dogs or cats ONLY.
• DO NOT allow small children to play with, in, or around the feeder.
