Petwant F4 Pet Cage Food Feeder

Dear Pet Lovers:
Thanks for purchasing our Pet Cage Feeder. This User Guide is intended to provide your pets with a better life. To have a better user experience, please read all directions before
Use this product and retain this guide for reference.

Standard Parts

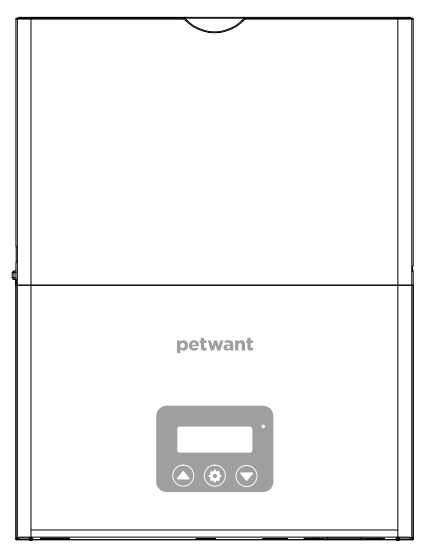

Body

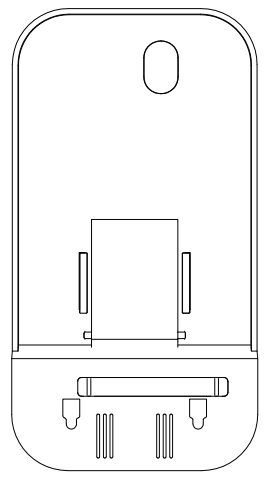

Hanging Board

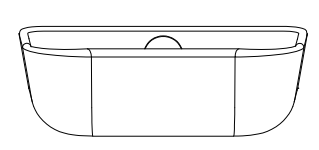

Food Tray

Knob

Silicone Gasket Food Outlet

User’s Guide

Food Outlet Cover

Adapter

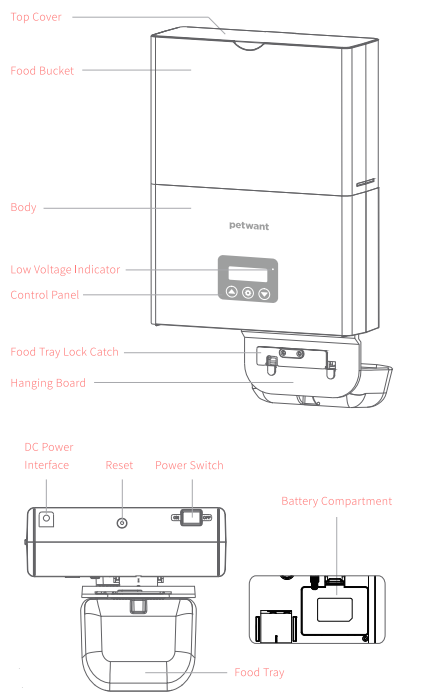

Meet Your Automatic Pet Feeder

Installation Steps

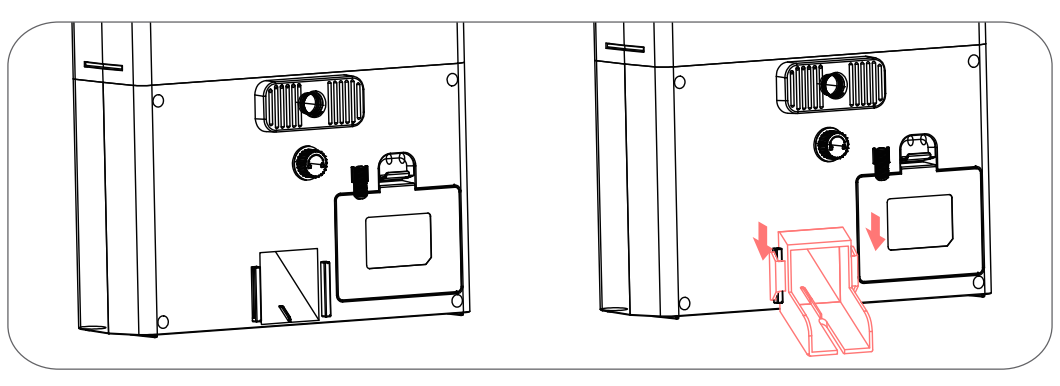

Install the food outlet.

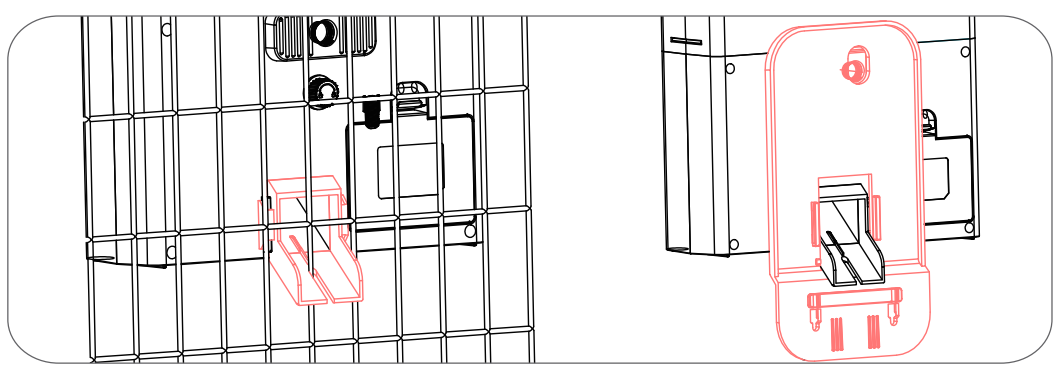

Choose a suitable place to fix your feeder and install the hanging board.

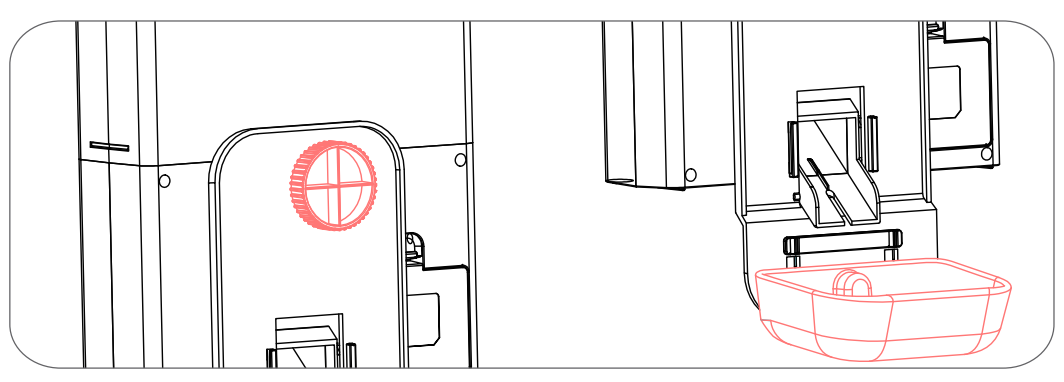

Fasten the knob and install the food tray.

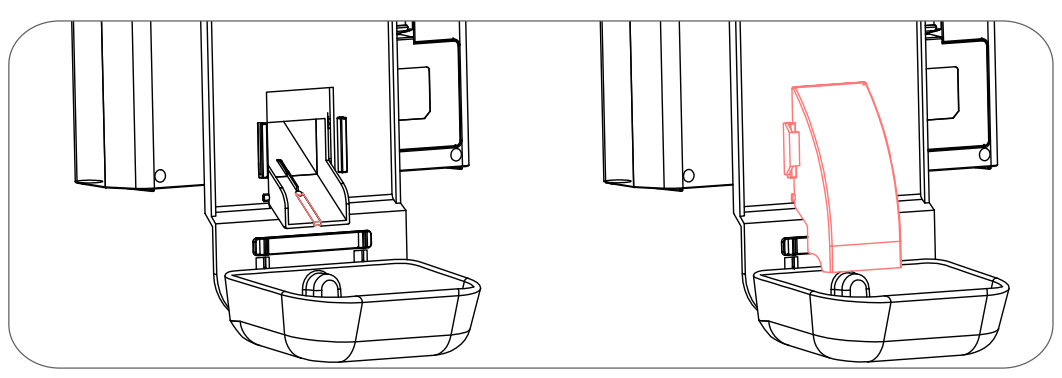

Install the silicone gasket and install the food outlet cover.

How to operate

Test before using:

Plug in and switch on, then you can start to set up your automatic cage feeder.
Long-press press”” button to unlock your control panel.
Please long-press the “” button for one second. The feeder will instantly rotate one portion for instant feeding.

Set the Current Time:

Press”“. The hour digits will flash.
Press”” or”” to find the current hour and press”” again to save.
Once the hour is saved, the minutes digits will flash.
Press”” or”” to find the current minute and press”” again to save.

Set Up Your Automatic Pet Feeder

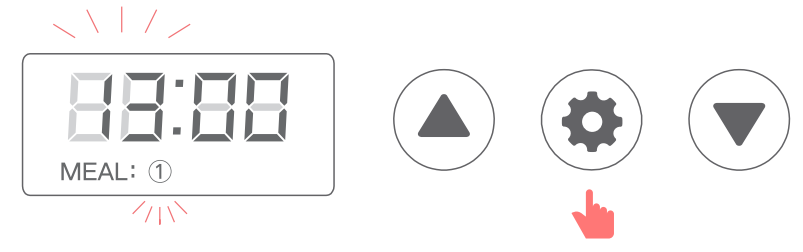

Setting the First Meal Time:

Once the time is saved, the unit will enter Meal Time Setting Mode. The LCD will display, icon “1” and the hour digits will flash. Repeat Step 2 to set the feeding time.

Setting the First Meal Portion:

Once the feeding time is set, the unit will enter Meal Portion mode. The LCD will display the” P” and the portion digits will flash.
Press”” or”” to set the portions (up to 20 portions and ll±2ml per portion) and press”” again to save.
Repeat the steps above to set additional meals.
If you just need 3 meals, you can hold and press”” for 3s to save and exit set mode.

Cleaning Your Smart Feeder

Please cut off the power and unplug the adapter before cleaning.
Clean the unit with a damp cloth rather than a soaked cloth.
The food tank can be removed for cleaning.
The food tank can be cleaned in the automatic dishwasher.
It needs to be wiped clean and completely dry before refilling the food.

Important Safety Information

Do NOT place any foreign object in the pet feeder.
Do NOT use outdoors. FOR INDOOR HOUSEHOLD USE ONLY.
Do NOT use an appliance for anything other than its intended use.
Do NOT allow children to play around the pet feeder.
Do NOT place anything on top of the pet feeder. The unit starts automatically.
Do NOT disassemble the pet feeder other than the components as instructed in this operating guide.
Do NOT install or store the pet feeder where it will be exposed to weather or
temperatures below-20 °C.
The base should NOT be submerged in water at any time, as this may damage
electronic components.
Do NOT use this pet feeder with puppies or kittens. Dogs or cats are not able to
reach the food tray or with any physical disability.
Do NOT operate any appliance if it has a damaged power cord or plug, or if it
malfunctions or has been damaged. Call the Customer Care Center immediately
for further instructions.
Do NOT allow pets to chew on or swallow any parts. If you are concerned about
the power cord, purchase a cord conduit (a hard plastic protector) to protect
the power cord.
Do NOT attempt to repair the pet feeder by yourself.
If an extension cord is necessary, an extension cord with a proper rating should
be used.
Do NOT use the pet feeder for anything other than its intended use. Using
Attachments not recommended or sold by the manufacturer may cause an unsafe
condition.
Do NOT lift the pet feeder by the lid, hopper, bowl, or bowl holder. Lift and carry the feeder using both hands and the hopper base, while keeping the unit in an upright position.
For dry food only. Do NOT use wet, canned, or moist food.
To avoid tripping, always position the power cord out of the way of foot traffic.
If the plug of this device gets wet, turn off the electricity to that wall outlet. Do NOT attempt to unplug.
Examine this appliance after installation. Do NOT plug in if there is water on the
Power Cord or plug.
To reduce the risk of injury, close supervision is necessary when an appliance is
used by or near children.
If using a power cord, do NOT place the power cord or plug in water or other liquids.
Dispose of all packaging materials properly. Some items may be packed in polybags; these bags could cause suffocation; keep away from children and pets.
