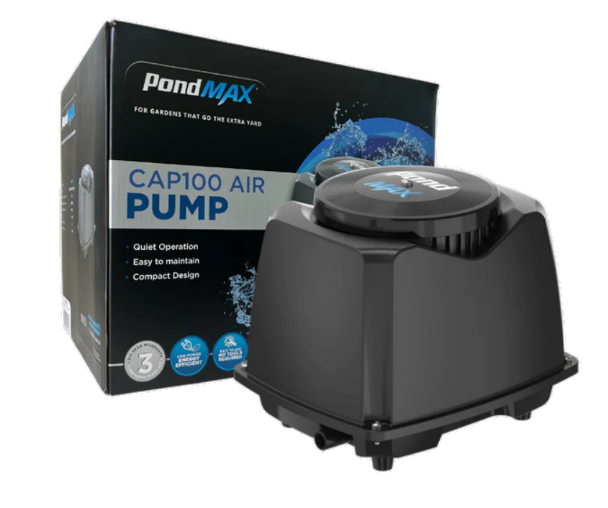

PondMAX CAP100 Air Pump

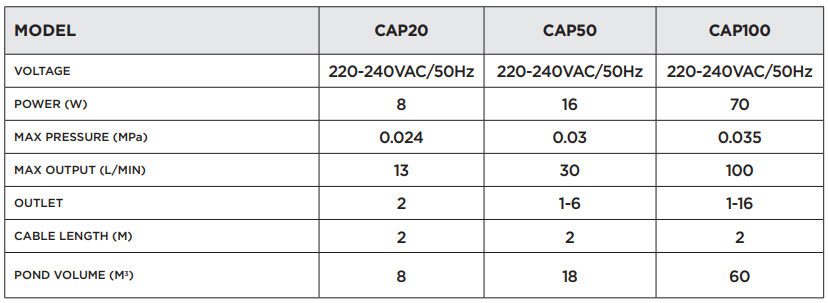

TECHNICAL SPECIFICATIONS
DESIGN HIGHLIGHTS
The PondMAX CAP Airpumps have been manufactured with advanced technology to provide you with the best quality air pump for your pond. Visit our website to view our range of pond filtration, outdoor/underwater lighting, water treatments, and general accessories.
- Special artificial rubber feet to keep a steady air output and pressure
- An advanced air-compression system, a damping system, a multi-lever muffler, which is extremely low in noise
- Compact design and long service life
INSTALLATION
For your convenience, we have provided two different front filter cages. One has built-in flow control that can be used to adjust the water flow if the flow is too fast for a particular installation. This is used in clean water features, where a “filter-less” system is preferable.
- Connect the air hose to the air pump’s outlet, position the air hose in your pond with the airstone, and switch on.
- Place the airpump above water level on a flat surface; otherwise, connect a non-return valve between the airhose a few inches from the airpump to ensure water is not siphoned back into the airpump.
MAINTENANCE
Regularly clean your air hose and air stone (if in use) or change the sponge to ensure maximum output and extend the life of the air pump.

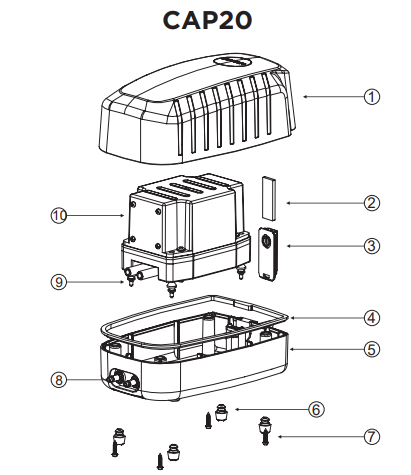

- CAP20/CAP50 – installation of the filter sponge is as shown
- CAP100 Simply uncrea the screw at the top of the airpump.

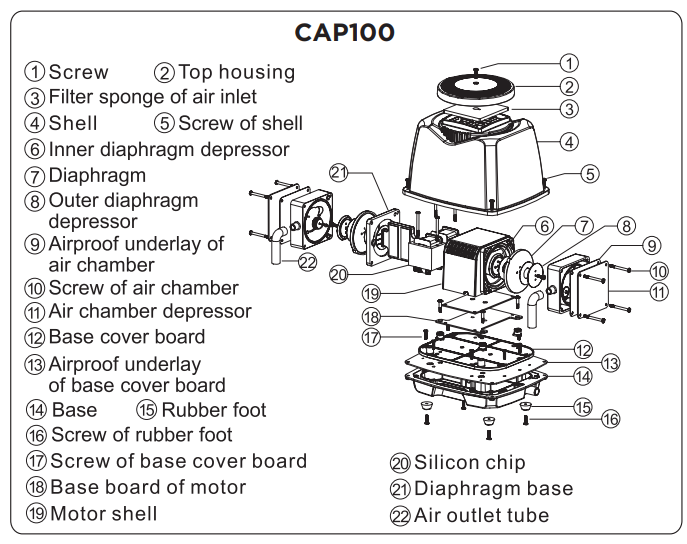

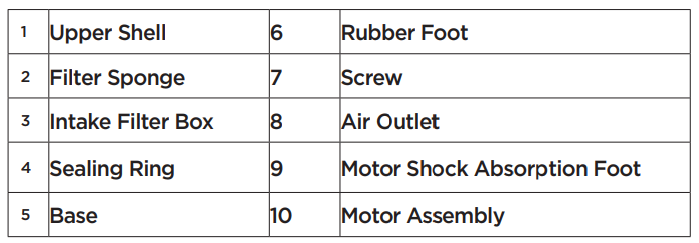

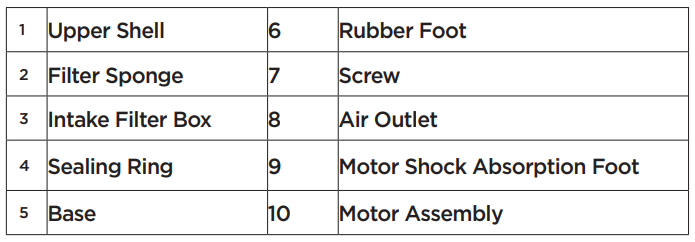

PARTS LIST
IMPORTANT SAFEGUARDS
Please read the operating instructions and familiarise yourself with the equipment before placing it in service. Correct and safe use of the system requires strict compliance with the safety instructions. For safety reasons, persons less than 16 years of age or infirm persons who are not familiar with these instructions should not use this equipment.
- Any damage to the equipment or unmerited operation will bring dangers to the surrounding precincts. So if there is any damage to the equipment, it must not be used. The equipment should be placed out of reach of children.
- For your own safety, disconnect from the power supply before any maintenance of any equipment is attempted on the tank or water body. Always unplug the pump from the power supply when not in use. Never pull the cable to disconnect the plug from the power supply – grasp the plug and pull to disconnect. If required, have a qualified electrician install a weatherproof power supply point near the pond or water feature (within the cable length of the appliance).
- Be sure the equipment is installed in a dry environment
- Do not operate the pump if the appliance or any components of the system, such as the power cable, have been damaged. Check the appliance for defects regularly.
- Always use a properly grounded power supply that is connected to an RCD with a rated residual operating current not exceeding 30mA. As per AS/NZS 3350.2.41:1997
- To avoid an electric shock, do not attach the plug to the power supply socket with wet hands. The drip loop method should be used to prevent water from traveling down the cable and onto the plug or power supply. If the plug does get wet, do not unplug the cable. Disconnect the circuit breaker that supplies power to the power supply point. Then unplug and examine the plug and power supply point for the presence of water. If the power point has become wet, you should consult an electrician before using the power point again.
- Do not install or store the appliance where it will be exposed to extreme hot or cold temperatures. Do not use in water above 35°C.
- Do not cut the cable, as this will result in voiding your warranty.
- Care should be taken to arrange the power cable so that it cannot be accidentally tripped over or pulled.
- Do not attempt to repair the electrical appliance yourself. Return to an authorised service centre or place of purchase if a fault occurs (regular maintenance is not considered repair and is required by the user).
LIMITED WARRANTY 2+1 YEAR
- The additional 1 Year Extended Warranty applies when you REGISTER with Aquatec Equipment. See enclosed for details, and please retain your proof of purchase and Warranty form.
- Warranty covers only appliance defects and faulty material, and workmanship within 2 years.
- Faults arising due to accidents, misuse, not following the manufacturer’s guidelines/ instructions, or power surges/spikes/brownouts will not be covered.
- Warranty will be void if any tampering,g removal of warranty labels, or electrical circuitry is evident.
- Warranty will be void if the power cord is cut or damaged in any way.
- Warranty will be void if any visible signs of overheating are present.
- Loss of livestock, property damage, or personal injury caused by this product will not be covered.
- Warranty claims caused by installation faults will not be covered.
- It is the customer’s responsibility to return the faulty appliance for any warranty claim to Aquatec.
- For any warranty to be valid, an original proof of purchase must be provided.
- Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- A Warranty claim must be made within 2 years of the date of purchase.
EXTENDED WARRANTY
- The Extended Warranty period is for an additional 1 Year and commences on the expiration of the standard Warranty period.
- Application for Extended Warranty is FREE of any registration cost to the purchaser. On completion of the Extended Warranty questionnaire can be found in the box with the item purchased or online at www.aquatecequipment.com.
- Where Aquatec determines goods are being used in a manner contrary to the instructions, specifications, or this Warranty, Aquatec reserves the right to terminate the Warranty for such goods and will provide written notice to the purchaser.
Please consult your retailer for quality original PondMAX replacement parts.
Visit www.aquatecequipment.com for your nearest stockists.
For more manuals by PondMAX, visit ManualsLibraryy
PondMAX CAP100 Air Pump- FAQs
How does the PondMAX CAP100 air pump work?
The pump draws air in, compresses it using a diaphragm mechanism, and pushes it into the pond to increase oxygen circulation.
What is the difference between a pond air pump and a water pump?
A pond air pump supplies oxygen by moving air, while a water pump circulates and filters water. Both play different roles in maintaining pond health.
Should I keep my pond air pump running all the time?
Yes, it is generally recommended to leave the air pump on 24/7 to ensure constant oxygen supply and healthy water circulation for fish.
How do I maintain my PondMAX CAP100 air pump?
Check the pump regularly, clean air filters, inspect hoses, and ensure the pump is kept dry and free from dust. Following the manual helps extend its life.
Can fish survive without an air pump?
Fish can only survive a short time without aeration, especially in warm weather or ponds with many fish. Continuous oxygen supply is important.
How do I know if my air pump is failing?
Signs include reduced airflow, unusual noise, overheating, or the pump turning on and off irregularly. Regular checks help prevent failures.
Do air pumps need oil for lubrication?
Most pond air pumps, including the PondMAX CAP100, are oil-free and require no lubrication. They are designed for safe, continuous use.
Where should I place the air pump?
The pump should be positioned on a flat, dry surface above water level to prevent backflow. Always follow the manufacturer’s placement guidelines.
