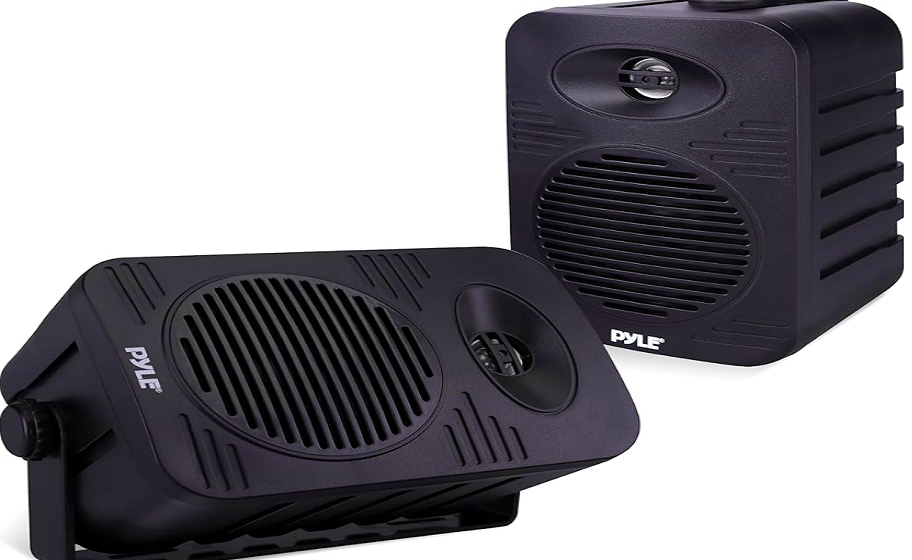

Pyle PDWRBT46 Bluetooth Indoor Outdoor Speakers

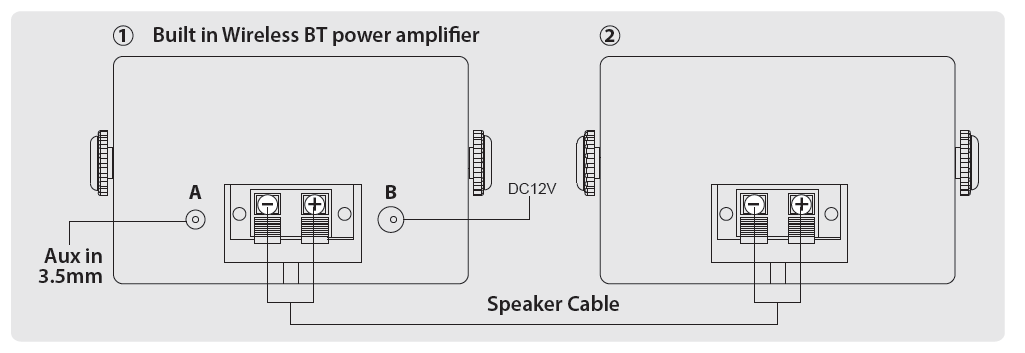

Wireless BT Connection Diagram
- As shown in the diagram, the first two speakers are docked, red lead to the positive, black lead to the negative.
- As shown in diagram 1, the A port is a 3.5mm AUX IN, the B port is DC12V, the connection is complete.
Wireless BT Connectivity:
- Built-in Wireless BT Streaming Receiver
- Simple & Hassle-Free Connection Works with All of Today’s Latest Devices (Smartphone, Tablet, Laptop, Computer, etc.)
- Wireless BT Version: 4.0
- Wireless BT Network Name: ‘Pyle’
- Wireless BT Network Password: ‘0000’ (4 Zeroes)
- Wireless Range: 30’+’ ft.

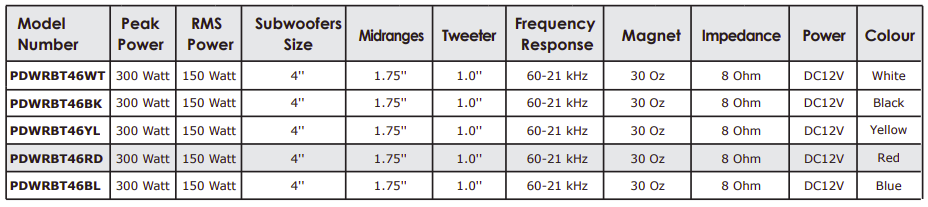

Technical Specs:
