Pyle PHPWA15TB Portable PA Speaker System User Guide

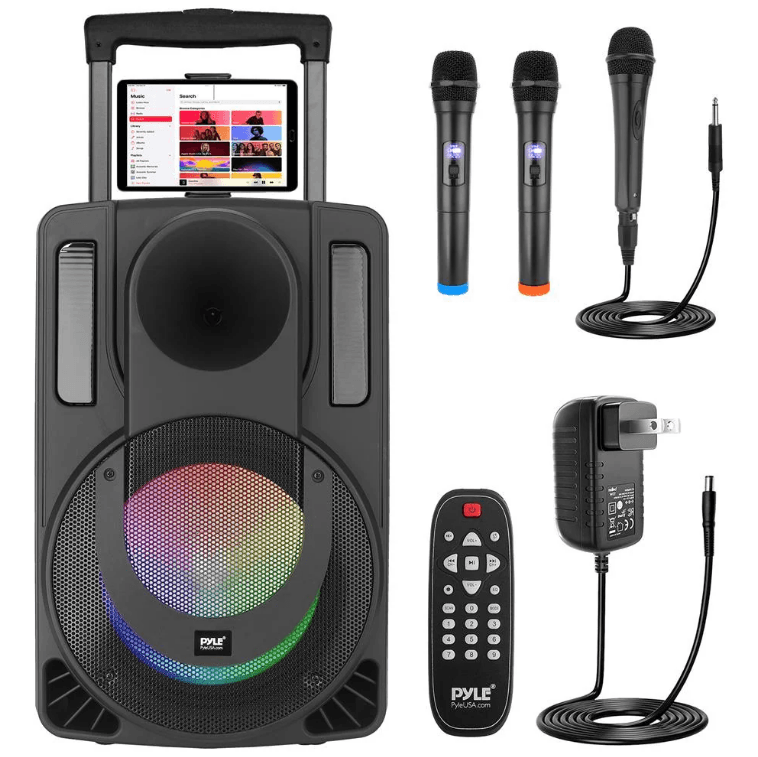

Pyle PHPWA15TB Portable PA Speaker System

FEATURES

• This system can be used with personal computers, mobile phone, DVD, VCD, CD, LD, TV, MP3, radio, electronic piano and any devices which have audio output.
• Amplifier circuits are using high-performance, high-fidelity design, coupled with high-quality professional speakers, in order to make the sound field to get positioned so clearly, distinct levels effect.
• The sound system is outstanding, with deep and powerful bass and the treble effect is strong, with clear and bright pitch. The professional electronic frequency division circuit enhances the machine’s crossover point effect.
• Using professional design and manufacture of high-capacity batteries, and dedicated audio power capacitors, to make the speaker’s power reserve margin larger, more stable, better dynamics, higher signal to noise ratio.

Wireless BT Connectivity:

• Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices, Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32 ft.

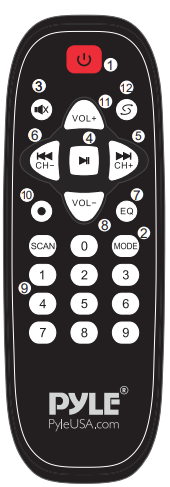

REMOTE CONTROL FUNCTIONS

1. Standby button
2. Choose input AUX/FM/BT/USB signal
3. Mute button
4. Play/Stop button on MP3 mode, scan function on FM mode
5. Next song of USB/MicroSD, next channel of FM mode
6. Previous song of USB/MicroSD, last channel of FM mode
7. EQ effect on MP3 mode
8. Decrease the music volume
9. Choose the song number directly in MP3 mode
10. Stop button
11. Increase the speaker volume
12. Repeat the song in USB/MicroSD mode

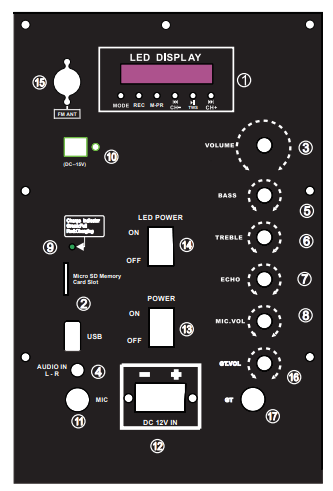

BACK PANEL FUNCTIONS

1. USB Control board
2. USB and micro SD input jack
3. Master volume control knob
4. 3.5 mm AUX input jack
5. Bass volume control knob
6. Treble volume control knob
7. Echo volume control knob
8. Microphone volume control knob
9. The charge LED indicator, red color is in charge mode, the green color is full charge. arge
10. DC 15V input jack
11. 6.5 mm microphone input jack
12. Extra DC 12V input
13. Power switch
14. LED light switch
15. FM antenna
16. Guitar volume control
17. 6.5MM guitar input jack

RECORDING FUNCTION

1. In USB or Micro SD mode, short-press press REC button to start recording, and short-press press again to complete recording.
2. In USB or Micro SD mode, press and hold the MODE button to play recording. While playing the current recording, press and hold the REC button to delete the current recording. Press and hold the mode button again to quit recording

BUILT-IN WIRELESS BT FUNCTION

• Press the “STANDBY/INPUT” button to choose the input signal source as the BT channel.
  When starting the machine.
• Please ensure the BT devices you want to connect are open. Then, scan and connect
  the speaker with the device. When the connection is successful, a  “tick” tone will
  prompt. If the speaker can’t be connected, please restart the speaker or the device
  and try again.
• After the mobile phone and the BT are successfully connected, you can play music.
  To ensure the continuous stability of the music signal, try to keep the BT and the mobile phone facing one another.
• This unit supports iPad, iPhone, Samsung, HTC, MOTOROLA, Nokia, and other BT
  mobile devices wirelessly transmitting audio. It supports stereo playing of A2DP.
• The BT of the unit can be used up to 10 meters if there are no barriers.

TWS CONNECTIVITY

1. Turn ON both speakers and set to BT mode
2. Choose speaker & press and hold the ” ” button for 3 seconds, the display will show “T-ON”, then the two speakers will connect automatically.
3. If you want to turn off the TWS function, you just need to press and hold the ” ”
   button for 3 seconds, the display will show “T-OF”, then the two speakers will be TWS off.

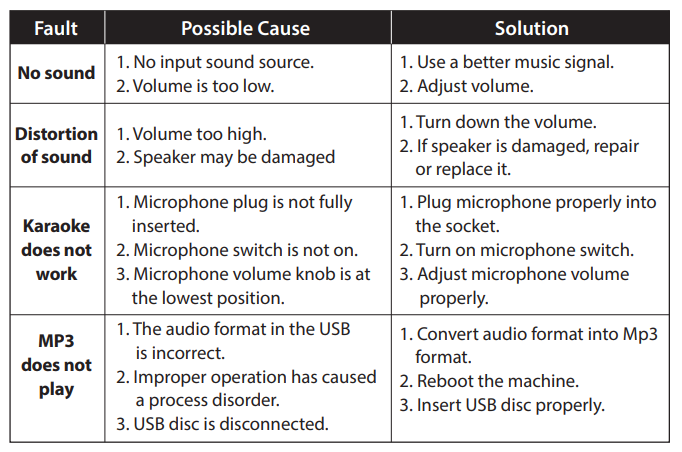

TROUBLESHOOTING
