Rapsodo Mobile Launch Monitor for Golf
What’s inside the box

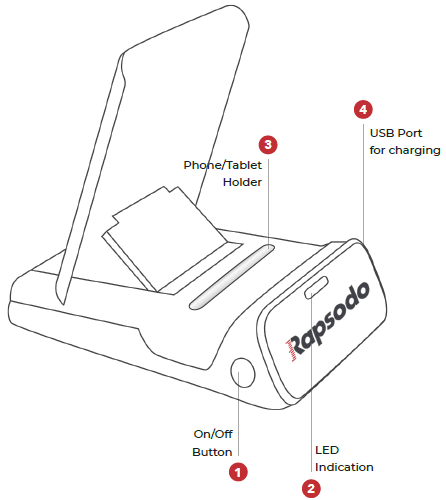

Overview
Charging the device
- The MLM contains an internal lithium-ion battery.
- The battery can be charged by connecting the included USB cable between the USB type C port on the device (located on the right side of the device) and your computer’s USB port.
- The battery should be charged for 6 hours before using the device for the first time.
- The LED will show AMBER, indicating the device is being charged.
- The LED indication will switch off, indicating the unit has been fully charged.
- The LED indication will blink red, indicating the battery charge is getting low and the internal battery should be recharged.
- Under normal operating conditions, a new battery should last 4 hours on a full charge.
PAIRING THE DEVICE
- On your mobile device, turn on the Bluetooth feature. Make sure that the MLM unit is powered on.
- When LED on MLM turns red, start the MLM application on your mobile device. You can go to rapsodo.com/downloads to download the application.
- Once the MLM unit detects the connection from the application, the LED will turn green.
DEVICE PLACEMENT AND SETUP
- Once the MLM unit is connected and displays the green LED, place the golf ball or tee approximately. 8 ft away from the unit.
- Make sure the MLM unit is placed on the same level as the hitting surface.
- When the ball is hit, the LED blinks blue, and you can view your data in the application.
- The LED will turn green again when the unit is ready for you to hit your next shot.
Calibration / Auto-Calibration
The MLM is ready to use out of the box and does not require calibration.
New mobile devices may require manual calibration prior to first use. Please see www.rapsodo.com/faq for more details
Troubleshooting
When charging, the Power LED does not come on
Press the Power button and hold for 5 seconds. Make sure the USB cable has power. Try other ports on your computer to verify your charging cable is working.
The LED is red, and the unit turns off after 15 seconds
The battery is low. Connect the USB cable and charge the unit. The Power LED will turn OFF when the unit is charged.
LED is not turning green
Make sure to start the application AFTER turning on the MLM. MLM LEDs show connected only when the application is open.
The results seem inaccurate
Be sure to position the MLM unit 8 feet behind the ball and ensure the unit sits level with the hitting surface. Please contact support@rapsodo.com if your results still seem inaccurate.
Measurements
Carry
Total distance travelled from impact to landing. MLM estimates this based on your initial launch conditions, a level surface is assumed.
Club Head Speed
Speed of your club moments before impact.
Ball Speed
Exit speed of the ball immediately after impact.
Smash Factor
Ball Speed is divided by club speed. The higher your smash factor, the more efficiently you transfer energy from club to ball.
Launch Angle
The angle of your ball relative to the ground. Combined with ball speed, it will be the main component to determine shot distance.
Launch Direction
Measure how far from the ideal line your shot lands. The center of your camera is assumed to be zero degrees.
General information
Mobile Launch Monitor (MLM) is designed and produced by Rapsodo Pte. Ltd.
Do not use MLM golf hardware in Wet Conditions
Your MLM device is not water-resistant. Do NOT use the device under rain, water exposure or wet environments, as the product may get damaged.
App Updates
Rapsodo will periodically update and improve the features of the mobile app. It is recommended that users regularly download the latest version to make for the highest performance.
Return Policy and Warranty
Rapsodo provides a (1) one-year limited warranty for manufacturing defects. Under the conditions of the warranty agreement, purchasers will be entitled to repair or replacement for defective Rapsodo products. This warranty begins from the date of initial purchase.
Rapsodo may also choose to refund the purchase price of the product to the purchaser at its sole discretion. Warranty detailed information and return policy can be found online at www.rapsodo.com/terms-of-use-mlm
Regulatory notice: Waste electrical and electronic equipment
The symbol on the product or its packaging signifies that this product has to be disposed of separately from ordinary household
wastes at its end of life. Please be aware that this is your responsibility to dispose of electronic equipment at recycling centers in
order to help conserve natural resources. Each country in the European Union should have its own collection centres for electrical and
electronic equipment recycling. For information about your recycling drop-off point, please contact your local electrical and
electronic equipment waste management authority. Do not dispose of the Rapsodo device with household waste. Batteries are not
to be disposed of in the municipal waste stream and require separate collection. Disposal of the packaging and your Rapsodo should be
done in accordance with local regulations.
