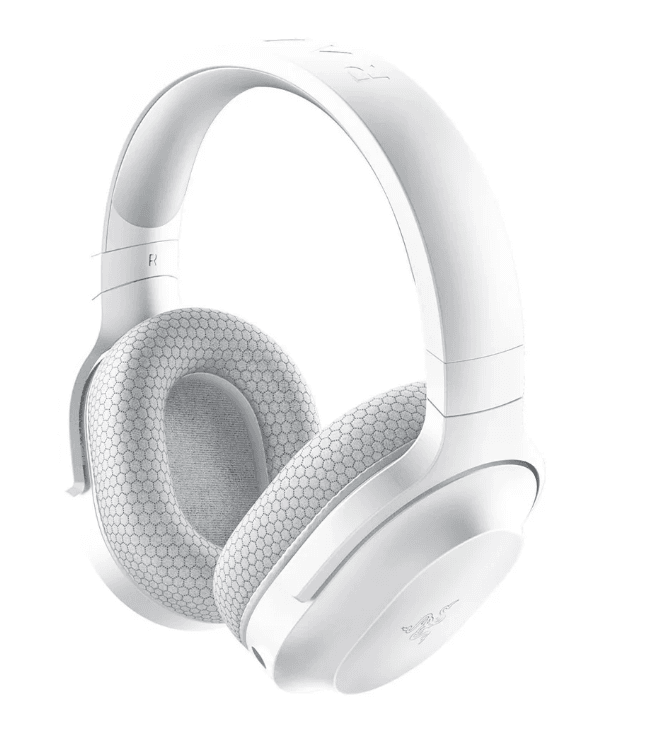

Razer Barracuda X Wireless Gaming Headset
WHAT’S INSIDE

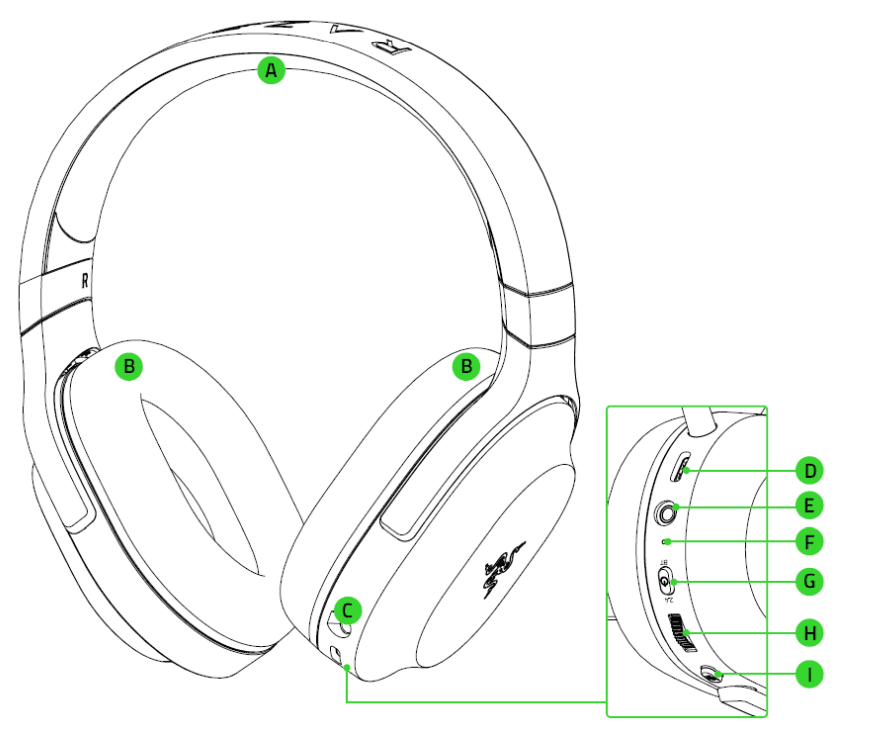

Razer Barracuda X
- A. Adjustable padded headband
- B. Ultra-soft leatherette memory
- C. Microphone jack H. Volume control wheel
- D. Type-[ charging port
- E. 3.5 mm audio+ mic jack
- F. Status indicator foam ear cushions
- G. Razer Smart Switch / Power button
- I. Mic mute button
Type-C wireless dongle

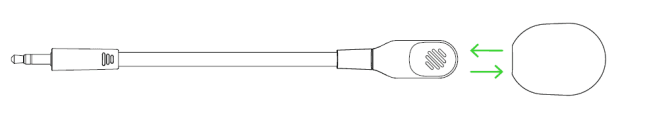

Removable Razer™ HyperClear Cardioid Mic

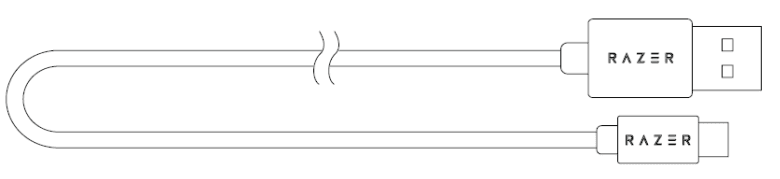

Type-C charging cable

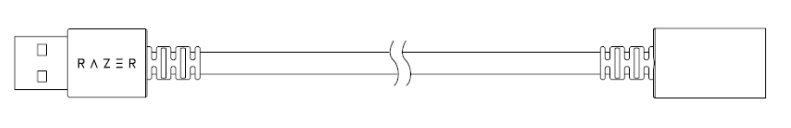

Type-A to Type-C adapter cable

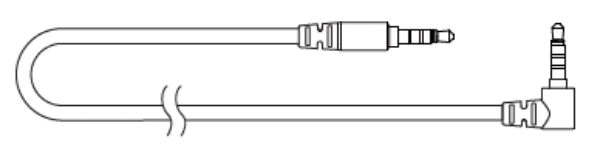

3.5 mm combo cable
Important Product Information Guide
WHAT’S NEEDED
PRODUCT REQUIREMENTS
- [Wireless] Devices with Bluetooth audio capability/ USB Type-C or Type-A port
- [Wired] 3.5 mm audio+ mic combined jack
RAZER AUDIO APP REQUIREMENTS
- iOS 12 / Android 8.1 Oreo (or higher} device with Bluetooth connectivity.
- Internet connection for app installation
TECHNICAL SPECIFICATIONS
HEADPHONES
- Frequency response: 20 Hz – 20 kHz
- Impedance: 32 O@ 1 kHz
- Sensitivity: 96dBSPL/mW@1KHz by HATS
- Drivers: Customized Dynamic 40 mm Driver
- Inner ear cup diameter: 60 mm x 40 mm
- Connection type: Bluetooth, USS Type C Dongle
- Cable length: 1.5 m / 4.92 ft
- Approx. weight: 250 g / 0.55 lbs
- Oval ear cushions: Full-ear coverage with fabric and plush leatherette, for sound isolation and comfort
MICROPHONE
- Frequency response: 100 Hz – 10 kHz
- Signal-to-noise ratio: > 60 dB
- Sensitivity (@1 kHz): -42 ± 3 dB
- Pick-up pattern: Unidirectional
- On-earcup controls
- Volume up and down
- Mic mute on/off toggle
AUDIO USAGE
- Wireless: Via Type-C dongle or Bluetooth 5.2
- Wired: 3.5 mm analog
- Bluetooth Codec: SBC
- Surround sound: Only available on Windows 10 64-bit {or higher)
LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razer id.
GETTING STARTED

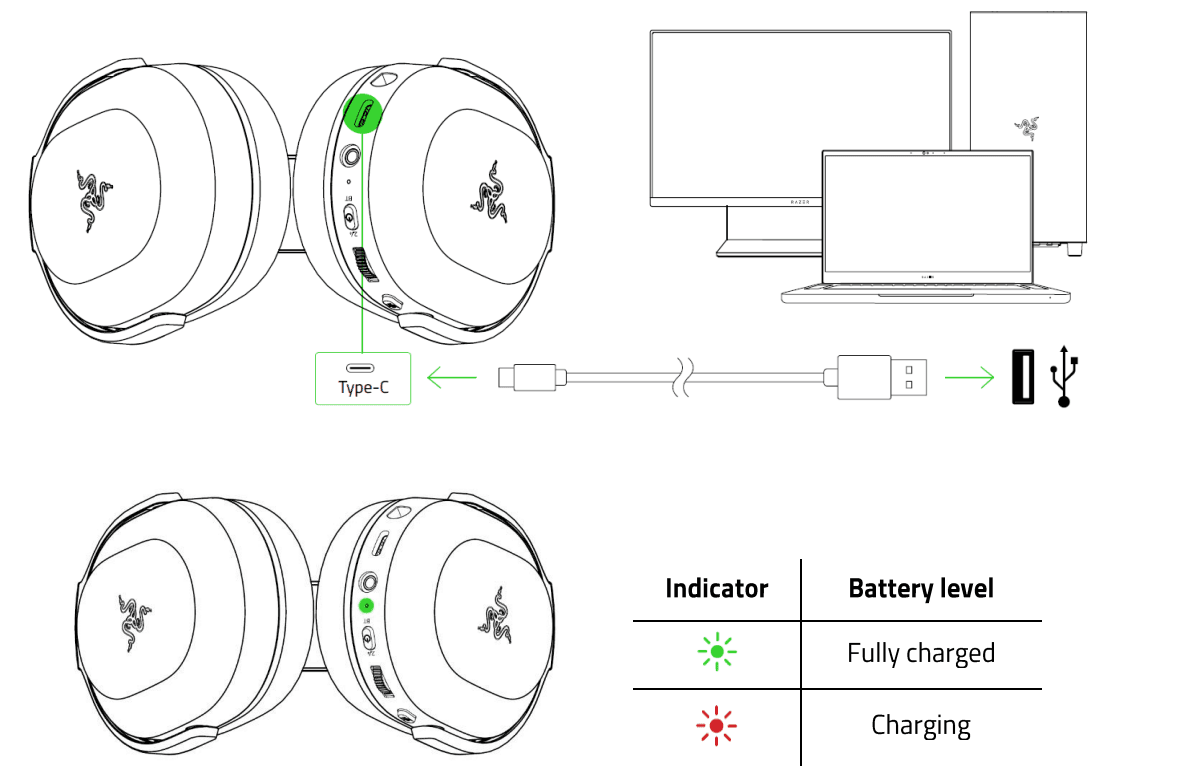

CHARGING YOUR HEADSET
Connect your Razer Barracuda X to a powered USB Type-A port using the charging cable. For best results, please fully charge your headset before using it for the first time. A depleted unit will fully charge in about 4 hours.
CONNECTING TO YOUR DEVICES
A. Via Type-( wireless dongle (2.4GHz)
- Plug the Type-C wireless dongle into your device
- Press and hold the Razer SmartSwitch / Power button until the status indicator briefly lights up.

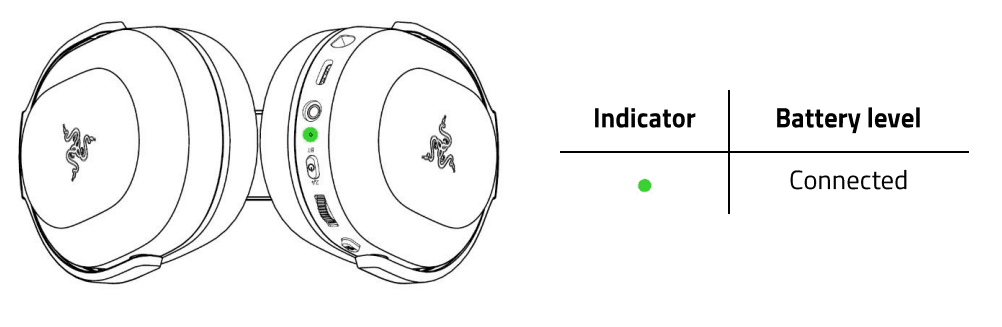

- Wait until the status indicator briefly becomes static green indicating that the headset is connected to the Type-C wireless dongle.
- On your device {if applicable), set the Razer Barracuda X as the default Input and Output Device.
On PC / Laptop
- a. Right-click on the sound icon on the system tray and select Open Sound settings.
- b. On the Sound window, set Razer Barracuda X 2.4 as the default Output and Input device.
On PlayStation 5, go to Settings > Sound - On Microphone, set the Input Device to Razer Barracuda X 2.4.
- On Audio Output, set the Output Device to Razer Barracuda X 2.4.
On PlayStation 4, go to Settings > Devices > Audio Devices
Set the Input Device and Output Device to Razer Barracuda X 2.4.
Via Bluetooth

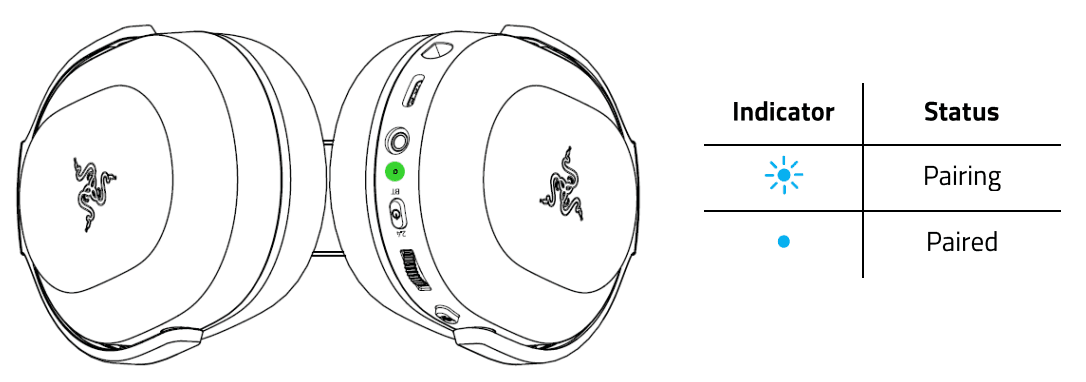

While powered off, press the Razer Smart Switch / Power button for 5 seconds to activate. Bluetooth pairing mode. Follow your device’s instructions and select “Razer Barracuda X (BT)” from the list of found devices. The status indicator will briefly change to static blue to indicate that the headset is now paired with your device.

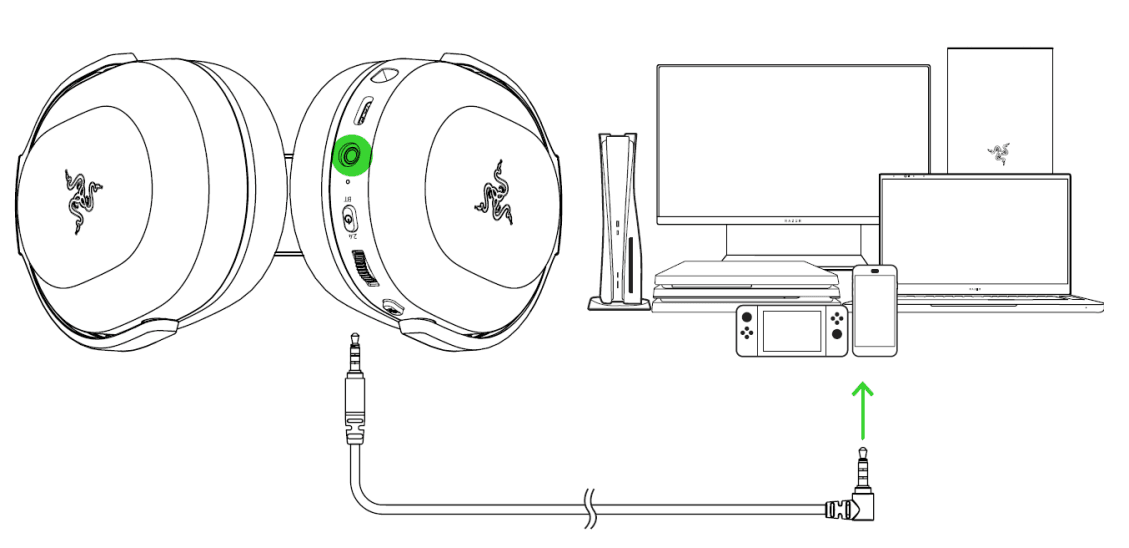

Via 3.5 mm audio+ mic jack
If your device has a 3.5mm audio+ mic combined jack, plug the 3.5mm combo cable from your headset into your device’s audio jack.
RAZER AUDIO APP (MOBILE)
Making advanced customization just got a whole lot easier for the Razer Barracuda X. With the Razer Audio App, you’ll be able to customize its EQ settings and auto shutoff feature, enable or disable gaming mode, and much more – anytime, anywhere.
When using the app, make sure that the headset is on tv connected to your mobile device via Bluetooth. A solid blue status indicator indicates this connection.
USING YOUR HEADSET

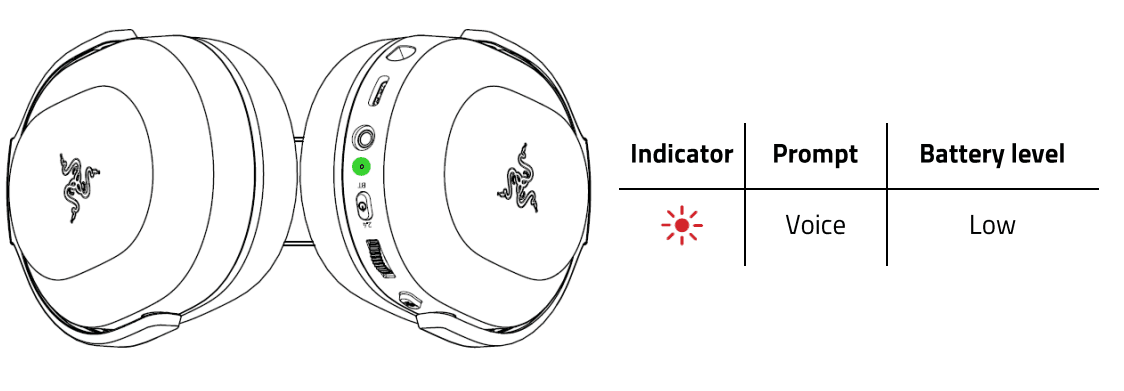

BATTERY LEVEL
When unplugged and powered on, the status indicator will show the connection and battery status. While in use, you’ll hear a voice prompt when the headset needs to be recharged; during such time, the indicator will continue showing the battery level until you charge the headset.
RAZER SMARTSWITCH / POWER BUTTON

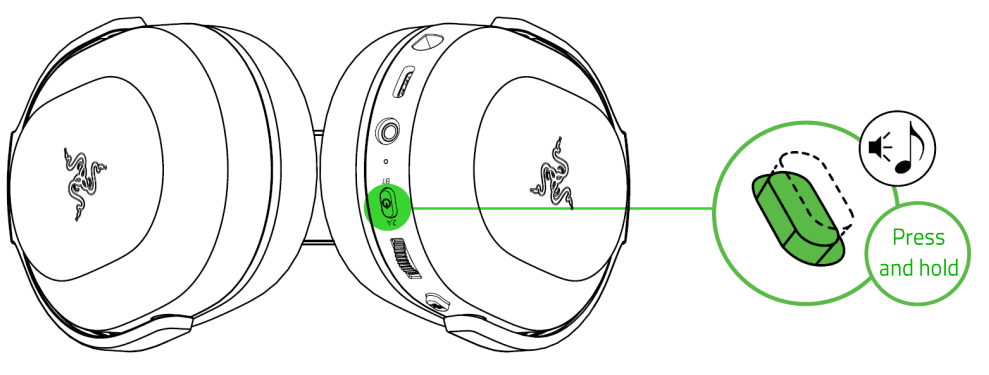

Power ON / OFF

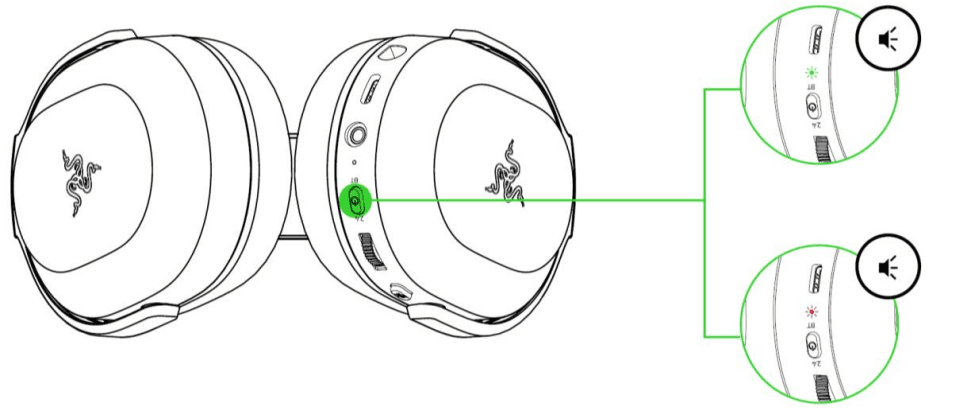

Power on the headset by holding the Razer SmartSwitch / Power button until the status indicator is on and holding the Power button again to turn off. An audio prompt will help notify you when the headset is powered on or off.

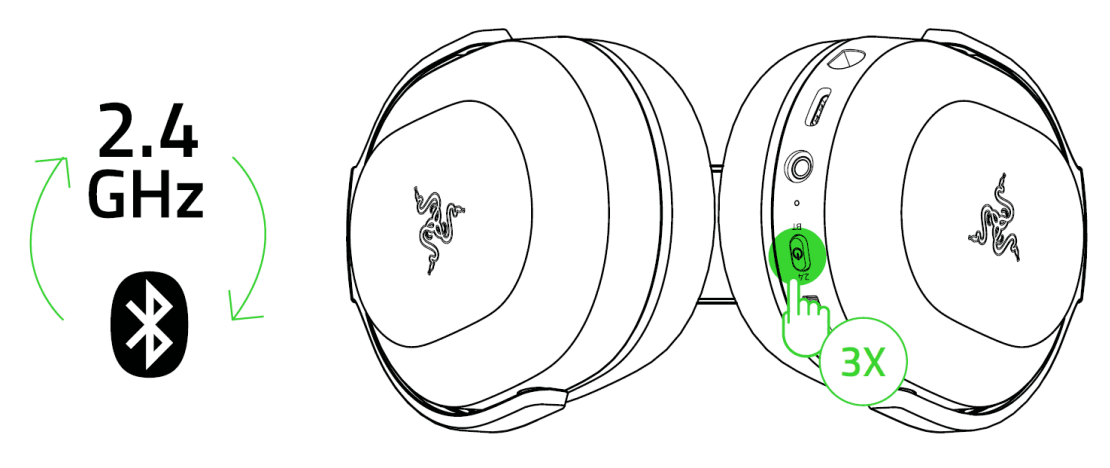

Switching audio source
When powered on and connected to any audio source, triple press the Razer SmartSwitch / Power button to switch between the Type-( wireless dongle and Bluetooth audio source or vice versa.

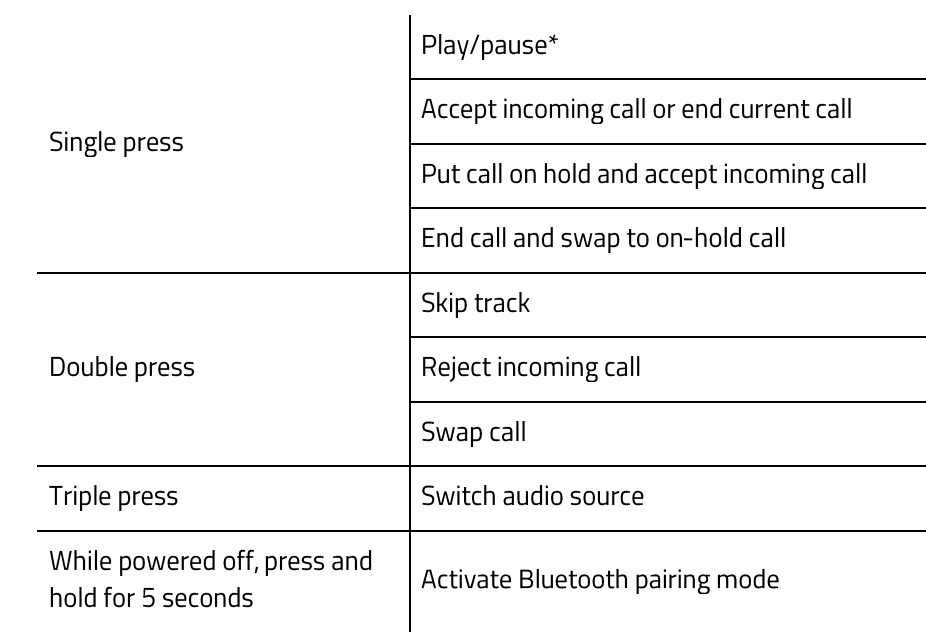

Other functions
Other Razer SmartSwitch / Power button functions are available when the headset is powered on with Bluetooth as the audio source. These functions operate based on your device’s current activity and may not apply to certain devices.

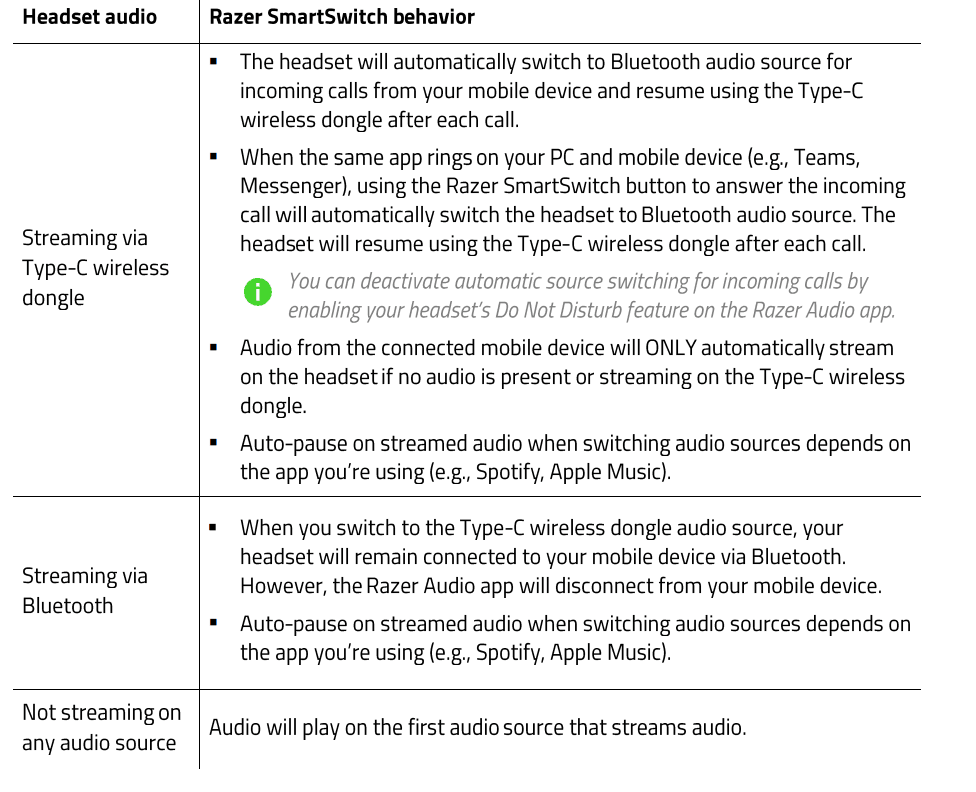

UNDERSTANDING RAZER SMARTSWITCH
With the Razer Barracuda X simultaneously connected to a PC or gaming console (via Type-C wireless dongle) and a mobile device {via Bluetooth), you’ll be able to conveniently take calls from a connected Bluetooth device and switch back to the game audio without removing the headset. The status indicator will briefly show static white to indicate that the headset is connected to both audio sources. The following behaviors below will help you understand how your headset responds to audio source switching and incoming calls when your headset is connected to a Bluetooth device and
Type-C wireless dongle

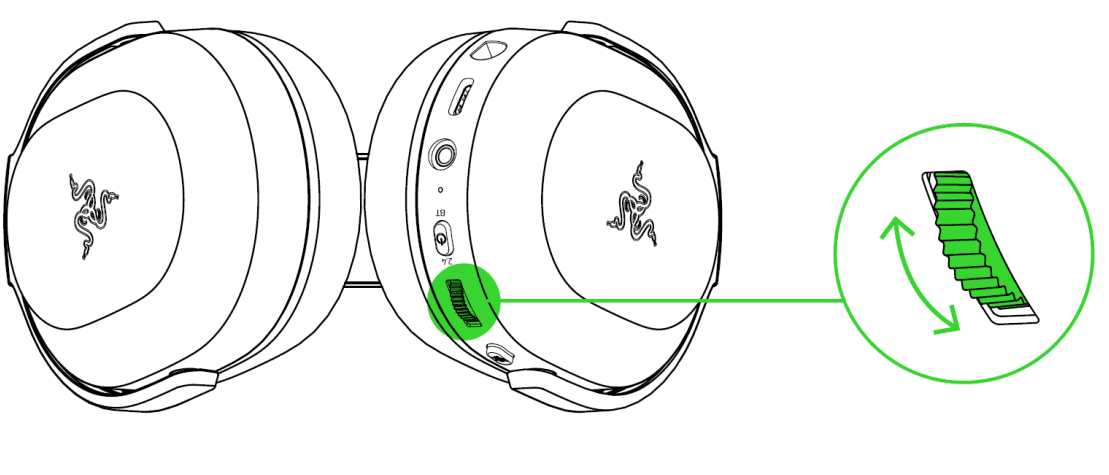

VOLUME WHEEL
Rotate the Volume wheel to increase or decrease the volume.

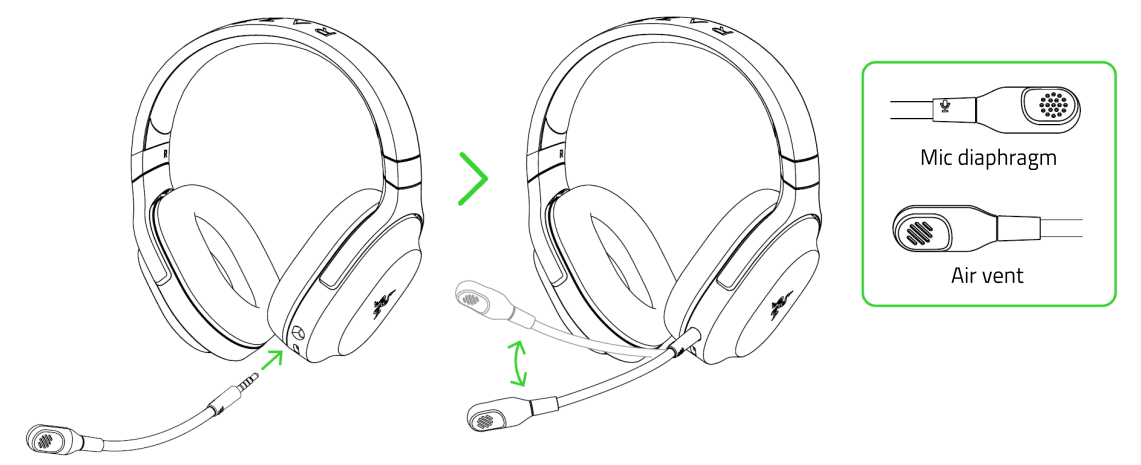

USING THE RAZER™ HYPERCLEAR CARDIOID MIC
Plug the Razer™ HyperClear Cardioid Mic into the microphone jack and bend until it is parallel to your mouth. Ensure the mic diaphragm is in front and the air vent faces away from your mouth.

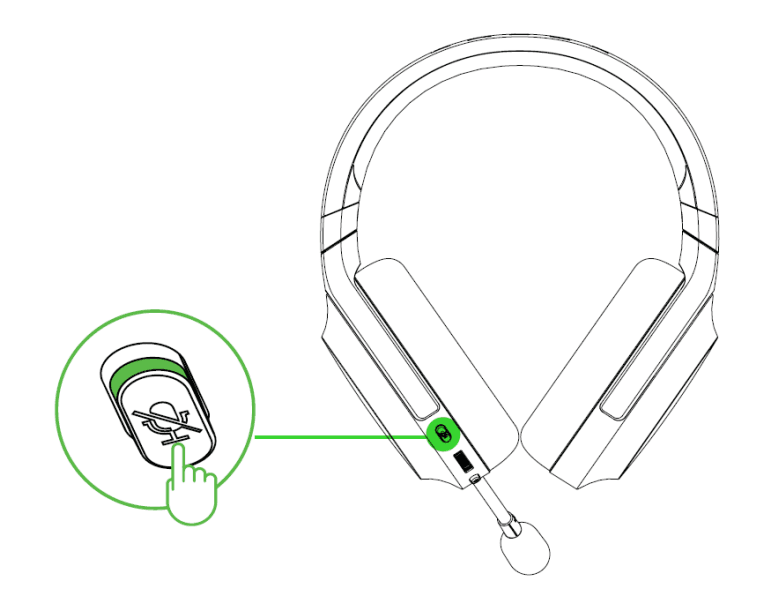

MUTING/ UN MUTING THE MICROPHONE
Press the mic mute button to mute or unmute the microphone.

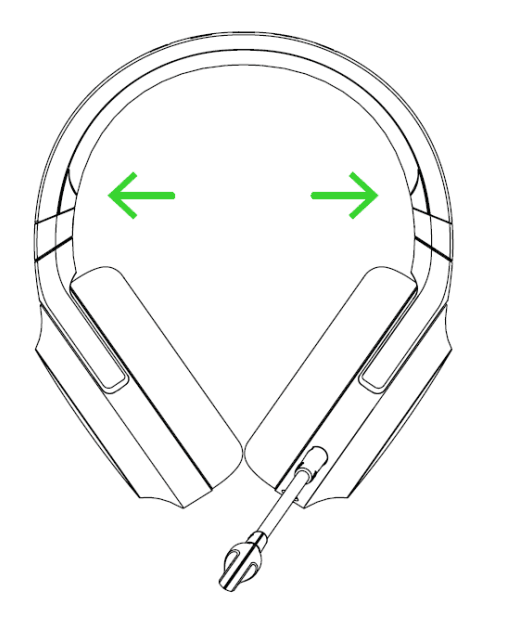

EXTENDING YOUR HEADSET’S LIFESPAN
We recommend stretching the headset gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headset beyond its technical limits.
SAFETY AND MAINTENANCE
SAFETY GUIDELINES
To achieve maximum safety while using your Razer Barracuda X, we suggest that you adopt the
following guidelines:
- Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.
- Do not take apart the device and do not attempt to operate it under abnormal current loads. Doing so will void your warranty.
- Keep the device away from liquid, humidity, or moisture. Operate the device only within the specific temperature range of 0°C (32 ° F) to 40° C (104 ° F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
- The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in activities that require active awareness of your surroundings.
- Listening to excessively loud volumes over extended periods can damage your hearing.
- Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We, therefore, recommend that you reduce the volume to a comfortable level when listening for prolonged periods. Please, take good care of your hearing.
MAINTENANCE AND USE
The Razer Barracuda X requires minimum maintenance to keep it in optimum condition. Once a month, we recommend you clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
BATTERY WARNING
The Razer Barracuda X contains a Li-ion rechargeable battery. In general, the life expectancy of such batteries is dependent upon usage. If you suspect that the Li-ion rechargeable battery inside the Razer Barracuda X may be drained (has a low charge), try charging it.
Caution: Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat. Doing so may cause batteries to leak or explode, resulting in personal injury. Battery life varies with usage.
LEGALESE
COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION
- ©2022 Razer Inc. All rights reserved. Razer, the triple-headed snake logo, Razer logo, and “For Gamers. By Gamers.” are trademarks or registered trademarks of Razer Inc. and/or affiliated companies in the United States or other countries. All other trademarks are the property of their respective owners.
- Android, Google, Google Logo, Google Play, and the Google Play logo are registered trademarks of Google LLC.
- Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
- The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Razer is under license.
- Windows and the Windows logo are trademarks or registered trademarks of the Microsoft group of companies.
- Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this guide. Furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Razer
- Barracuda X (the “Product”) may differ from pictures, whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Information contained herein is subject to change without notice.
LIMITED PRODUCT WARRANTY
For the latest and current terms of the Limited Product Warranty, please visit razer.com/warranty.
LIMITATION OF LIABILITY
Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
