Relion Temple Touch Digital Thermometer User Manual

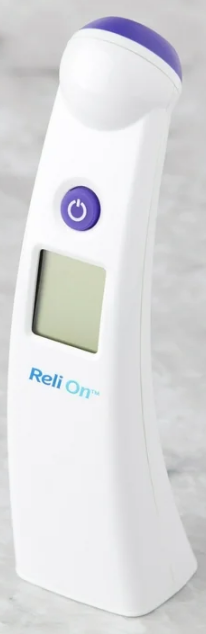

Relion Temple Touch Digital Thermometer

IMPORTANT SAFETY WARNINGS

1. Keep the thermometer out of the reach of children.
2. Do not drop the thermometer or expose it to heavy shock. The unit is not shockproof.
3. Do not immerse the thermometer in water or any other liquid. The unit is not waterproof.
4. Do not store the unit in direct sunlight, at a high temperature, in high humidity, or in dust. Performance of the unit may be degraded.
5. Stop using the thermometer if it operates erratically or if the display malfunctions.
6. Clean the thermometer probe before storing (see section 7).
7. Do not attempt to disassemble the unit except to replace the batteries.

QUICK START

1. Press and release the POWER button.
2. Unit will beep twice when ready.
3. Hold firmly to the temple, wait for the next beep.
4. Read results.

Measuring guidelines

1. Measurement body location is the temple, in proximity to the temporal artery, between the eye socket and the hairline.
2. Do not place the thermometer on scarred tissue, compromised by skin disorder, open sores or abrasions, or patients in trauma.
3. Consult your physician when using drug therapies that may raise the local skin temperature in the forehead; this may lead to incorrect readings.
4. Do not place the thermometer on skin exposed to direct sunlight, fireplace heat, air conditioner flow, and cold/warm compress therapies.
5. Wait at least two minutes between consecutive measurements for the unit to readjust to room temperature.
6. If the thermometer has been stored at a cold temperature, allow the unit to warm naturally to room temperature before using.
7. Performance of the device may be degraded if operated or stored outside the stated temperature and humidity ranges.

Directions for Use

Before measuring:

• Use this thermometer on a clean, dry forehead. Wipe away any perspiration prior to use.
• Move hair aside from the temporal area and apply the probe to bare skin.

Taking Temperature:

1. Press and release the ON/OFF button, and you will hear one beep. All segments will be displayed.
2. The previous result will be displayed for 2 seconds.
3. Wait for the hourglass icon to disappear, then two beeps will be heard to indicate that the thermometer is now ready to measure. Do not try to take a measurement before the two beeps are heard.
4. Place the thermometer probe in the center of the temple area between the eye socket and the hairline. Gently press and hold it against the temple to ensure good contact with the skin is maintained. Correct placement and good contact with the skin ensure reliable readouts.
5. As soon as the thermometer is in place, the measurement will start automatically. A running circle will appear, indicating that the measurement is progressing successfully. Make sure that the thermometer and the patient do not move while the measurement is in progress.
6. A temperature reading will be displayed within 6–8 seconds. One long beep will be heard to indicate that the measurement is complete, and the temperature will be displayed for about 1 minute.
7. Press and release the ON/OFF button to turn the thermometer off, or it will shut off automatically within 1 minute. If you need to take another reading, wait 2 minutes after turning the thermometer off and then begin again.

Setting the operating scale °F or °C

The device setting is by default Fahrenheit (°F).To change the scale to °C, or back to °F:

1. Press and hold the ON/OFF button for 5 seconds – on the screen, you will see the hourglass icon blinking and the last measured temperature.
2. Once the last reading shows on the screen disappears, the scale icon (°F, °C) changes as well.
3. Release the button, the hourglass icon will disappear in 5 seconds, and 2 beep sounds are heard, indicating that the device is ready for use.

Installing and replacing the battery

The thermometer uses 2 standard AAA 1.5V batteries. To install/replace:

1. Remove the battery cover by sliding it out of its housing.
2. Firmly attach the batteries to their place, make sure polarity is correct (see engraving on the bottom of the battery compartment).
3. Slide the battery cover back into place.

IMPORTANT: It is recommended to remove the batteries from the thermometer when it is not used for a long period.

About body temperature measurement

How does the thermometer work?

The accurate measurement is obtained by using a unique probe, which measures the heat flow from the blood vessels to the skin and converts it to body temperature.

What is “normal” body temperature?

“Normal” body temperature varies from person to person, changes according to time of day, and body location. Hot or cold baths, physical exercise, smoking, and drinking hot or cold drinks may change body temperature by one degree or more.

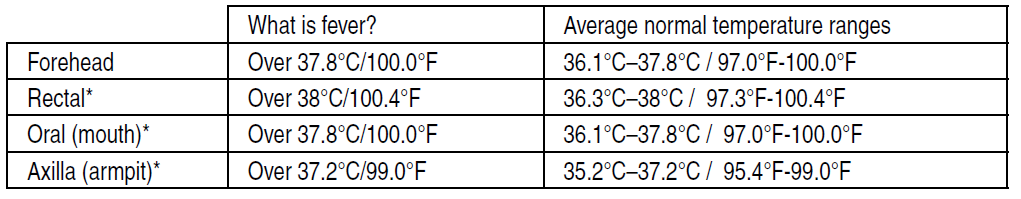

The following table shows the temperature ranges:

• Fever definitions according to the American Medical Association. The thermometer is designed to measure the temperature on the forehead, in proximity to the temple area, between the eye socket and the hairline. It is important to know that the thermal characteristics of each measurement body location – temporal, axillar, oral, or rectal – are unique. The variance in temperature measurement in different body locations is due to the human body and not the thermometer.

IMPORTANT: It is recommended to measure the body temperature when healthy to establish the specific “normal” temperature.

Troubleshooting and special indications

The thermometer has been designed to display feedback-warnings to ensure proper usage and accurate temperature measurement. When an error appears, the device will “beep” 5 times, and then the thermometer will turn off automatically. In the event of a malfunction or incorrect temperature measurement, the following warnings will be displayed:

• Indication: The measured temperature is below 95°F (35°C) and the display presents: LO.
• Instruction:

1. Turn the unit OFF and then ON again.
2. Retake temperature using proper placement technique (see section 3).

• Indication: The measured temperature is above 107.6°F (42°C) and the display presents: HI.
• Instruction: Turn the unit OFF and then ON again. To verify the reading, retake the temperature using the proper technique (see section 3).
• Indication 1: The thermometer is too cold or too hot to operate.
• Instruction:

1. Verify room temperature within the product range 60.8°F – 104°F (16°C – 40°C).
2. Retake temperature using proper technique (see section 3).

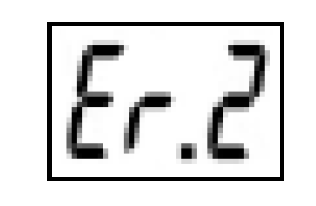

• Indication 2: Temperature did not register because of poor contact, patient movement, or poor placement.
• Instruction: Turn the unit OFF, wait 2 minutes, turn it ON again, and retake temperature using proper technique (see section 3).
• Indication 3: The unit malfunctioned.
• Instruction: Do not use the thermometer – contact service (see section 9).
• Indication: Low battery – Battery icon is on continuously.
• Instruction: The battery has enough remaining life for approximately 10 more measurements.
• Indication: Drained battery – only the Battery icon is on when the thermometer is turned on, and the device turns itself OFF.
• Instruction: The battery is drained – replace the battery (see section 4).

Care and Cleaning

• Wipe the tip and probe with ReliOn alcohol swab or a cotton swab moistened with 70% isopropyl alcohol before & after each use.
• After cleaning, wait at least 2 minutes before taking a measurement for the unit to readjust to room temperature.
• Use only a soft, dry cloth to clean the body of the thermometer (if necessary). Never use an abrasive cleanser or submerge the thermometer in water or other liquids.
• Do not expose the thermometer to extreme temperatures, humidity, direct sunlight, or shock. Store at room temperature.

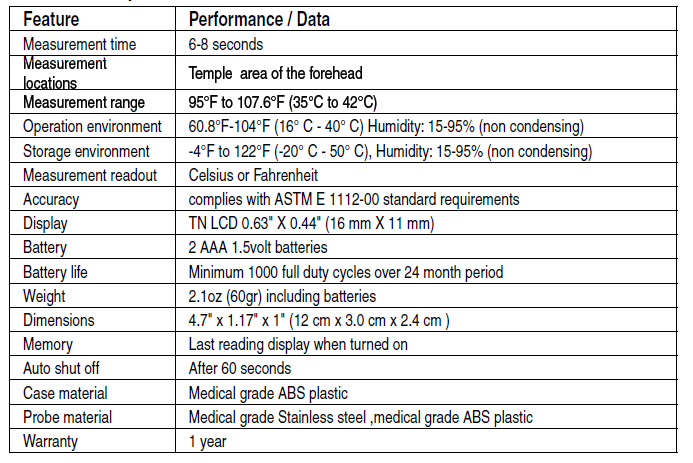

Technical Specifications

Warranty and Service Information

This thermometer has a one-year warranty against the manufacturer’s defect under normal use. Following the directions closely will ensure years of dependable operation. If the thermometer does not function properly, first check the batteries (see section 4). Replace if necessary. If the thermometer does not function properly, please write to us at [costumerservice@medisim-usa.com](mailto:costumerservice@medisim-usa.com), call us at 1-888-723-3659, or visit us at [www.relion.com](http://www.relion.com). Our representatives will provide further instructions on how to correct the trouble or will ask you to return it for repair/replacement.

• Internally powered device
• Type BF Applied part
• Degree of protection against ingress of water: Ordinary

ReliOn® is a registered trademark used under license by Medisim Ltd., G.G. Communication Center, Neve Iian 90850, Israel. Distributed by Wal-Mart Stores, Bentonville, AR 72716. Protected by US patent # 6,280,397 B1 and patent application # 11,444,710. Temple Touch used with permission of Medisim, Ltd.
