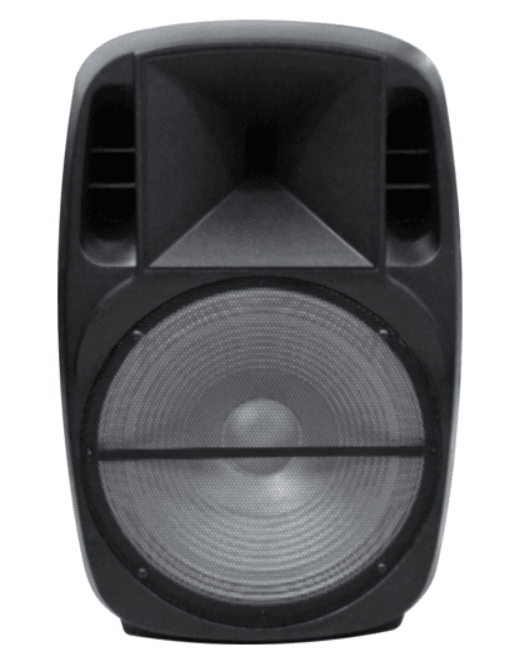

Ridgeway QS3315BR Portable Active Speaker System
Feature
- Stylish, fashionable, and elegant appearance
- Strong bass, clear and rich vocals
- Music playing through BT, USB, SD, and line-in connection

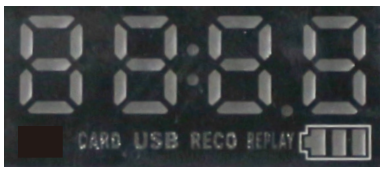

Display Description
- USB: Read the USB disk display
- AUX: External audio input
- BLUE: BT play
- FM: FM player, according to the previous song or the next key, semi-automatic search table, press the play button, full automatic search, and storage station

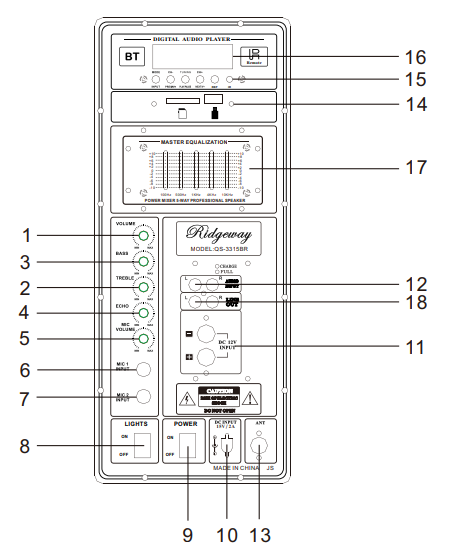

Panel Function
- Source Volume Control
- Treble Control
- BASS Control
- Echo Control
- Mic Volume Control
- Mic1 Input Jacks
- Mic2 Input Jacks
- Lights ON/OFF Switch
- Power ON/OFF Switch
- Charging port:15V/2A Input
- DC 12V Input
- AUDIO Input Jacks
- FM antenna
- USB/SD Input port
- USB/SD/FM/BT Playback Controls
- MODE
- Previous/CH- Button
- Next/CH+ Button
- Play/Pause/FM SCAN Button
- Repeat Button
- Receiving Head
- USB Function Display
- EQ frequency regulation
- Line output
Function Description
General Function Description
- Master Volume: T Turning to adjust the master volume.
- Treble Volume: T Turning to adjust volume.
- Bass Volume: T Turning to adjust volume.
- Echo Effect Volume: Turning to adjust volume.
- Mic Volume Turning to adjust volume.
- mode: change to other mode when operating, sequence: A UX-BLUE-FM-US priority to play in USB or micro SD mode when insert USB or micro SD
MP3 Function Description
- USB: Playing music when inserting the USB drive while saving MP3 files.
- Micro SD: Playing while inserting the Micro SD while saving MP3 music.
- AUX: Playing when plugging in the AUX cable and connecting to a music device.
- Play/Pause Button: In USB or Micro SD mode, press to play or pause.
- Skip -&+ Button: With playing music from a USB or Micro SD module,e or press to go back or forward through music, long press to adjust volume
BT Function Description
- pairingpr ess Mode Button To Blue Moe, speaker Will Be Under Automatic Pairing M e led Display Shows “bl u e”, pair The Bt Compatible Device By Selecting “QS-3315BR” From The Listed Devices, Speaker Wlii Call Out “connected” After Paired Successful, Blue Pairing System Will Be Off There Is No Device Connecting Afrer 5 Minutes.
- Music Playing: press the pause button, the kip +/- Button to play music.
Charging function introduction
When charging the battery, the red light indicates that the battery is full, but also continues to charge, charging for 5-6 hours to reach the battery’s best state.
Remarks: Please charge the power when the power is o,ff or the volume to avoid recharging when the sound is distorted.

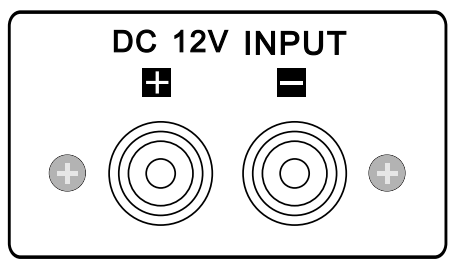

An External Battery Extend Life Function
his product matched with external 12V storage battery connecting clamp, pls accroding to red(+),black(-) to connect the extemal storage battery’s (+)、 (-Normal workinging after opening the power supply.

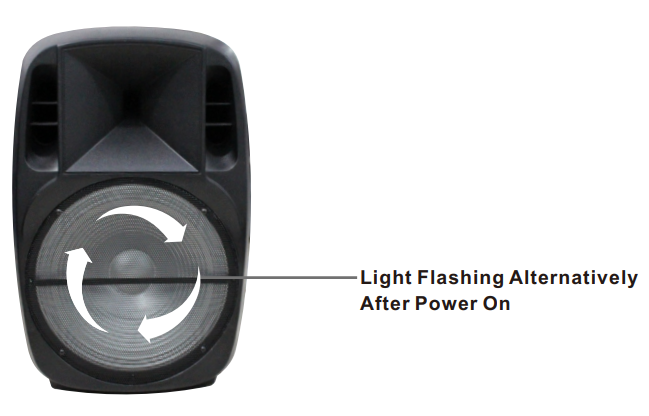

Lighting Function Description

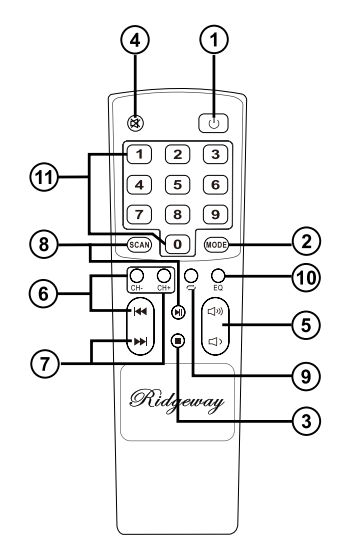

Remote Control Functions
- POWER – To switch the AUX, BT, USB, SD, FM module of the product to Standby or operational mode
- MODE – To select playback input mode: AUX BTTt, USB, SD, or FM radio operator
- STOP – To stop USB or SD MP3 audio playback.
- MUTE – To switch the sound to OFF or ON during AUX, USB, SD, or FM radio operation.
- Volume(+/-) – To adjust the internal digital volume level of the audio input source.
- PREVIOUS – To play the previous audio track number during USB, S, or operation.
– To select the previously programmed FM radio station on the preset memory channel number - NEXT – To play the next audio track number during USB, SD, or Bluetooth operation
CH+ – To select the next programmed channel nuntion, n the preset memory - PLAY/PAUSE – To pause or resume audio back during USB, SO, or BT operation. Scan – Press And Hold To Start Auto-program FFMRadio Stations Into The Preset Memory Channel Number
- REPEAT – To select repeat mode during USB or SO audio playback operation. Repeat modes:
Folder/One/All - EQ – To select any of the preset equalizer settings according to your listening preferences during USB or SD audio playback mode.
- Numerical buttons – To access directly to the desired track number during USB or SO MP3 audio playback, or to access directly to the preset memory channel numbers of FM radio stations.
REMOTE CONTROL BATTERY INSTALLATION
Press the release tab and lift the cover of the battery compartment.
Place two AAA-size batteries and match the polarity in the battery compartment illustration, (+)to(+) and(-) to(-) signs.
Technical Specifications
- POWER SOURCE AC: 100-240V~60Hz DC 12V =–
- BUILT-IN RECHARGEABLE BATTERY: 12V 7A
- POWER CONSUMPTION: 100W(MAX)
- TOTAL POWER OUTPUT: 40W RMS @1kHZ, 10% THD
- WOOFER DRIVER: 15″, 4 OHMS
- TWEETER DRIVER: 3″, 4 OHMS
- FREQUENCY RESPONSE: 45Hz – 20kHz
- TOTAL HARMONIC DISTORTION: 0.3% @10W
- CHANNEL SEPARATION: 60dB
- FM RADIO TUNING RANGE: 87.5MHz to 108MHz
- USB/SD FORMAT COMPATIBILITY: FAT/FAT32 file system (NTFS file system is not supported)
Packing
- QS-3315BR Speaker *1
- Adpater *1
- User Manual *1
WARRANTY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
