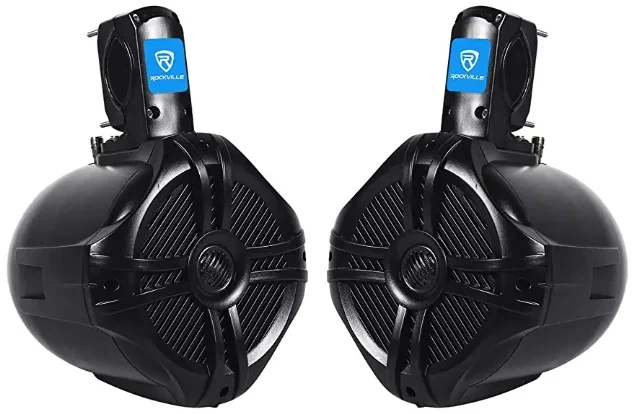

Rockville RWB65B 500W 6.5″ Marine Wakeboard Tower Speakers
Wiring

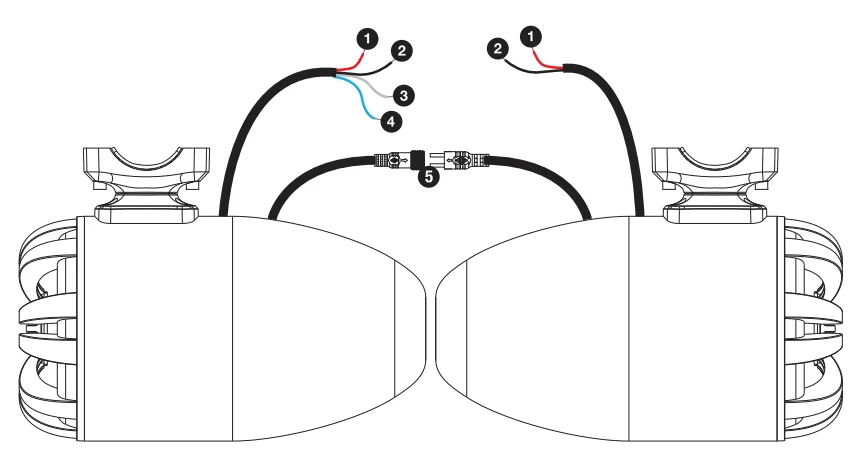

- Speaker power + (red}
- Speaker power – (black)
- LED power + (white)
- LED power – (blue)
- LED power connect
- Connect the speaker positive (1) and negative wires (2) to the corresponding output terminals on the amplifier or receiver.
- Connect the LED power connect cables (5) as shown below.
- Connect the LED power wire (3) to the + 12V (positive) terminal on your amplifier or receiver. Connect the LED ground wire (4) to the ground (negative) terminal on your amplifier or receiver. This will allow you to bypass the battery, which makes the installation much easier.
Please note: Make sure that the wires are properly inserted into the appropriate terminals and that no bare wire is exposed or making contact with other wires. Be sure to observe proper polarity.
