RunningSnail MD-088R Emergency Hand Crank Radio User Manual

RunningSnail MD-088R Emergency Hand Crank Radio

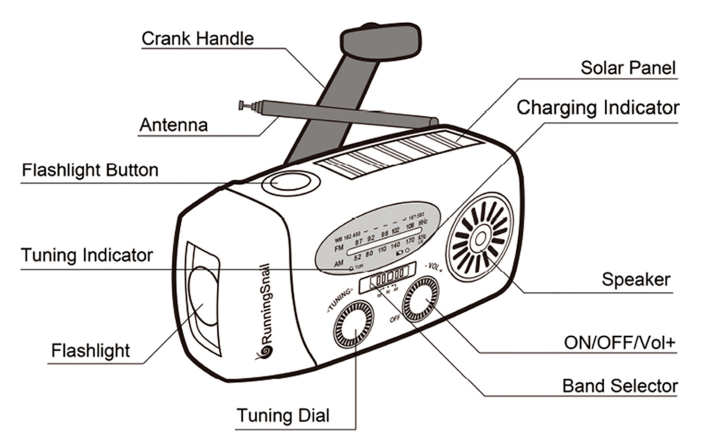

RADIO OPERATION

TURNING ON/OFF THE RADIO

• Rotate the volume control knob to turn on the radio and adjust the volume.
• Select FM/AM/WB with the BAND button. Extend the antenna to get a better signal.
• Rotate the tuning dial to select a channel. The green tuning indicator will turn on when a channel is properly selected.

FLASHLIGHT

Press the flashlight button to turn it on/off.

POWER YOUR RADIO

Before you power your radio, make sure to read the SAFETY INSTRUCTIONS.

A. SOLAR POWER

• Place the solar panel in direct sunlight.
• The charging indicator will turn red as the battery charges.
• It is difficult to fully charge the unit with a solar panel, which is mostly used for maintaining the battery.
• Do not charge the radio in a hot area a such as a car. It is also advisable to turn the radio off when charging.
• NOTE: The solar panel has a lifespan of more than 25 years when used for 6 hours per day.

B. USB PORT CHARGING

• To charge the radio, insert the supplied USB cable into the USB power source. Plug the Micro USB connector into the input port on the side of the radio.
• The charging indicator will flash red as the battery charges.
• It takes 2 hours for the internal 17500 1000mAh Li-ion battery to be fully charged.
• When completely charged, the battery will deliver 4-5 hours of radio play (depending on the sound volume) or 16-20 hours of flashlight time.

C. HAND CRANK

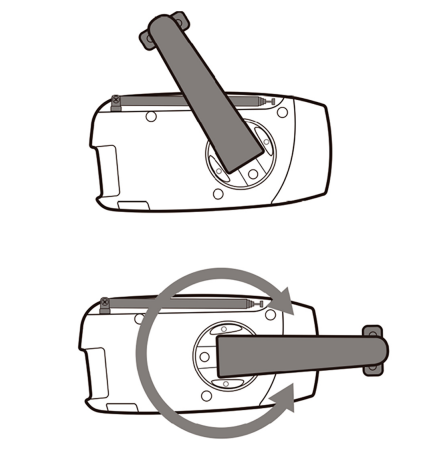

• Unfold the handle from the backside of the radio and rotate it in either direction.
• Turn the hand crank for 3-5 minutes to activate the internal battery for initial use.
• Wind the hand crank at a speed of 130-150 RPM/min for power to be generated. The unit will be fully charged in 3 hours.
• One minute of winding gives 15-20 minutes of radio play (at medium volume) and 30 minutes of light.

CHARGE EXTERNAL DEVICES

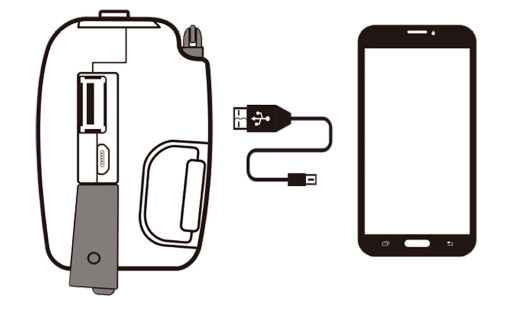

• Insert the USB cable into the USB output port on the side of the radio and connect it to the devices.
• The radio will go into charge mode and help to charge your devices.
• You can also charge USB devices by loading 3 pcs of batteries on the radio or by cranking at a speed of 130-150 RPM/min.

Note:

• This feature is only for charging USB devices during an emergency. Do not use it as a normal power bank.
• The supplied charging cable is only for charging Micro USB/iPhone devices. Other USB devices should be charged using the original charging cable.

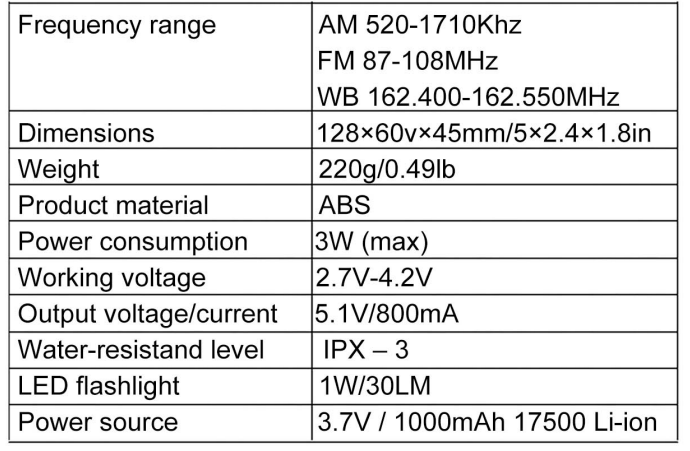

SPECIFICATIONS

SAFETY INSTRUCTIONS

• Dropping this radio can cause injury or damage. The unit will not resist strong impact or contact with corrosive liquids.
• This radio is not waterproof, just water-resistant. Keep the unit dry as moisture and liquids can damage it.
• Wind the crank for 3-5 minutes before use to activate and keep the internal battery healthy.

WARRANTY

• This crank radio has a full 12-month warranty against manufacturing defects.
• The warranty period begins from the date of purchase.

Please contact email: [email protected] if there is any problem with this item, and we will try our best to help you out. Thanks for your support.
