SadoTech StarPoint LD Wireless Doorbell
Features Introduction
- Receivers: Plug-in/ Battery-operated types; With LED indicator, music control, and volume control button. The plug-in type requires no battery; the Battery type needs 3 AAA batteries, with a wall-mounted design.
- Transmitter (door sensor): One 1.5 V AA battery is required; With an LED indicator; can be fixed by sticker tape or screws.
- Easy settings, installation, and usage. Only need 2 buttons in the receiver to match sensors, change melody, or clear settings in 10 seconds.
- 52 optional melodies, 4-level adjustable volume (30-110dB)
- 120m working range (open air), low power consumption
- The receiver can work with extra sensors or doorbell buttons, and each sensor can be set into different melodies to distinguish them by users themselves.
How It Works
Install two parts of the door sensor separately on the door edge and frame to keep them in a line and no gap. When the door is opened and two parts of the sensor split more than 1.5 cm, there will be a signal to be sent to the Receiver and the Receiver will play the ring tone you choose, and LED lights flash as a visual reminder. 10 sensors or buttons at most can be paired with the same receiver; distinct or same ringtone can be set for them.

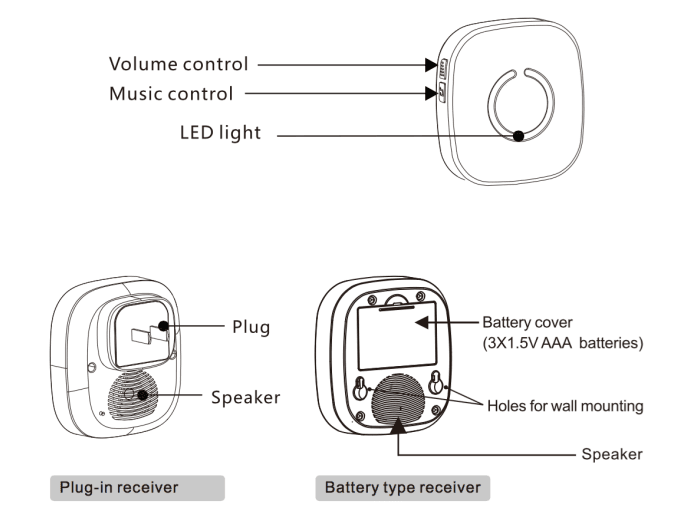

Product Diagram (Receiver)

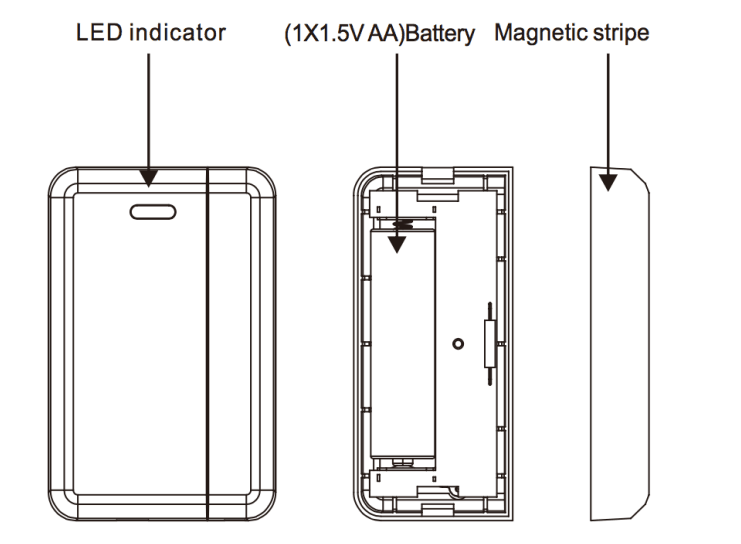

Product Diagram (Door Sensor)
- Remove insulating strips in the receiver or door sensor and pair the sensor to the receiver (see setup instruction)
- Test and find the right place and distance to install the receiver
- Notes about battery: low power in the receiver or transmitter will shorten the transmitting range. If you find the range becomes shorter and the indicator turns darker, please change the battery.
Setup Instructions
- Pair door sensor(s) with receiver:
Please do the following steps as soon as possible since the receiver will exit learning mode automatically if it doesn’t get a signal from the transmitter in 5 seconds. In order to avoid interference, pair 1 transmitter only at any given time.- Select the desired ringtone by pressing the music control button
- Set the receiver into learning mode (pairing mode) by either method
- or method
- below. A chime and LED flashing will indicate the ready status.
- Press the Volume and Music control buttons on the receiver
simultaneously. - Or press the Volume control button on the receiver for 5 seconds.
- Press the Volume and Music control buttons on the receiver
- Pair the transmitter with the receiver by separating the two parts of the door sensor to trigger it until you see the indicator light up and hear the tune you selected, which means that your operation is completed successfully.
- Add additional receivers or sensors
Repeat steps a-b-c above to add more receivers or sensors. Supports 10 transmitters at most. - Reset
To reset all settings, press the music control button for 5 seconds, then pairing will be relieved and the tune turns into the default music–Ding Dong. You can trigger the transmitter to verify the default ring tone—Ding Dong.
Installation Methods
NOTE: Please first make a pairing or reselect melody, then test whether the operation ranges you choose is proper and prepare an electric drill or hammer, cross screwdriver, and slotted screwdriver if you prefer to fix transmitters by screws.
Installation of Receiver:
Plug-in type: Just plug it into any outlet. Battery-operated type: Make 2 holes in the wall with screws and hammer or drill. Then hang the receiver. Or just put the receiver on the table in the room.
Installation of Transmitter:
Adhesive sticker
Please prepare clean clothes.
- After ensuring the right operating range. Clean the place where to install the sensor.
- Tear off one side of the double-sided adhesive sticker and stick it to the underside of the transmitter; tear off the other side and put them onto the door edge and door frame and press for 10 seconds. Ensure there’s no gap between the two parts.
Screw
You also can use screws in the package to fix two parts of the door sensor onto the door edge and doorframe separately.
