Segway Ninebot eKick Scooter C2 and C2 Pro
Diagram

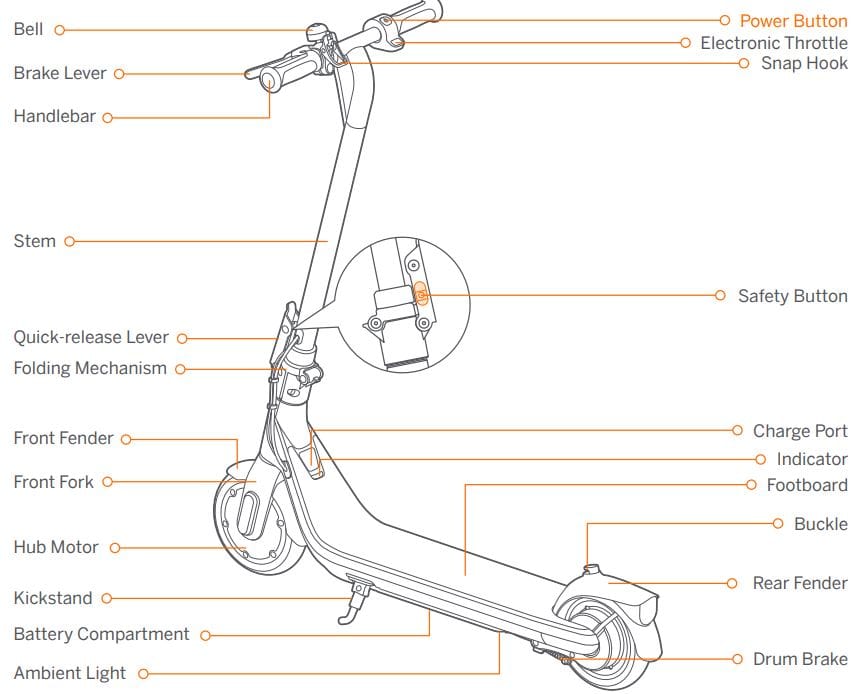

C2

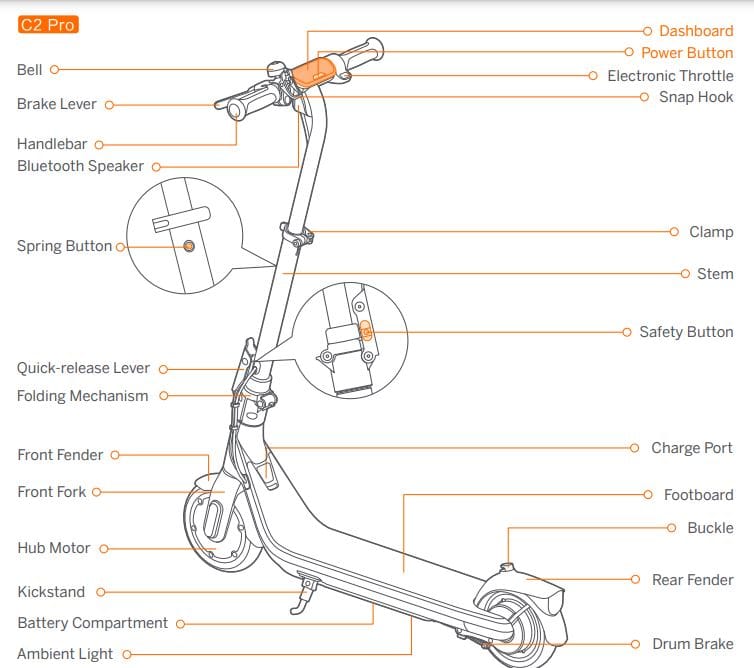

C2 Pro

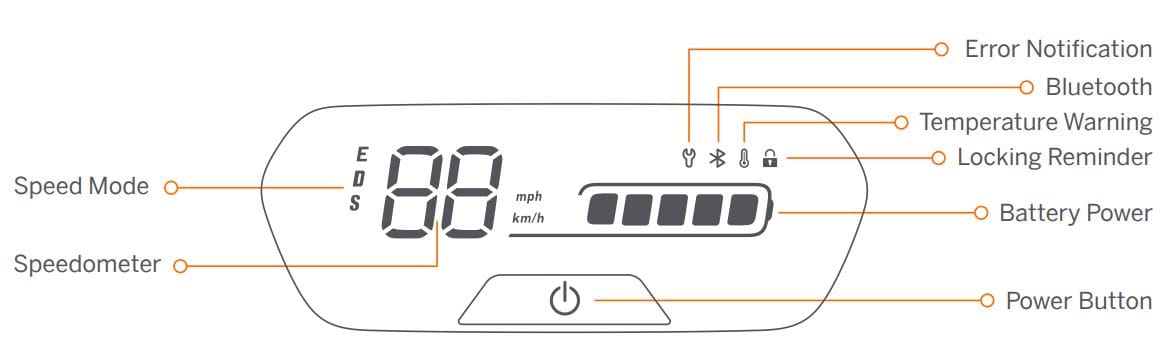

Dashboard & Power Button
Power Button: Press the button to power on the scooter; press and hold the button for 2 seconds to power it off. When the scooter is on, press twice to switch between the speed modes. Press three times to turn on/off the ambient light.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Speed Mode: There are three modes available.
The top speed is as follows:
| Mode | C2 / C2 Pro (Speed limit) | Indicator (For C2 only) |
| D (Standard mode) | 12 km/h (7.5 mph) | flashes slowly |
| S (Sport mode) | 16 km/h (9.9 mph) | flashes fast |
| E (Power-assisting mode) | 16 km/h (9.9 mph) | always on |
Error Notification: It indicates that the scooter has detected an error.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F).
* At this point, the vehicle cannot accelerate normally and may not be charged. Do not use it until the temperature has reverted to the normal range.
Locking Reminder: When the icon lights up, it means the scooter is locked. If abnormal movements are detected, the scooter will start beeping and the tail light will flash.
Battery power: The total battery power equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your scooter immediately.
Specifications
| Item | Parameter | ||
|
Product | Name | Ninebot eKickScooter C2 | Ninebot eKickScooter C2 Pro |
| Model | 051403E | 051404E | |
| Length × Width × Height | Approx. 910 × 400× 960 mm (35.8 × 15.7 × 37.8 in) | Approx. 910 × 400× (885/960/1035) mm (35.8 × 15.7 × 34.8/37.8/40.7 in) | |
| Folded: Length × Width × Height | Approx. 910 × 400× 500 mm (35.8 × 15.7 × 19.7 in) | ||
| Net Weight | Approx. 10.4 kg (22.9 lbs) | Approx. 10.7 kg (23.6 lbs) | |
| Rider | Max. Payload | 50 kg (110 lbs) | |
| Recommended Age | 6+ | ||
| Required Height | 120–165 cm (3’9”–5’4”) | ||
|
Machine | Max. Speed | Approx. 16 km/h (9.9 mph) | |
| Theoretical Range [1] | Approx. 11 km (6.8 miles) | Approx. 17 km (10.6 miles) | |
| Riding Time[2] | Approx. 56 mins | Approx. 1.5 h | |
| Max. Slope | Approx. 5% | ||
| Traversable Terrain | Mostly smooth roads or normal asphalt, tarmac roads | ||
| Operating Temperature | -10–40°C (14–104°F) | ||
| Storage Temperature | -10–50°C (14–122°F) | ||
| IP Rating | IPX4 | ||
| Duration of Charging | Approx. 3.5 h | Approx. 4 h | |
|
Battery | Nominal Voltage | 21.6 V | |
| Max. Charging Voltage | 25.2 V | ||
| Charging Temperature | 0°C–45°C (32–113°F) | ||
| Nominal Capacity | 54 Wh | 108 Wh | |
| Nominal Energy | 2500 mAh | 5000 mAh | |
| Battery Management System | Protection against overvoltage/undervoltage/short circuit/overcur- rent/overheat | ||
| Motor | Nominal Power | 130 W | 150 W |
| Max. power | 160 W | 260 W | |
|
Charger | Model | NBW25D201D0D | NBW25D201D5N-EU |
| Output Power | 24.2 W | 36.3 W | |
| Input Voltage | 100-240 V~ 50-60 Hz | ||
| Max. Output Voltage | 25.2 V | ||
| Rated Output | 24.2 V 1 A | 24.2 V 1 .5A | |
| Tire | Tires | 7-inch inner hollow shock-absorbing tires | |
[1]: Theoretical Range: tested while riding with a full battery, 110 lbs (50 kg) load, 77°F (25°C), 70% of max. speed on average on pavement.
* Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc.
[2]: Riding time under the testing conditions of theoretical range.
Certifications
This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.
The battery complies with UN/DOT 38.3.
The battery complies with ANSI/CAN/UL-2271.
European Union Compliance Statement Information on Disposal for Users of Waste Electrical & Electronic Equipment.
This symbol on the product or its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point.
Battery recycling information for Users.
This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling, you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. there are separate collection systems for used batteries and accumulators. Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.
Electromagnetic Compatibility Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section complies with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU.
Restriction of the use of certain hazardous substances (RoHS) Directive Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS
recast” or “RoHS 2.0”).
The Safety of Toy Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC.
