Segway Ninebot eKick Scooter C2 Lite
Segway Ninebot eKick Scooter C2 Lite

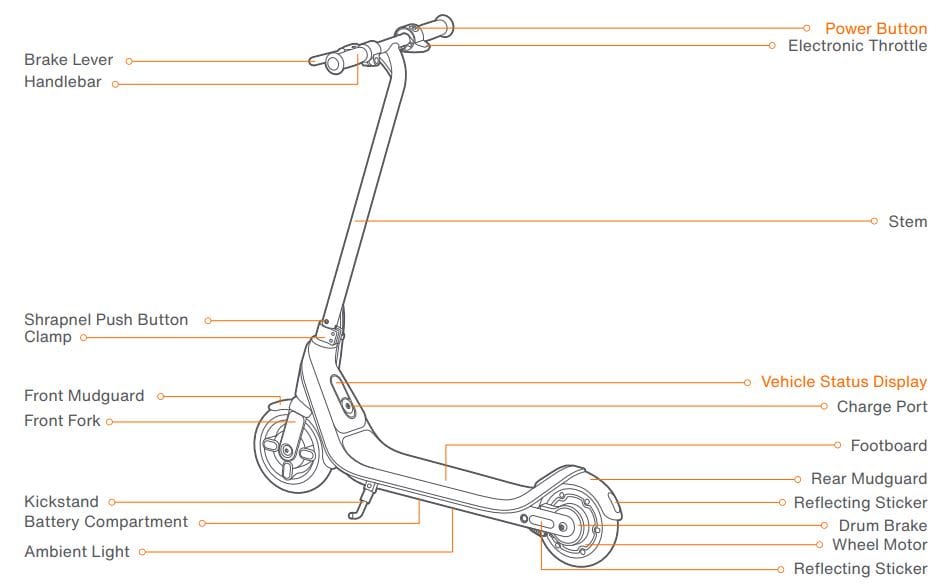

Diagram
Power Button & Vehicle Status Display
| *Ranges of Speed Modes | D (Standard mode): Approx. 14 km (8.7 miles) | S (Sport mode): Approx. 9 km (5.6 miles) |
| *Tested while riding with a full battery, 30 kg (66 lbs) load, 25 ±5°C (77 ± 41 °F), at the max. speed of each speed mode on average on range testing equipment. | ||
Spécifications
| Item | Parameter | |
| Product Info | Name | Ninebot eKickScooter C2 Lite |
| Model | 100501E | |
| L × W × H | Approx. 856×400×950 mm (33.7×15.7×37.4 in) | |
| Net Weight | Approx. 7.8 kg (17.2 lbs) | |
| Riding Requirements | Payload Capacity | 20—50 kg (44—110 lbs) |
| Recommended Age | 6—10 years | |
| Required Height | 115—145 cm (3’77”—4’76”) | |
|
Vehicle Performance | Max. Speed | Approx. 16 km/h (9.9 mph) |
| Riding Time[1] | Approx. 70 min | |
| Range at Max. Speed[2] | Approx. 9 km (5.6 miles) | |
| Max. Slope | Approx. 5% | |
| Traversable Terrain | Mostly smooth roads or normal asphalt, tarmac roads | |
| Operating Temperature | -10—40°C (14—104°F) | |
| Ambient Temperature For Storage | -10—50°C (14—122°F) | |
| IP Rating | IPX4 | |
| Charging Duration | Approx. 5.5 h | |
|
Battery Pack | Nominal Voltage | 21.6 V |
| Max. Charging Voltage | 25.2 V | |
| Nominal Energy | 56 Wh | |
| Nominal Capacity | 2550 mAh | |
| Charging Ambient Temperature | 0—45°C (32—113°F) | |
| Battery Management System | Overcharge Protection, Overheat Protection, Overdischarge Protection, Short Circuit Protection, and Overcurrent Protection | |
| Motor | Nominal Power | 120 W |
| Max. power | 130 W | |
|
Charger | Model | NBW25D200D6D01 |
| Input Voltage | 100—240 V~ 50—60 Hz | |
| Max. Output Voltage | 25.2 V | |
| Nominal Output | 24 V 0.6A | |
| Rated Output Power | 14.4 W | |
| Tire | Tire Type | 7-inch Rubber Tire |
[1]: Riding Time: Tested while riding with a full battery in D mode, 30 kg (66 lbs) load, 25±5°C (77±41°F), at the max. speed of D mode on average on range testing equipment. [2]: Range at Max. Speed: Tested while riding with a full battery,30 kg (66 lbs) load, 25 ± 5°C (77 ± 41 °F), at the max. speed on average on range testing equipment.
* Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc
Certifications
This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.
The battery complies with UN/DOT 38.3.
The battery complies with ANSI/CAN/UL-2271.
European Union Compliance Statement Information on Disposal for Users of Waste Electrical & Electronic Equipment.
This symbol on the product or its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point.
Battery recycling information for Users.
This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling, you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. there are separate collection systems for used batteries and accumulators. Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.
Electromagnetic Compatibility Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU.
Restriction of the use of certain hazardous substances (RoHS) Directive Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS
recast” or “RoHS 2.0”).
The Safety of Toy Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC.
