Snapper 360Z Series Zero Turn Mower

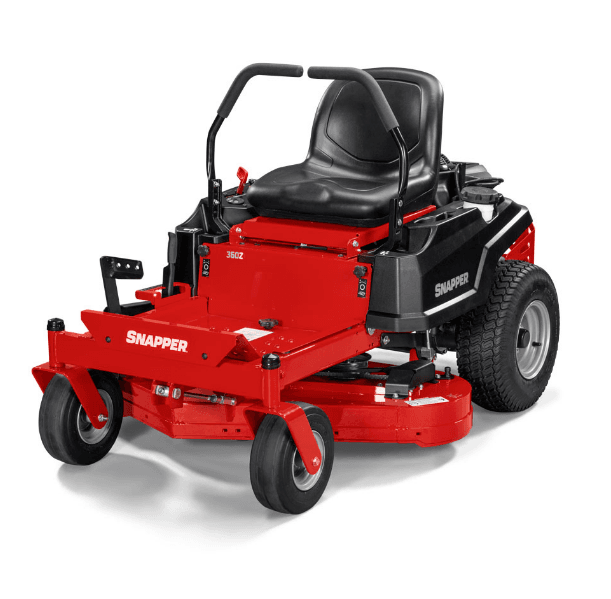

Snapper 360Z Series Zero Turn Mower-product

Wheel & Tire Group

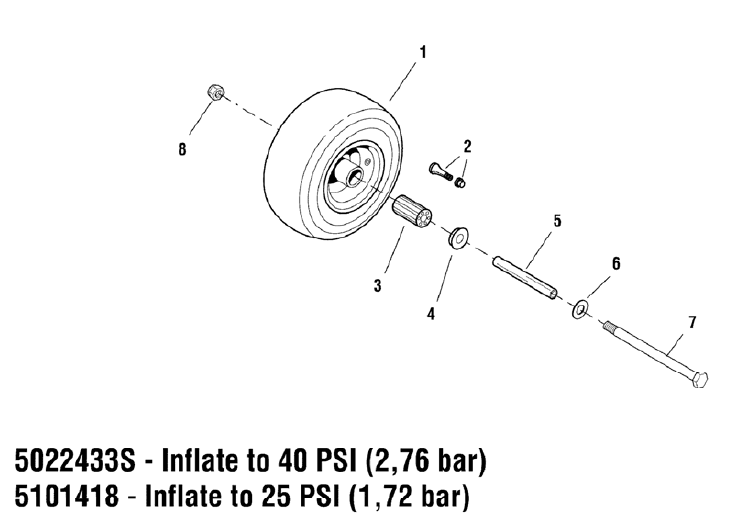

Front Wheels and Tires

Snapper 360Z Series Zero Turn Mower-1

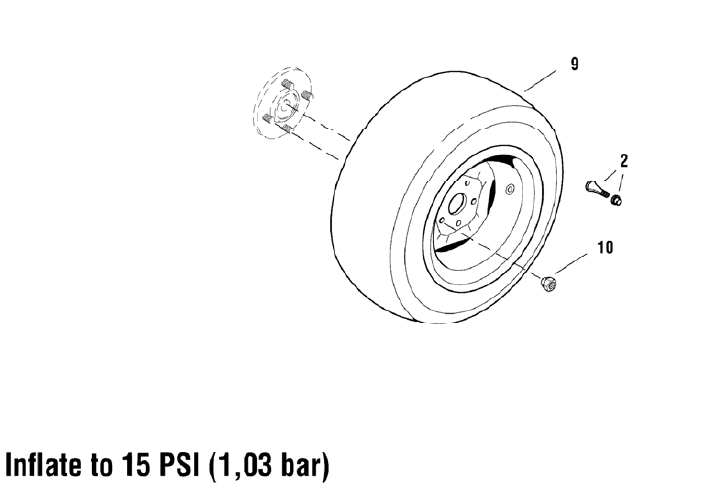

Rear Wheels and Tires

Snapper 360Z Series Zero Turn Mower-2

Item 1

    1. Part No: 5101418
    2. Qty: 2
    3. Description: WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO

Item 2

  1. Part No: 2172353
  2. Qty: 2
  3. Description: VALVE STEM & CAP ASSEMBLY (SV)

 Item 3

  1. Part No: 5101418X1
  2. Qty: 4
  3. Description: BEARING, CASTER WHEEL, 11 X 4.0 – 5 BEAD LOCK (SV) (Two per wheel)

 Item 4

  1. Part No: 5021043
  2. Qty: 4
  3. Description: BEARING, RETAINER (SV) (Two per wheel)

 Item 5

  1. Part No: 5045996
  2. Qty: 2
  3. Description: CASTER AXLE DDSH

Item 6

  1. Part No: 5025158
  2. Qty: 2
  3. Description: WASHER, 1/2 SAE

 Item 7

  1. Part No: 5025017X52
  2. Qty: 2
  3. Description: BOLT, 1/2-13 X 6-1/2 GD8 YZ

Item 8

  1. Part No: 5025056
  2. Qty: 2
  3. Description: NUT, Hex Nylon Lock, 1/2-13

Item 9

  1. Part No: 5023095
  2. Qty: 2
  3. Description: WHEEL & TIRE ASSEMBLY, 20 X 8.0 – 10, Complete

Item 10

  1. Part No: 5020601
  2. Qty: 8
  3. Description: NUT, 1/2-20, FOR WHEEL BOLT SILVER

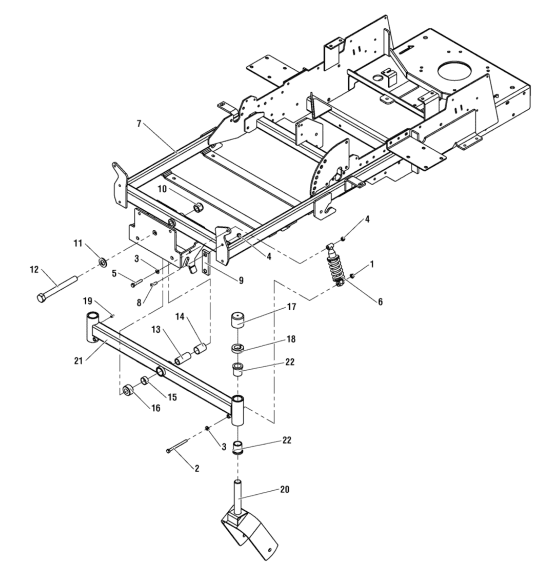

Main Frame & Front Suspension Group

Snapper 360Z Series Zero Turn Mower-3

Item 1

  1. Part No: 5025392
  2. Qty: 2
  3. Description: NUT, 5/16-18 HEX NYLOCK FLANGE (360Z & 365Z Models Only)

 Item 2

  1. Part No: 5025011X30
  2. Qty: 2
  3. Description: BOLT, 5/16-18 X 3-3/4 GD5 (360Z & 365Z Models Only)

Item 3

  1. Part No: 5025155
  2. Qty: 4
  3. Description:  WASHER, 5/16 SAE (360Z & 365Z Models Only)

Item 4

  1. Part No: 5025057
  2. Qty: 6
  3. Description: NUT, 5/16-18 HEX NYLON LOCK (355Z Models Use Qty. 4)

Item 5

  1. Part No: 5025011X14
  2. Qty: 2
  3. Description: BOLT, 5/16-18 X 1-3/4 GD5 YZ (360Z & 365Z Models Only)

Item 6

  1. Part No: 5023213
  2. Qty: 2
  3. Description: SHOCK (360Z & 365Z Models Only)

Item 7

  1. Part No: 5402816D
  2. Qty: 1
  3. Description: WELD, MAINFRAME, SIMPLICITY ZT (360Z & 365Z Models Only)

Item 7

  1. Part No: 5402896D
  2. Qty: 1
  3. Description: WELD, MAINFRAME, SNAPPER ZT (355Z Models Only)

Item 8

  1. Part No: 5025303
  2. Qty: 4
  3. Description: SCREW, 5/16-18 X 1 FLAT HD SC

Item 9

  1. Part No: 5100930
  2. Qty: 2
  3. Description: PAD, FRICTION, .375 X 1.25 X 4.00

Item 10

  1. Part No: 5025284
  2. Qty: 1
  3. Description: NUT, 3/4-16 HEX NYLON LOCK

Item 11

  1. Part No: 5025160
  2. Qty: 1
  3. Description: WASHER, 3/4 SAE

Item 12

  1. Part No: 5025265X56
  2. Qty: 1
  3. Description: BOLT, 3/4-16 X 7″ YZ GD5

Item 13

  1. Part No: 5047489
  2. Qty: 1
  3. Description: SPACER, .75 X 1.00 X 2.38

Item 14

  1. Part No: 5022852
  2. Qty: 1
  3. Description: PIVOT BEARING, 1.00″ X 1.125″ OD X 1.50″

Item 15

  1. Part No: 5100358
  2. Qty: 1
  3. Description: PIVOT BEARING, 1.00 X 1.125 OD X .50

Item 16

  1. Part No: 5400756
  2. Qty: 1
  3. Description: SPACER, .76 X 1.50 X .79

Item 17

  1. Part No: 5023214
  2. Qty: 2
  3. Description: CAP, VINYL 1.687 X 1-1/2

Item 18

  1. Part No: 5020602
  2. Qty: 2
  3. Description: COLLAR, 1″ SPLIT

Item 19

  1. Part No: 5020095
  2. Qty: 2
  3. Description: GREASE FITTING, 1/4-28 STRAIGHT

Item 20

  1. Part No: 5048775D
  2. Qty: 2
  3. Description: WELD, CASTER YOKE

Item 21

  1. Part No: 5400962D
  2. Qty: 1
  3. Description: WELD, PIVOTING FRONT END – ORG

Item 22

  1. Part No: 5021541
  2. Qty: 4
  3. Description: BUSHING, FLANGE

Seat & Floor Plate Group

Snapper 360Z Series Zero Turn Mower-4

Item 1

  1. Part No: 5402937D
  2. Qty: 1
  3. Description: PLATE, SEAT SUPPORT, CONS Z – RED

Item 2

  1. Part No: 5025011X8
  2. Qty: 8
  3. Description: BOLT, 5/16-18 X 1 GD 5 YZ

Item 3

  1. Part No: 5025292
  2. Qty: 6
  3. Description: WASHER, 5/16 GD. 9 FLAT

Item 4

  1. Part No: 5025392
  2. Qty: 8
  3. Description: NUT, 5/16-18 HEX NYLOCK FLANGE

Item 5

  1. Part No: 7078299
  2. Qty: 2
  3. Description: SPRING, SEAT SUPPORT

Item 6

  1. Part No: 5025156
  2. Qty: 2
  3. Description: WASHER, 3/8 SAE

Item 7

  1. Part No: 5100999
  2. Qty: 1
  3. Description: SAFETY WALK, FLOOR PLATE, 17.38 X 11.50

Item 8

  1. Part No: 5101007
  2. Qty: 1
  3. Description: SAFETY WALK, FLOOR REST, 17.38 X 6.00

Item 9

  1. Part No: 5061599
  2. Qty: 1
  3. Description: SEAT, XB-180, NO LOGO, BLACK

Item 10

  1. Part No: 5025057
  2. Qty: 4
  3. Description: NUT, 5/16-18 HEX NYLON LOCK

Item 11

  1. Part No: 5025394
  2. Qty: 2
  3. Description: NUT, 3/8-16 HEX NYLOCK FLANGE

Item 12

  1. Part No: 5402946D
  2. Qty: 1
  3. Description: WELD, SEAT PLATE – RED

Item 13

  1. Part No: 5403043D
  2. Qty: 1
  3. Description: PLATE, FLOOR, CONSUMER Z – RED

Item 14

  1. Part No: 5403044D
  2. Qty: 1
  3. Description: PLATE, FLOOR, FRONT, CONS Z – RED

Item 15

  1. Part No: 35097
  2. Qty: 6
  3. Description: MOUNT, VIBRATION, 30 DURO

Item 16

  1. Part No: 197546
  2. Qty: 4
  3. Description: MOUNT, VIBRATION, RUBBER

Item 17

  1. Part No: 5025481
  2. Qty: 6
  3. Description: BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

Item 18

  1. Part No: 5025013X28
  2. Qty: 2
  3. Description: BOLT, 3/8-16 X 3-1/2 GD5 YZ

Item 19

  1. Part No: 5044617
  2. Qty: 2
  3. Description: WASHER, .34 X 1.25 X 10 GA

Item 20

  1. Part No: 5025128
  2. Qty: 4
  3. Description: NUT, 3/8-18 HEX SERRATED FLANGE

Item 21

  1. Part No: 5021500
  2. Qty: 1
  3. Description: CLAMP, VINYL INSULATED

Item 22

  1. Part No: 5025010X6
  2. Qty: 1
  3. Description: BOLT, 1/4-20 X 3/4 GD5 YZ

Item 23

  1. Part No: 5025154
  2. Qty: 1
  3. Description: WASHER, 1/4 SAE

Item 24

  1. Part No: 5025391
  2. Qty: 1
  3. Description: NUT, 1/4-20 HEX NYLOCK FLANGE

Item 25

  1. Part No: 1686907
  2. Qty: 1
  3. Description: ARM REST, SET OF TWO (SV)

Item 26

  1. Part No: 5100636
  2. Qty: 1
  3. Description: SPRING, SEAT ADJUSTMENT (SV)

Item 27

  1. Part No: 5061599X1
  2. Qty: 1
  3. Description: KIT, SEAT RAILS. COMPLETE (SV)

Item 28

  1. Part No: 5025394
  2. Qty: 2
  3. Description: NUT, 3/8-16 HEX NYLOCK FLANGE

Item 29

  1. Part No: 5025480
  2. Qty: 6
  3. Description: WASHER, 3/8″ ID, INTERNAL TOOTH

Item 30

  1. Part No: 5025011X6
  2. Qty: 1
  3. Description: BOLT, 5/16-18 X 3/4 GDS

Item 31

  1. Part No: 5025392
  2. Qty: 1
  3. Description: NUT, 5/16-18 HEX NYLOCK FLANGE

Item 32

  1. Part No: 5025155
  2. Qty: 1
  3. Description: WASHER, 5/16 SAE

Item 33

  1. Part No: 5403372D
  2. Qty: 1
  3. Description: PLATE, SUPPORT, FRONT FLOOR – RED

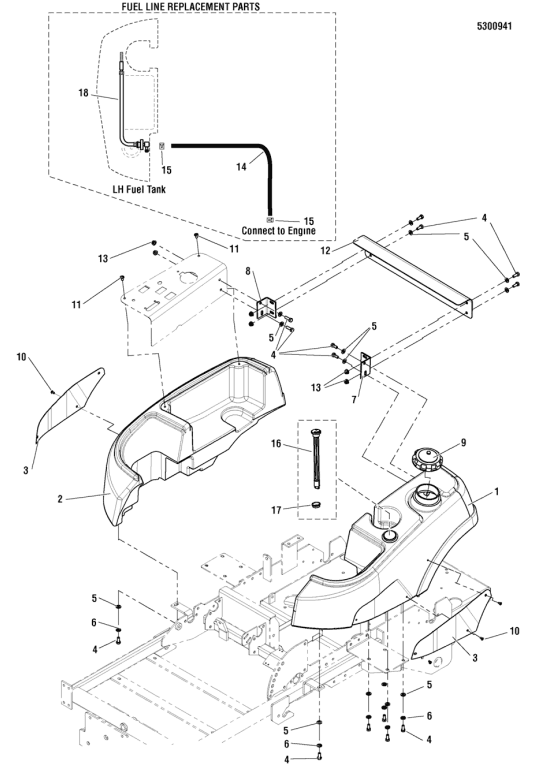

Fuel Tank & Mount Group

Snapper 360Z Series Zero Turn Mower-5

Item 1

  1. Part No: 5101181
  2. Qty: 1
  3. Description: TANK, FUEL, LH (S/N: 2014648788 & BELOW)

Item 1

  1. Part No: 5102544
  2. Qty: 1
  3. Description: TANK, FUEL, LH (S/N: 2014648789 – 2014923025)

Item 1

  1. Part No: 5102988
  2. Qty: 1
  3. Description: TANK, FUEL, LH (S/N: 2014923026 & ABOVE)

Item 2

  1. Part No: 5048752
  2. Qty: 1
  3. Description: TANK, FUEL, RH

Item 3

  1. Part No: 5048909D
  2. Qty: 2
  3. Description: PLATE, FUEL TANK BADGE

Item 4

  1. Part No: 5025011X6
  2. Qty: 18
  3. Description: BOLT, 5/16-18 X 3/4 GD5

Item 5

  1. Part No: 5025155
  2. Qty: 18
  3. Description: WASHER, 5/16 SAE

Item 6

  1. Part No: 5025170
  2. Qty: 10
  3. Description: WASHER, 5/16 LOCK YZ

Item 7

  1. Part No: 5400836D
  2. Qty: 1
  3. Description: BRACKET, REAR SUPPORT – LH – RED

Item 8

  1. Part No: 5048763D
  2. Qty: 1
  3. Description: BRACKET, REAR SUPPORT – RH

Item 9

  1. Part No: 5101651
  2. Qty: 1
  3. Description: FUEL CAP, 3.5″, VENTED (S/N: 2014923025 & BELOW)

Item 9

  1. Part No: 5103005
  2. Qty: 1
  3. Description: FUEL CAP, 3-1/2″, MANAGED VENT OUT, 12″ (S/N: 2014923026 & ABOVE)

Item 10

  1. Part No: 5025386
  2. Qty: 6
  3. Description: SCREW, #10-24 X 3/8 ALLEN BHBZ

Item 11

  1. Part No: 5025299X4
  2. Qty: 2
  3. Description: SCREW, 1/4-20 X 1/2 ALLEN BH

Item 12

  1. Part No: 5403004D
  2. Qty: 1
  3. Description: PLATE, SUPPORT, REAR TANK – SNP RED

Item 13

  1. Part No: 5025392
  2. Qty: 4
  3. Description: NUT, 5/16-18 HEX NYLOCK FLANGE

Item 14

  1. Part No: 5050831X28
  2. Qty: 1
  3. Description: HOSE, 1/4 FUEL 28″ LONG

Item 15

  1. Part No: 5020835
  2. Qty: 2
  3. Description: CLAMP, HOSE, EXTERNAL, 1/2 – RED

Item 16

  1. Part No: 5023197
  2. Qty: 1
  3. Description: FUEL GAUGE (SV)

Item 17

  1. Part No: 5022917X1
  2. Qty: 1
  3. Description: GROMMET (SV)

Item 18

  1. Part No: 5101190
  2. Qty: 1
  3. Description: PICK UP TUBE ASSM, FUEL TANK (SV)
