FEATURES

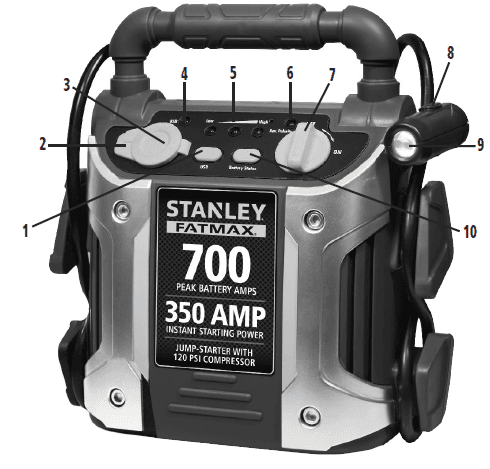

USB Power button
USB Charging/Power Port (under protective cover)
12 Volt DC Accessory Outlet (under protective cover)
USB power indicator
Battery Status LED Indicators
Reverse Polarity Indicator

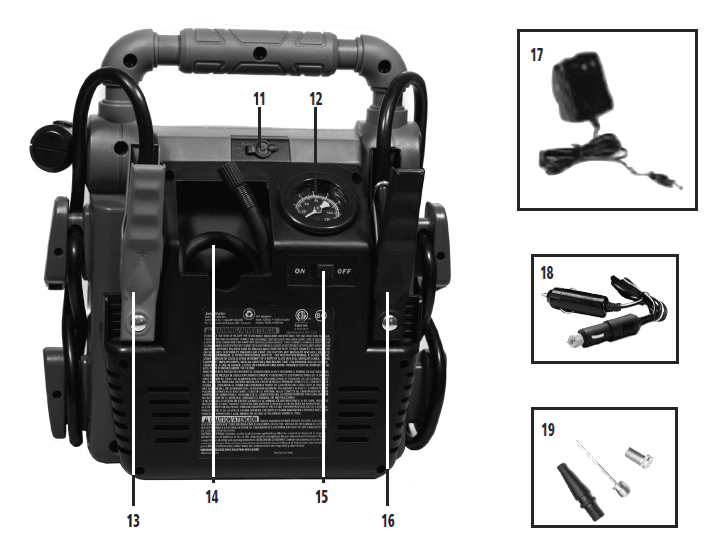

Jump-Starter Power Switch
Area Light Power Button
Pivoting LED Area Light
Battery Power Level Button
12 volt DC charging port (for use with 120 volt AC charger)
Air Pressure Gauge
Positive (+) Red Clamp
Air Hose and SureFit™ Nozzle Connector
Compressor Power Switch
Negative (–) Black Clamp
120 Volt AC Charging Adapter
12 Volt DC Charging Adapter (may be sold separately)
Nozzle Adapters

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment.

SAFETY GUIDELINES / DEFINITIONS

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.
RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury.
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Manufacturer strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed. Read and understand all warnings and operating instructions before using any tool or equipment.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This product or its power cord contains lead, a chemical known to the State of California to cause cancer and birth defect or other reproductive harm. Wash hands after handling.

This unit was designed for household use only.

READ ALL INSTRUCTIONS

WARNING: Read all instructions before operating the jump starter with compressor. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

GENERAL SAFETY WARNINGS AND INSTRUCTIONS

WARNING: WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, BURST HAZARD, OR INJURY TO PERSONS OR PROPERTY:

Avoid dangerous environments. Don’t use appliances in damp or wet locations. Don’t use appliances in the rain.
Keep children away. All visitors should be kept at a distance from the work area.
Dress properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Rubber gloves and substantial, non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
Use safety glasses and other safety equipment. Use safety goggles or safety glasses with side shields, complying with applicable safety standards. Safety glasses or the like are available at extra cost at your local dealer.
Store idle appliance indoors. When not in use, appliances should be stored indoors in a dry, high or locked-up place – out of reach of children.
Don’t abuse cord. Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
Disconnect appliances. Disconnect the appliance from the power supply when not in use, before servicing, and when changing accessories.
Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuits or outlets to be used. Receptacles are available having built in GFCI protection and may be used for this measure of safety.
Use of accessories and attachments. The use of any accessory or attachment not recommended for use with this appliance could be hazardous. Refer to the accessory section of this manual for further details.
Stay alert. Use common sense. Do not operate appliance when you are tired or impaired.
Check for damaged parts. Any part that is damaged should be replaced by the manufacturer before further use. Contact the manufacturer at (877) 571-2391 for more information.
Do not operate this appliance near flammable liquids or in gaseous or explosive atmospheres. Motors in these tools normally spark, and the sparks might ignite fumes.
Never submerge this unit or the 120 volt AC charger in water. Do not expose the unit or the 120 volt AC charger to rain or snow, or use them when wet.
To reduce risk of electric shock, disconnect the unit from any power source before attempting maintenance or cleaning. Turning off controls without disconnecting will not reduce this risk.
This equipment employs parts (switches, relays, etc.) that produce arcs or sparks. Therefore, if used in a garage or enclosed area, the unit MUST be placed not less than 18 inches above the floor.

SPECIFIC SAFETY INSTRUCTIONS FOR CHARGING THIS UNIT

IMPORTANT: This unit is delivered in a partially charged state. Fully charge unit with the supplied 120 volt AC charger for a full 24 hours before using for the first time.
To recharge this unit, use only the supplied charging adapters. Plug in the charging adapter at the jump starter first, then plug into the charging source.
After charging/recharging, disconnect charging adapter and wait 5 minutes before use.
Do not crush, cut, pull or expose charging adapter cords to extreme heat.
Pull by plug rather than cord when unplugging the charger.
Position charging adapter cords so they do not become entangled or become a safety hazard. Keep charging adapter cords away from sharp edges.
Use in a dry location only.
All ON/OFF switches should be in the OFF position when the unit is charging or not in use. Make sure all switches are in the OFF position before connection to a power source or load.
Do not attempt to charge the unit if the charger is damaged – return the charger to manufacturer for repair or replacement.
CAUTION: TO REDUCE THE RISK OF PROPERTY DAMAGE WHEN CHARGING USING THE 12 VOLT DC METHOD:
Recharge using this method only when necessary. Frequent use of the 12 Volt DC charging method may shorten battery life.
DO NOT EXCEED 6 HOURS CHARGING TIME USING THIS METHOD.

EXTENSION CORDS

Outdoor use extension cords. When the appliance is charged outdoors, use only extension cords intended for use outdoors and so marked.
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

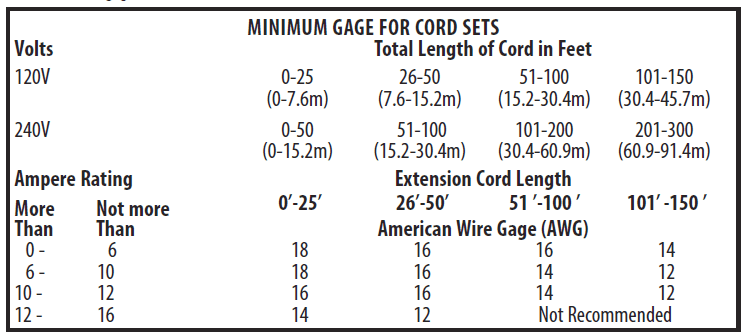

When an extension cord is used, make sure that:
a) The pins of the extension cord are the same number, size, and shape as those in the charger,
b) the extension cord is properly wired and in good electrical condition,
c) the wire size is large enough for the AC rating of the charger.

SPECIFIC SAFETY INSTRUCTIONS FOR JUMP STARTERS

WARNING: BURST HAZARD

Do not use the unit for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage property. Use the unit for charging/boosting a lead-acid battery only. It is not intended to supply power to a low-voltage electrical system other than in a starter-motor application.

Use of an attachment not supplied, recommended or sold by manufacturer specifically for use with this unit may result in a risk of electrical shock and injury to persons.
WARNING: RISK OF EXPLOSIVE GASES
Working in the vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of the utmost importance that each time before using the jump-starter you read this manual and follow instructions exactly.
To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on the engine.
CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
NEVER ATTEMPT TO JUMP-START OR CHARGE A FROZEN BATTERY.
Vehicles that have on-board computerized systems may be damaged if the vehicle battery is jump-started. Before jump-starting, read the vehicle’s owner’s manual to confirm that external-starting assistance is suitable.
When working with lead acid batteries, always make sure immediate assistance is available in case of accident or emergency.
Always have protective eyewear when using this product: contact with battery acid may cause blindness and/or severe burns. Be aware of first aid procedures in case of accidental contact with battery acid.
Have plenty of fresh water and soap nearby in case battery acid contacts skin.
Never smoke or allow a spark or flame in the vicinity of the vehicle battery, engine or power station
Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead acid battery. A lead acid battery can produce a short circuit current high enough to weld a ring, or similar metal object, to skin, causing a severe burn.
Do not wear vinyl clothing when jump-starting a vehicle, friction can cause a dangerous static-electrical spark.
Jump-start procedures should only be performed in a safe, dry, well-ventilated area.
Always store battery clamps when not in use. Never touch battery clamps together. This can cause dangerous sparks, power arcing and/or explosion.
When using this unit close to the vehicle’s battery and engine, stand the unit on a flat, stable surface, and be sure to keep all clamps, cords, clothing and body parts away from moving vehicle parts.
Never allow red and black clamps to touch each other or another common metal conductor — this could cause damage to the unit and/ or create a sparking/explosion hazard.
a) For negative-grounded systems, connect the POSITIVE (RED) clamp to the POSITIVE ungrounded battery post and the NEGATIVE
(BLACK) clamp to the vehicle chassis or engine block away from the battery. Do not connect the clamp to the carburetor, fuel lines or
sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.
b) For positive-grounded systems, connect the NEGATIVE (BLACK) clamp to the NEGATIVE ungrounded battery post and the POSITIVE
(RED) clamp to the vehicle chassis or engine block away from the battery. Do not connect the clamp to the carburetor, fuel lines or
sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.
• If the connections to the battery’s POSITIVE and NEGATIVE terminals are incorrect, the Reverse Polarity Indicator will light (red) and the
unit will sound a continuous alarm until the clamps are disconnected. Disconnect clamps and reconnect to battery with correct polarity.
• Always disconnect the negative (Black) jumper cable first, followed by the positive (Red) jumper cable, except for positive grounded
systems.
• Do not expose battery to fire or intense heat since it may explode. Before disposing of the battery, protect exposed terminals with
heavy-duty electrical tape to prevent shorting (shorting can result in injury or fire).
• Place this unit as far away from the battery as cables permit.
• Never allow battery acid to come in contact with this unit.
• Do not operate this unit in a closed area or restrict ventilation in any way.
• This system is designed to be used only on vehicles with a 12 volt DC battery system. Do not connect to a 6 volt or 24 volt battery system.
• This system is not designed to be used as a replacement for a vehicular battery. Do not attempt to operate a vehicle that does not have
a battery installed.
• Excessive engine cranking can damage a vehicle’s starter motor. If the engine fails to start after the recommended number of attempts,
discontinue jump-start procedures and look for other problems that may need to be corrected.
• Do not use this jump-starter on a watercraft. It is not qualified for marine applications.
• Although this unit contains a non-spillable battery, it is recommended that the unit be kept upright during storage, use and recharging. To
avoid possible damage that may shorten the unit’s working life, protect it from direct sunlight, direct heat and/or moisture.

SPECIFIC SAFETY INSTRUCTIONS FOR COMPRESSORS

CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE: Never leave the compressor unattended while in use.
WARNING – BURSTING ARTICLES CAN CAUSE SERIOUS INJURY:

Carefully follow instructions on the articles to be inflated.
Never exceed recommended pressures. If no pressure is given, contact the article manufacturer before inflating.
Monitor the pressure at all times on the pressure gauge.
CAUTION: TO REDUCE THE RISK OF PROPERTY DAMAGE: Do not operate compressor continuously for longer than approximately 10 minutes, depending on ambient temperatures, as it may overheat. In such event, the compressor may automatically shut down. Turn off the Compressor Power Switch immediately and restart after a cooling down period of approximately 30 minutes.
SPECIFIC SAFETY INSTRUCTIONS FOR THE USB POWER PORT AND 12 VOLT ACCESSORY OUTLET
Do not use this unit to operate appliances that need more than 5 amps to operate from the 12 volt DC accessory outlet.
Do not insert foreign objects into either the USB outlet or the 12 volt DC accessory outlet.
FIRST AID
Skin: If battery acid contacts skin or clothing, wash immediately with soap and water for at least 10 minutes. If redness, pain, or irritation occurs, seek immediate medical attention.
Eyes: If battery acid comes in contact with eyes, flush eyes immediately, for a minimum of 15 minutes and seek immediate medical attention.
SAVE THESE INSTRUCTIONS
INTRODUCTION
Congratulations on purchasing your new Stanley® Fatmax® 350 Amp Jump Starter with Compressor. Read this Instruction Manual and follow the instructions carefully before using this unit.
CHARGING/RECHARGING
Lead-acid batteries require routine maintenance to ensure a full charge and long battery life. All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. Therefore, batteries need periodic charging to replace energy lost through self-discharge. When the unit is not in frequent use, manufacturer recommends the battery be recharged at least every 30 days.
IMPORTANT: If you know the unit is discharged, but the battery status LEDs illuminate as if the unit is fully charged when connected to a charging power source, this may be due to the internal battery having high impedance. The manufacturer suggests leaving the unit charging for a period of 24-36 hours using the supplied AC charger before use.
Notes: This unit is delivered in a partially charged state – you must fully charge it upon purchase and before using it for the first time. Initial AC charge should
be for 24 hours. Recharging battery after each use will prolong battery life; frequent heavy discharges between recharges and/or overcharging will reduce battery life. The battery can be recharged using the supplied 120 Volt AC Charger. Make sure all other unit functions are turned off during recharging, as this can slow the recharging process

TROUBLESHOOTING

Unit Not Charging

Make sure all of the unit’s functions are turned off.
Check that the charger is properly connected to the 12 volt DC charging port and a live 120 volt AC outlet.
Make sure the 12 volt DC charging adapter is properly connected to both the unit and a functioning DC power source.
Unit Fails to Jump-Start
Make sure unit’s power switch is in the on position.
Make sure a proper polarity cable connection has been established.
Check that jump-starter has a full charge. Recharge unit if necessary
Make sure the Compressor Power Switch is in the on position.
Make sure the nozzle connector is securely screwed on to the valve stem when attempting to inflate tires; or that the nozzle adapter is securely screwed into the SureFit™ nozzle connector and is inserted properly into the item to be inflated on all other inflatables.
The compressor may be overheated. Press the compressor power switch to turn the compressor off. Restart after a cooling down period of approximately 30 minutes.
Check that jump-starter has a full charge. Recharge unit if necessary. USB Power Port will not power appliance
Make sure the USB Charging Port Power Button is in the on position.
Some USB-powered household electronics will not operate with this USB charging/power port. Check the manual of the corresponding electronic device to confirm that it can be used with this type of USB charging/power port.
Check that jump-starter has a full charge. Recharge unit if necessary. 12 Volt DC Portable Power Supply will not power appliance
Make sure the appliance does not draw more than 5 amps
Check that jump-starter has a full charge. Recharge unit if necessary. LED Area Light does not come on
Make sure the LED Area Light Power Button is in the on position
Check that jump-starter has a full charge. Recharge unit if necessary
