SMR Pitched Roof System
SunModo introduces the SMR System, the best value-pitched roof mounting system on the market. The SMR System represents a huge leap in racking technology. The optimized design makes the SMR Rails not only the lightest but also the strongest rails on the market. With fast and easy Pop-On Clamps and L-Foot Adaptors, professional installers can mount, adjust, and secure PV panels with a single tool. Save money on materials and installation time.

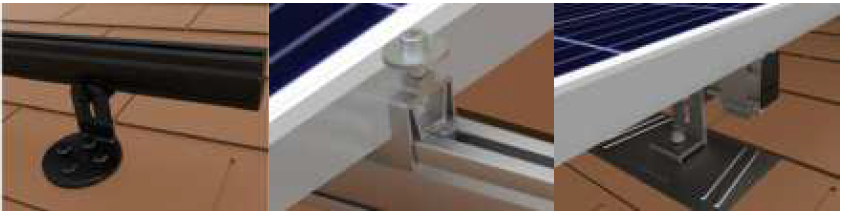

- A full range of mounts available (NanoMount shown) to best fit your system needs and requirements.
- The Bonding Pop-On Universal Mid Clamps accommodate PV module frame heights ranging from 30mm to 48mm.
- Pop-On End Clamps are adjustable for different module frame heights and provide fast and secure attachment of modules.
SMR100
The SMR System represents a huge leap in racking technology. The optimized design makes the SMR Rails not only the lightest but also the strongest rails on the market.

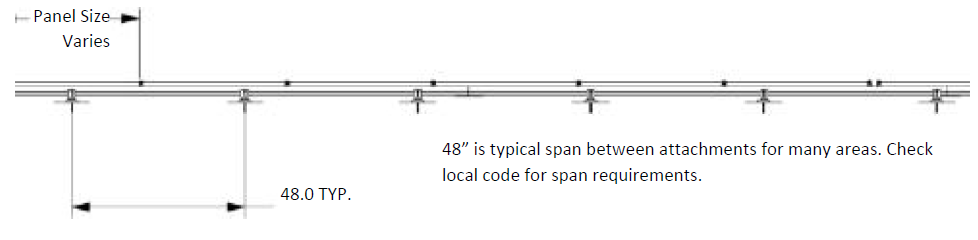

SMR100 Rail achieves a 4′ span or more up to 90 psf snow load or 190 mph winds.

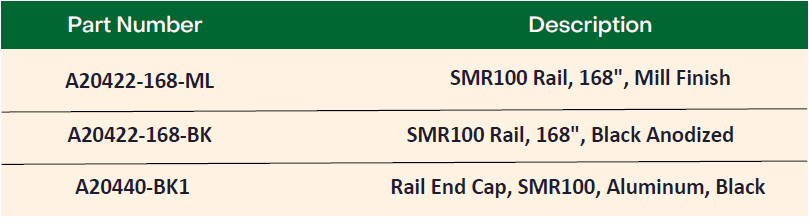

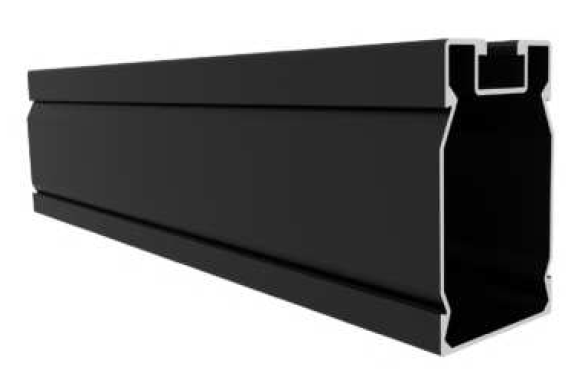

Manufactured in 168” stock size in both Mill Finish and Black. SMR100 is extruded 6005-T5 aluminum.
Components
SMR Pop-On Mid Clamp
The Bonding Pop-On Universal Mid Clamps accommodate PV module frame heights ranging from 30mm to 48mm. The fastest installing mid-clamps on the market.
SMR Pop-On End Clamp

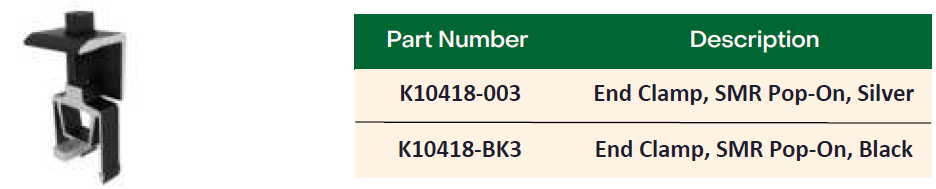

End Clamps are adjustable for different module frame heights and provide fast and secure attachment of modules.
Bottom End Clamp
The SMR100 Bottom Clamp secures the PV panel frame flange to the Rail, which allows the Rail to be cut flush with the module frame.

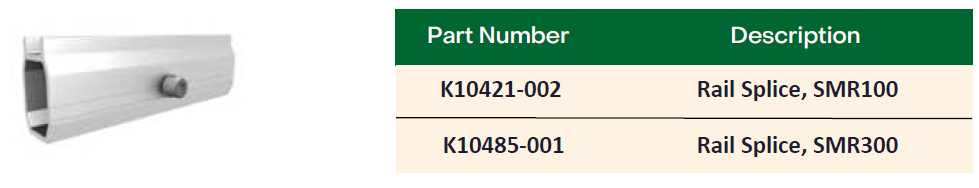

SMR Structural Splice
Structural splice with fast and easy single bolt installation.

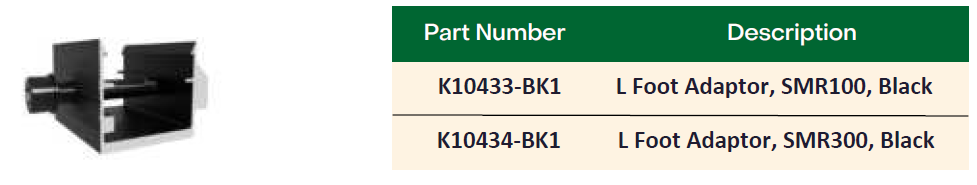

SMR L– Foot Adaptor
Fast and easy Pop-On L-Foot Adaptor speeds installation and eliminates old-fashioned TBolts. Install fast with full confidence in every attachment.

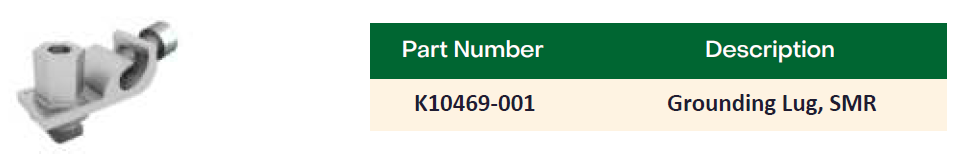

Grounding Lug
The Grounding Lug provides proper grounding of the PV System per UL 2703 and NEC 690.47

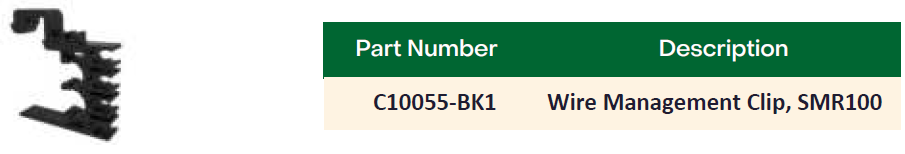

Wire Management Clip
The clip attaches to the channel on the SMR rail to provide a fast and secure solution for wire management.

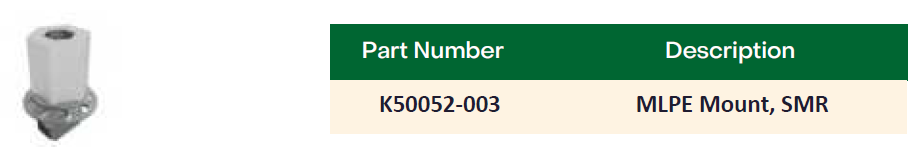

Microinverter Mount
The Microinverter Mount bonds to compatible microinverters and power optimizers.

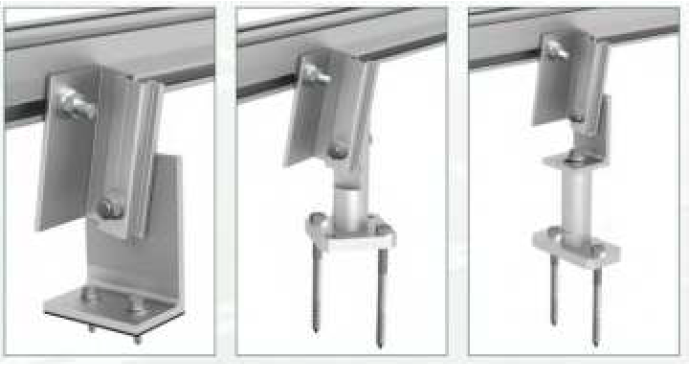

Roof Attachments
Composite Shingle

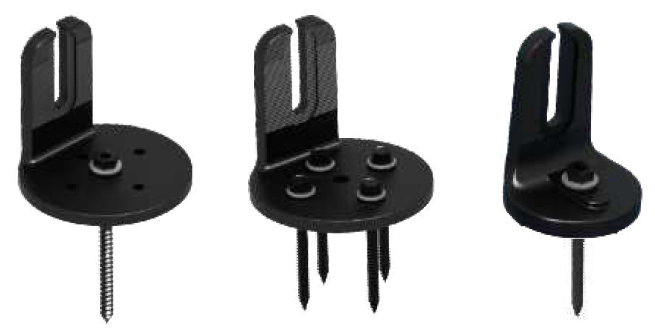

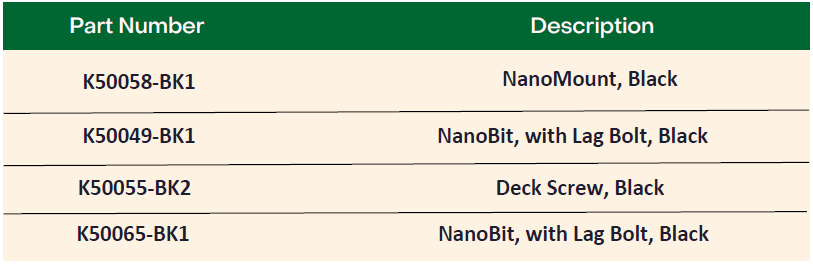

Nano Family
Damaging roof shingles used to be one of solar installers’ worst challenges.
Now, the easy, affordable solution is Nano Family, SunModo’s patented solar mounting innovations. NanoMount® and NanoBit™ eliminate the need for lifting the shingle and dramatically cut down the installation time. The patented mounts are High-Velocity Hurricane Zone Approved – Passed TAS 100 (a)Wind-Driven Rain Test. The Ultra Soft Weather-Resistant gaskets are integrated with the mounts.
All materials are compatible with residential roof coverings as well as commercial single-ply roof membranes.

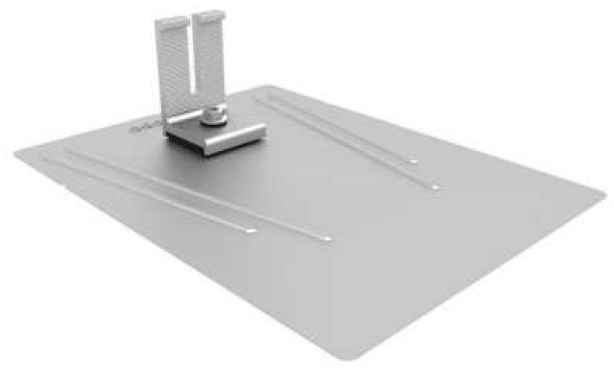

SoloFlash™

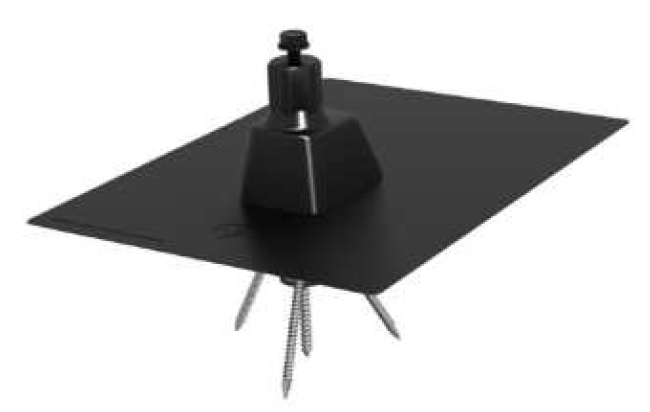

SunModo is proud to introduce SoloFlash™, the most economical flashing on the market.
The cone-shaped flashing design diverts water from the roof penetration, while the stamped emboss features stiffen the flashing to minimize bending. The L-foot has a serrated surface on both sides for rail mounting. The Ultra Soft Weather-Resistant gasket is integrated with the L-Foot for maximum water protection.
The mount is High-Velocity Hurricane Zone Approved – Passed TAS 100 (a) Wind-Driven Rain Test.
Metal Roof
MRB™

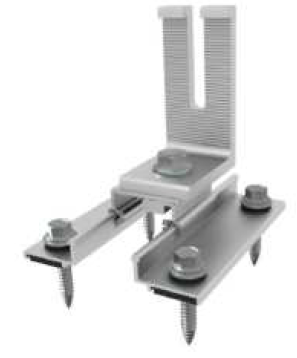

SunModo is proud to introduce MRB™, the most versatile metal roof attachment on the market.
Specially designed to work for metal roof profiles, MRB™ makes easy work of any metal roof installation. Pair it with our SMR pitched roof system, and you’ll be on and off the roof in record time.
The mount is High-Velocity Hurricane Zone Approved and Passed TAS 100 (a) Wind-Driven Rain Test.
NanoBit™
SunModo is proud to introduce our latest innovation, NanoBit™, Solar’s Fastest Attachment for Metal Roof.
Specially engineered for easy installation, NanoBit™ is the fastest installing metal roof mount in the industry. Pair it with our SMR pitched roof system, and you’ll be on and off the roof in record time.
The mount is High-Velocity Hurricane Zone Approved and Passed TAS 100 (a) Wind-Driven Rain Test.
Tile Roof

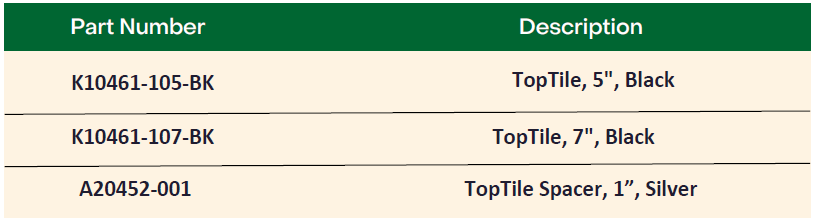

TopTile Mount®
TopTile® is the world’s first PV mounting system that is mounted entirely above the tiles. The mounting system spares an installer the need to deconstruct the tile roof.
The patented mount eliminates the need to deconstruct the tile roof and significantly reduces time, and minimizes tile breakage during installation. The system also allows installation on the ridges of curved tiles for superior water leak protection.
The mount is High-Velocity Hurricane Zone Approved – Passed TAS 100 (a) Wind-Driven Rain Test.

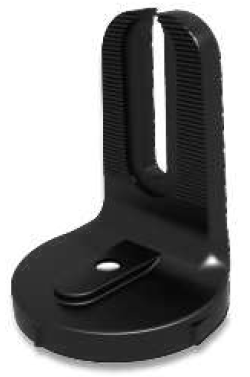

L-Foot Kits
SunModo L-Foot Kits are heavy-duty and can be used in a variety of ways for mounting. One long vertical slot for the adjustment of the rail when facing uneven roofing. Serrated on both sides for secure mounting on the rail. We also offer a Tall L-Foot version that gives you more flexibility on vertical adjustments.

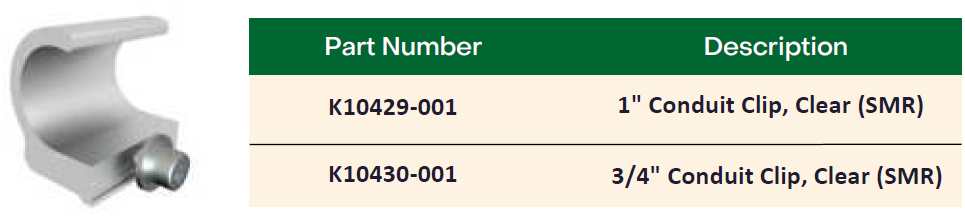

Conduit Clip
The Conduit Clip provides a quick and easy way to manage 3/4” and 1” diameter conduit to any rooftop solar installation.

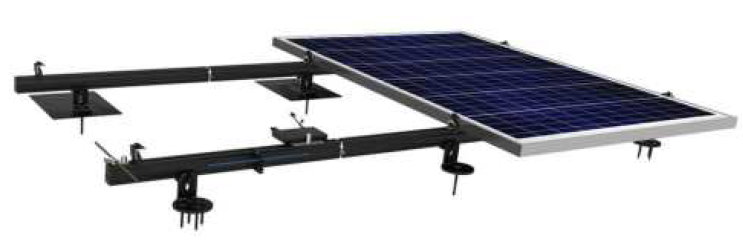

SMR Tilt-Up System
Overview
SMR Pitched Roof System
SMR Tilt-up is a single-row tilt-up system ideal for light roof structure applications. Utilizing our new SMR rail and pop-on technology, the system offers various tilt degree options to maximize the power output at a lower cost. Designed to meet the needs of a variety of roof structures, the installation is easy and quick to save your labor costs and time.
Flat and low-slope roof mounting L Foot, combined with tilt-up rails, provides versatile pitch angles. With a variety of attachment options, the system can be configured in endless ways to meet your specific needs.
SunModo offers three standard tilt-up rail lengths of 8, 14, and 25 inches to achieve tilt angles of 10 and 20 degrees. A 10-foot full-length tilt-up rail is also available for on-site cutting, allowing maximum flexibility. The top mount and side mount standoffs are available in 3 lengths.
Components

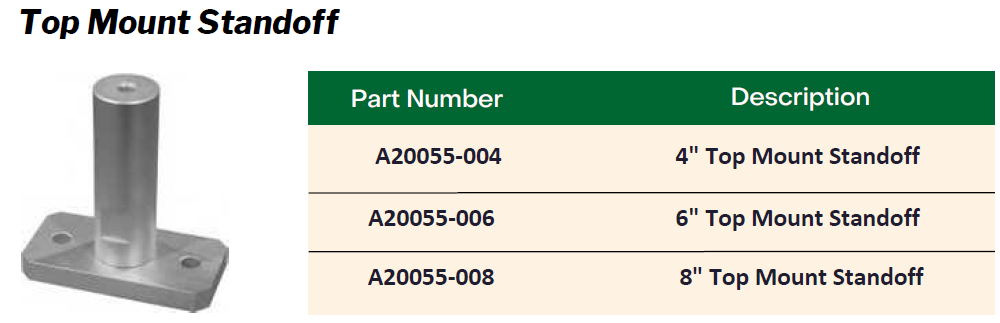

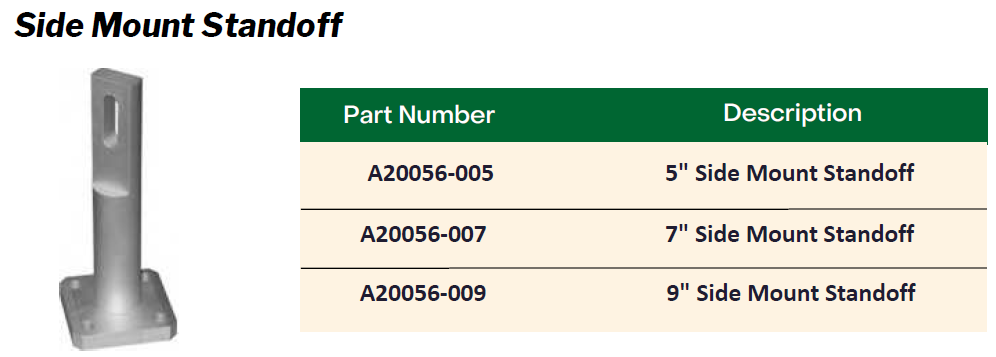

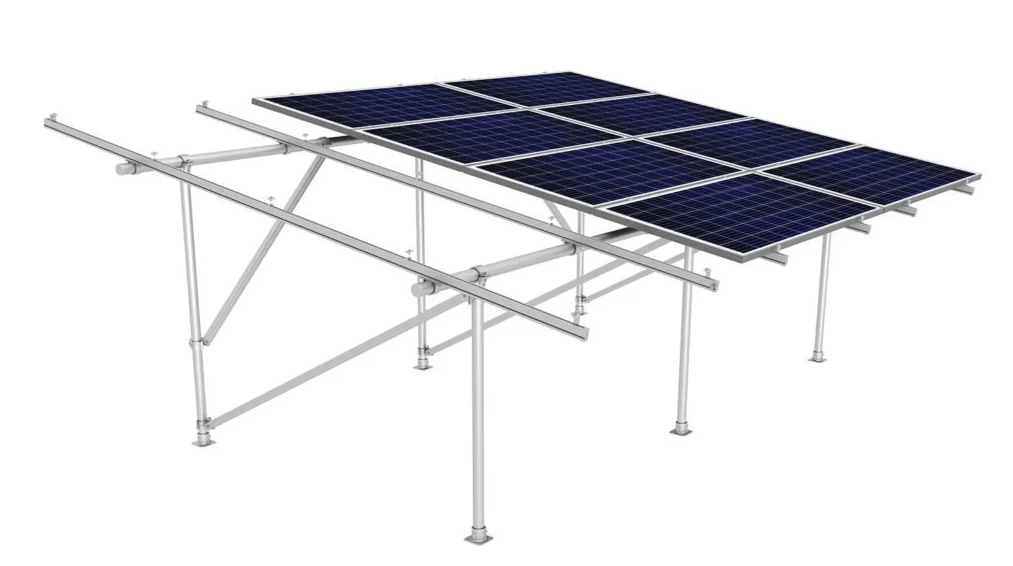

SunTurf Ground Mount System
Overview
SunTurf® Ground Mount System
SunModo offers the next generation of the Ground Mount System. The streamlined design combines the simplicity of a pipe-based system with next-level engineering. SurTurf Ground Mount is ideal for solar installers looking for a low-cost high performance system that can accommodate a wide variety of soil conditions.
SunTurf Ground Mount System easily integrates SMR300 Rails with Schedule 40 Steel Pipes. The innovative swivel pipe cap kit can accommodate terrains up to a 27% slope east-west and a 120% slope north-south. Combine SunTurf with our Ground Screws or Augers and do a complete install of a 15kW system with only one day on the job site.
- Position the Pipe Cap on top of the vertical pipe and lay the horizontal pipe into the Pipe Cap assembly.
- Attach the rail to the pipe using the aluminum pipe clamp kit. To prevent galvanic reaction, the PVC insulator must be installed between the steel pipe and the aluminum rail.
- When bracing is required for a post, the pipe clamp kit is used.
SMR300

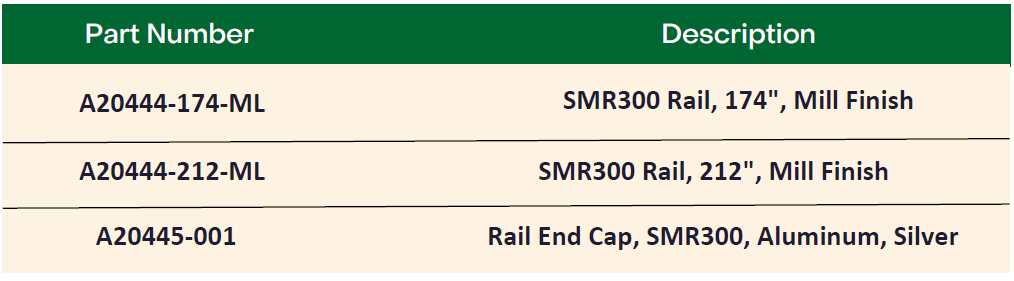

SMR300 rail is specially designed for the SunTurf system to maximize spans and optimize cost and performance. The rails can handle a variety of components, such as rail splices, micro-inverters, and clamps.
Manufactured in 2 stock sizes in mill finish. The rails are extruded from 6005-T5 aluminum.
Components
SMR Pop-On Mid Clamp
The Bonding Pop-On Universal Mid Clamps accommodate PV module frame heights ranging from 30mm to 48mm. The fastest installing mid-clamps on the market.
SMR Pop-On End Clamp
End Clamps are adjustable for different module frame heights and provide fast and secure attachment of modules.
SMR Structural Splice
Structural splice with fast and easy single bolt installation.
Grounding Lug
The Grounding Lug provides proper grounding of the PV System per UL 2703 and NEC 690.47۔

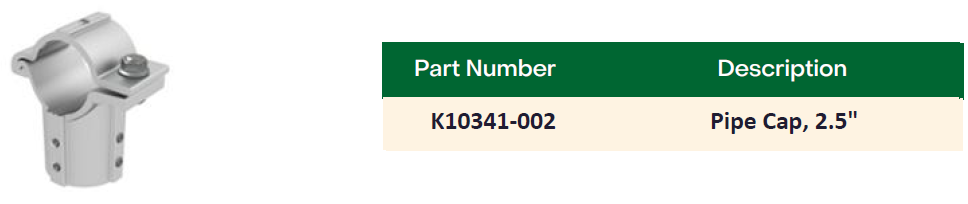

Swivel Pipe Cap Kit
This swivel pipe cap saves time and money by eliminating the need to grade the land before installing the PV array on sloped terrain.
Pipe T-Clamp Kit
Position the T-Clamp Kit on top of the vertical pipe and lay the horizontal pipe into the Pipe Cap assembly.

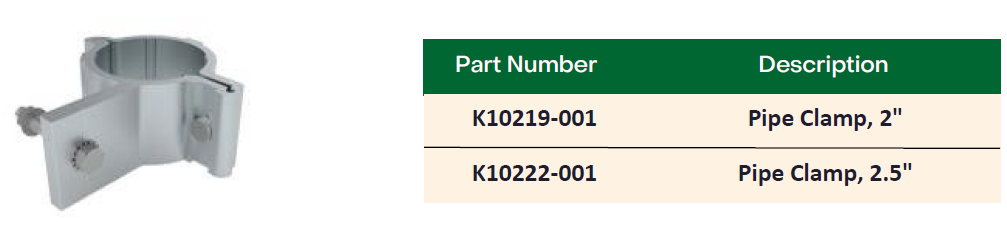

Pipe Clamp Kit
The powder-coated cast aluminum 2-piece clamps allow for quick installation of the braces, available in 2.0” and 2.5”.

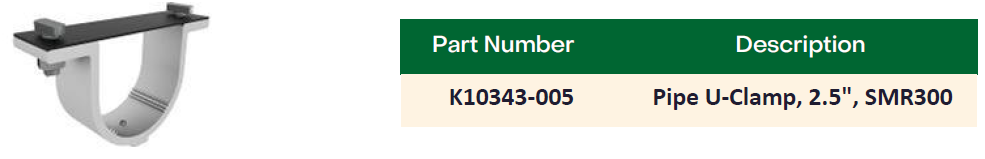

Pipe U-Clamp Kit
Attach the rail to the pipe using the U-Clamp Kit. To prevent galvanic reaction between dissimilar metals, the included PVC Insulator must be installed between the steel pipe and the aluminum rail.
Pipe Splice Kit
Pipe Splice Kit provides bonding and strength between horizontal pipes when needed.
Steel Post Base Plate Kit
The steel post base can be used where a more robust connection is needed to resist higher wind and seismic loads.
Helical Screw Anchor
Helical screw anchors are suitable for use in weak to moderate strength soils and areas with a high water table.
Ground Screw Anchor
Ground screw anchors are suitable for use in hard-packed earth or soils with large amounts of cobble and gravel. Set screws are included.

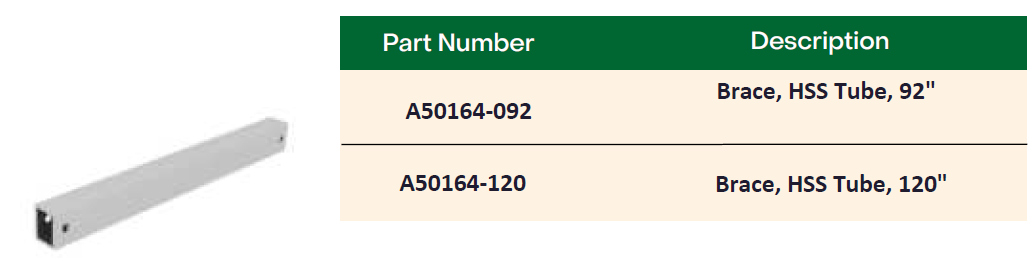

Diagonal Brace
The high-strength steel diagonal tube brace provides extra support as needed.
12-Gauge High Strength Steel (HSS) Pipe
SunModo provides either a 2” (2.375” O.D.) or 2.5” (2.875” O.D.) 12-gauge, HSS, hot dip galvanized pipe with a minimum 50 KSI yield strength. 2.5” HSS pipe end caps provide a clean finished look to the system.
Racking Partner of Professional Installers
Solar installation professionals rely on a single partner for all their mounting and racking needs. SunModo is dedicated to providing innovative racking solutions that help you install systems quickly and painlessly. Our products already set the standard for durability, safety, and security, and our R&D Team is constantly engineering affordable, hassle-reducing innovations that meet industry standards. You can access our products through our preferred distributors.
ABOUT SUNMODO
SunModo is a private U.S. company focused on innovative racking and mounting solutions for professional installers in the fast-growing solar industry. We are energized every day by a desire to make solar installation easier, more reliable, and more affordable. Our commitment to innovation can be seen across our entire product line, which includes 20-plus industry-shaping patents.
For more manuals by SUNMODO, visit ManualsLibraryy
