Target Room Essentials 5 Shelf Bookcase User Manual

Target Room Essentials 5 Shelf Bookcase

Room Essentials

• 5 Shelf Bookcase – Espresso Brown dpci 249-05-0297
• 5 Shelf Bookcase – White dpci 249-05-0298
• 5 Shelf Bookcase – Black dpci 249-05-0299

Assembly Instructions

Congratulations on your latest Target purchase.

Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions, and you’ll be on your way to transforming your room in no time. Good luck—though we’re confident you won’t need it.

Before you begin

1. Check for damaged or missing parts. Call 1-800-440-0680 to order missing supplies.
2. Use the carton as a working surface to prevent product damage during assembly.
3. Gather all tools before assembly.

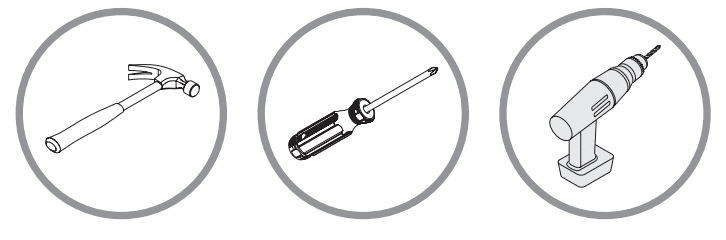

Tools needed

WARNING

This product is intended for floor use only and not for wall mount use.

Serious or fatal crushing injuries can occur froma a furniture tip-over.

To help prevent tip-over:

• Anchor unit to stud or wall
• Place the heaviest items on the lowest surfaces as far back from the front edge as possible.
  Do not set TVs or other heavy objects on top of this product, unless the product is specifically designed to accommodate them.
• Do not allow children to climb or hang on the unit.
• Use of tip-over restraints may only reduce, but not eliminate, the risk of the tip-over.
• This unit contains small parts that could be a choking hazard for small children. Children should be under adult supervision at all times o,, or serious injury could occur.
• Do not mount or attach anything to the sides, rear, or front of the unit as this can create a force which can cause the unit to tip. Serious bodily injury and/or damage to personal belongings may occur.

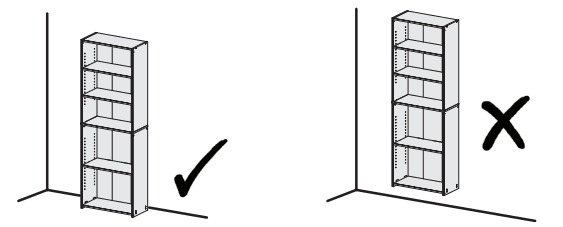

• Do not stack units. Stacking of units can cause an unsafe tip-over hazard, which may cause serious bodily injury and/or damage to personal belongings.
• All units must be secured individually to the wall
• DO NOT use this item if any parts are missing, damaged, or worn.
• DO NOT use this item unless all fixings are secured.
• Always use on a level, even surface.

This product is TSCA Title VI Compliant
This product is California 93120 Compliant For Formaldehyde Phase II

 WARNING: This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer or birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov/furniture.

Manufactured by Friul Intagli Industries spa, Via Oderzo 68, 33080 Villanova di Prata, Italy. Imported and distributed by Target Corporation, 1000 Nicollet Mall, Minneapolis, MN 55403, USA Guest Services: 1-800-440-0680

Weight capacity/care instructions

WARNING: This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.

WARNING: Please ensure that all the objects are removed before moving the assembled unit. The unit must be lifted by more than one person, not dragged or pushed. Failure to do so will cause product damage, instability, product collapse, and/or serious injury.

Cleaning Instructions

• Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet,t and follow with a dry cloth.
• DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide.
• Rubber or vinyl should not be in contact with the cabinet for an extended period. These types of fluids and materials can cause the finish to deteriorate, crack, or peel.
• No lubrication required.

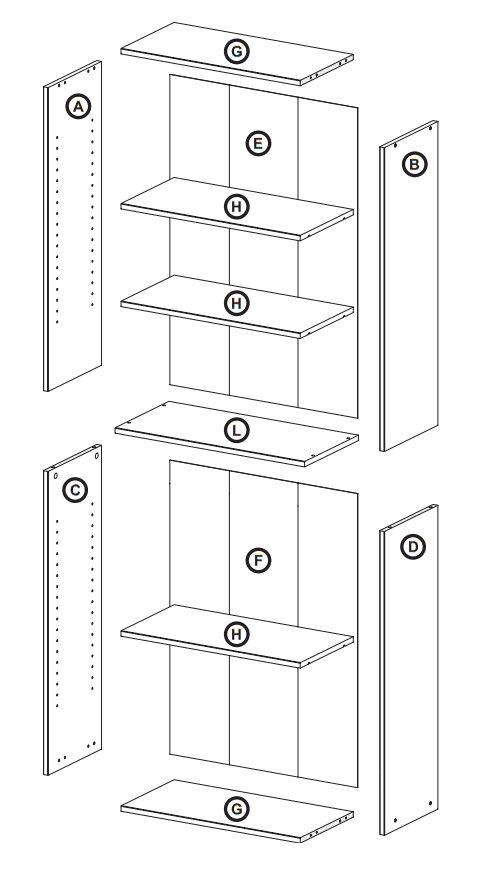

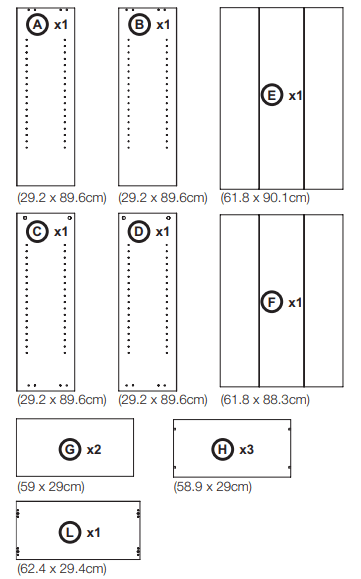

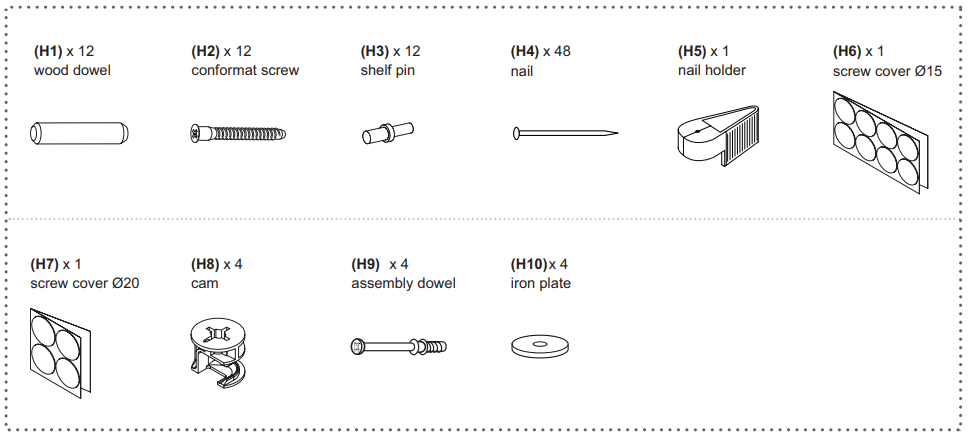

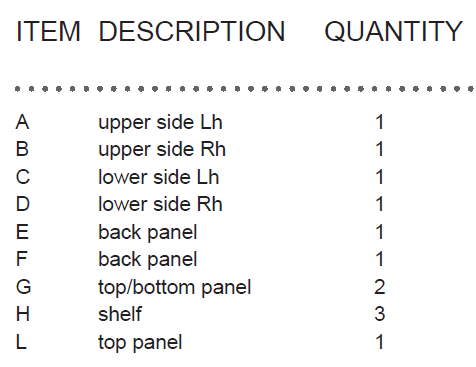

Hardware

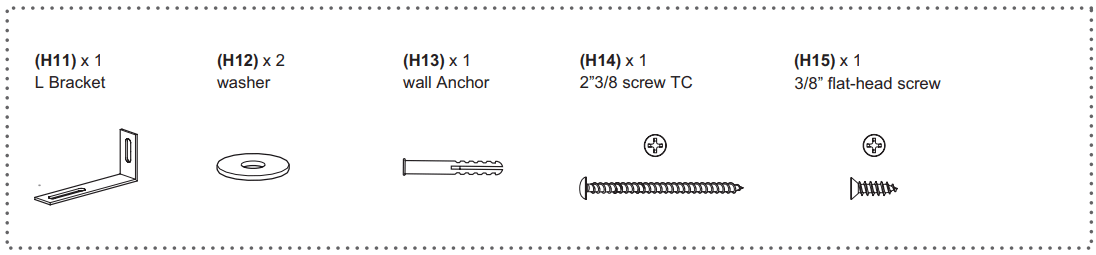

Anti-tip Hardware

Helpful Hints

We recommend you protect your work surface during assembly to prevent scratching or damage to table tops, wood floors, etc.

Unfinished edges are shaded in gray. It is important to understand how finished edges go together. Take a moment to lay out all.. We recommend you protect your work surface during assembly to prevent scratching or damage to table tops, wood floors, etc., the wood piece,,s and note the finished and unfinished (raw wood) edges. Arrange pieces so all finished edges are facing the same way. While assembling, take care to note in each diagram which way the finished edges are facing. In general, all finished edges will face forward, and all finished sides (large area of the piece) will face up when the product is fully assembled and upright.

Hand tighten screws

We recommend you hand-tighten screws. Use care not to overtighten if using power tools.

Step 1.

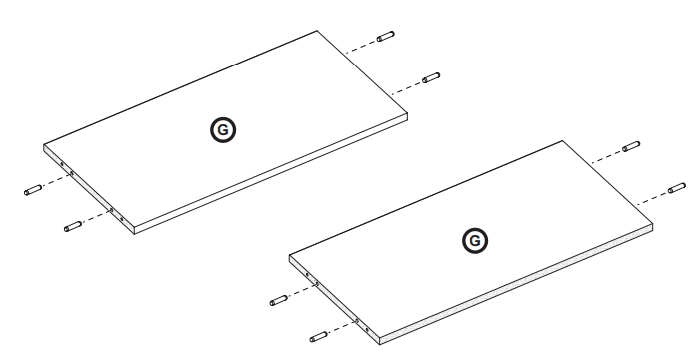

1. Carefully tap wooden dowels (H1) into place.

Step 2.

1. Carefully tap the cam (H8) into place.

Step 3.

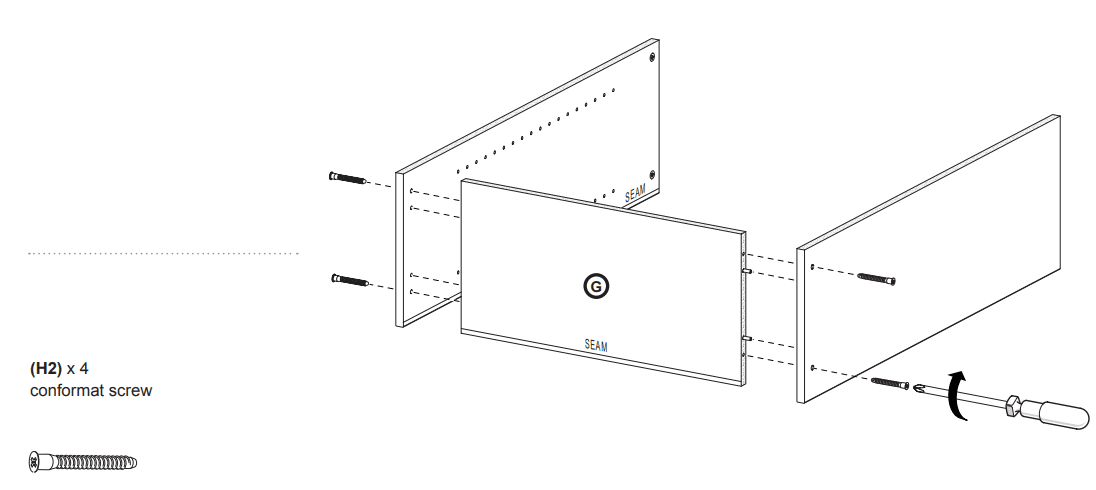

1. Attach the bottom panel (G) onto the side panels (C) and (D) as shown. Ensure wooden dowels are aligned correctly with the holes of matching parts before attaching.
2. Secure bottom panel (G) onto side panels (C) and (D) using screwdriver to turn fitting conformat screw (H2) to fix.

Step 4.

1. Attach the top panel (G) onto the side panels (A) and (B) as shown. Ensure wooden dowels are aligned correctly with the holes of matching parts before attaching.
2. Secure top panel (G) onto side panels (A) and (B) using screwdriver to turn fitting conformat screw (H2) to fix.

Step 5.

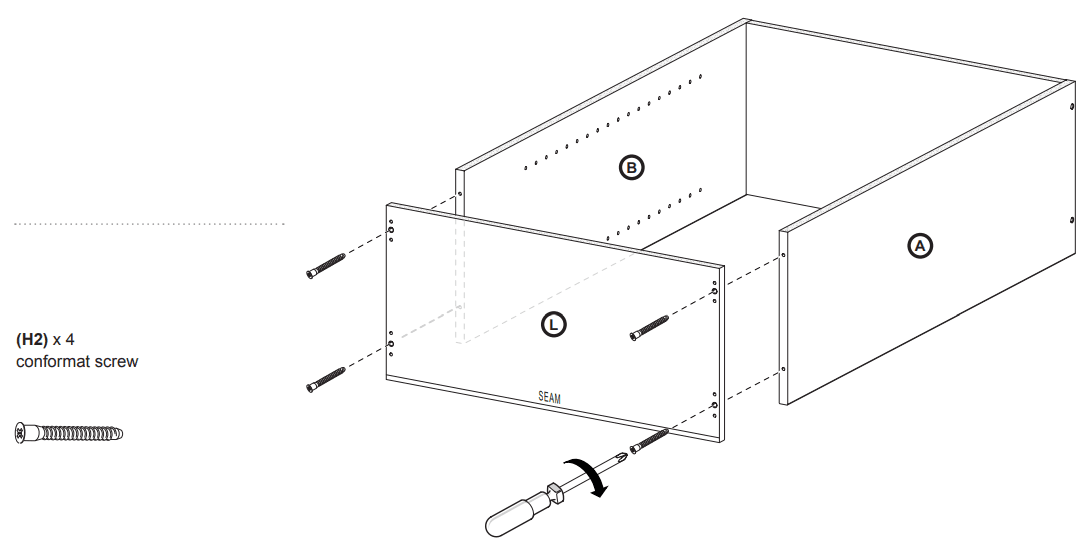

1. Attach the central panel (L) onto the side panels (A) and (B) as shown.
2. Secure central panel (L) onto side panels (A) and (B) using screwdriver to turn fitting conformat screw (H2) to fix.

Step 6.

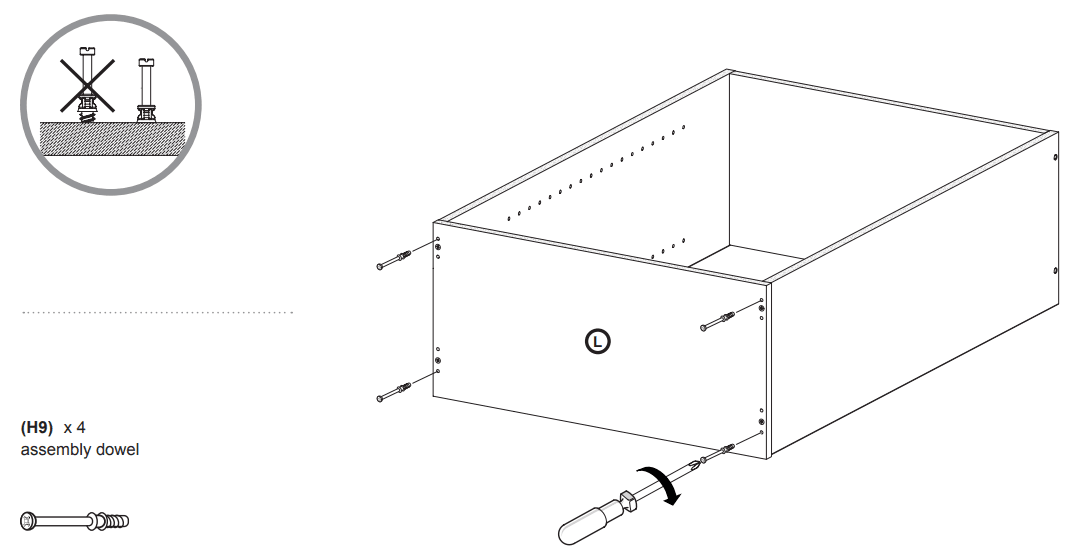

1. Attach 4x assembly dowel (H9) into the pre-drilled holes on central panel (L), screw-In cam bolts must be screwed down flush.

Step 7.

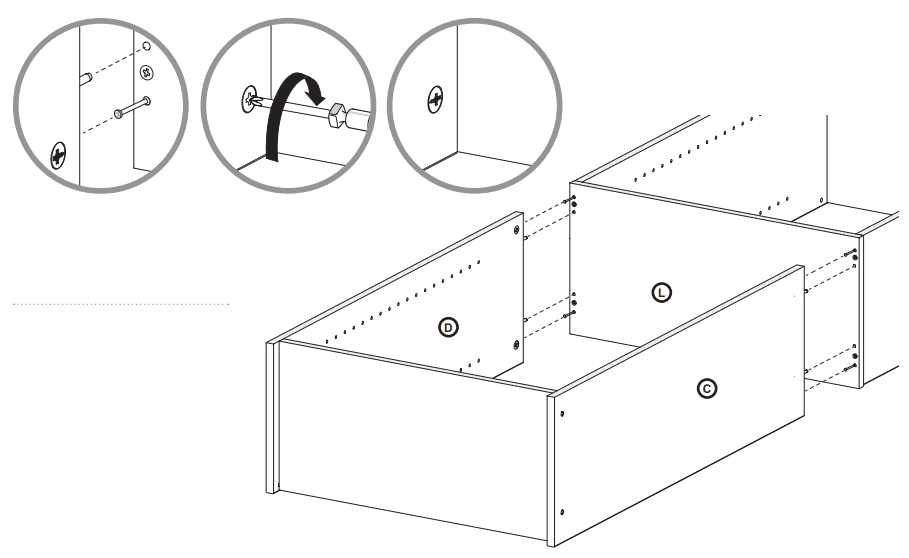

1. Attach the central panel (L) onto the side panels (C) and (D) as shown. Ensure the assembly dowels are aligned correctly with the cam of matching parts before attaching.
2. Secure the central panel (L) onto the side panels (C) and (D) using a screwdriver to turn the fitting cam to fix.

Step 8.

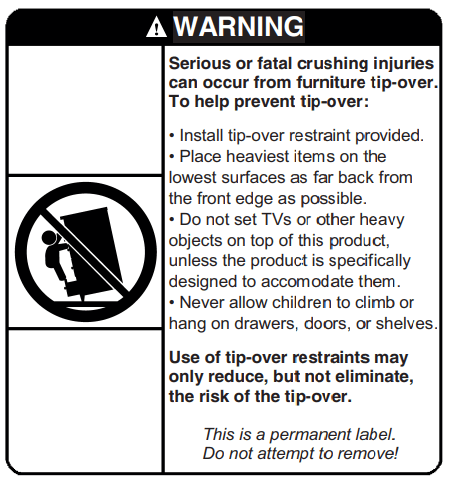

 WARNING

Serious or fatal crushing injuries can occur from a furniture tip-over.

To help prevent tip-over:

• Install the tip-over restraint provided.
• Place the heaviest items on the lowest surfaces as far back from the front edge as possible.
• Do not set TVs or other heavy objects on top of this product, unless the product is specifically designed to accommodate them.
• Never allow children to climb or hang on drawers, doors, or shelves.

Use of tip-over restraints may only reduce, but not eliminate, the risk of the tip-over.

This is a permanent label. Do not attempt to remove!

1. Position back panels (E) and (F) as shown.Step 9.

1. Before attaching the back panels (E) and (F), check the correct allocation.

Step 10.

1. Attach back panels (E) and (F) onto the back side of the unit using all 44x nail (H4), evenly distributed with the help of the nail holder (H5), and 4 iron plates (H10) with 4x nail (H4), as shown in Step 11.

1. With the help of an assistant, carefully stand up the unit

Step 12.

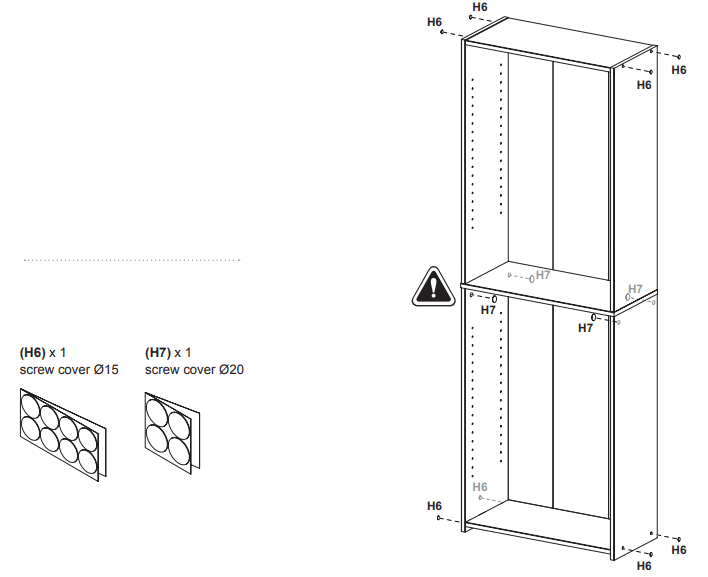

1. Attach screw cover Ø15 (H6) over screwheads.
2. Attach screw cover Ø20 (H7) over camheads.Step 13.

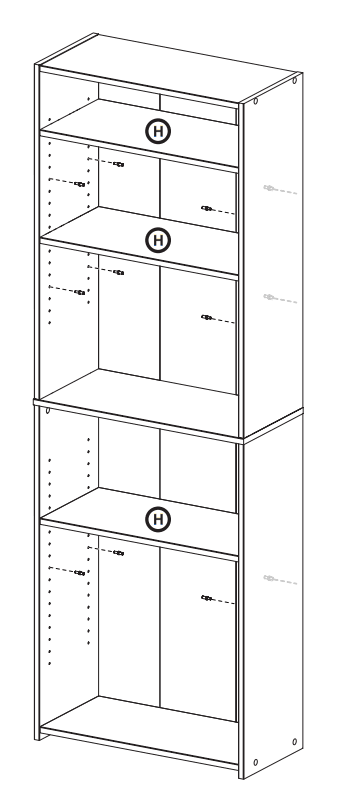

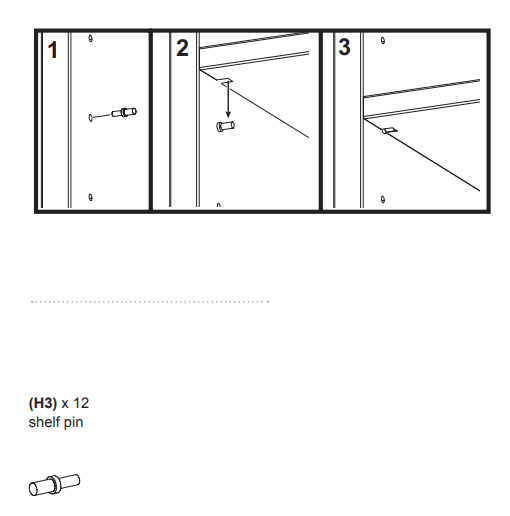

1. Insert shelf pin (H3) as shown.
2. Position the shelves (H) on the shelf pin (H3) as shown.
3. Press firmly until you don’t see the shelf pin (H3).

Step 14.

All units must be secured to the wall with anti-tip hardware.

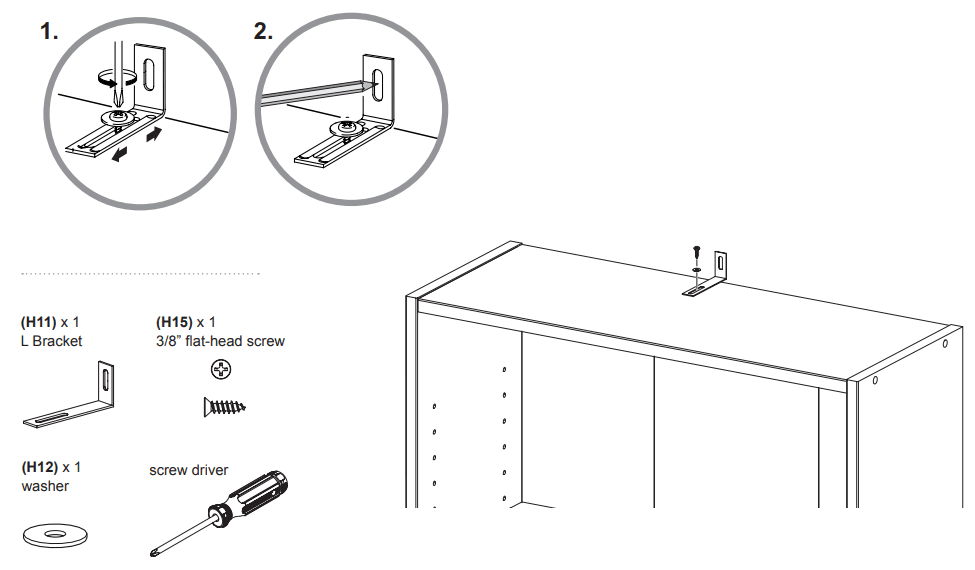

1. Fix the L Bracket (H11) onto the top of the unit using washer (H12) and 3/8” screw (H15). Do not fully tighten.
2. Align the unit against the wall and mark the location of the L Bracket (H11) against the wall .

step 15

Wood.

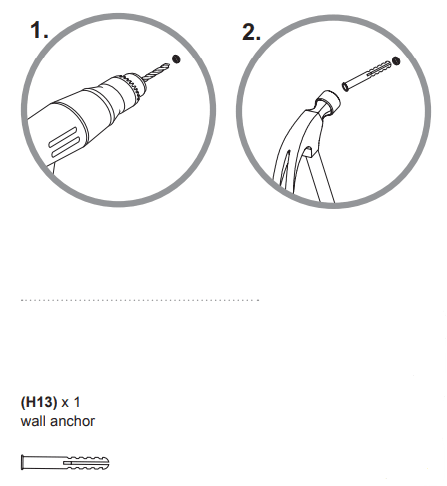

If fixing to wood make sure that it isn’t chipboard as screws can easily pull away from the core structure. Drill 1/8 inch diameter pilot holeat the height you marked with a pencil (picture 1)

Masonry or brick.

Drill 5/16 inch diameter pilot hole and 3/4 inch deep hole into the wall at the height you marked with a pencil. Drive the plastic plug into the hole, using ahammer if needed (picturess 1 and 2)

Cavity wall.

Drill 5/16 inch diameter pilot hole at the height you markedhole at the height you marked with a pencil. Drive the plastic plug into the hole, using ahammer if needed (pictures 1 and 2)

step 16

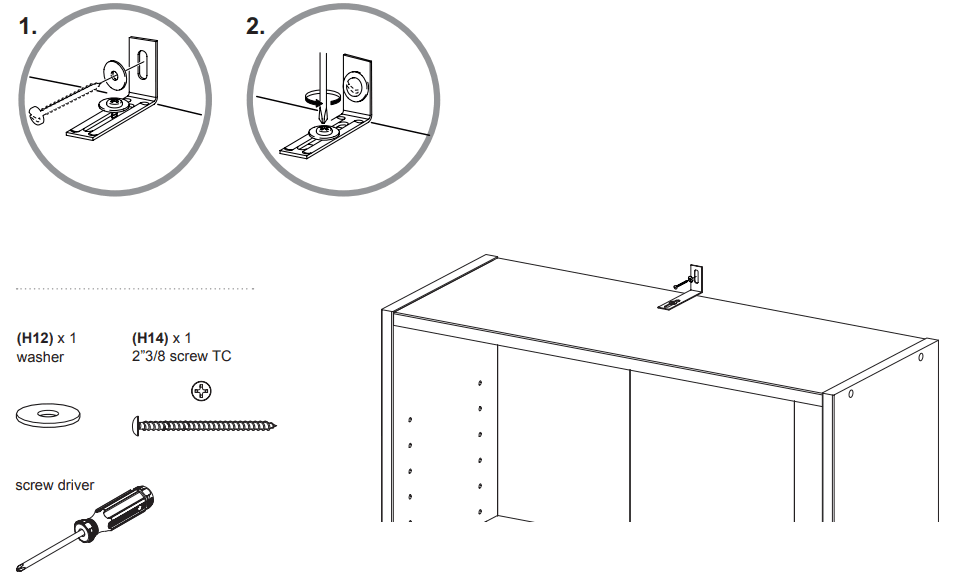

1. Fix the L Bracket (H11) to the wall using washer (H12) and 2 3/8” screw TC (H14).
2. Tighten screw (H15) into unit and screw (H14) into wall.
