Tecknet TK-KB013 Gaming Keyboard User Manual

Tecknet TK-KB013 Gaming Keyboard

Download and Install the Software

1. Access the following link to download and install the software: https://tecknet.com.

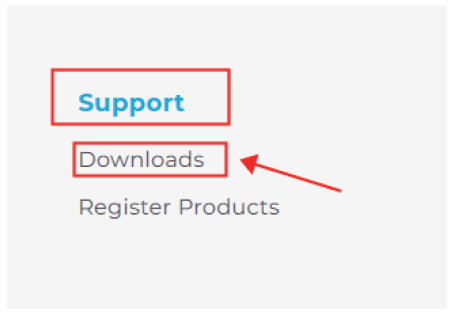

2. Scroll to the bottom of the webpage and click on “Support” > “Downloads”.

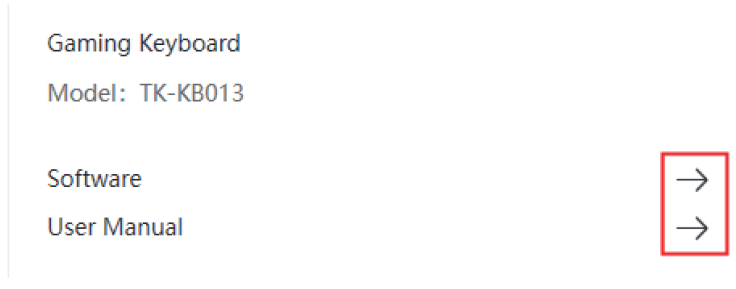

3. Please select TK-KB013 and click to download the Software and User Manual.

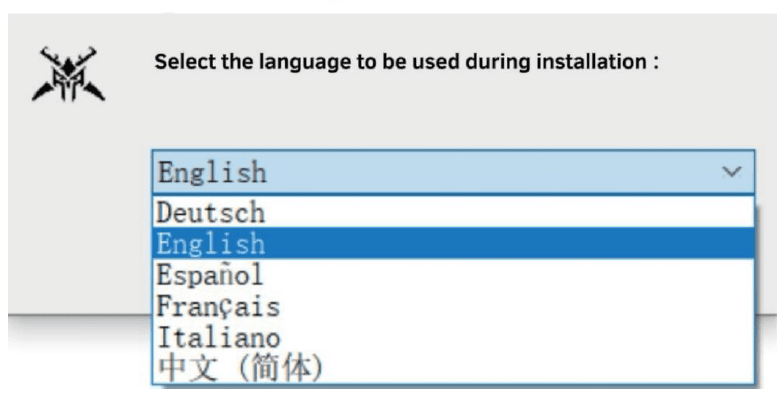

4. After downloading, please select the language you want before installation:

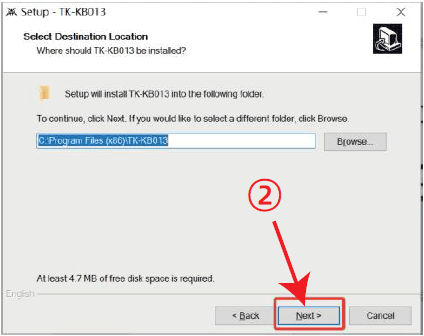

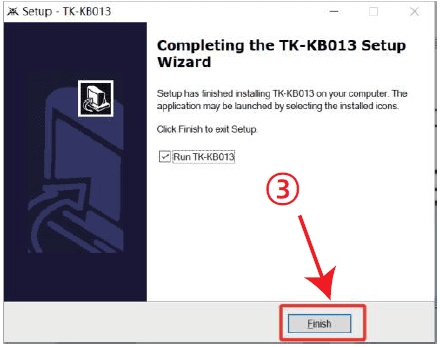

5. Click Next, select the installation path and software name, and click Next to complete the installation.
6. After the download and installation is complete, click the icon to start the software:*If you have any suggestions on our driver interface experience, you are welcome to feedback with our customer service, we will collect your suggestions and upgrade our driver interface in the follow-up, to bring you a good experience, thank you very much!

Using the Driver

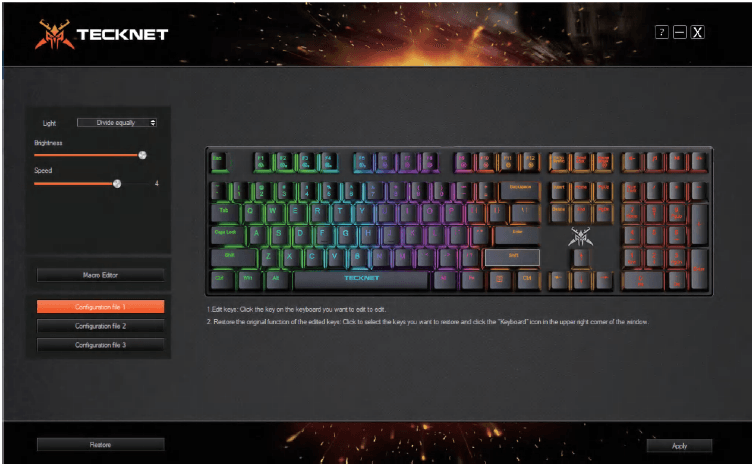

Light Selection

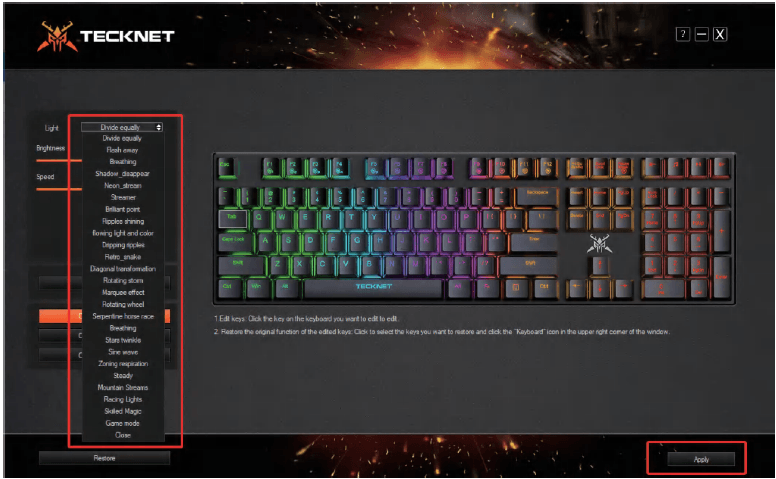

• Click on the Light drop-down arrow, select your preferred light, and click Apply.

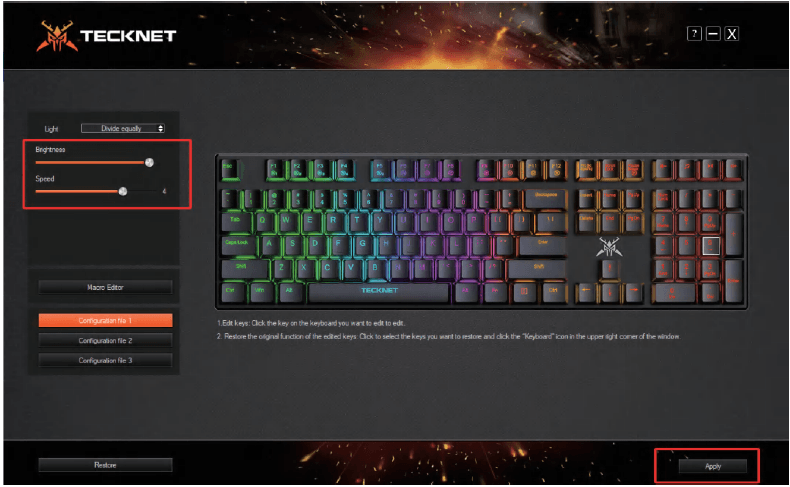

• You can also adjust the brightness of the light and the speed at which the light changes by using the adjustment bar below.

Macro Editing

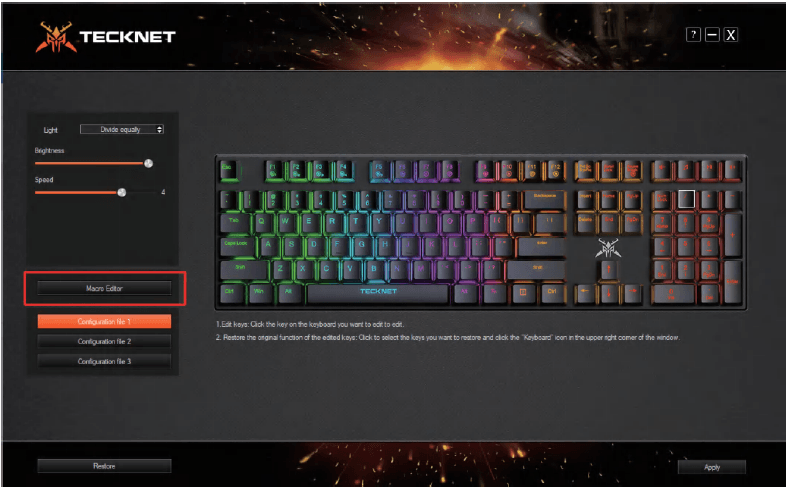

1. Click the Macro Edit.

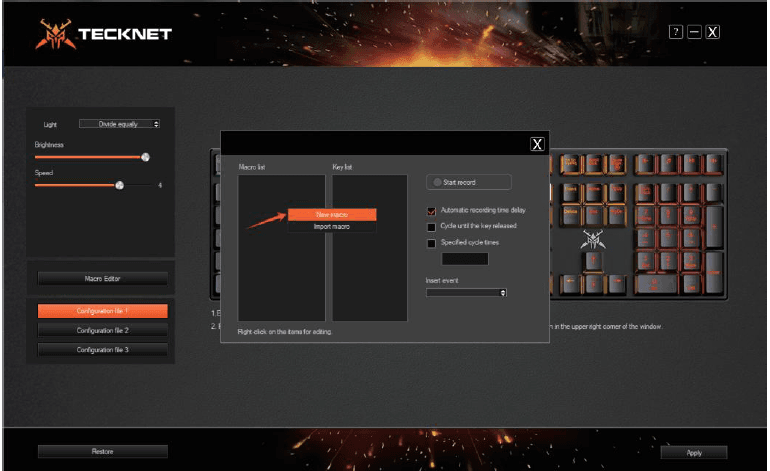

2. Right-click in the Macro List area to create a new macro and give it a name.

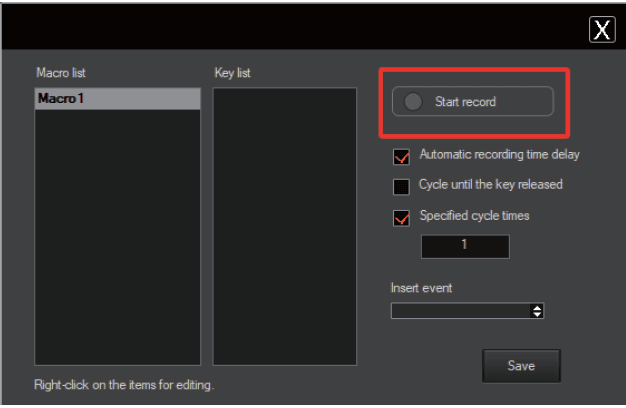

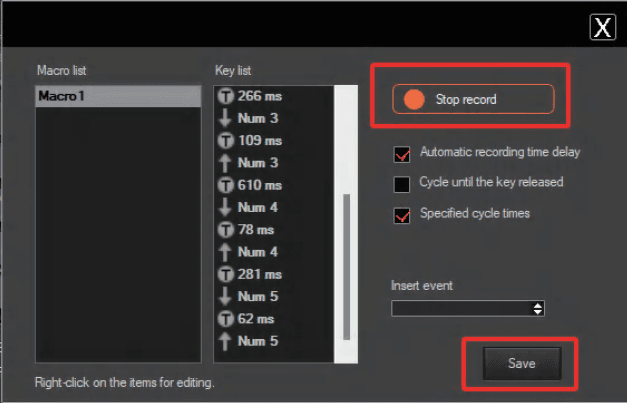

3. Click Start record, enter the custom combination of buttons you want to edit, and click Stop record when you are done.
4. After finishing, you can also add mouse buttons to the edited buttons.
5. Click Save when you are done editing to end the macro.

Key Editing and Macro Application

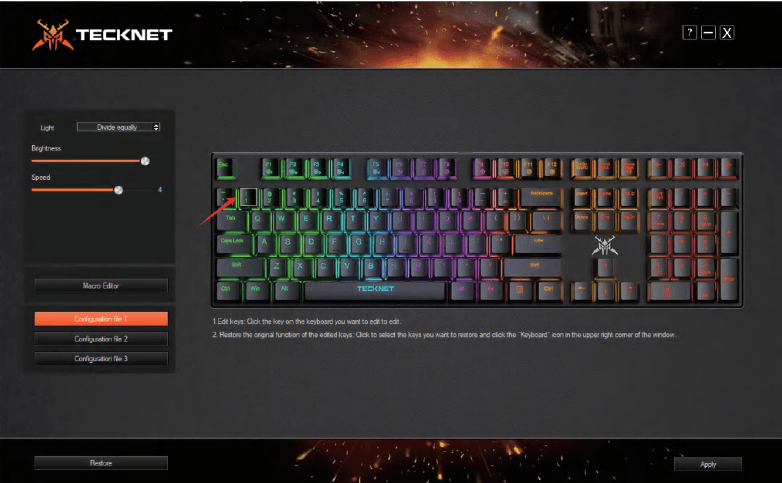

Select the key you want to edit, (the key will appear as a white wireframe) click on the key.

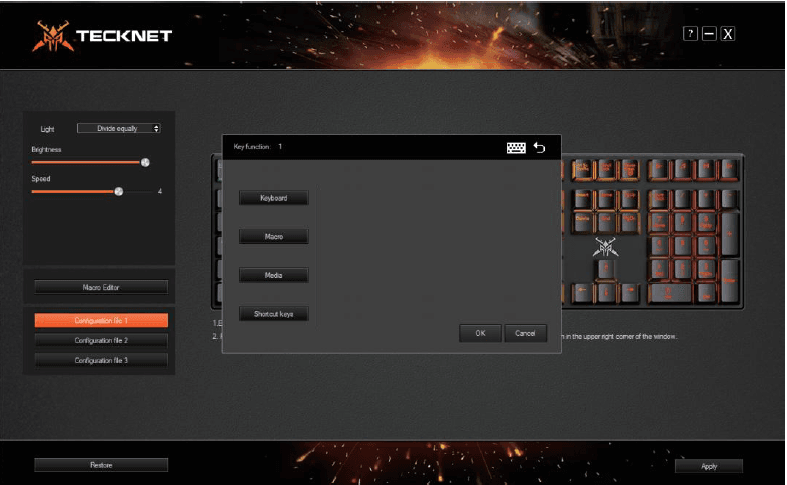

There are 4 options for defining the keyboard.

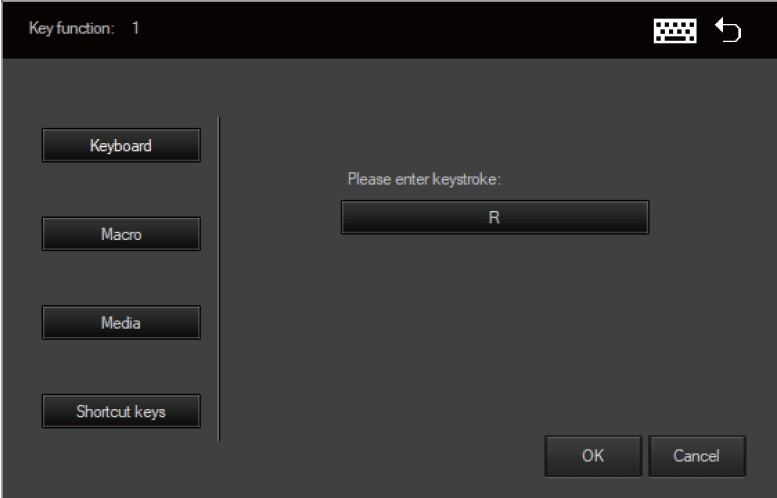

1. Click Keyboard. The selected key can be defined as another key on the keyboard or another combination of keys. Simply enter the key and click OK.

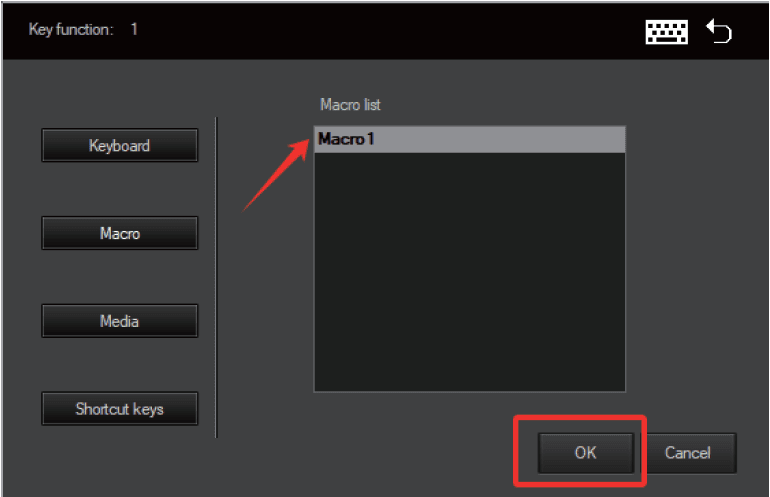

2. Click Macro. Select the edited Macro, click to select it, and then click OK The custom key is set to the recorded Macro.

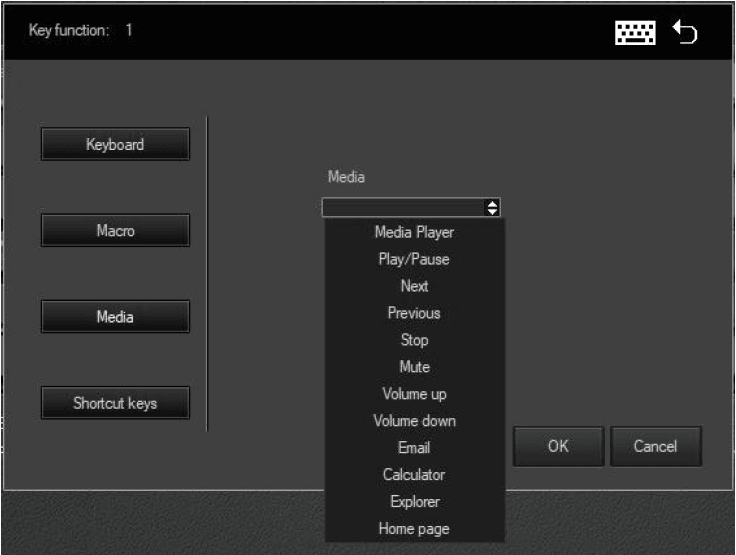

3. Click Media, drop down the list, click the desired multimedia action, and the custom key will be set to the multimedia function.

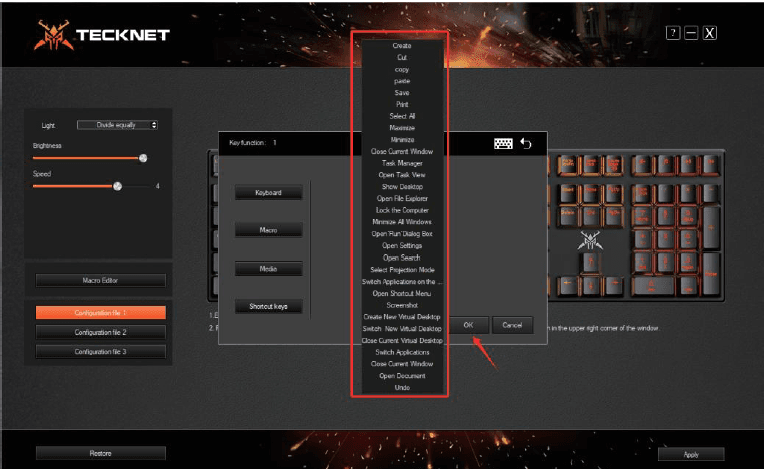

4. Click Shortcut Keys, drop down the list, click the desired shortcut key operation, and the custom key will be set as the shortcut key function.Note: The Key that is successfully set will display a red wireframe.

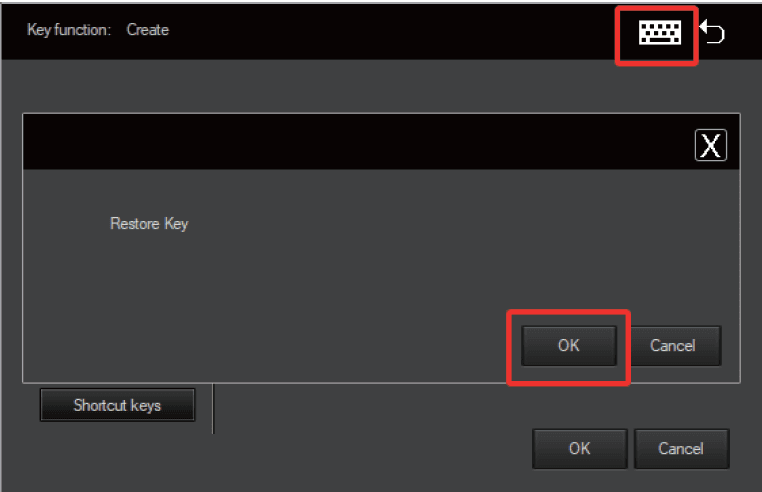

*If you want to restore a custom key: click on the key you want to restore, click on the “Keyboard icon” in the upper right corner and click “OK” to complete the restoration.

Configurable 3 Files

The keyboard can define a total of 3 sets of custom keys in 3 files. You can use different profiles for different usage scenarios to meet your multiple needs.

Restore Factory Settings

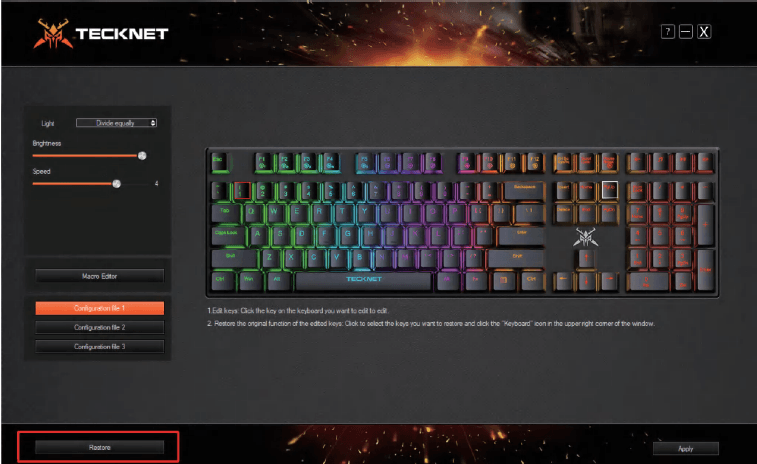

Click Restore to restore factory settings.

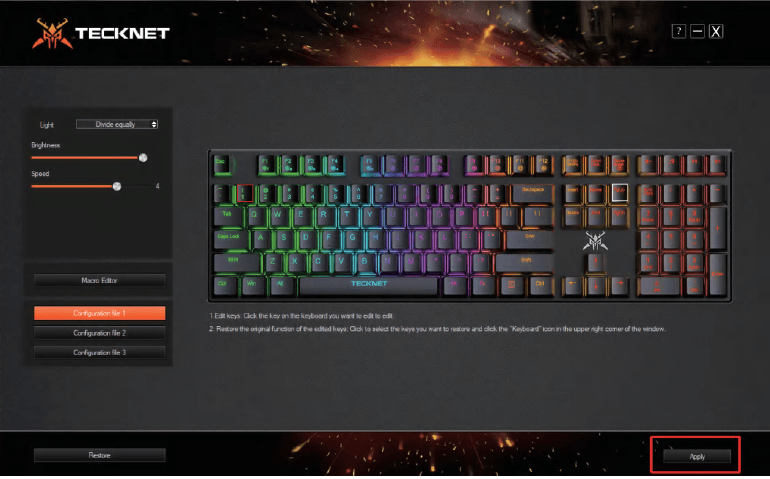

Note: When all operations are complete, to apply them to the keyboard, be sure to click Apply.
