Tefal Easy Fry Far-Infrared Vision Air Fryer Manual

Tefal Easy Fry Far-Infrared Vision Air Fryer

SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS

• This appliance is intended to be used in the household only. It is not intended to be used in the following applications, and the guarantee will not apply for:
  • staff kitchen areas in shops, offices, and other working environments;
  • farm houses;
  • by clients in hotels, motels, and other residential-type environments;
  • bed and breakfast type environments.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended to be operated by means of an external timer or a separate remote control system.
• If the power supply cord is damaged, it must be replaced by the manufacturer, an authorised service centre or a similarly qualified person in order to avoid any danger.
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance (depending on model).
• Clean removable parts with a nonabrasive sponge and dishwashing liquid. Do not clean them in a dishwasher (depending on model).
• Clean the inside and the outside of the appliance with a damp sponge or cloth. Please refer to the «Cleaning» section of the instructions for use.
• The appliance can be used up to an altitude of 4000m.

Do

• Read and follow the instructions for use. Keep them safe.
• Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on the model).
• Check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance (alternating current).
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Centre.
• For models with detachable power cords, only use the original power cord.
• Always plug the appliance into an earthed socket.
• Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.
• Always unplug your appliance: after use, to move it, or to clean it.
• In the event of fire, unplug the appliance and smother the flames using a damp tea towel.
• To avoid damaging your appliance, please ensure that you follow recipes in the instructions and recipe book; make sure that you use the right amount of ingredients.

Do not

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Centre.
• Do not use an extension lead. If you nevertheless decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.
• Do not let the power cord dangle.
• Do not unplug the appliance by pulling on the power cord.
• Never move the appliance when it still contains hot food.
• Never operate your appliance when empty.
• Do not switch on the appliance near to flammable materials (blinds, curtains…). or close to an external heat source (gas stove, hot plate, etc.).
• Do not store any inflammable products close to or underneath the furniture unit where the appliance is located.
• Never take the appliance apart yourself.
• Do not immerse the product in water.
• Do not use any powerful cleaning products (notably soda-based strippers), nor brillo pads, nor scourers.
• Do not store your appliance outside. Store it in a dry and well-ventilated area.

Advice/information

• When using the product for the first time, it may release a non-toxic odour. This will not affect use and will disappear rapidly.
• For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).
• This appliance is designed for domestic use only and not for outdoor use. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility, and the guarantee does not apply.
• For your safety, only use the accessories and spare parts designed for your appliance.

Environment

• Before discarding your appliance, the battery from the timer has to be removed and disposed at a local civic waste collection centre or an approved service centre. (depending on model). Environment protection first!
  • Your appliance contains valuable materials which can be recovered or recycled.
  • Leave it at a local civic waste collection point.

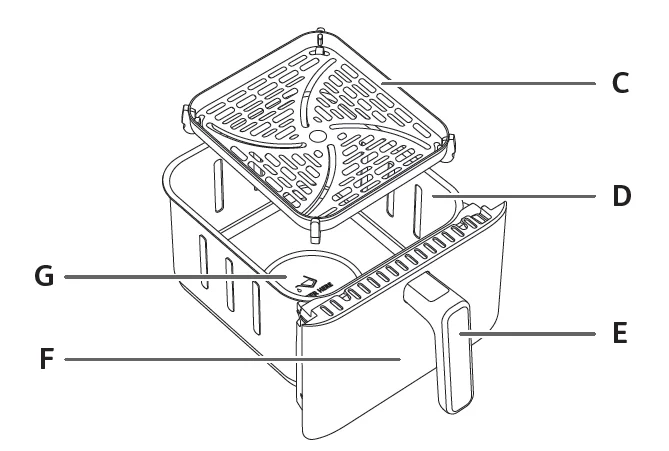

DESCRIPTION

• A. Timer/ Temperature Display
• B. Digital Touchscreen Panel
• C. Removable Basket
• D. Bowl
• E. Bowl Handle
• F. Visible Window
• G. Water Fill-Up Area

BEFORE FIRST USE

1. Remove all packaging materials.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the bowl and the removable basket with hot water, some washing-up liquid and a non-abrasive sponge.
   Warning: the bowl and the removable basket are not dishwasher safe.
4. Wipe the inside and outside of the appliance with a damp cloth. The appliance works by producing hot air. Do not fill the bowl (D) with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a flat, stable, heat-resistant work surface away from water splashes.
2. Do not fill the bowl with oil or any other liquid. Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

USING THE AUTOMATIC COOKING MODES

The appliance can cook a large range of recipes.
Cooking times for the main foods are given in the section ‘Cooking Guide’.

1. Connect the power supply cord to an electrical socket.
2. Add water into “water fill-up area” before placing the removable basket.
3. Place the removable basket at the bottom of the bowl.
4. Place the food in the bowl.
   Note: Never fill the bowl beyond the maximum amount indicated in the table (see section ‘Cooking Guide’), as this could affect the quality of the end result.
5. Slide the bowl back into the appliance.
   Caution: Do not touch the bowl during use and for some time after use, as it gets very hot. Only hold the bowl by the handle.
6. To begin cooking, you can select between the manual settings and the automatic cooking mode.
   1. If choosing manual settings:
      • Press “Manual Setting”.
      • Adjust the temperature with the + and – buttons on the digital screen. Thetemperature varies from 70°C to 200°C.
      • Then pressto set the desired cooking time by pressing the + and – buttons. The timer can be set for between 1 and 60 minutes.
      • Press the Start buttonto begin cooking with the selected temperature and time settings. Cooking starts. The selected temperature and remaining cooking time will alternate on the screen display.
      • To view the cooking performance, you can press the light buttonduring hot air frying.
   2. If choosing automatic cooking mode:
      1. Press “Program” to select your desired cooking mode on the screen (these modes are described in detail in the “Cooking guide” section).
      2. Confirm the cooking mode by pressing the Start button. This will launch the cooking process.
      3. Cooking starts. The selected temperature and remaining cooking time will alternate on the on-screen display.
      4. To view the cooking performance, you can press the light buttonduring hot air frying.
7. Excess oil from the food is collected at the bottom of the bowl.
8.  Some foods require shaking halfway through the cooking time (see section ‘Cooking Guide’). To shake the food, pull the bowl out of the appliance by the handle and shake it. Then slide the bowl back into the appliance to restart cooking.
9. When you hear the timer sound, the cooking time has finished. Pull the bowl out of the appliance and place it on a heat-resistant surface.
10. Check if the food is ready. If the food is not ready yet, simply slide the bowl back into the appliance and set the timer for a few extra minutes.
11. When the food is cooked, take out the bowl. To remove food, use a pair of tongs to lift the food out of the bowl.
    Caution: When you turn the bowl, be careful of any excess oil collected at the bottom of the bowl that may leak onto the food and that the removable basket may fall. After hot air frying, the bowl, the removable basket and the food are very hot. Depending on the type of food cooked in the appliance, be careful as steam may escape from the bowl.
12. When a batch of food is ready, the appliance is instantly ready for preparing another batch of food.

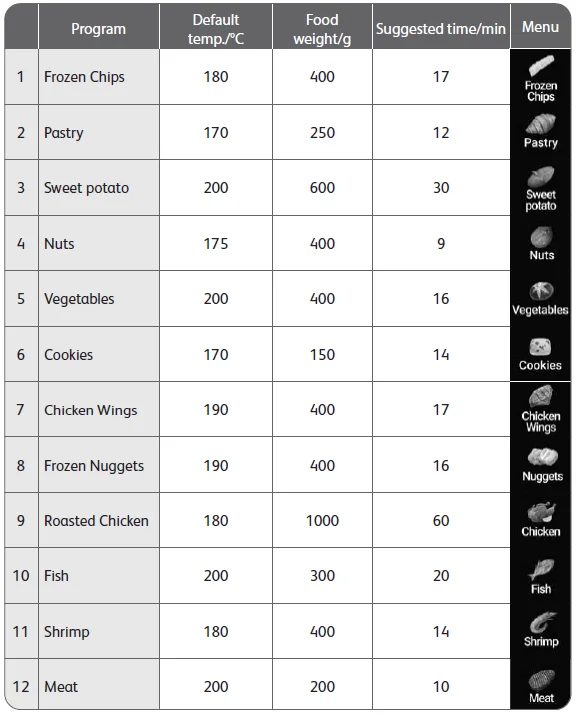

COOKING GUIDE

The table below helps you to select the basic settings for the food you want to prepare. Note: The cooking times below are only a guide and may vary according to the variety and batch of potatoes used. For other foods, the size, shape and brand may affect results. Therefore, you may need to adjust the cooking time slightly.

TIPS

• Smaller foods usually require a slightly shorter cooking time than larger-sized foods.
• A larger amount of food requires only a slightly longer cooking time, while a smaller amount of food requires a slightly shorter cooking time.
• Shaking smaller-sized foods halfway through the cooking time can improve the result and help prevent uneven cooking.
• Add some oil to fresh potatoes for a crispy result. After adding a spoonful of oil, fry the potatoes for a few minutes.
• Do not cook extremely greasy foods in the appliance.
• Snacks that can be cooked in an oven can also be cooked in the appliance.
• The optimal recommended quantity for cooking fries is 800 grams.
• Use ready-made puff and shortcrust pastry to make filled snacks quickly and easily.
• Place an oven dish in the appliance bowl if you want to bake a cake or quiche, or if you want to fry fragile ingredients or fillings. You can use an oven dish in silicone, stainless steel, aluminium, or terracotta.
• You can also use the appliance to reheat food. To reheat food, set the temperature to 160°C for up to 10 minutes. For health purposes, the settings must ensure that the core of the food reaches 75°C for at least 2 minutes.

MAKING HOME-MADE CHIPS

For the best results, we advise using frozen chips. If you want to make homemade chips, follow the steps below.

1. Choose a variety of potatoes recommended for making chips. Peel the potatoes and cut them into equal-thickness chips.
2. Soak the potato chips in a bowl of cold water for at least 30 minutes, drain them and dry them with a clean, highly absorbent tea towel. Then pat with paper kitchen towel. The chips must be thoroughly dry before cooking.
3. Pour 1 tablespoon of oil (vegetable, sunflower or olive) into a dry bowl, put the chips on top and mix until they are coated with oil.
4. Remove the chips from the bowl with your fingers or a kitchen utensil so that any excess oil stays behind in the bowl. Place the chips in the bowl.
   Note: Do not tip the container of oil-coated chips directly into the bowl in one go, excess oil will end up at the bottom of the bowl.
5. Fry the chips according to the instructions in the section Cooking guide.

CLEANING

Clean the appliance after every use. The bowl and the grid have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the nonstick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.
   Note: Remove the bowl to let the appliance cool down more quickly.
2. Wipe the outside of the appliance with a damp cloth.
3. Clean the bowl and removable basket with hot water, some washing-up liquid and a non-abrasive sponge. You can use a degreasing liquid to remove any remaining dirt. The bowl and removable basket are not dishwasher safe.
   Tip: If dirt is stuck at the bottom of the bowl and the grid, fill them with hot water and some washing-up liquid. Let the bowl and the grid soak for approximately 10 minutes. Then rinse clean and dry.
4. Wipe inside of the appliance with hot water and a damp cloth.
5. Clean the heating element with a dry, cleaning brush to remove any food residues.
6. Do not immerse the appliance in water or any other liquid.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit the Tefal website at www.tefal.com or contact the Tefal Consumer Care Centre in your country. You can find the phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Tefal dealer.

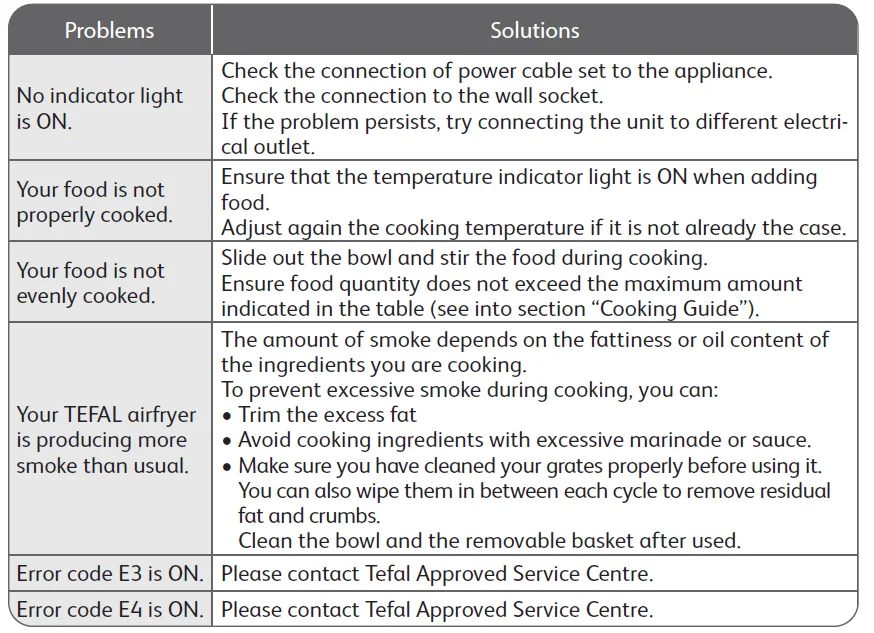

TROUBLESHOOTING

If you encounter problems with the appliance, visit www.tefal.com for a list of frequently asked questions or contact the Consumer Care Centre in your country.

If your appliance is still not running properly, please contact Tefal Approved Service Centre.
