About This Guide
This guide provides a brief introduction to the Deco Whole Home Mesh Wi-Fi System and regulatory information. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Deco experience.

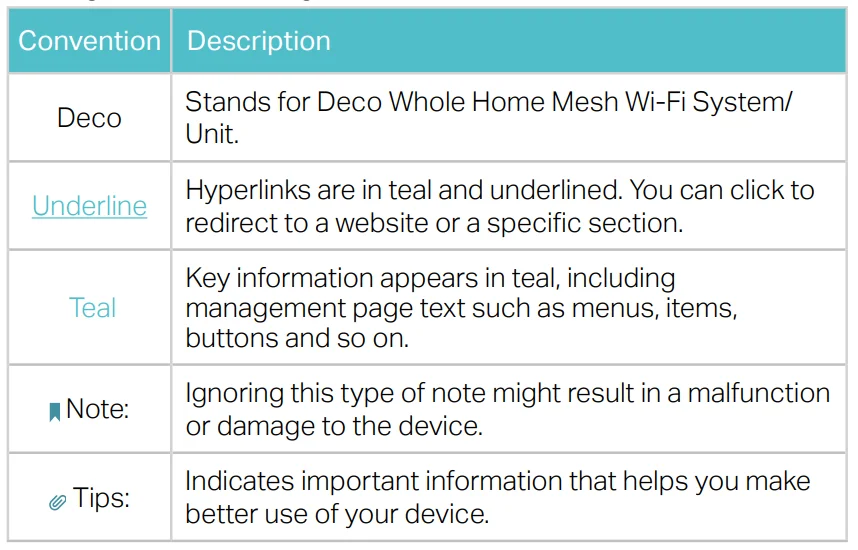

Conventions
In this guide, the following conventions are used:
More Info
- Specific product information can be found on the product page at https://www.tp-link.com.
- A Technical Community is provided for you to discuss our products at https://community.tp-link.com.
- Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support.
Speed/Coverage/Device Quantity Disclaimer
Maximum wireless signal rates are the physical rates derived from the IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and the quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume, and density of traffic, and client location.
MU-MIMO Disclaimer
Use of MU-MIMO requires clients to also support MU-MIMO.
IoT Compatibility Disclaimer
IoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use.
Seamless Roaming Disclaimer
Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
HomeShield Disclaimer
HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

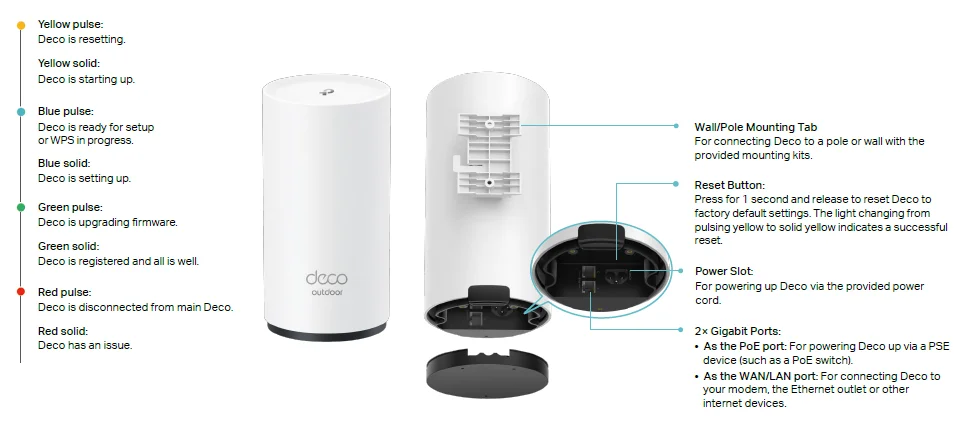

Appearance
Each Deco has an LED that changes color according to its status, a mounting tab, two gigabit ports, a power slot, and a Reset button. See the explanation below:

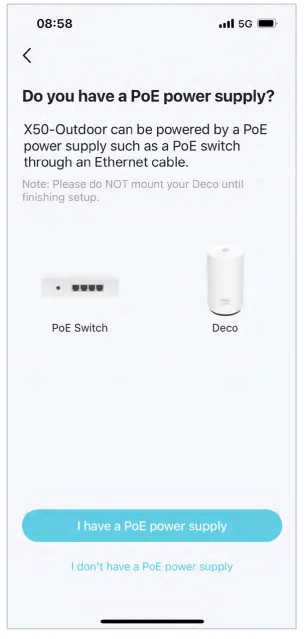

Determine the Power Option
Deco can be powered via a power cord or a PSE device (such as a PoE switch) that complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) and Electrical Energy Source Class 1(ES1) of IEC 62368-1.

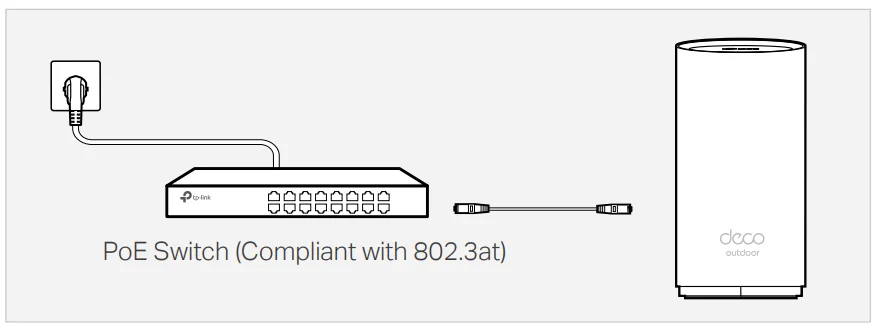

Option 1: Via PoE Switch (Compliant with 802.3at)
Connect an Ethernet cable from the PoE switch (compliant with 802.3at) to the Deco’s Ethernet port. The power should not be less than 18 W.

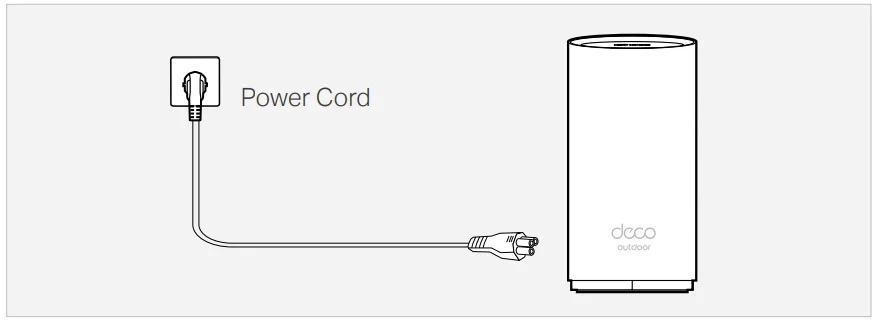

Option 2: Via Power Cord
Plug one end of the provided power cord into the power port of the Deco and the other end into a standard electrical wall outlet. The product can only be powered via the normal building installation wiring.
WARNING: Risk of Electric Shock.
- For the US: Install the power cord plug only to indoor socket-outlets or to a covered Class A GFCI receptacle that has an enclosure that is weatherproof with the attachment plug cap inserted or removed.
- For other regions: Install the power cord plug only to indoor socket outlets or to outdoor socket outlets with an enclosure that can be waterproof with the attachment plug cap inserted or removed.
Set Up Your Deco Network
First, let’s start by setting up the Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup.
- Get the Deco app
Download and install the Deco app from Google Play or App Store, or by scanning the QR code below.

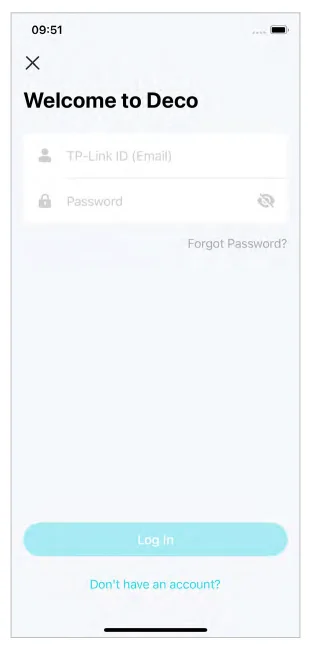

- Log in with TP-Link ID
Open the app and log in with your TP-Link ID. If you don’t have a TP-Link ID, create one first.
Tip: If you forgot your login password, tap Forgot Password. The app will help you reset your password.

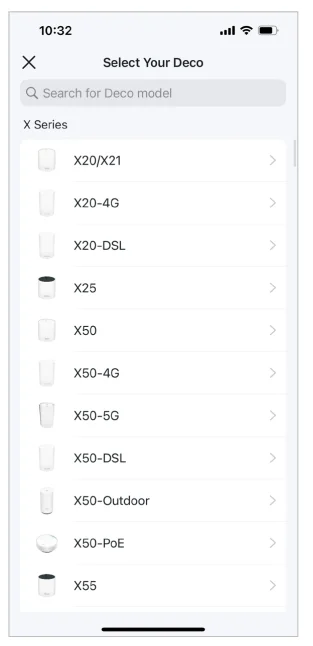

- Select your Deco model
Search for and select your Deco model. If you have more than one Deco model, tap the question below the search box to check how to maximize the overall network.
- Plug in your Deco
Power off your modem, connect your Deco to the modem, then power them both on. If you don’t have a modem, connect your Deco directly to the Ethernet outlet.

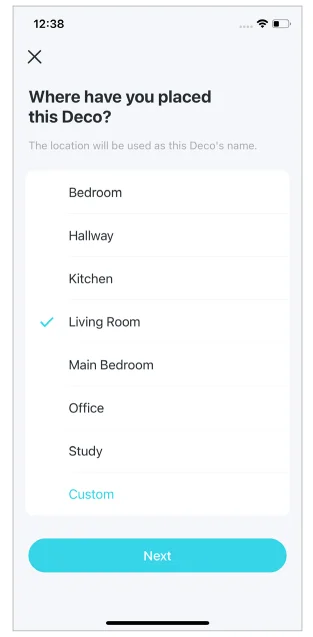

- Specify your Deco’s location
Select or customize a location for your Deco. The location will be used as the name of your Deco.

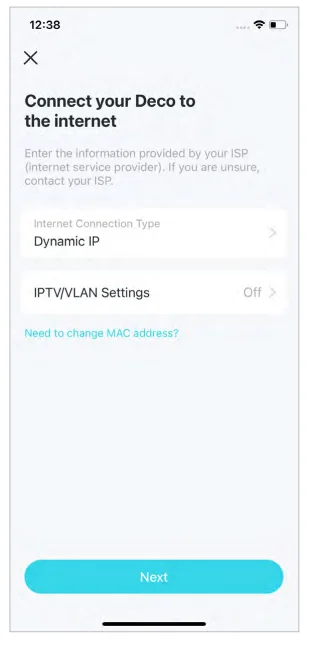

- Connect your Deco to the internet
Select the internet connection type and enter the information. If you are not sure, contact your internet service provider.

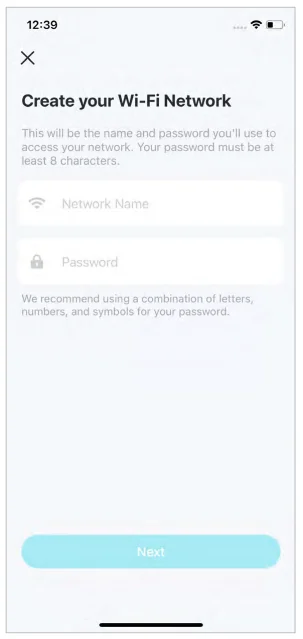

- Create your Deco Wi-Fi
Create the network name and password for your Deco and connect to it.

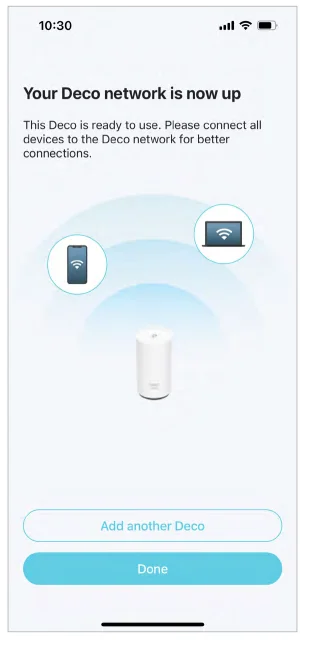

- Setup complete
Your Deco network is now up. You can connect your devices to the Deco network. If you have more decos, tap Add another Deco to add them to your network.
Waterproof Your Deco
The Deco can be used either indoors or outdoors. Before mounting your Deco outdoors, waterproof it to ensure device safety and performance.
WARNING
- The waterproof cover must be secured before use!
- The product can only be installed by an instructed person or a skilled person!
- Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.

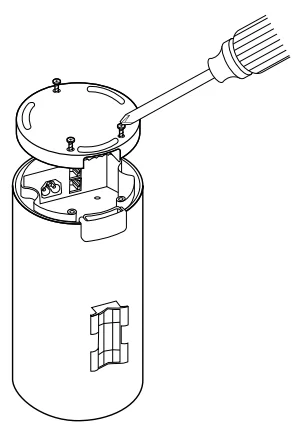

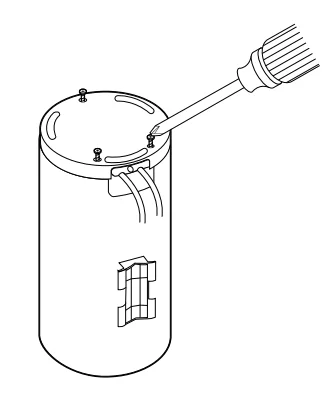

- Loosen the screws to detach the waterproof cover of the Deco with a Phillips screwdriver.

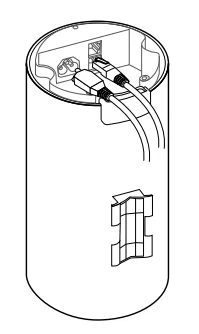

Note: The screws cannot be detached from the waterproof cover. - Connect the provided Ethernet cable and/or power cord according to your network needs. If you need extra ones, 5 mm diameter cables and cords are recommended to fit the slots of the waterproof rubber.
Note: The images use an AC-powered wired connection as an example.
- Open waterproof connector(s) on the base cover to expose the slot(s) aligning with your cable(s). Keep the other connector(s) properly closed for waterproofing.

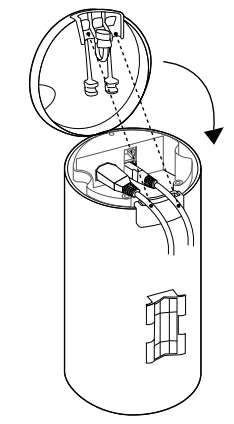

- Replace the waterproof cover, leading the cable(s) through the slot(s) of the waterproof rubber. Re-secure the cover to your Deco with the screws.
Mount Your Deco
Deco can be mounted to a pole or a wall. Choose the appropriate mounting methods.

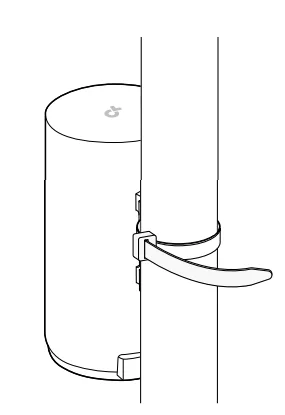

Option 1: Pole Mounting
The Deco can be mounted to a pole with the strap in the package.

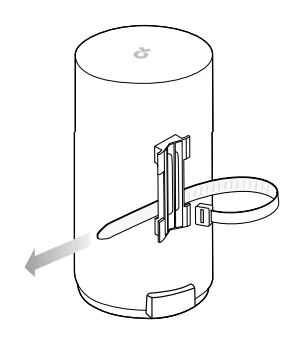

- Lead the end of the pole mounting strap through the back of the Deco.
- Position the Deco and wrap the pole mounting strap around the pole. Feed the end through the screwblock and tighten the strap until the Deco is secure.
WARNING: The Deco can only be used in the upright direction as shown in the image.
Option 2: Wall Mounting

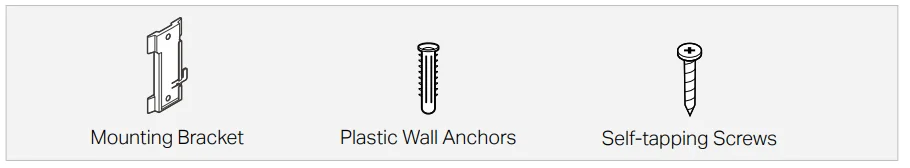

The Deco can be mounted to a wall with the bracket, anchors, and screws in the package.

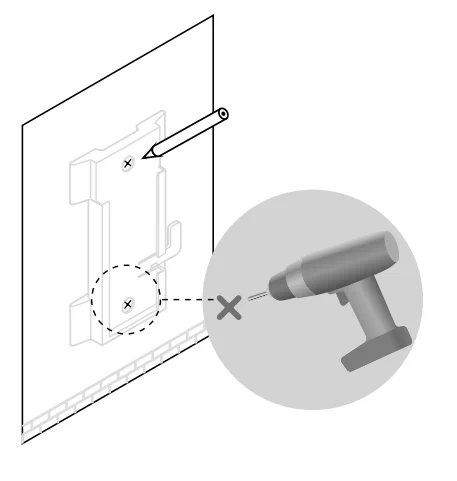

- Place the mounting bracket in the right position. Mark two positions for the screw holes. Drill two 6 mm diameter holes for the screws at the marked positions.

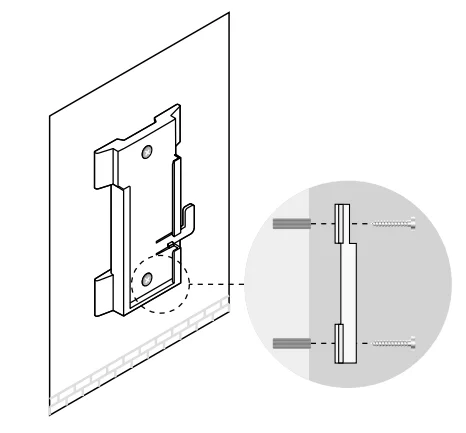

- Insert the plastic wall anchors into the 6 mm diameter holes. Align the mounting bracket to the plastic wall anchors and drive the self-tapping screws into the anchors through the mounting bracket.

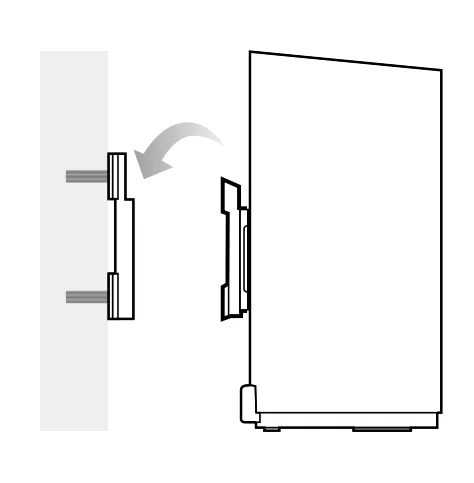

- Align the mounting tabs on the back of the Deco with the slot of the mounting bracket. Push and slide the Deco downward until it locks into place.
WARNING: The Deco can only be used in the upright direction as shown in the image.
Troubleshooting
Solutions to common problems during setup or use are provided here for reference. Follow the steps and the provided link below to diagnose and solve problems you might experience with your Deco. If problems still exist, contact us: https://www.tp-link.com/support
- Q1. What should I do if I fail to configure the main Deco and get stuck on “We couldn’t find Deco”?
Refer to the guide https://www.tp-link.com/support/faq/2239/ or follow the video https://youtu.be/2HYuEYS9XJM - Q2. What should I do if I fail to configure the satellite Deco and get stuck on “We couldn’t find another Deco”?
Refer to the guide https://www.tp-link.com/support/faq/1447/ or follow the video https://youtu.be/iVgDzoo16T4 - Q3. What should I do if I fail to configure the main Deco and get stuck on “Testing Internet Connection”?
Refer to the video https://youtu.be/OSUrGdWH-i0 - Q4. What should I do if my wireless devices cannot connect to Deco?
Refer to the guide https://www.tp-link.com/support/faq/2718/ - Q5. What should I do if Deco suddenly lost internet access?
Refer to the guide https://www.tp-link.com/support/faq/1454/ - Q6. How can I find a suitable spot for my Deco?
Refer to the guide https://www.tp-link.com//support/faq/1446/ - Q7. What can I do if the Deco app isn’t working properly?
Refer to the guide https://www.tp-link.com/support/faq/1456/
Authentication
FCC Compliance Information Statement
- Product Name: AX3000 Outdoor/Indoor Mesh Wi-Fi 6 Unit
- Model Number: Deco X50-Outdoor
Responsible party:
TP-Link USA Corporation
- Address: 10 Mauchly, Irvine, CA 92618
- Website: http://www.tp-link.com/us/
- Tel: +1 626 333 0234
- Fax: +1 909 527 6804
- E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
OPERATING FREQUENCY(the maximum transmitted power)
- 2412MHz—2483.5MHz (20dBm)
- 5150MHz—5250MHz (23dBm)
- 5250 MHz -5350 MHz (23dBm)
- 5470 MHz -5725 MHz (30dBm)
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm from your body.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference, and
- This device must accept any interference, including interference that may cause undesired operation of the device.
Cation: The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz.
Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Safety Information
- Adapter should be used indoors where the ambient temperature is lower than or equal to 40 ℃.
- Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Do not use the device where wireless devices are not allowed.
- Plug the product into the wall outlets with earthing connection through the power supply cord.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- Operating Temperature: -30°C~60°C (-22°F~140°F)
- This product uses radios and other components that emit electromagnetic fields. Electromagnetic fields and magnets may interfere with pacemakers and other implanted medical devices. Always keep the product and its power adapter more than 15 cm (6 inches) away from any pacemakers or other implanted medical devices. If you suspect your product is interfering with your pacemaker or any other implanted medical device, turn off your product and consult your physician for information specific to your medical device.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

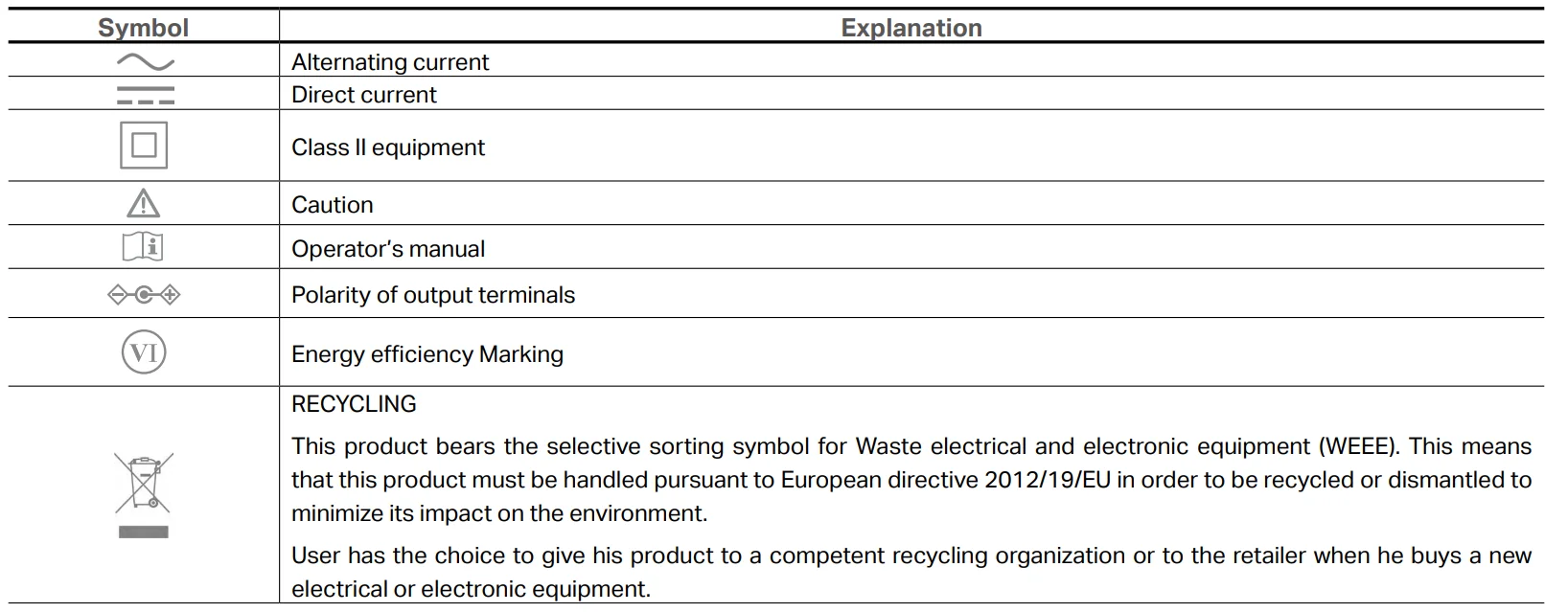

Explanation of the symbols on the product label
For more manuals by TP-Link, visit ManualsLibraryy
TP Link Deco X50 Outdoor Mesh WiFi 7 Unit-FAQs
Does the TP-Link Deco X50 Outdoor support Wi-Fi 7?
Yes, newer Deco systems are designed to support and integrate with Wi-Fi 7 technology. You can add a Wi-Fi 7-enabled Deco unit to an existing mesh network and even set it as the main node. This allows users to benefit from improved speed, lower latency, and better performance in high-density environments while maintaining backward compatibility with older devices.
How many Deco X50 units should I use in one network?
The number of units depends on your space and layout. In most setups using wireless backhaul, it’s recommended to use up to 10 Deco units for optimal performance. Adding too many units may cause signal overlap and reduced efficiency. For outdoor coverage, fewer strategically placed units often provide better results than overcrowding the network.
Can the Deco X50 Outdoor work as a router?
Yes, the Deco X50 can function as a full router. It can replace your existing router and handle all routing tasks such as IP assignment, traffic management, and security. Alternatively, it can operate in Access Point mode if you prefer to keep your current router. This flexibility makes it suitable for both new setups and upgrades.
What kind of coverage can I expect from a single Deco X50 Outdoor unit?
A single unit can typically cover a large outdoor or semi-open area, often around 2,500 square feet depending on environmental conditions. Features like beamforming and advanced signal processing help extend coverage and reduce dead zones. For larger spaces like gardens, warehouses, or campuses, multiple units can be added to create seamless connectivity.
Is mesh WiFi better than using a traditional extender?
Yes, mesh WiFi systems like the Deco X50 provide a more stable and seamless connection compared to extenders. Instead of creating separate networks, mesh systems use a single network name and intelligently connect devices to the strongest signal. This results in smoother roaming, better speeds, and fewer connection drops across large or outdoor areas.
How fast is the Deco X50 and what performance can I expect?
The Deco X50 is designed for high-speed connectivity, supporting fast wireless performance suitable for streaming, gaming, and smart devices. With newer Wi-Fi standards, it can deliver significantly higher speeds and improved efficiency compared to older systems. Actual performance depends on your internet plan, device compatibility, and environmental factors.
Can the Deco X50 Outdoor replace my existing router completely?
Yes, it can fully replace your existing router for a complete mesh networking experience. When set as the main node, it manages your entire network, including security and traffic control. However, if needed, it can also work alongside your current router in Access Point mode, giving you flexibility based on your setup preferences.
Does the Deco X50 support both 2.4GHz and 5GHz bands?
Yes, the Deco X50 supports both 2.4GHz and 5GHz frequency bands. This dual-band capability ensures compatibility with a wide range of devices while balancing speed and coverage. The system automatically selects the best band for each connected device, helping optimize performance without requiring manual switching.
Is Wi-Fi 7 really better than previous Wi-Fi standards?
Wi-Fi 7 offers significantly faster speeds, lower latency, and improved handling of multiple connected devices compared to earlier standards like Wi-Fi 6. It can deliver up to several times the performance under ideal conditions. However, to fully benefit from Wi-Fi 7, you also need compatible devices and a high-speed internet connection.
Can I use the Deco X50 without an Ethernet connection?
Yes, Deco units can connect wirelessly using Wi-Fi backhaul, meaning you don’t always need Ethernet cables between nodes. This makes installation easier, especially in outdoor or hard-to-wire areas. However, using Ethernet backhaul (if available) can further improve speed and stability across the mesh network.
