About This Guide
This guide provides a brief introduction to AXE4900 Whole Home Mesh Wi-Fi 6E System and regulatory information. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Deco experience.

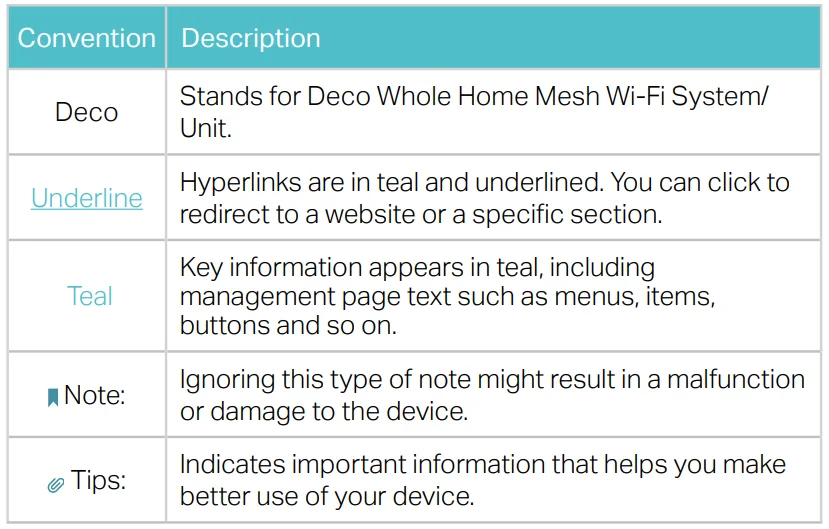

Conventions
In this guide, the following conventions are used:
More Info
- Specific product information can be found on the product page at https://www.tp-link.com.
- A Technical Community is provided for you to discuss our products at https://community.tp-link.com.
- Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support.
Speed/Coverage/Device Quantity Disclaimer
Maximum wireless signal rates are the physical rates defined in the IEEE 802.11 specifications. Actual wireless data throughput, wireless coverage, and the number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, traffic volume and density, and client location.
MU-MIMO Disclaimer
MU-MIMO requires clients to also support it.
IoT Compatibility Disclaimer
IoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use.
Seamless Roaming Disclaimer
Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.

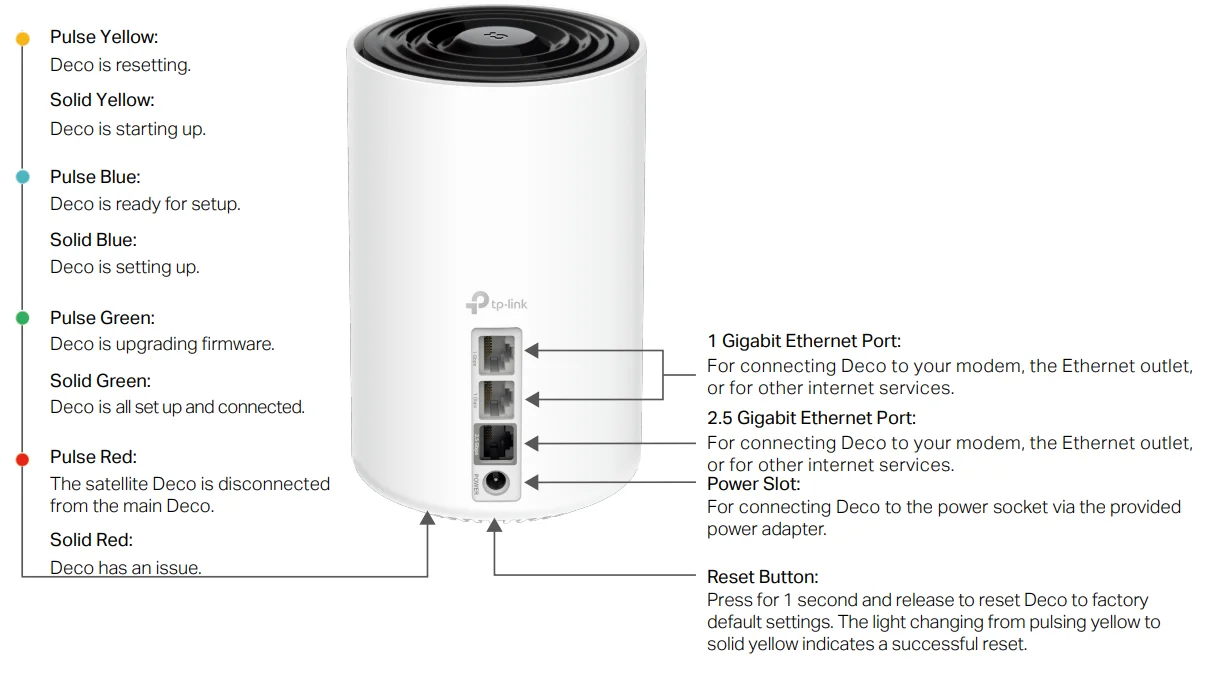

Appearance
Each Deco has an LED that changes color according to its status, three RJ-45 Ethernet ports, a power slot, and a Reset button. See the explanation below:
Tip: The product label can be found at the bottom of the product.
Set Up Your Deco
First, let’s start by setting up the Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup.
- Get the Deco app
Scan the QR code below or go to Google Play or the App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet.

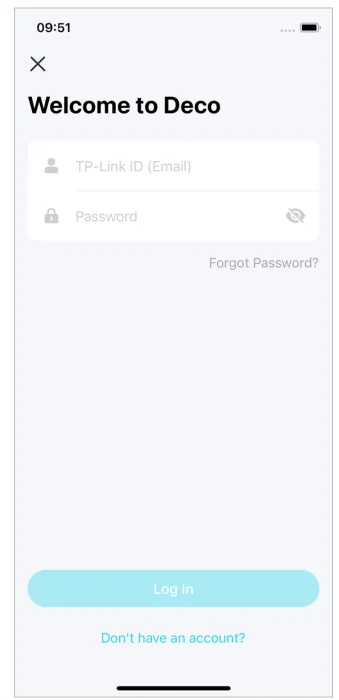

- Log in or sign up with TP-Link ID
Open the app and log in with your TP-Link ID. If you don’t have a TP-Link ID, create one first.
Note: If you forgot your login password, tap Forgot Password?. The app will help you reset your password.

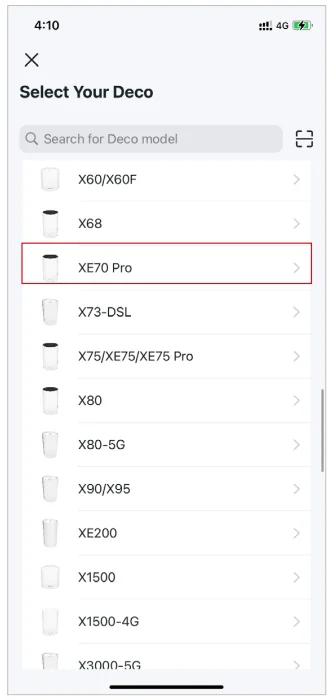

- Select your Deco model
Search for and select your Deco model. If you have more than one Deco model, tap the question below the search box to check how to maximize the overall network.

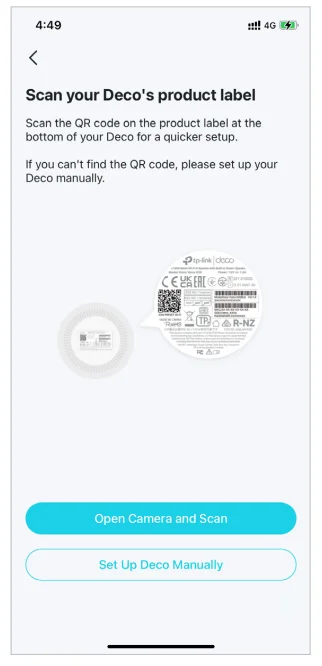

- Scan your Deco’s product label
Scan the QR code on the product label at the bottom of your Deco for a quicker setup. You can also set it up manually.

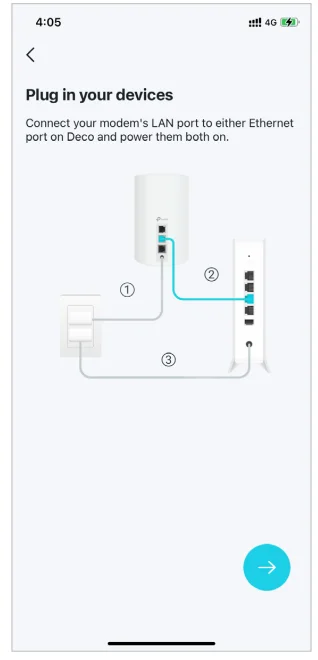

- Plug in your Deco
Power off your modem. Connect your Deco to the modem and power them both on. If you don’t have a modem, connect your Deco directly to the Ethernet outlet.

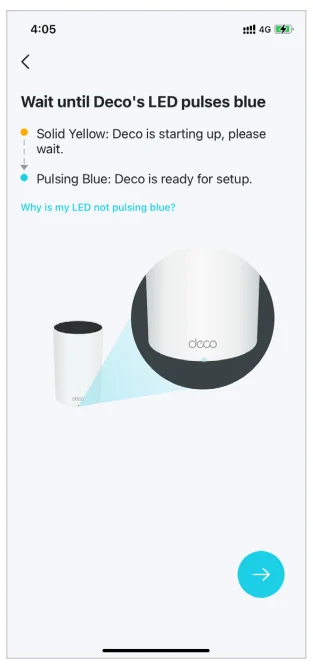

- Wait until Deco’s LED pulses blue
Wait until your Deco’s LED pulses blue, then your phone/tablet will automatically connect to the Deco’s default Wi-Fi. - Specify your Deco’s location

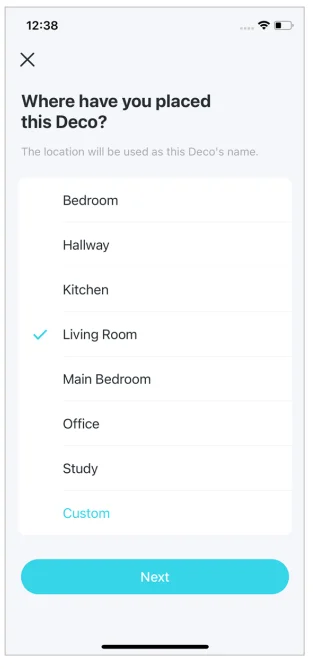

Select or customize a location for your Deco. The location will be used as the name of your Deco.

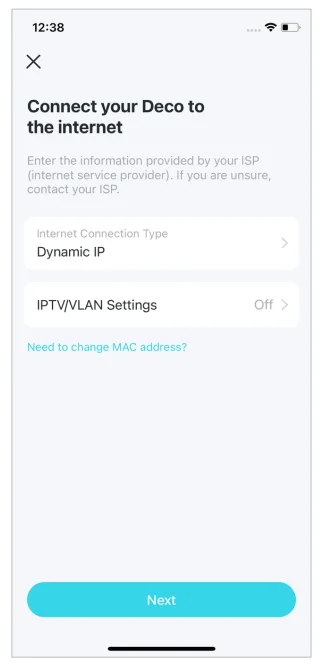

- Connect your Deco to the internet
Select the internet connection type and enter the information. If you are not sure, contact your internet service provider. - Create your Wi-Fi network

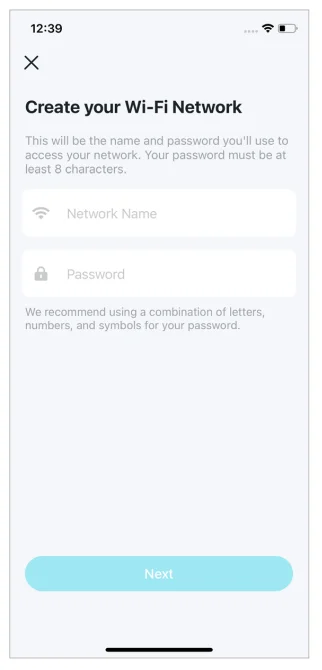

Set a network name and a password. These will be the name and password you use to connect your devices to Wi-Fi.

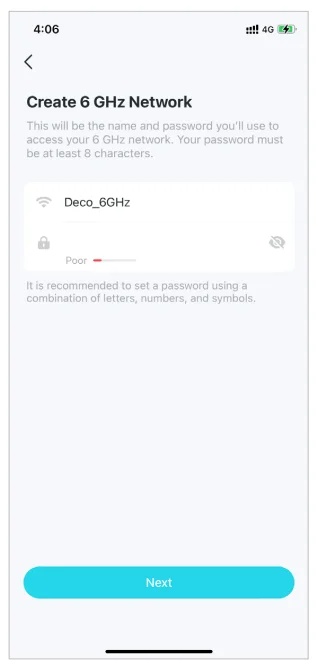

- Create your 6GHz Wi-Fi network
Set a network name and a password. These will be the name and password you use to connect your devices to the 6GHz Wi-Fi.

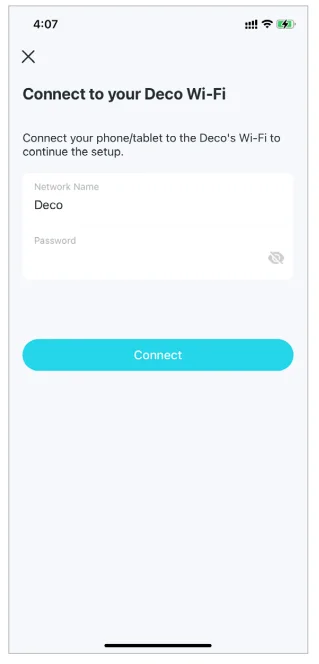

- Connect to your Wi-Fi network
Connect your phone/tablet to the Deco’s Wi-Fi.

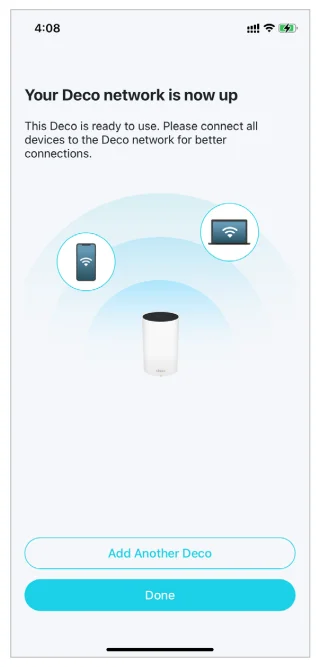

- Setup complete
Your Deco network is now up. You can connect your devices to the Deco network. Plug in the other included Decos, and they will automatically join the network within 2 minutes.
Troubleshooting
Solutions to common problems during setup or use are provided here for reference. Follow the steps and the provided link below to diagnose and solve problems you might experience with your Deco. If problems still exist, contact us: https://www.tp-link.com/support
- Q1. What should I do if I fail to configure the main Deco and get stuck on “We couldn’t find Deco”?
Refer to the guide https://www.tp-link.com/support/faq/2239/ or follow the video https://youtu.be/2HYuEYS9XJM - Q2. What should I do if I fail to configure the satellite Deco and get stuck on “We couldn’t find another Deco”?
Refer to the guide https://www.tp-link.com/support/faq/1447/ or follow the video https://youtu.be/iVgDzoo16T4 - Q3. What should I do if I fail to configure the main Deco and get stuck on “Testing Internet Connection”?
Refer to the guide https://www.tp-link.com/support/faq/2239/. Refer to the video https://youtu.be/OSUrGdWH-i0 - Q4. What should I do if my wireless devices cannot connect to Deco?
Refer to the guide https://www.tp-link.com/support/faq/2718/ - Q5. What should I do if Deco suddenly loses internet access?
Refer to the guide https://www.tp-link.com/support/faq/2428/ - Q6. How can I find a suitable spot for my Deco?
Refer to the guide https://www.tp-link.com//support/faq/1446/ - Q7. What can I do if the Deco app isn’t working properly?
Refer to the guide https://www.tp-link.com/support/faq/1456/
Authentication
FCC Compliance Information Statement
- Product Name: AXE4900 Whole Home Mesh Wi-Fi 6E System
- Model Number: Deco XE70 Pro
Responsible party:
TP-Link USA Corporation
- Address: 10 Mauchly, Irvine, CA 92618
- Website: http://www.tp-link.com/us/
- Tel: +1 626 333 0234
- Fax: +1 909 527 6804
- E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio-frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. To comply with FCC RF exposure requirements, this grant applies only to Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. They must not be co-located or operating in conjunction with any other antenna or transmitter. FCC regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that the operation of this device is permitted in large aircraft while flying above 10000 feet. Operation of transmitters in the 5.925-6.425GHz band is prohibited for control of or communications with unmanned aircraft systems. We, TP-Link USA Corporation, have determined that the equipment shown above complies with the applicable technical standards, including FCC Part 15. No unauthorized changes are made in the equipment, and the equipment is properly maintained and operated.
FCC Compliance Information Statement
- Product Name: I.T.E POWER SUPPLY
- Model Number: T120200-2B4
Responsible party:
TP-Link USA Corporation
- Address: 10 Mauchly, Irvine, CA 92618
- Website: http://www.tp-link.com/us/
- Tel: +1 626 333 0234
- Fax: +1 909 527 6804
- E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio-frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, have determined that the equipment shown above complies with the applicable technical standards, including FCC Part 15. No unauthorized changes are made to the equipment, and it is properly maintained and operated.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.
Caution: The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz.
Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
ISED regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that the operation of this device is permitted in large aircraft while flying above 10000 feet. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.
Safety Information
- Keep the device away from water, fire, humidity, or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service, don’t hesitate to get in touch with us.
- Do not use a damaged charger or USB cable to charge the device.
- Do not use any other chargers than those recommended.
- Do not use the device where wireless devices are not allowed.
- The adapter shall be installed near the equipment and shall be easily accessible.
- Use only power supplies provided by the manufacturer and in the product’s original packaging. If you have any questions, please don’t hesitate to contact us.
- Operating Temperature: 0°C~40°C (32°F~104°F)
- This product uses radios and other components that emit electromagnetic fields. Electromagnetic fields and magnets may interfere with pacemakers and other implanted medical devices. Always keep the product and its power adapter more than 15 cm (6 inches) away from any pacemakers or other implanted medical devices. If you suspect your product is interfering with your pacemaker or any other implanted medical device, turn off your product and consult your physician for information specific to your medical device.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

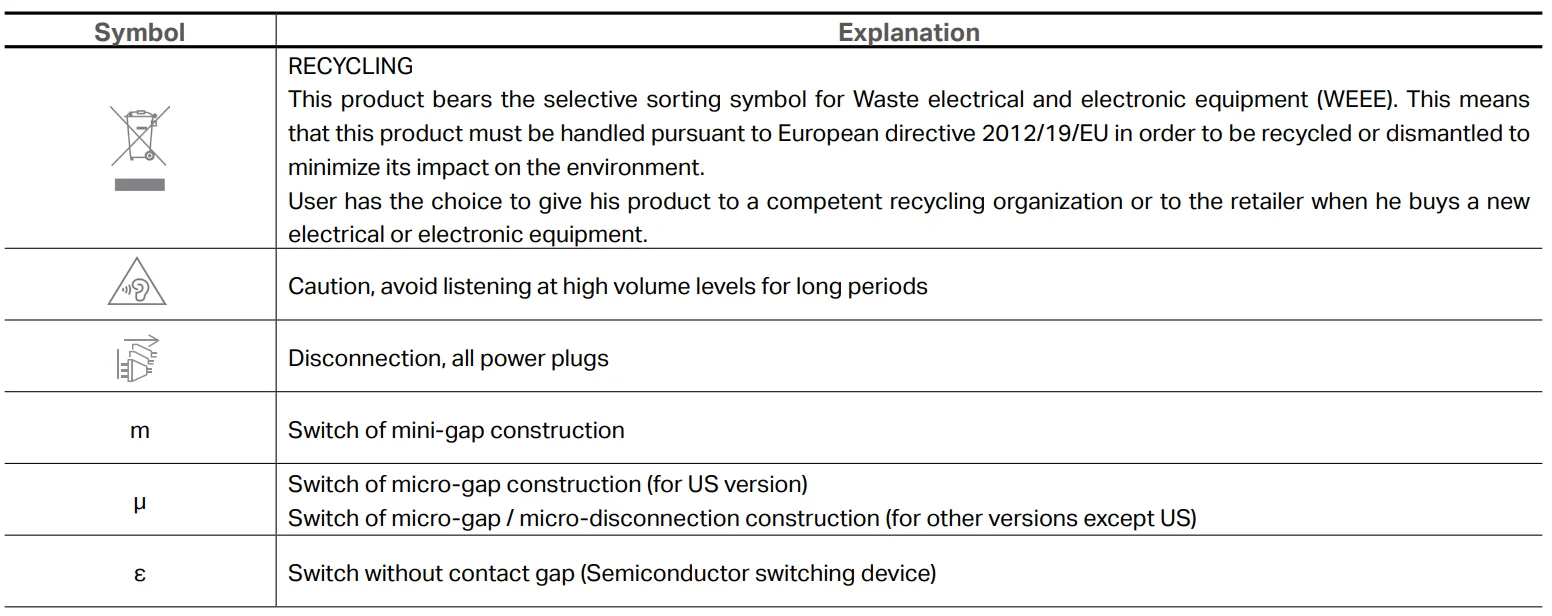

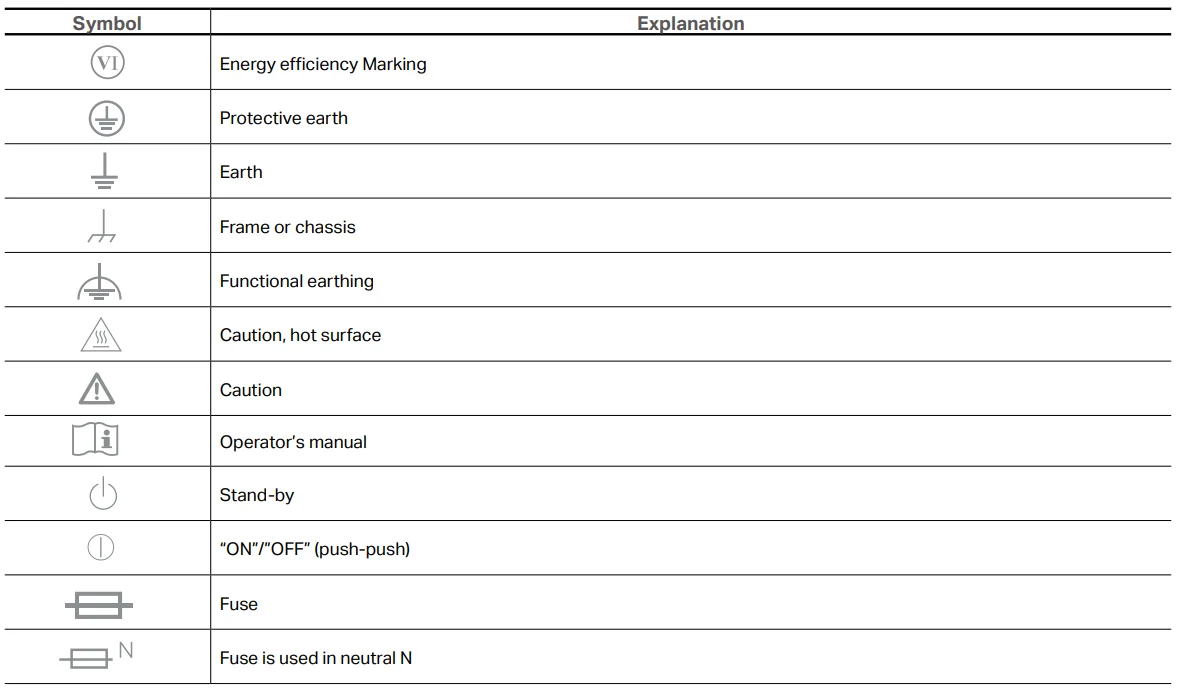

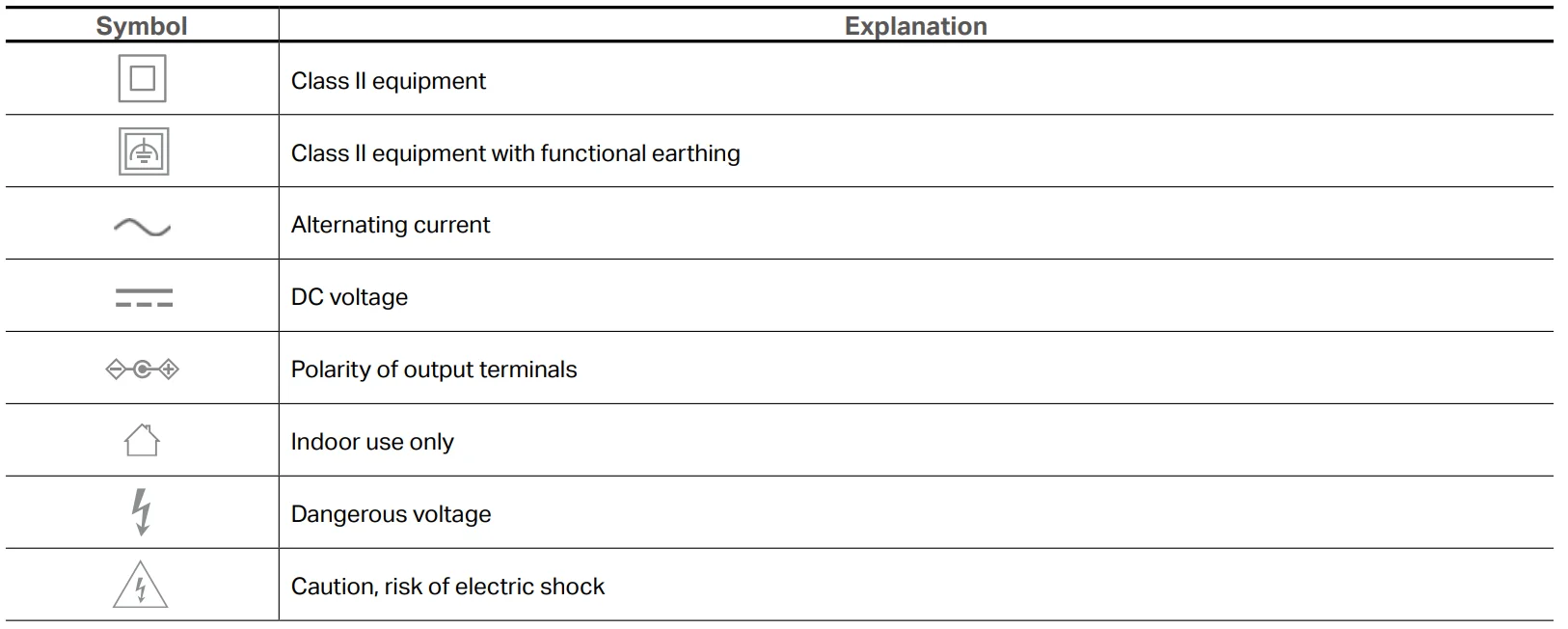

Explanation of the symbols on the product label
Symbols may vary from product to product.
Note: The product label can be found at the bottom of the product and its I.T.E. power supply.
For more manuals by TP-Link, visit ManualsLibraryy
TP Link Deco XE70 Pro WiFi Router-FAQs
How do I properly set up a Deco mesh system?
To set up your Deco mesh system, start by connecting the main Deco unit to your modem using an Ethernet cable. Power it on and install the Deco app on your smartphone. Follow the in-app instructions to create your network name and password. Once the main unit is working, add additional Deco units one by one through the app to extend coverage across your home.
How can I configure the TP-Link Deco XE70 Pro step by step?
Begin by plugging the primary Deco unit into your modem and turning it on. Download the Deco app and log in or create an account. The app will guide you through detecting the device, setting up your internet connection, and creating WiFi credentials. After setup, you can customize settings like parental controls, guest networks, and device priorities directly from the app interface.
Can I use the Deco XE70 Pro as my main router?
Yes, the Deco XE70 Pro is designed to replace your traditional router. When set to Router Mode, it handles all networking tasks including IP assignment, security, and traffic management. Simply connect the main Deco unit directly to your modem. This setup provides a seamless, whole-home WiFi experience without needing a separate router.
Can I connect the Deco system to an existing router?
Yes, you can use the Deco system with an existing router by enabling Access Point Mode. In this setup, your current router manages the network, while Deco units extend WiFi coverage. This is useful if you prefer to keep your existing router settings or ISP configuration while improving wireless coverage throughout your space.
Do I need to keep one Deco unit connected to the modem?
Yes, one Deco unit must always remain connected to your modem or internet source. This unit acts as the main hub for your mesh network. The other Deco units connect wirelessly or via Ethernet to this main unit, expanding coverage and maintaining a stable connection across all areas.
Where is the best place to position Deco units for strong coverage?
Place the main Deco unit in a central, open location for even signal distribution. Additional units should be positioned midway between the main unit and weak signal areas. Avoid placing them behind walls, inside cabinets, or near electronic interference sources. Keeping units elevated and in open spaces helps maximize signal strength and overall performance.
Should I use 2.4 GHz, 5 GHz, or both bands?
The Deco XE70 Pro supports both 2.4 GHz and 5 GHz bands simultaneously. The 2.4 GHz band offers better range and penetration through walls, while 5 GHz provides faster speeds over shorter distances. The system automatically manages band steering, connecting your devices to the best available band for optimal performance without requiring manual switching.
Can Deco units work without Ethernet cables between them?
Yes, Deco units can connect wirelessly using WiFi backhaul, so Ethernet cables are not required between them. However, if you connect units via Ethernet, it creates a wired backhaul, which improves speed and stability. Wireless setup is easier, while wired connections are ideal for maximum performance in larger or high-traffic environments.
Can Deco units work without Ethernet cables between them?
Yes, Deco units can connect wirelessly using WiFi backhaul, so Ethernet cables are not required between them. However, if you connect units via Ethernet, it creates a wired backhaul, which improves speed and stability. Wireless setup is easier, while wired connections are ideal for maximum performance in larger or high-traffic environments.
How can I improve WiFi speed and performance on my Deco network?
To boost performance, place Deco units strategically in open areas and avoid interference from devices like microwaves or thick walls. Limit unnecessary connected devices and update firmware regularly through the app. You can also enable features like Quality of Service (QoS) to prioritize important devices such as laptops or streaming devices for better speed and stability.
What are the limitations of using a mesh WiFi system like Deco?
While mesh systems provide seamless coverage, they can be more expensive than traditional routers or extenders. Performance may slightly decrease if units rely only on wireless backhaul over long distances. Additionally, advanced customization options may be limited compared to high-end standalone routers. However, for most users, the ease of use and wide coverage outweigh these drawbacks.
