Tribit PocketGo Portable Wireless Speaker User Guide

Tribit PocketGo Portable Wireless Speaker

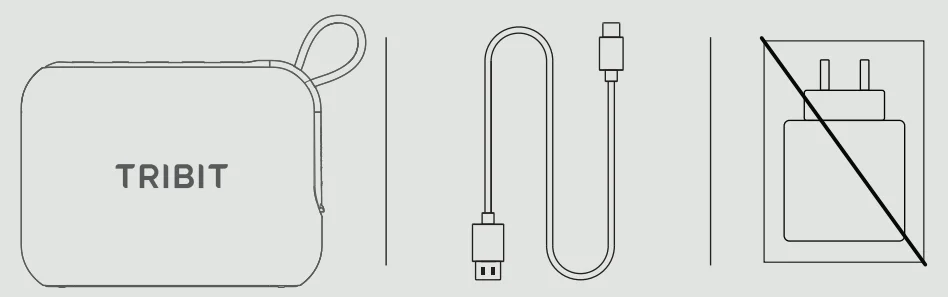

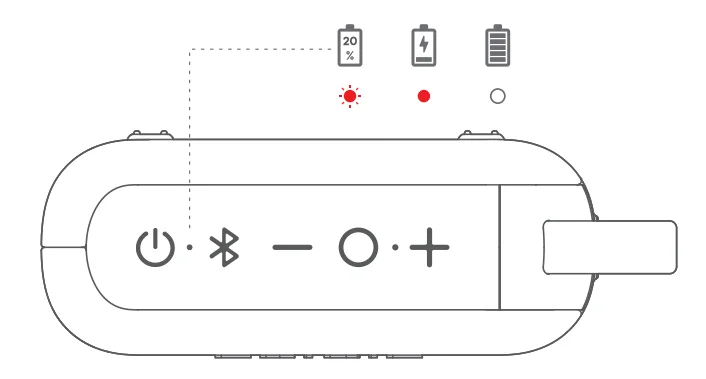

To Charge the Speaker

• When the power is lower than 20%, the red light blinks.
• When charging, the red light is always on.
• When fully charged (about 3 hours), the red light turns off.

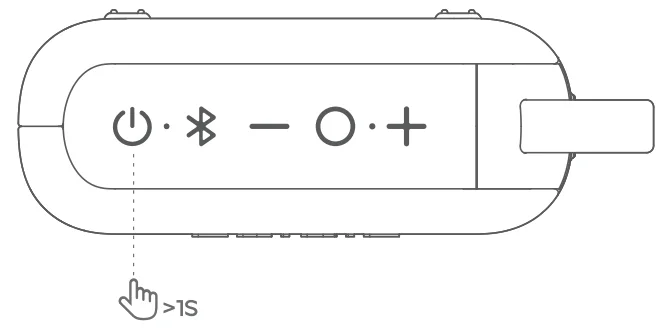

Power On/Off

• Press and hold the power button to turn on/off.
• When there is no audio input or any operation, the speakers will automatically turn off after 15 minutes.
• When the speaker cannot work normally due to unknown reasons, long-press the power button for 10 seconds to achieve a forced shutdown and then restart the speaker.

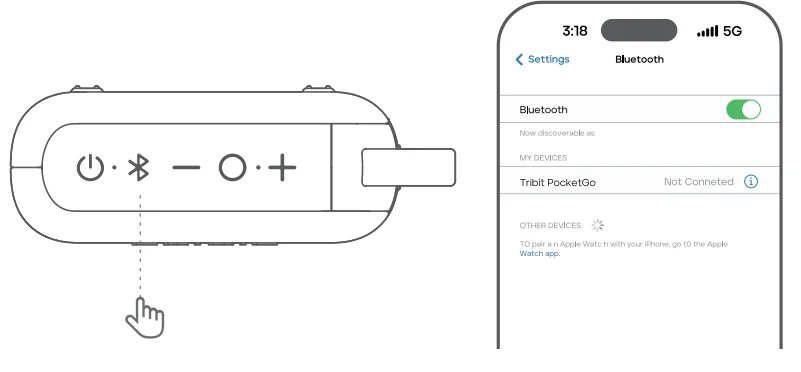

Pairing

Press the Bluetooth button once to enter pairing mode. The speaker can connect to up to two devices simultaneously. Note: If both Bluetooth and the TF card are connected, you can switch between them by pressing the Bluetooth button twice.

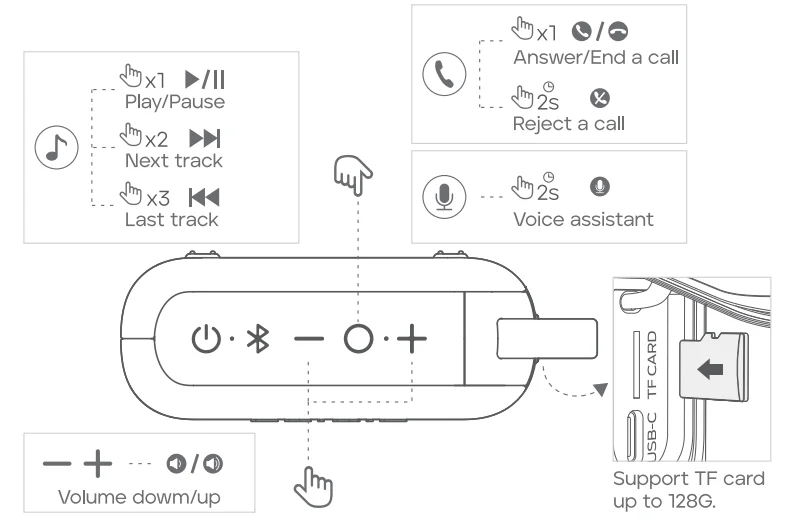

Controls

• x1: Press once
• x2: Press twice
• x3: Press three times
• 2s: Press and hold for 2 seconds
• Reset: Press and hold the +- button at the same time for 5s

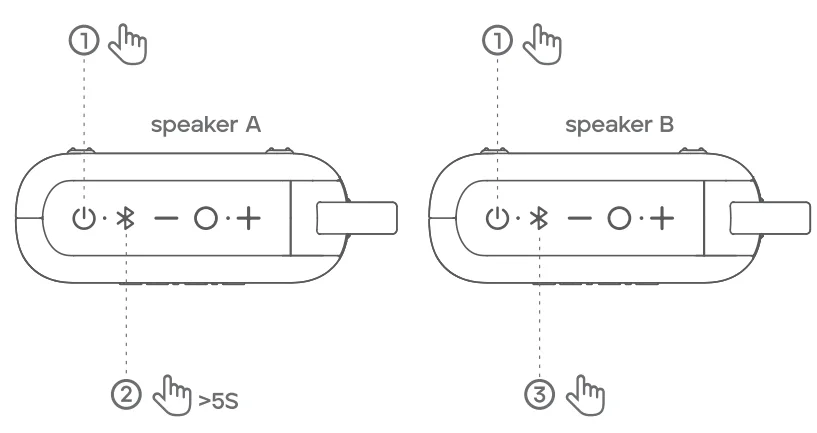

Stereo Mode

1. Turn both speakers on.
2. Long-press the Bluetooth button of Speaker A for 5s, and let go when you hear the voice announcement.
3. Short-press the Bluetooth button of Speaker B, then both speakers will announce the voice at the same time to indicate the success of TWS.

Safety Precautions

• Do not place the speaker in a place where it is easy to fall.
• Do not disassemble, repair, or modify this product by yourself.
• Keep the speaker away from extreme temperatures.
• Do not use the speaker in an outdoor thunderstorm environment.
• Do not use any corrosive cleaners or other chemical solutions to clean the speaker.
• 12-month warranty.

Specifications

• Bluetooth Version: V6.0
• Output Power: 7w
• Bluetooth Protocol: A2DP, AVRCPHFPHSP
• Frequency Response Range: 80~20KHz
• Frequency Band Range: 2402-2480MHz
• Maximum Transmission Power: <6dBm
• Battery: 2400mAh
• Play Time: 20 hours(At 50% volume)
• Charging Time: About 3 hours
• Waterproofing Grade: P68
• Size: 108mm x 81mm x 42mm
• Weight: 2209

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These mits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

IC Caution

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

The term “IC: “before the certification/registration number only signifies that the Industry Canada technical specifications were met. This product meets the applicable Industry Canada technical specifications.

The power delivered by the charger must be between min 1.16 Watts required by the radio equipment, and max 5 Watts in order to achieve the maximum charging speed.

• Power consumption in off mode: 0.078W
• Power consumption in standby mode: 0.108W

Statements of Compliance

• Product Model: BTS38、TS-BTS20、BTS65、BTS25S、BTS12、BTS32、BTS31、BTS52、BTS10、BTS13、
  BTH92SC、BTH99、BTH95、BTS33、BTS56、BTS51、BTS68、BTS37、BTS36
• Name and Address of manufacturer: Thousandshores Deutschland GmbH, Sorbenstraße 22, 20537 Hamburg, DE
• Name and Address of Authorised Representative: APEX CE SPECIALISTS LIMITED, 89 Princess Street,
  Manchester, M14HT,UK
• The statement of compliance is prepared by or on behalf of the manufacturer of the product.
• In the opinion of the manufacturer, they have complied with either-(i)the applicable security requirements in
• Schedule 1 of SI 2023 No. 1007
• Provision 5.1-1 of ETSI EN 303 645 & provision 5.1-2 of ETSI EN 303 645;
• Provision 5.2-1 of ETSI EN 303 645;
• Provision 5.3-13 of ETSI EN 303 645.
• The defined support period for the product: 20270101
• signature, name, and function of the signatory:
• The place and date of issue:

Hereby, Thousandshores Deutschland GmbH declares that the radio equipment type Portable Wireless Speaker BTS68 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following. Internet address: http://files.tribit.com/BTS68-eu-doc.pdf.
