Tribit Stormbox Blast 2 Bluetooth Speaker Instruction Manual

Tribit Stormbox Blast 2 Bluetooth Speaker

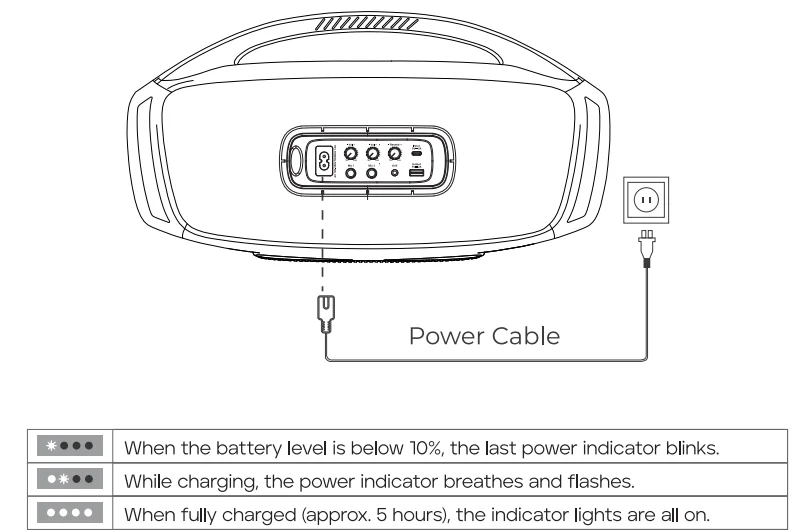

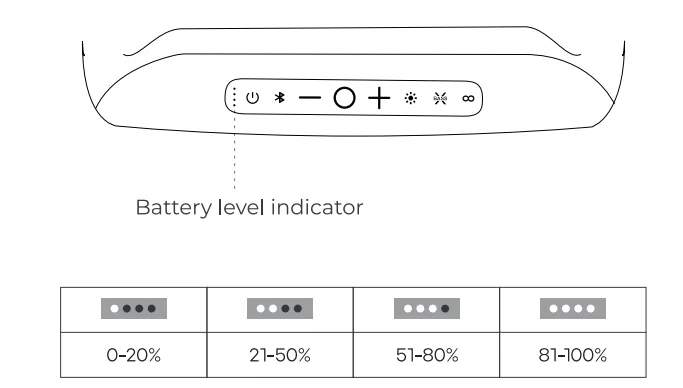

To Charging The Speaker

Note: If charging with Type-C, it will take about 12 hours to fully charge.

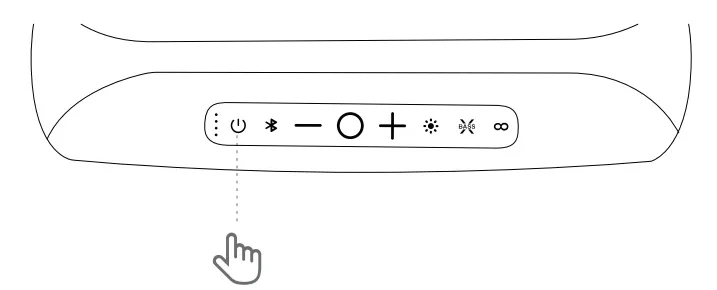

Power On/Off

• Short-press the power button to turn on/off.
• When there is no audio input or any operation, the speakers will automatically turn off after 30 minutes.
• When the speaker cannot work normally due to unknown reasons, long-press the power button for 8 seconds to achieve a forced shutdown and then restart the speaker.

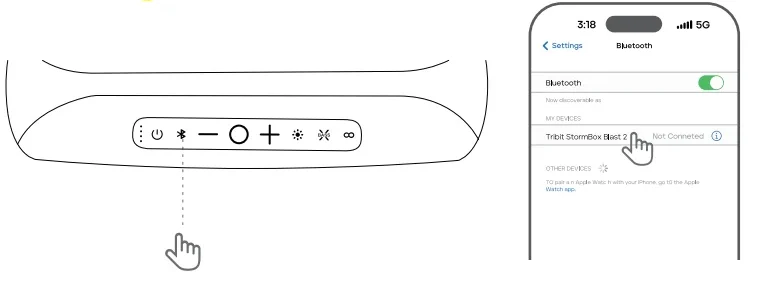

Pairing

• Press the Bluetooth button once to enter pairing mode.
• Long-press the Bluetooth button 25 to disconnect the Bluetooth connection.
• The speaker can be connected to up to two Bluetooth devices at the same time.

Note: If both Bluetooth and the audio cable are connected, you can switch between them by pressing the Bluetooth button twice quickly.

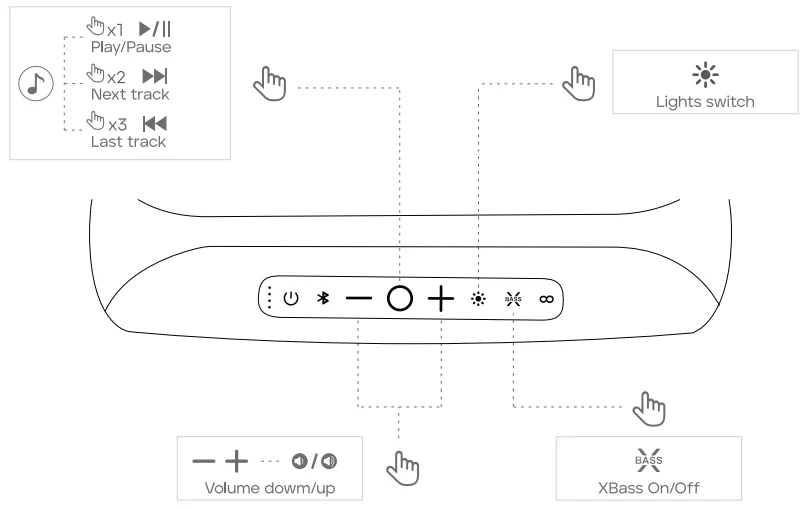

Controls

• x1: Press once
• x2: Press twice
• x3: Press three times
• Reset: Press and hold the +- button at the same time for 5s

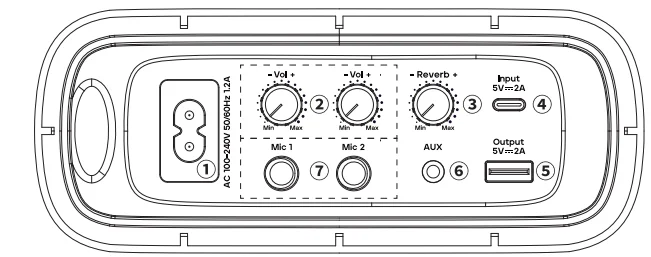

Controls

• AC input charging port
• Microphone volume control knob: turn left to reduce the volume, turn right to increase the volume
• Microphone reverb knob, turn left to reduce reverb, turn right to increase reverb
• USB-C input charging port
• USB-A output charging port, the speaker can charge other devices
• 6 3.5mm AUX audio input port
• 6.35mm Microphone input port

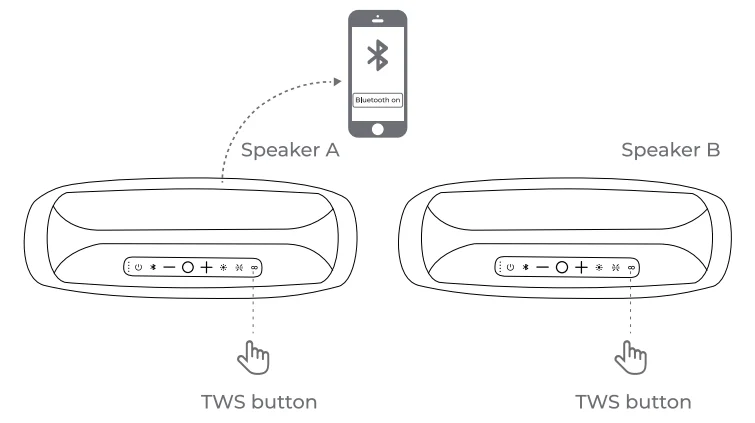

Stereo Mode

1. First, connect Speaker A to your phone’s Bluetooth, then press the TWS button.
2. Make sure Speaker B is not connected to any device, then press the TWS button(if Speaker B is in Bluetooth pairing mode, there is no need to press the TWS button).
3. Both Speakers play sound at the same time, indicating that TWS is successful, speaker A is the left channel, and speaker B is the right channel.

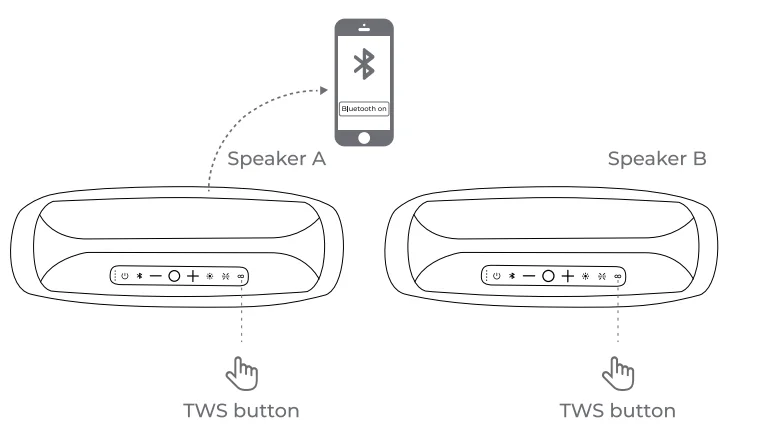

Party Mode

1. Two speakers are already in stereo mode. Press any speaker TWS button.
2. Hear the voice announcement, indicating the switch to Party Mode.
3. In Party Mode, speakers A and B will no longer play the left and right channels separately.
4. Long-press any speaker TWS button 2S to disconnect the TWS.

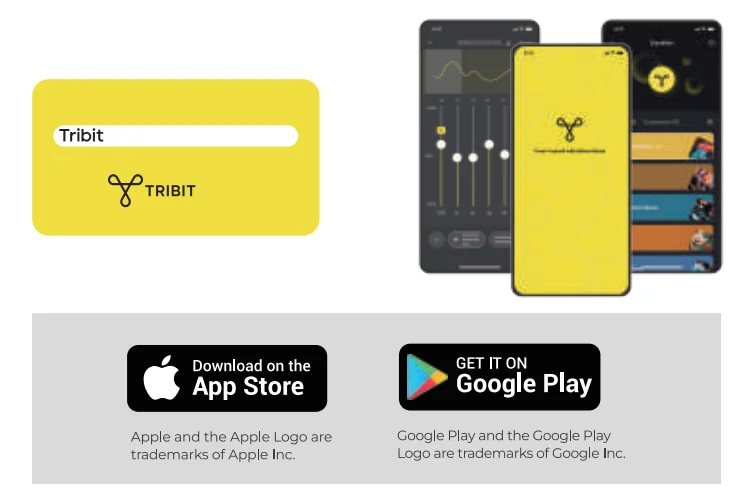

TRIBIT APP

Download the TRIBIT app to adjust the EQ settings, upgrade the firmware, and explore more features.

Safety Precautions

• Tighten the silicone plug at the charging port to avoid water ingress and damage.
• When charging, please keep the charging port and charging cable completely dry.
• Do not throw or place the product in a place where it can be easily dropped to avoid damage to the product due to dropping.
• Do not disassemble, repair, or modify the product.
• The product has a built-in lithium battery. Please do not dispose of it or put it in a fire or an overheating environment to avoid danger.
• Consumers who charge with a power adapter should purchase a power adapter that meets the requirements of local standards.
• The warranty period is 12 months.

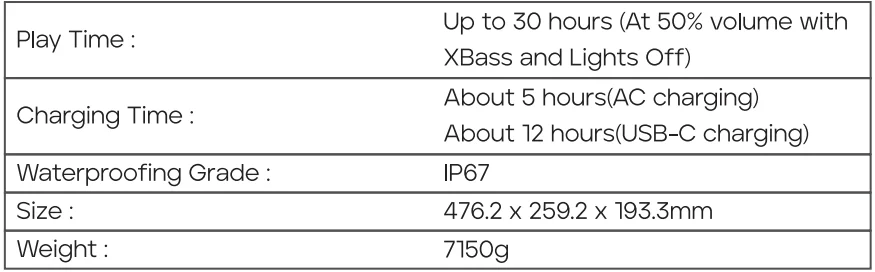

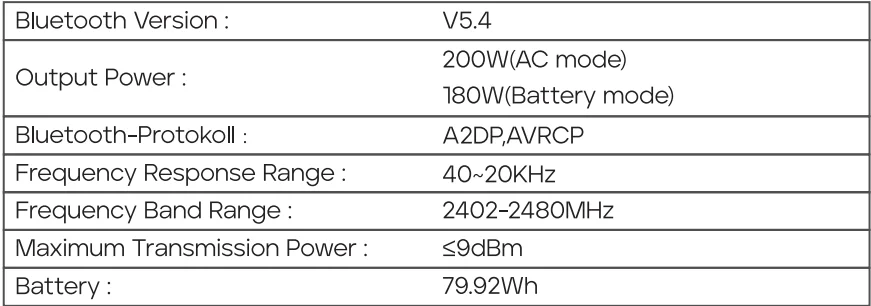

Specifications

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These mits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

IC Caution

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

The power delivered by the charger must be between 1.5 Watts, required by the radio equipment, and max 8.5 Watts in order to achieve the maximum charging speed.

Hereby, Thousandshores Deutschland GmbH declares that the radio equipment type Portable Wireless Speaker BTS56 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://files.tribit.com/BTS56-eu-doc.pdf.
