Turtle Beach Recon Controller Wired Game Controller
CONTENTS

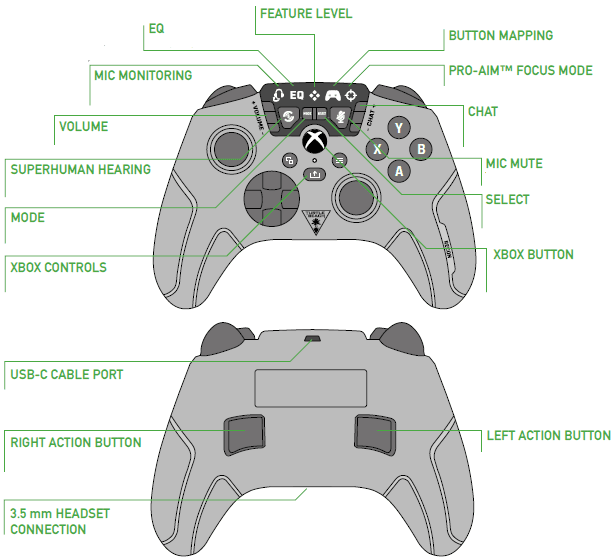

CONTROLS
- EQ: Tune your game audio
- FEATURE LEVEL: Indicates the active feature option
- BUTTON MAPPING: Map Buttons and select profiles
- PRO-AIM™ FOCUS MODE: Set your right-stick sensitivity level
- CHAT: Alters the level of game and chat audio on Xbox
- MIC MUTE: Toggle your Mic status on Xbox
- SELECT: Cycles options for each feature
- XBOX BUTTON: Open guide on Xbox and access the Game bar on Windows 10
- LEFT ACTION BUTTON: Map to any button
- MIC MONITORING: Alters the level of your voice in your headset on Xbox
- VOLUME: Alters the volume on Xbox
- SUPERHUMAN HEARING: Pinpoint quiet audio cues like enemy footsteps and weapon reloads
- MODE: Cycles features on the vitals dashboard
- XBOX CONTROLS: Focus your View. Share your game content and access Menus on Xbox
- USB-C CABLE PORT: For connection to Xbox or PC
- RIGHT ACTION BUTTON: PRO-AIM™ or map to any button
- 3.5 mm HEADSET CONNECTION

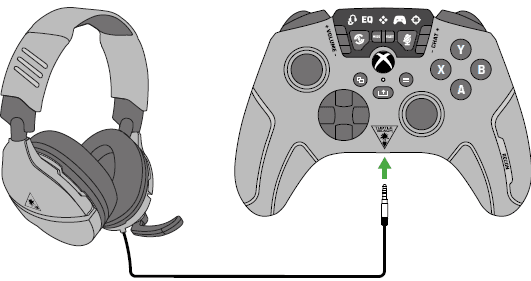

SETUP FOR XBOX
When the 3.5 mm headset is connected, Volume, Chat, Mic Monitoring, and Mic Mute alter the settings sliders on Xbox.

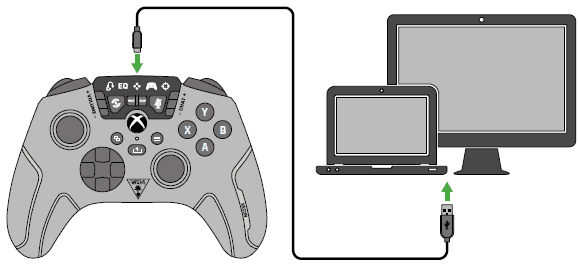

SETUP FOR PC
All features will work on a PC except for Chat Mix when a 3.5 mm headset is connected.

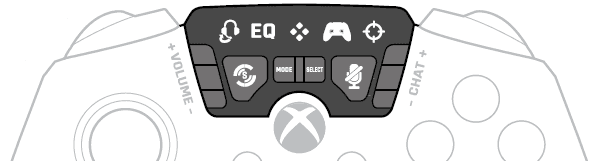

DASHBOARD STATUS
- Press the mode to cycle through features
- Press select to cycle through feature options
QUICK-ACTION BUTTON MAPPING

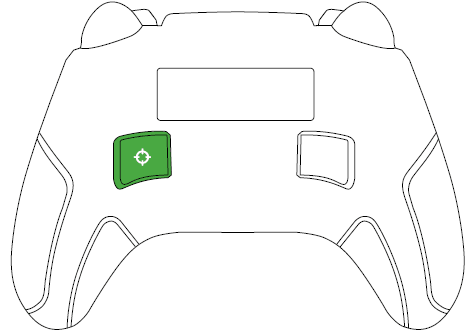

You can map any of the controller buttons to the left and right quick-action buttons

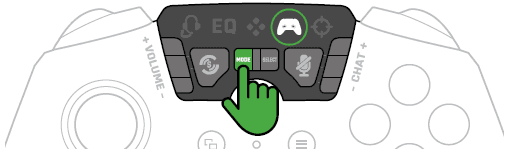

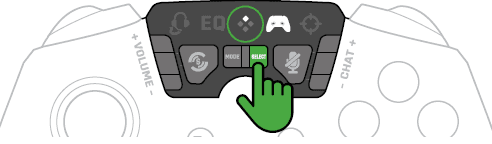

SELECT PROFILE 1-4

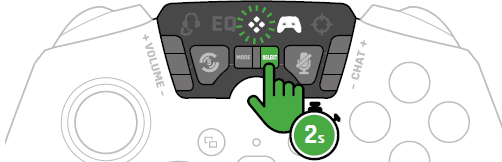

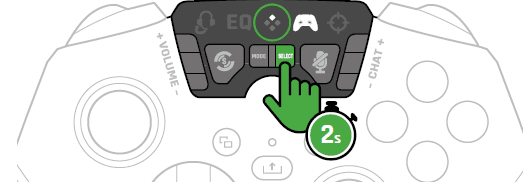

ACTIVATE MAPPING MODE
SELECT QUICK-ACTION BUTTON TO CONFIGURE

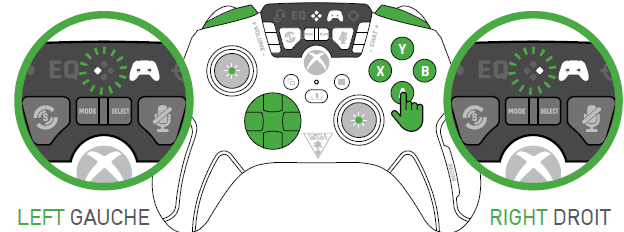

SELECT BUTTON TO ASSIGN
SAVE YOUR ASSIGNMENT
YOUR CONTROLLER IS NOW READY TO USE
New button mappings override old ones. To delete a button mapping, repeat the process, and in step 5, press the QUICK-ACTION BUTTON again.

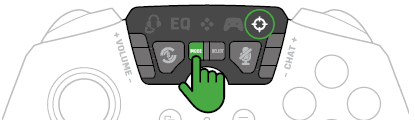

PRO-AIM™ FOCUS MODE
When the PRO-AIM™ button is pressed and held, the sensitivity of the right stick will decrease to the set level. The higher the level, the greater the reduction in sensitivity.

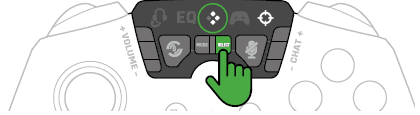

SELECT PRO-AIM™ SENSITIVITY
YOUR CONTROLLER IS NOW READY TO USE
PRO-AIM™ will work at the same time as your button mappings. Either set PRO-AIM™ to Off or clear the mapping from the right QUICK-ACTION button to achieve the setup you want.
TROUBLESHOOTING
Ensure audio controls work correctly with your headset.
Recon acts as a dedicated audio device on your Xbox. If you have a 3.5 mm headset with integrated controls, set them to the following levels, then use Recon to tune your audio experience. Volume should be maximum, Chat mix should be balanced, mic should be active, and EQ should be normal or flat response. Wireless headsets with or without integrated controls will not be affected by Recon audio controls.
Download Turtle Beach Control Center for feature and performance updates on Windows and Xbox.
Not seeing what you’re looking for here?
Visit turtlebeach.com/support for the latest Tech Support information
Regulatory Compliance Statements for the RECON CONTROLLER
Federal Communications Commission (FCC) Compliance Notices
Class B Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This product is compliant with the Consumer Product Safety Improvement Act of 2008, Public Law 110-314 (CPSIA)
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
