UNIROSS XPress 300 Battery Charger
IMPORTANT SAFETY INSTRUCTIONS
- This charger is designed for indoor use: do not expose it to damp or rain.
- Do not attempt to open the charger. Repairs should only be carried out by a qualified service center.
- Use the charger only for lithium-cadmium (Li-Cd) or lithium-ion (Li-Ion) batteries. Do not attempt to charge any non-rechargeable batteries.
- Do not charge at the same time l\lickel-Cadmium (l\li-Cd) or l\lickel-Metal Hydride (l\li-MH) batteries. Do not mix technologies.
- Remove the batteries from the unit once they are charged, and disconnect the charger from the power outlet.
- Do not connect the charger to any other apparatus.
- Before scrapping your charger, remove the batteries from the unit.
CHARACTERISTICS
Compact charger
The UI\IIROSS charger is designed to charge Li-Cd or Li-MH batteries in the following sizes/quantities:
- 2 or 4 battery size MA/ R03 / Micro
- 2 or 4 battery size M/ R6/ Mignon
- 1 to 2 batteries size 9V Block/ R22/ PP3.
It is possible to charge 1, 2, 3, or 4 R03 or R6 batteries. R22 batteries can be recharged individually or in pairs. It is possible to charge 1 and/or 2 R03 and/or R6 batteries and one R22 battery at the same time.

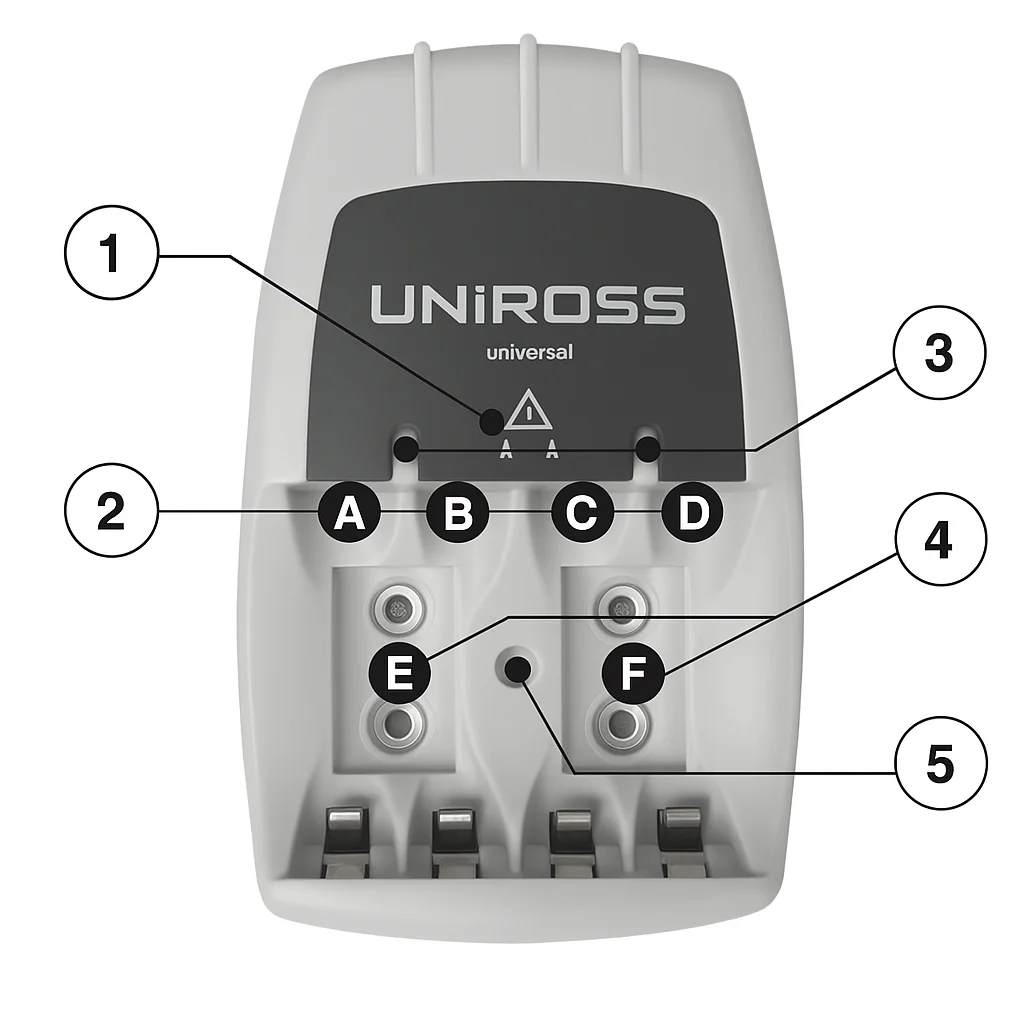

Description
- Minutery selector: position A= 6h / position B = 9h
- Loe atio ns A, B, C, and D to charge battery sizes AM/ R03 / Micro and M/ R6/ Mignon.
- Indicator lights (respectively CH1 and/orCH2):
- red, indicating charging of battery size R03 and/or R6 in locations respectively (A and 8) and/or (C and D) is in progress
- green, indicating charging of battery size R03 and/or R6 in locations respectively (A and 8) and/or (C and D) is in trickle charge
- Locations E and F to charge batteries of the 9V Block/ R22/ PP3 size.
- Red indicator light (CH3) denoting that the charging of 9V Block/ R22/ PP3 size batteries in locations E and/or Fiis is in progress.
Safety timer
The charger has a timer operating solely for batteries of AM/ R03/ Micro & M/ R6/ Mignon sizes. This timer trips automatically when the charger is plugged into the power outlet. Therefore, it is important to:
- To disconnect and reconnect the charger each time empty batteries a recharged.
- During charge, do not disconnect and reconnect the charger unless the batteries have been discharged in the meantime.
INSTRUCTIONS
- Place 2 or 4 batteries size R03, R6, or 1 to 2 batteries size R22 in the charger compartment in compliance with the +/- polarity markings engraved in the bottom of the charger.
- Set the cursor (l\lo. 1) to the “A” position or “B” position, depending on the battery size (see table of charge time below). Do not mix Li-Cd batteries with Li-MHHHHH batteries: charge batteries using different technologies separately.
- Connect the charger to a power outlet.
- If 1 or 2 R03 or R6 batteries are placed in channels A and/or 8, the indicator light CH1 will turn red, denoting that charging is underway. If 1 or 2 R03 or R6 batteries are placed in channels C and/or D, indicator light CH2 will become red, denoting that the charge is in progress. When the charging time provided does elapse (see following charge table), the indicator light(s) will turn green: trickle charge will then begin. The batteries will be considered as charged and can be used.
- If 1 or 2 R22 batteries are placed in channels E and/or F, indicator light l\lo. 6 will turn red. The charger does not indicate the end of R22 battery charging. It is necessary to end the charge in good time (see charge time table below) by disconnecting the charger from the electrical power point and removing the batteries from the charger.

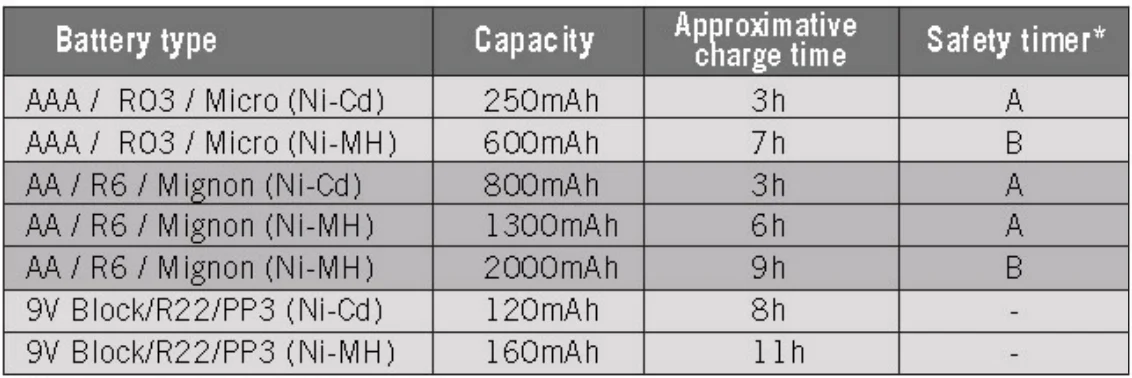

BATTERY CHARGE TIME
* Position A= 6h / Position B = 9h
TECHNICAL CHARACTERISTICS
- Input voltage: 220-240V – 50/60Hz 12W
- Output current: 285-320mA for R6/AA, 115-130mA for R03/AM and 18-22mA for R22/9V Block.
- Trickle charge
- Electronics: AA803001-A/ M803001-B
