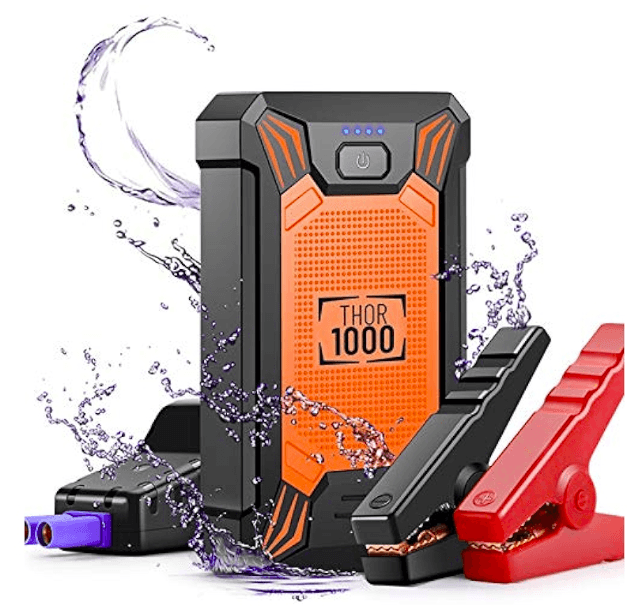

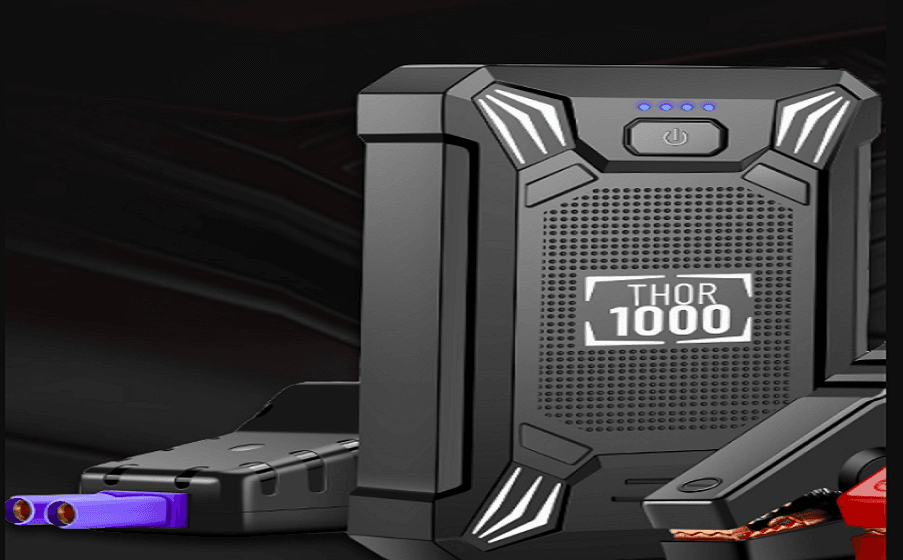

Vekkia THOR 1000 Jump Starter and Portable Power Source
Getting Started
Charging the jump starter
- To charge the product, connect the jump starter and the power source via the Micro USB cable provided in the package.
- While charging the jump starter, the battery level indicator light will flash. Once it is fully charged, all 4 battery-level indicator lights will be on.
- Unplug the cable when charging is not required.
- Note:
- When using the product for the first time, please make sure that the jump starter is fully charged.
- Please use the provided Micro USB cable to charge the product.
- A wall charger is not included in the package
- Note:
Power bank
- Connect the product with your electronic device (e.g. iPhone series, other smartphones or pads).
- Press the ON/OFF button to turn on the power output of the product.
- Unplug the cable when your electronic device is fully charged.
LED flashlight
- Long press the ON/OFF button for 3 seconds to turn on the light. Press the ON/OFF button shortly to switch modes among Solid, SOS, Flash, and Off
Jumpstart your car
Note:
- This product is for 12V cars only.
- Check to make sure that 3 to 4 indicator lights are on (battery level is above 50%) before you use it to jump-start your car.
- Step 1: Insert the plug of the smart battery clamp completely into the jump starter. If the green and red light indicators on the battery clamp are flashing alternately, you can safely proceed to the next step
- Step 2: Connect the red clamp to the positive terminal (+) of the car battery and connect the black clamp to the negative terminal (-) of the car battery. If the green and red light indicators on the battery clamp are flashing alternately, you can safely proceed to the next step.
Trouble Shooting
If the red indicator light is on:
- 1)The battery clamp may be connected in reverse. If so, you need to disconnect the battery clamp from the vehicle and the jump starter.
- 2)Adjust the clamps for maximum contact with the battery terminals.
- 3)The voltage of your car battery is higher than 17.5V.
- 4)If has been connected over the 30s, you should disconnect the battery clamp and jump starter asap, and then follow the Step 1-2.

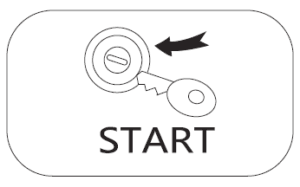

Step 3-a: Start your car
You need to start your car within 30 seconds after Step 2.
- If you fail to start your car, you need to disconnect the battery clamp from the vehicle and the jump starter. Wait for at least 30 seconds, then try again.
- If you fail to start your car after 2 attempts, you can use the force start function. See Step 3-b.

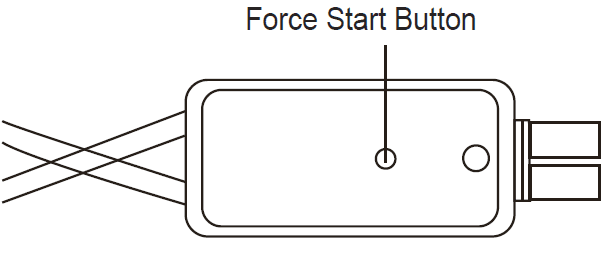

- Step 3-b (optional): Force start function. First please make sure that the clamps are connected to the correct polarity battery terminal. Then, press and hold the force start button for 3 seconds. When the indicator light of the smart clamp is solid green, you need to start the vehicle within 30.

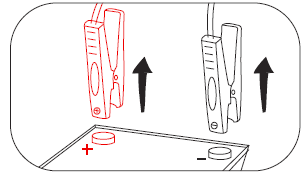

- Step 4: Once your car is started, remove the battery clamp from the car battery and the jump starter as soon as possible.
- NOTE: When you finish starting the first car and then start the next car, please disconnect the battery clamp and the jump starter, and then follow Steps 1-4 to
start again.
How to read the indicator light of the battery clamp?
| Indicator Light & Buzzer | Meaning |
| The red and green indicator lights flash alternately. | The battery clamps are correctly connected to the jump starter and car battery, ready to start. |
| The red indicator light stays on and the buzzer alarm. | 1)Battery clamp is reversely connected, or short-circuited. 2)The voltage of your car battery is higher than 17.5V. |
| The green indicator light stays on after pressing the force start button. | The current is running through the battery clamp. Ready to start your car? |
|
The red indicator light flashes quickly and the buzzer beeps. | 1) The over-temperature protection is triggered because the temperature of the clamp exceeds 65 (+/-5) ℃. The output would be automatically shut off. The red indicator light would flash quickly (5 times per sec). 2) After the car is started, the engine enters a stable working state. Please remove the clamp from the car battery as soon as possible. |
| The green light flashes slowly. | The voltage of the product is too low. You need to charge the product in time. |
- NOTE: When the green light on (in the start state), DO NOT take off the clamp to short-circuit them or reverse the positive and negative poles of the clamp to
the car battery
For more manuals by Vekkia visit, ManualsLibraryy
Vekkia THOR 1000 Jump Starter and Portable Power Source-FAQs
Can a portable jump starter charge a car battery?
A jump starter provides a temporary power boost to start the engine but is not designed for long-term charging. For routine battery maintenance, use a dedicated battery charger.
How do I know when my jump starter is fully charged?
Plug the charger into a power outlet and wait for the indicator lights to signal a full charge. This process may take several hours.
How does a jump starter work?
It transfers power directly from its battery to the vehicle’s dead battery, allowing the engine to start. Once running, the car’s alternator will recharge the battery.
How long should I leave the jump starter connected?
Follow the 6-second cranking, 3-minute rest rule to prevent overheating.
Can a portable jump starter revive a completely dead battery?
If the battery cannot hold any charge at all, a jump starter may not work. However, if it’s just drained, a jump starter should be effective.
How do I reset my jump starter?
If there is no reset button, perform a power cycle: turn off the device, unplug it for a few minutes, then reconnect and power it back on.
How long does a jump starter last?
Most jump starters last 2-3 years, but models with supercapacitor technology can last up to 10 years with frequent use.
What is the minimum voltage needed to start a car?
Most modern cars require at least 12 volts to start properly.
