VOYEE S08 Switch Bluetooth Controller User Manual

VOYEE S08 Switch Bluetooth Controller

Key function

For N-S/Lite – Wireless Mode

Steps:

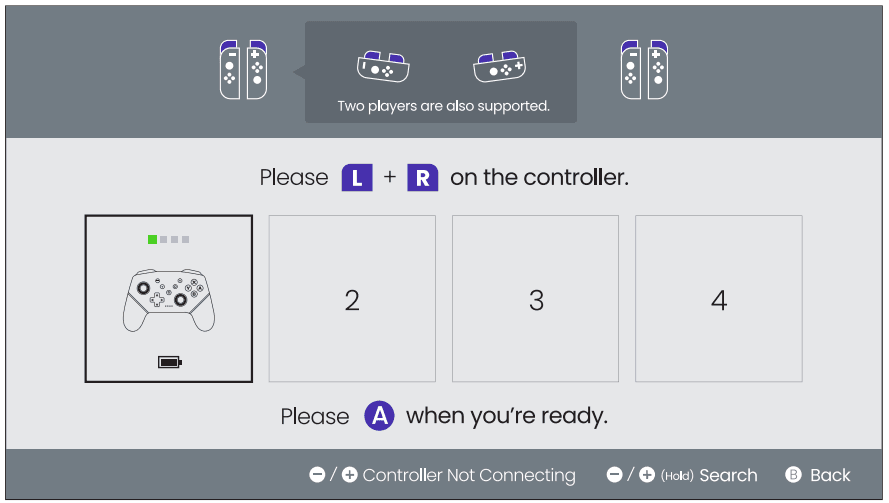

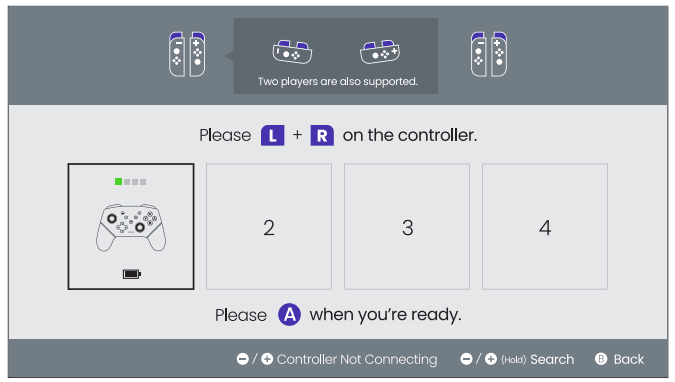

1. In the N-S/Lite main menu, click on ‘Controller’-Change ario/sequence. and enter the Controller pairina mode:
2. Press and hold the Wifi button“Pairing” or “Y”+ HOME button for 2-3 SECONDS to enter the pairing state. The LEDs flash frequently. After the connection is successful, the LED has been on:
3. When the connection is successful, you can press the HOME button, and the LED will flash slowly in the form of a marquee and automatically reconnect
4. Press the HOME key to wake up the console.
   Note: If the console is difficult to pair the controller, there may be two reasons:
   1. The controller is out of power: Please fully charge the controller and try it again.

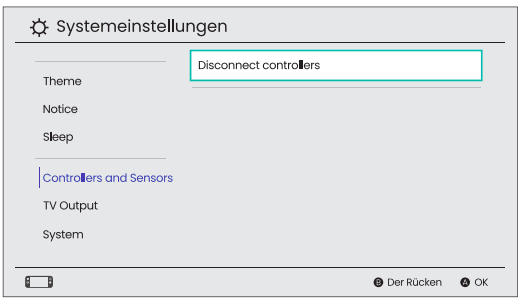

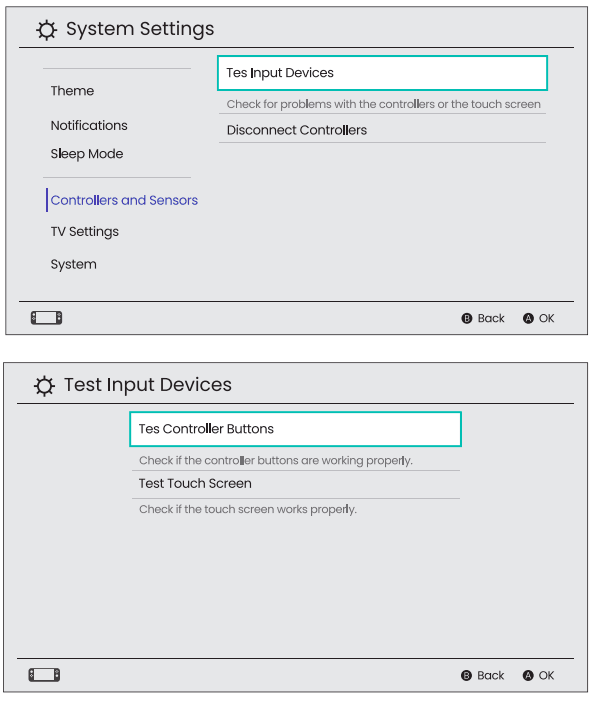

   2. There are too many Blue-tooth devices connected to the console: Please manually clear them (Steps: System Setting ›Controllers and Sensors Disconnect Controllers).

For N-S/Lite – Wired Mode

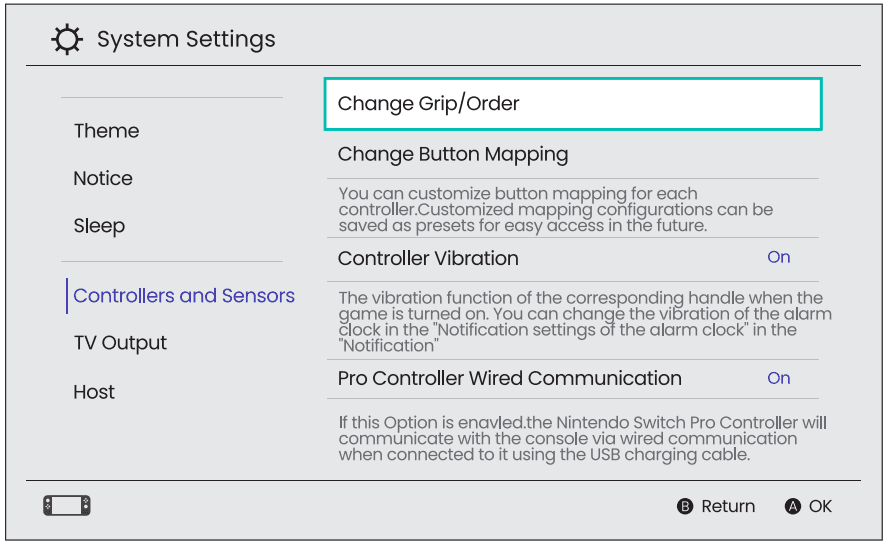

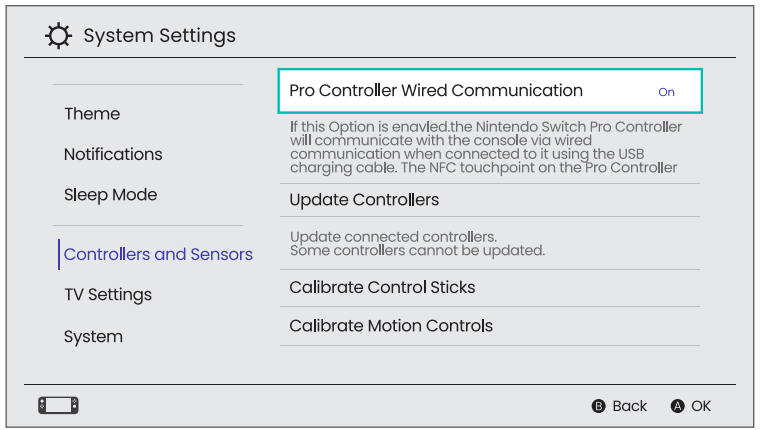

1. Before using the wired connection, please make sure that the ‘Pro controller wired connection’ is turned on in the system settings of the N-Switch console
2. When the controller is connected to the base of the S-witch through the USB cable, it can be used as a wired controller, and the corresponding LED light of the controller will flash slowly
3. Unplug the USB cable, the controller turns into the wireless mode and automatically reconnects to the console.

For PC – Wired Mode

1. Connect the controller to the computer with the USB cable. The LEDI and LED4 of the controller will flash slowly at the same time, and then it is successfully connected
2. The controller defaults to Xinput mode (computer mode) on the PC side, and the keys are not XB 360 key layout; “Xinput” basically does not need to set the definition of the game button.
3. Press and hold the HOME button for 3s, it can be converted from Xinput to the Dinput mode (PC360 mode) , LEDI and LED been on at the same time “Dinput’ needs to set a custom button
   • Note: You could play PC games on Steam. Not all PC games are compatible with the controller, please confirm that the game supports the controller before use.

For PC – Bluetooth Mode

1. Press the B + HOME buttons for 3-5 SECONDS at the same time to turn on the controller (To prevent accidental touch, it is recommended to press and hold the B button first and then press the HOME button, and ensure that the two buttons are pressed and held at the same time for more than 3 seconds);
2. When the LED2 and LED3 flash frequently, the controller enters the search mode
3. Turn on the Blue-tooth, enter the search mode, and click on the device to search for the controller of the ‘XB wireless controller’ to
   connect;
4. After successfully connected, LED2 and LED been on, which means the controller can be used normally.
   • Note: The Blue-tooth connection is unstable, and it is recommended to use the wired connection.

For Android – Bluetooth Mode

1. Press the A A +HOME buttons at the same time to turn on the controller (To prevent accidental touch, it is recommended to press
   and hold the Home A button first and then press the HOME button, and ensure that the two buttons are pressed and held at the same
   time for more than 3 seconds):
2. When the LED2 and LED3 flash frequently, the controller enters the search mode
3. Turn on the Blue-tooth of phone, enter the search mode, and click on the device to search for the controller of Gamepad to connect;
4. After successfully connected, LEDI and LED2 been on, which means the controller can be used normally.
   • Note: Not all Ar-droid games are compatible with controller, please confirm that the game supports controller before use

About Vibration

• There are 4 speeds settings in total: weak, none, medium, strong amplitude 0%, 25%, 50%, 100%).

How to set up the vibration?

• Press the vibration adjustment button at the back of the controller, and the controller will vibrate in 4 speeds in sequence.

Which speed is the default for the first connection?

• Medium speed of the 50% amplitude.
• Note: The vibration setting date will be saved when the controller is disconnected The controller will keep the last setting when it is connected.

About M1/ M2 Programmable Function

• Mi or M2 + “-“: Only one button value can be mapped to the back button under the Mapping Mode.
• Mi or M2 + “+”: You can define up to 16 button values to the back buttons in macro definition mode.
• The default Mi and M2 have no button function value.

How to map one button to M1 or M2 key?

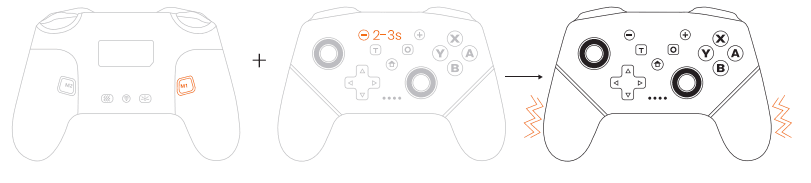

1. Press and hold Ml or M2 + “-” at the same time for 2-3 seconds. The controller vibrates, and the RGB lights of the left and right joysticks turn white and flash slowly, indicating that it enters the programming mode;
2. Press one function button (A/в/x/y/L/R/zL/zR/L3/R3) to be mapped, and the RGB lights of the left and right joysticks flash from slowly to frequently, indicating that the function button to be mapped have been selected.
3. Press Mi or M2 key (of which to be programmed) to confirm. Once the controller vibrates, the mapping is complete.

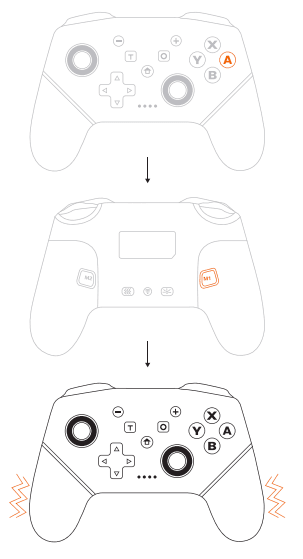

Example:

• To map the A button value to Mi key: press MI + “-” at the same time for about 2-3 seconds, Once the controller vibrates.
• The RGB lights of the left and right joysticks turn white and flash slowly. which means the controller enters the mapping mode.
• Press the A button, the RGB lights of the left and right joysticks flash from slowly to frequently.
• Press M1 button to confirm.
• And the controller vibrates again which means the button value of M1 is A button now.

How to map multiple buttons to M1 or M2 key?

1. Press M1 or M2 + “+” at the same time for 2-3 seconds. Once the controller vibrates, the RGB lights of the left and right joysticks turn
   white and flash slowly.
2. Press the buttons you want to map one by one (A/B/X/Y/L/R/ZL/Z-R/z3/L3/up/down/left/right), and the RGB lights of the left and right Joysticks flash from slowly to frequently, indicating that the function buttons to be mapped have been selected.
3. Press M1 or M2 key (of which to be programmed) to confirm. Once the controller vibrates, the mapping is complete.
   • Example:
   • To map the four button values of A+B+X+Y to M1 key: press Ml + “+” at the same time for 2-3 seconds. Once the controller vibrates, the RGB lights of the left and right joysticks turn white and flash slowly, which buttons one by one, and the Re lights of the die and in joysticks flash from slowly to frequently. Press Ml to confirm, and the controller vibrates again, which means the button value of Ml is A+B+X+Y.

About Somatosensory Calibration

1. Enable the controller in a shutdown state;
2. Press the “-“ button, then press the “HOME” button, LEDI, LED2 and LED3, LED4 alternate flash;
3. Press the “+” button, at this time, LEDI, LED2, LED3, and LED4 turn on once and off at the same time, indicating that the calibration is complete.

Solutions for controller disconnection

1. The reason for this may be that the controller is out of power and you can try to change it.
2. Clear the handle information in the N-Switch console.
3. Changing to a wired connection;
4. The Bluetooth signal may be blocked or interfered with by obstacles. You can try again elsewhere or at other times.

Solutions For Drift

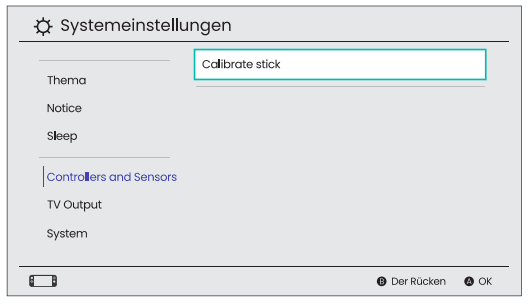

• If the controller drifts, you need to calibrate the controller, Steps: Click ‘Settings’, click ‘Contröller and Sensors, and click “Calibrate Control Sticks.

Solutions For Controller Getting Stuck

• If the controller gets stuck, you may need to move the joystick to the center and press it down gently.

About Reset The Controller

• Press and hold the HOME button for 5s to shut down for reset  or press the reset button at the back.

Factory Reset

• Press and hold the HOME button for 5s to force the shutdown.
