Waring Commercial WWD180X Single Classic Waffle Maker
IMPORTANT SAFEGUARDS
When using electrical appliances, especially when children are present, basic safety precautions should always be taken, including the following:
- READ ALL INSTRUCTIONS.
- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not touch hot surfaces. Use handles and knobs.
- To protect against fire, electric shock, and injury to persons, DO NOT IMMERSE CORD, PLUG, OR UNIT in water or other liquids.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest Waring Authorized Service Center for examination, repair, or adjustment.
- The use of accessory attachments not recommended by Waring Commercial may result in fire, electric shock, or injury to persons.
- Do not use outdoors, or for other than its intended use.
- Do not let the power cord hang over the edge of the table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Turn the knob to setting #1, switch the toggle to the OFF position, and unplug the unit when finished baking waffles.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always begin by plugging the appliance into a wall outlet. To disconnect, turn the control to setting #1, switch toggle to OFF position, then remove plug from wall outlet.
- WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REPAIRS SHOULD BE MADE ONLY BY AUTHORIZED PERSONNEL. DO NOT REMOVE THE BASE PANEL. NO USER-SERVICEABLE PARTS ARE INSIDE.
- To acquire another instruction manual, go to www.waringcommercialproducts.com.
GROUNDING INSTRUCTIONS

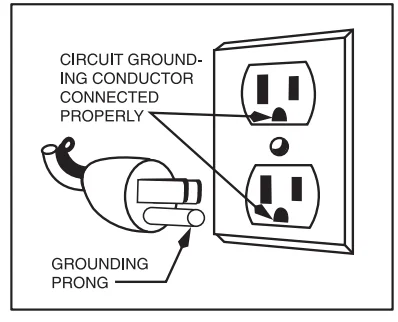

For your protection, Waring® Commercial Waffle Makers are supplied with a molded, 3-prong, grounding-type plug and should be used in combination with a properly connected, grounding-type outlet as shown in the figure.
SPECIAL CORD SET INSTRUCTIONS
A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or animals, or tripped over.

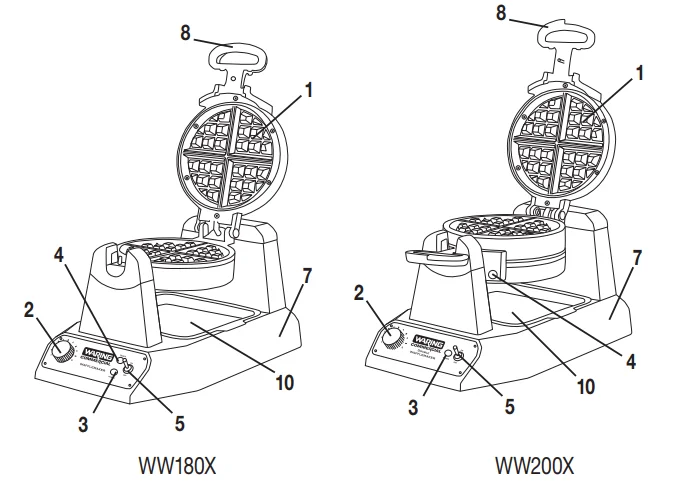

SPECIAL FEATURES
- Waffle Grids – Belgian, Mini Belgian, Classic, and Bubble (Belgian waffle grids shown). Waffle plates are triple-coated with Whitford® QuanTanium nonstick coating.
- Browning Control Adjustment – Adjustable for different batters and personal preference.
- Power Indicator Light – Lights red when the waffle maker is on and heating up.
- Ready Indicator Light – Lights green when the waffle maker is ready to bake.
- Power Switch.
- Indicator Beeps (not shown) – Will beep 6 times when the unit is ready to bake the first waffle of every baking session. Will beep 3 times when the waffle is done.
- Base.
- Handle.
- 4 oz. Measuring Scoop (not shown). For the WMB400X unit, use 1 oz. of batter per mini Belgian.
- Removable Drip Tray.
BEFORE FIRST USE
- These Waring® Commercial Waffle Maker plates are triple-coated with Whitford® nonstick coating. Before the first use, we suggest you season the waffle grids by preheating and then brushing them with cooking oil. Wipe with a paper towel or pastry brush.
- Remove any dust from shipping by wiping the plates with a damp cloth. Remove all protective paper and wrapping.
INSTRUCTIONS FOR USE
- Plug the cord into the wall outlet.
- Switch the toggle switch to the ON position. The RED light will illuminate to signal power.
- Preheat your Waring Commercial Waffle Maker on setting #4 or your preferred setting. It will now begin the preheating process. This should take about 4 minutes. The machine will sound 6 beeps, and the GREEN indicator light will go on to signal the unit is ready for baking. Season the waffle grids by spraying with cooking spray or brushing with a flavorless oil. For initial use, it is important that the waffle maker is preheated before seasoning with cooking spray or oil. NOTE: The first time you use your waffle maker, it may have a slight odor and may smoke a bit. This is normal and common to heating appliances.
- Choose a setting on the browning control dial. For golden brown waffles, we recommend using setting #4. When the waffle is completely baked, the waffle maker will sound 3 beeps. Baking time is determined by the browning level chosen.
- Fill the measuring scoop with batter to fill the line. Pour batter evenly into the center of the waffle grid. For mini Belgian units, pour 1 oz. of batter into each waffle mold. Use a heatproof spatula to spread the batter evenly over the grid. Close the lid and rotate the unit 180°.
- Once the waffle is ready and the waffle maker has beeped 3 times, rotate the waffle maker 180°, open the lid, and remove the waffle by gently loosening the edges with a heatproof plastic spatula. Never use metal utensils, as they may damage the nonstick coating.
- For double waffle makers, multiple waffles can be baked at one time. For one waffle, simply follow the previous instructions. For more than one waffle at once, pour batter into the top waffle compartment, then rotate 180°. You will now be able to open the other waffle compartment. Pour the batter into the grids and rotate them another 180° in the other direction. Both waffles will now cook. There are individual green READY lights that will illuminate when each waffle is baked, and when an empty compartment is ready to bake another waffle.
THERMAL PROTECTION
IF THE UNIT OVERHEATS, THE MACHINE WILL AUTOMATICALLY TURN OFF. UNPLUG, LET THE MACHINE COOL FOR 10 MINUTES, PLUG IN AND CONTINUE USE. IF POWER IS LOST DURING OPERATION, UNPLUG AND LET COOL FOR 10 MINUTES. PLUG IN AND CONTINUE USE.
WAFFLE PLATE CLEANING & MAINTENANCE
Clean daily and diligently; doing so will ensure that your waffle maker works properly and continues to work well over time.
How to Clean Waffle Plates
- Once you have finished baking each day, turn the switch to the OFF position and remove the plug from the electrical outlet. Leave the top lid open and allow the plates to cool before cleaning. Be certain plates have cooled completely before cleaning.
- Never take your waffle maker apart for cleaning. Brush crumbs from grooves and absorb any excess cooking oil by wiping with a dry cloth or paper towel. You may clean the plates by wiping with a damp cloth to prevent staining and sticking from batter or oil buildup. If batter adheres to plates, simply pour a little cooking oil onto the baked batter and let stand approximately 5 minutes. This will allow the batter to soften and will make it easier to remove.
- To help remove oil buildup and batter residue, place a damp paper towel in between the waffle plates and close the lid. Allow to sit for a few minutes.
- To clean the exterior, wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad. NEVER IMMERSE CORD, PLUG, OR UNIT IN WATER OR OTHER LIQUIDS.
Serviceable Plates
- To order replacement plates, call customer service at 1-800-4WARING, order online, or find a local distributor or service center.
- Although removable, these plates are not intended to be removed for routine cleaning. Plates are ONLY meant to be removed if there is a scratch on the nonstick coating and you need to replace the plate. If removed for cleaning, the plates are dishwasher safe.
How to Remove the Waffle Plates
PARTS
- 2 waffle plates
- 4 large screws (2 extra)
- 16 small screws (6 extra)
- Screwdriver
INSTRUCTIONS
- Carefully unpack the replacement kit.
- Using the provided screwdriver, carefully remove the screws from the perimeter edge of the waffle plate/s. Lift plates up and off the housing. Slight force may be needed to release the plates completely. Discard the old plate/s and screws.
- Starting with the lower grid, place the new plate onto the housing by aligning the rear and front projections onto the base. The wider projections will fit into the rear.
- Install 1 large screw into the slot located near the handle.
- Install the smaller screws around the perimeter.
- Repeat steps 2–5 for the upper grid replacement.
LIMITED ONE-YEAR WARRANTY (U.S. and Canada only)
Waring® Commercial warrants every new Waring® Commercial Waffle Maker to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents), and nonabrasive semiliquids, providing it has not been subject to loads in excess of the indicated rating.
Under this warranty, Waring® Commercial will repair or replace any part which, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at 314 Ella T. Grasso Ave., Torrington, CT 06790, or any Factory Approved Service Center.
This warranty does not: a) apply to any product that has become worn, defective, damaged, or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center, or due to abuse, misuse, overloading, or tampering; or b) cover incidental or consequential damages of any kind. Warning: This warranty is void if the appliance is used on Direct Current (DC).
For More Manuals By Waring Commercial, Visit ManualsLibraryy.
Waring Commercial WWD180X Single Classic Waffle Maker-FAQs
Is the Waring Commercial WWD180X good for professional use?
Yes, the Waring Commercial WWD180X is designed specifically for commercial environments like cafés, hotels, and restaurants. Its durable stainless-steel build and consistent heating make it reliable for frequent, high-volume waffle production without performance drops.
What type of waffles does this waffle maker produce?
This model makes classic-style waffles, which are thinner and crispier than Belgian waffles. Classic waffles cook faster and are ideal for diners, breakfast buffets, and restaurants that prefer a crunchy texture.
How is a classic waffle maker different from a Belgian waffle maker?
Classic waffle makers have shallower plates, producing thinner waffles with even crispness. Belgian waffle makers have deeper grids, resulting in thicker, fluffier waffles with large pockets for toppings.
Can I use pancake batter in the Waring WWD180X?
Yes, pancake batter can be used, but for best results, slightly reduce the liquid content. Waffle batter typically contains more fat, which helps achieve a crisp exterior and golden finish.
Does the Waring WWD180X heat evenly?
Absolutely. The waffle maker is built with commercial-grade heating elements that distribute heat evenly across the plates, ensuring consistent browning and reducing the chances of undercooked or burnt waffles.
Is this waffle maker energy efficient?
For a commercial appliance, it is quite efficient. It heats quickly, maintains stable temperatures, and doesn’t require excessive reheating between batches, which helps control electricity usage in busy kitchens.
How long does it take to cook one waffle?
On average, a classic waffle takes 2–3 minutes to cook, depending on batter type and desired crispness. This quick cooking time makes it ideal for fast-paced food service operations.
What else can be cooked in this waffle maker?
Besides waffles, you can cook hash browns, eggs, sandwich-style waffles, and even cookie dough. However, for commercial settings, it’s best to stick to approved foods to maintain plate condition.
How long does a commercial waffle maker usually last?
With proper cleaning and maintenance, a high-quality commercial waffle maker like the Waring WWD180X can last 5–7 years or more, even with daily use.
Is the Waring WWD180X easy to clean?
Yes. Its nonstick plates help prevent batter buildup, and the stainless-steel exterior wipes clean easily. Regular cleaning after service keeps it performing efficiently and extends its lifespan.
