Wasserstein Charging Station for Sony PlayStation 5 Controller Instructions

Wasserstein Charging Station for Sony PlayStation 5 Controller Instructions

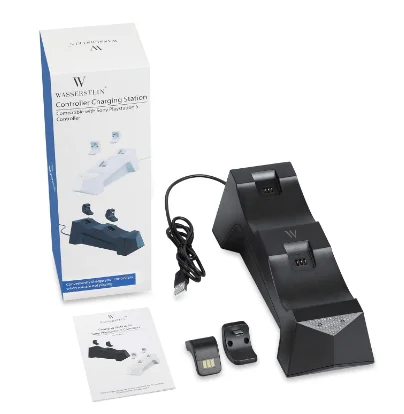

Package Includes

• 1 x Charging Station with attached charging cable
• 2 x 2 x Adapters
• 1 x User Manual

Safety Information

• Do not disassemble or put this charging station into water or fire.
• Do not use it in severe damp or corrosive environments to avoid circuit damage.
• Do not use unauthorized or incompatible power adapters to avoid damage to this charging station.
• If the charger output is short-circuited, the charger indicator flashes quickly.

Feature

Introduction

This charging station consists of 2 adapters that can charge two PS5 controllers at the same time. The charging indicators located at the front of the charging dock light up in red when charging the controllers and in blue when the controllers are fully charged.

Installation

1. Plug the attached USB cable’s Type-A connector of the cable into a power supply. (Note: Wall charger not included)
2. Once you finish connecting, the two indicator lights of the charging dock will light up at the same time. The indicators will turn red first and then blue. The two lights will then switch off at the same time to complete the self-check. This ensures that the charging dock is connected normally to the power supply.

Charging your controllers

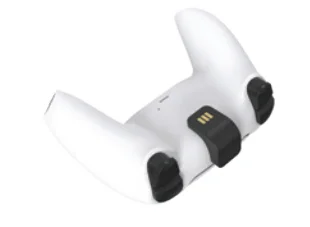

1. Insert the included adapters into the PS5 controllers by attaching the adapter to the controller’s Type-C charging port.
2. Place the PS5 controller (attached with the adapter) into the charging slot of the charging dock, and the corresponding charging indicator will light up in red, indicating that it is charging normally.
   (Note: Make sure that the adapter is aligned with the receptor pins of the charging dock when you place your PS5 controller, as shown below in the picture.)
3. The indicator lights remain red when charging the controllers, and when the battery of the controller is full, the indicator lights will change to blue.
4. Remove the adapter from the PS5 controller after the charging is completed to start playing your favorite games with your controller.

Troubleshooting

1. The charging indicator flashes quickly.
   The charger output is short-circuited. Please check if something is shorting the charging pins.
2. The charging indicator does not light up initially in the same way as described above.
   Please ensure that the power supply and connection are stable.
3. How many controllers can I charge at the same time?
   You can charge up to 2 controllers simultaneously.

Specification

• Input Voltage: DC5V±0.25V
• Max Charging Current:
  • 750mA (max) (one controller)
  • 1500mA (max) (two controllers)

For more information, visit: www.wasserstein-home.com or contact us at: [email protected]
